UNV-KIT-301-P8-4T4-2TB – Uniview IP Camera Kit

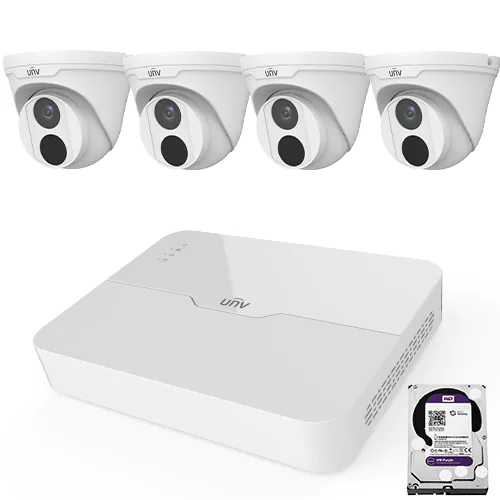

Uniview security camera kit including NVR301-08LS3-P8, 4* IPC3614LB-SF28K-G, and 2TB Western Digital Purple HDD

[Discontinued] – Alternatives: UNV-KIT-301-P4-4T4-1TB, 4ch KIT | UNV-KIT-301-P8-6T4-2TB, 8ch KIT

Description


This Uniview package kit features NVR301-08LS3-P8, 4* IPC3614LB-SF28K-G 4MP turret cameras, and a WD Purple 2TB HDD. This package makes for an effective, powerful security system at an affordable price. The NVR has 8 built-in PoE ports allowing for future expansion of four extra cameras.

Uniview IPC3614LB-SF28K-G is an entry-level security camera. This turret camera is great for providing sharp video surveillance of a scene at a low price. Effective indoors and outdoors due to IP67 weather resistance. Additionally, built-in IR provides illumination up to 30m in very dark environments.

The 2.8mm lens provides a wider field of view with a slightly lower pixel density.

Note: NVR301-08LS3-P8 (which comes in this kit) has slightly fewer features than a standard Uniview NVR. For example, this NVR only supports Smart Intrusion Prevention on channels 1 – 4. In addition, you cannot attach an image with email notifications. If you need these features, we recommend upgrading to NVR301-08X-P8 or NVR302-08S2-P8.

Features – Uniview 8Ch NVR Camera Kit

NVR301-08LS3-P8

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Plug & Play with 8 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI and 1-ch VGA; HDMI at up to 4K(3840×2160) resolution
  • HDMI and VGA simultaneous output
  • Up to 8MP resolution on recording
  • 1 SATA HDD, up to 6TB
  • Support cloud upgrade

IPC3614LB-SF28K-G

  • High quality image with 4MP, 1/3” CMOS sensor
  • Smart IR, up to 30 m (98ft IR distance)
  • 3D DNR (Digital Noise Reduction)
  • Ultra 265, H.265, H.264, MJPEG
  • 3-Axis
  • ONVIF Conformance
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67

Specification

Model NVR301-08LS3-P8
Video/Audio Input
IP Video Input 8-ch
Network
Incoming Bandwidth 64Mbps
Outgoing Bandwidth 48Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Corridor Mode Screen 3/4
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30
Hard Disk
SATA 1 SATA interface
Capacity up to 6TB for each disk
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
PoE
Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 54W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 205mm × 205mm × 46mm (8.1″×8.1″×1.8 “)
Weight (without HDD) ≤0.6kg (1.32 lb)
