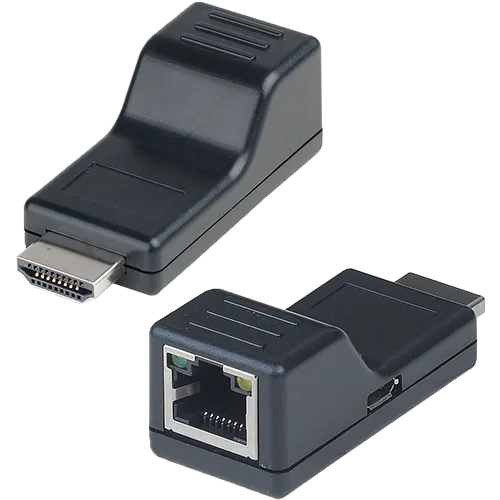

XLR-ACC-HDMIEXTENDER-40M

HDMI Signal Extender 1080p over Cat5e Cat6 Cable – Max Range 40m

Description

The XLR-ACC-HDMIEXTENDER-40M is a powerful receiver/transmitter combo in a small form factor. Specifically designed for CCTV equipment, it can transmit a 1920x1080p signal up to 40M over Cat5e or Cat6 cable.

Features – HDMI Signal Extender

  • Special design to extend HD DVR/NVR HDMI signal only.
  • Include HE01SET transmitter, HE01SER receiver, used in pairs via one CAT5e/6 cable to send HDMI signal.
  • HE01SER as active receiver for high performance.
  • No external power required.
  • Built in micro USB for external power when your HDMI source not able to provide enough power to the receiver.
  • Support high resolution 1080p at 40M.
  • Support long distance up to 70 meters at 1280×720.

Specification

Video Bandwidth 2.25 Gbps (HDMI 1.3)
Resolution Up to 1920×1200@60hz
Input TMDS Video Signal 1.2 Vp-p
Input DDC Signal 5 Vp-p (TTL)
Link Cable Distance  40M@1920×1200, 70M@1280×720
HDMI Connector HDMI Type A
Link Connector RJ45 x 1
Power Connector Micro USB x 1
Power Consumption  320mA
Power Supply  5V 1Amp (Optional Order)
Temperature Operation: -10 to 65℃, Storage: -20 to 85℃, Humidity: up to 85%
Dimension            mm 57.5 × 24 × 20.2
Weight                 g 20
