An access control terminal by Akuvox with buttons for entering your PIN number, and a built-in card reader.

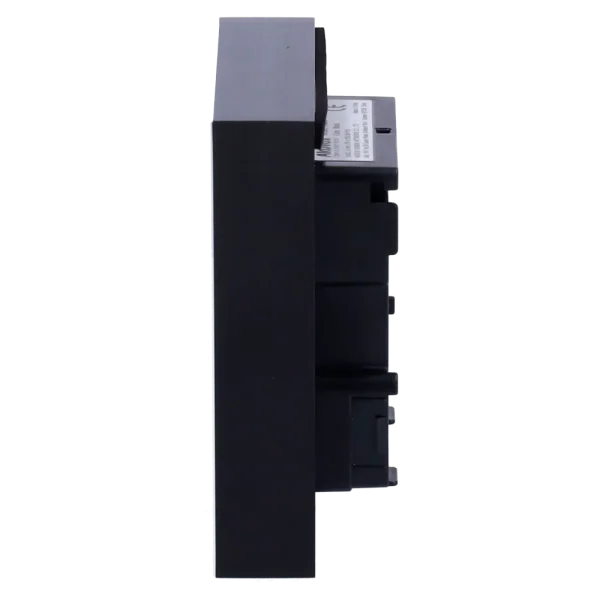

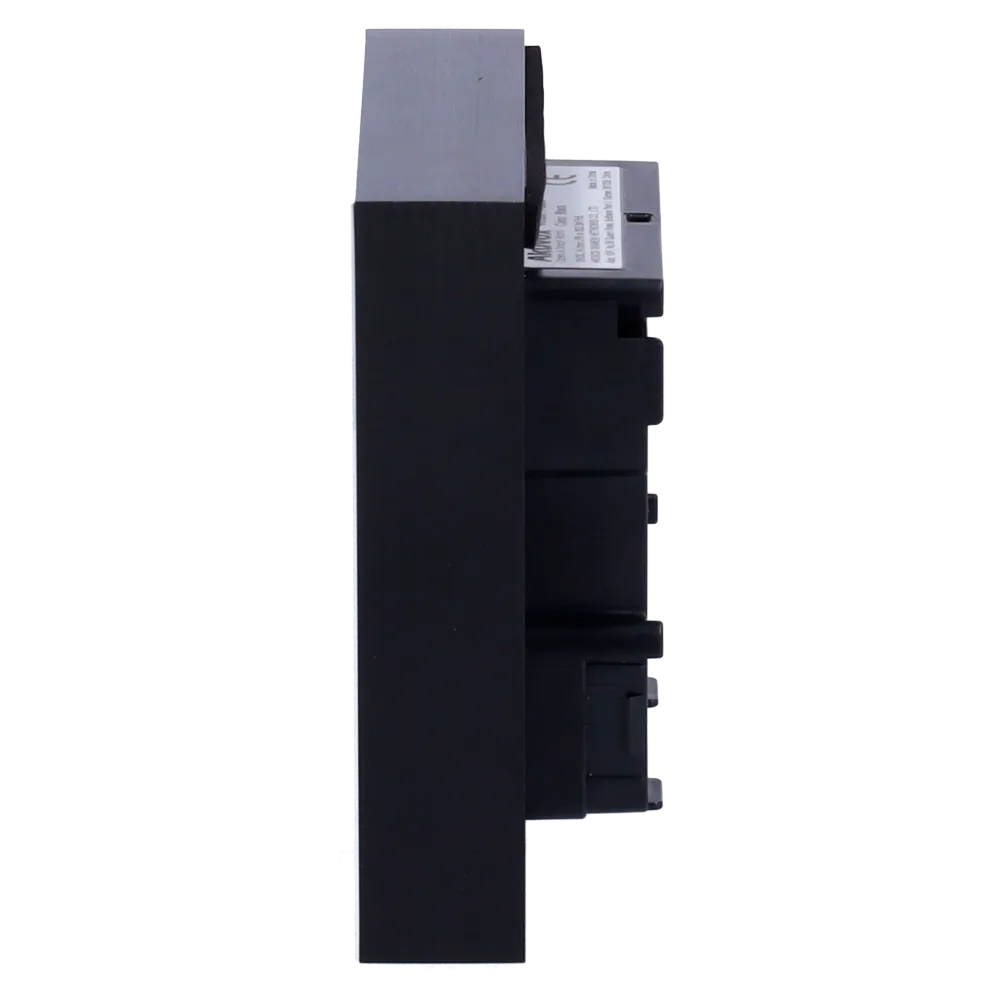

A side view of Akuvox's A02S card reader terminal, revealing a slightly bulky design with durable plastic materials.

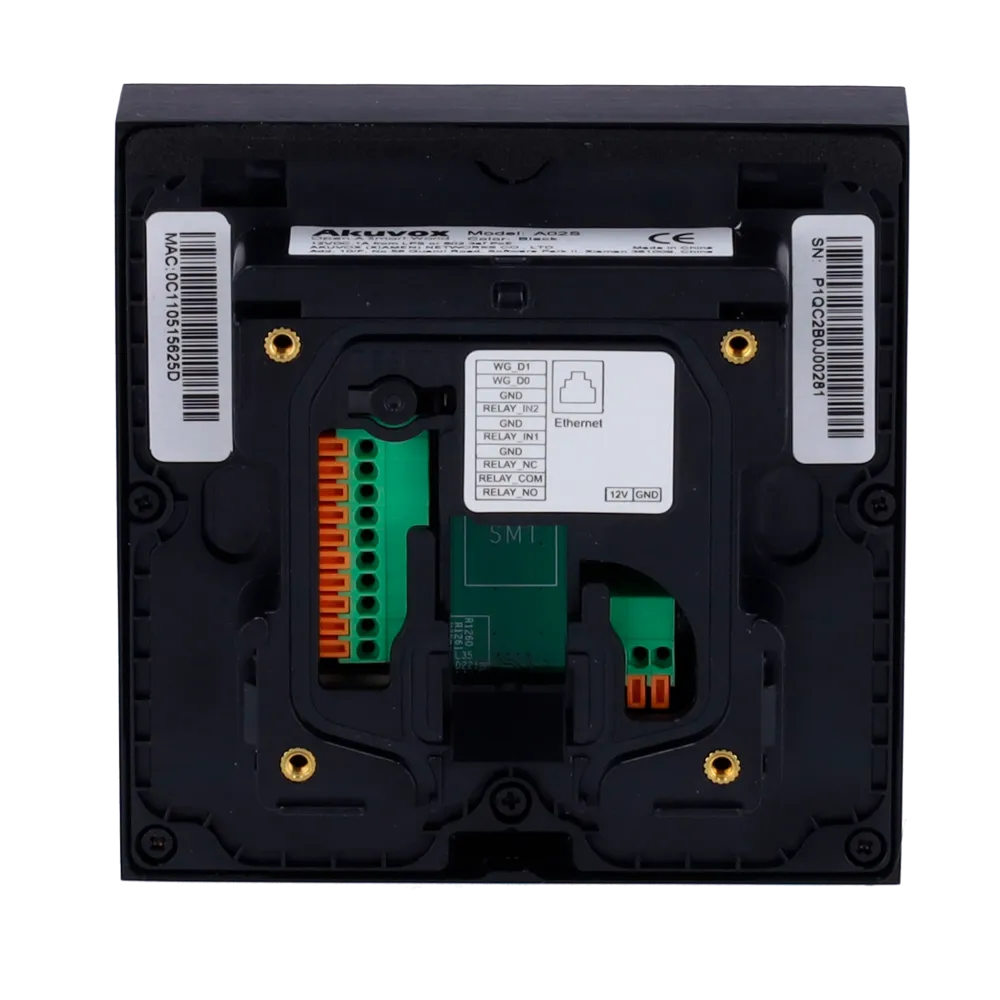

The back of Akuvox's A02S reader with a green wiring terminal for outputs to a door strike, and a smaller wiring terminal for 12V DC power.

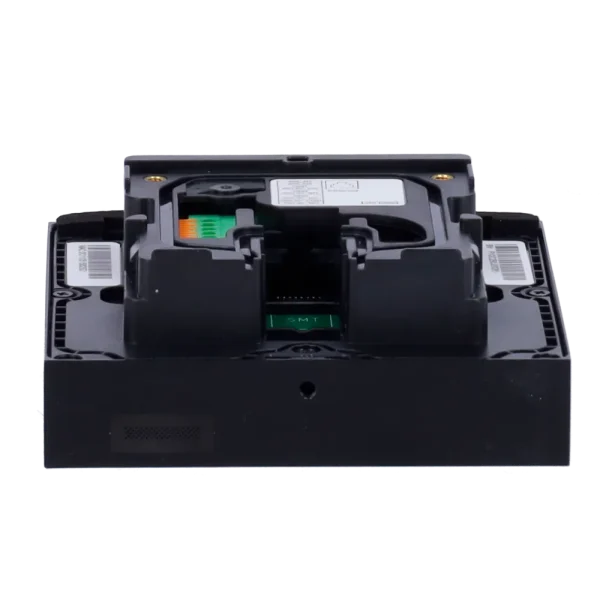

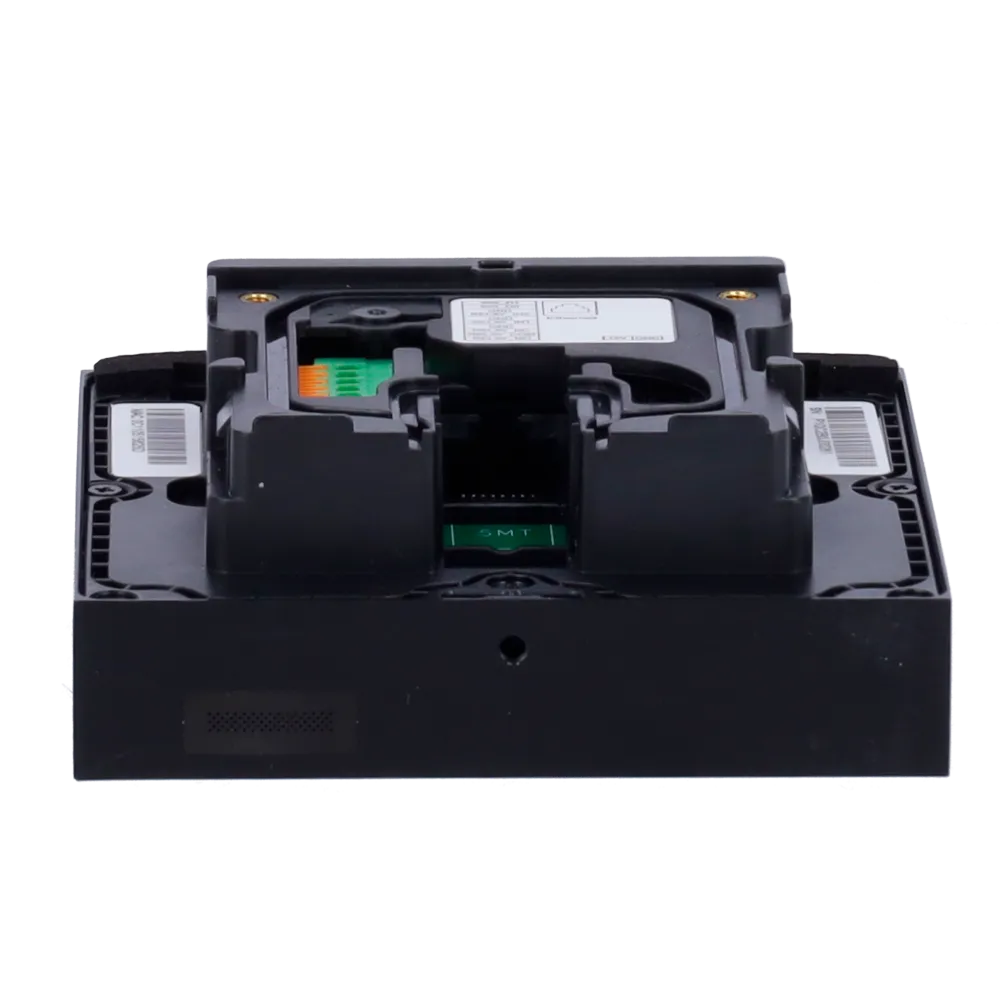

The bottom of Akuvox's A02S reader with an Ethernet port in the center and a wiring terminal along the left side.

AK-A02S

A02 is an IP-based access control terminal that combines door controller and card reader in one device. It supports PIN codes, RFID cards, and mobile access via NFC, offering users flexibility in credentials options.

Login for pricing
Category: Tag:

Description

The Akuvox AK-A02S is a square-shaped access control terminal with an output relay (12V / 500mA) for connecting to electric door strikes. This terminal supports a variety of entry methods, including QR code, Bluetooth, 125 kHz & 13.56 MHz cards, PIN code, and NFC.

This is a standalone reader, which means that you can install it directly beside a door, without needing any controller.

Key Features – Akuvox A02S Access Control Terminal

  • A02-RFID+Keypad Access Control Terminal
  • Touch keypad front panel & Aluminum alloy frame
  • 156MHz & 125kHz RFID card reader & NFC
  • 20,000 card capacity &100,000 event logs
  • Support tamper alarm
  • Identification Mode:PIN,RFID Card,Two factor authentication
  • Water-proof & Dust-proof:IP65
  • Installation:Wall mount & Flush mount
  • 803af Power-over-Ethernet and 12V DC connector (if not using PoE)

Specification

Brand Akuvox
Model A02S
Access control Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC and PIN, with records
Capacity Up to 20.000 users, 20.000 cards and 20.000 passwords
Records 100.000 registers
Communication TCP/IP and Wiegand
Outputs Wiegand OUT, 1 of relay for main lock (12V/500mA)
Inputs Wiegand IN, 2 of pushbutton, 1 of tamper
Advanced features Anti-passback (configurable via Cloud, in Office Project)
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Audio Loudspeaker for opening messages
Network interface Ethernet 10/100 BaseT
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Plastic (body) and aluminum alloy (frame)
Degree of protection IP65 & IK07
Temp. operation -20 ºC ~ +55 ºC
Dimensions 86 (H) x 86 (W) x 33 (D) mm
Power DC 12 V / 1000 mA max. / IEEE802.3af PoE
Weight 206 g
