Petenet is a global manufacturer of professional PoE switches and power supplies. Since 2008 they have built commercial-grade switches for manufacturing, telecom and office buildings, along with PoE extenders, injectors and splitters for IP cameras and IoT devices. Most Petenet PoE switches have DIP switches for VLAN isolation, longer PoE runs and PoE Watchdog, so there is no software to set up. We stock Petenet in Toronto and ship across Canada.

Petenet Resources

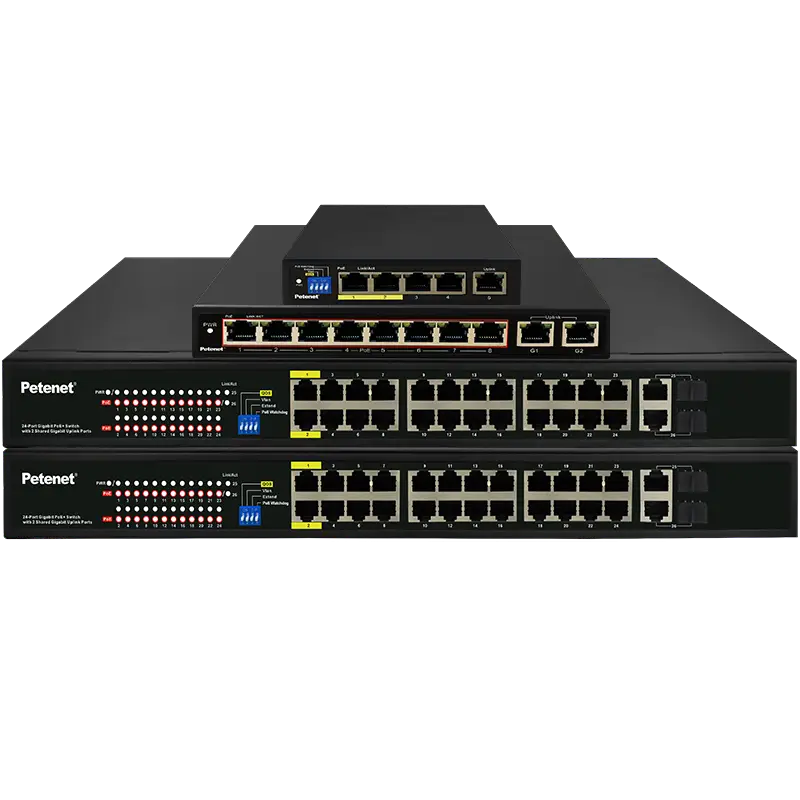

Petenet PoE Switches

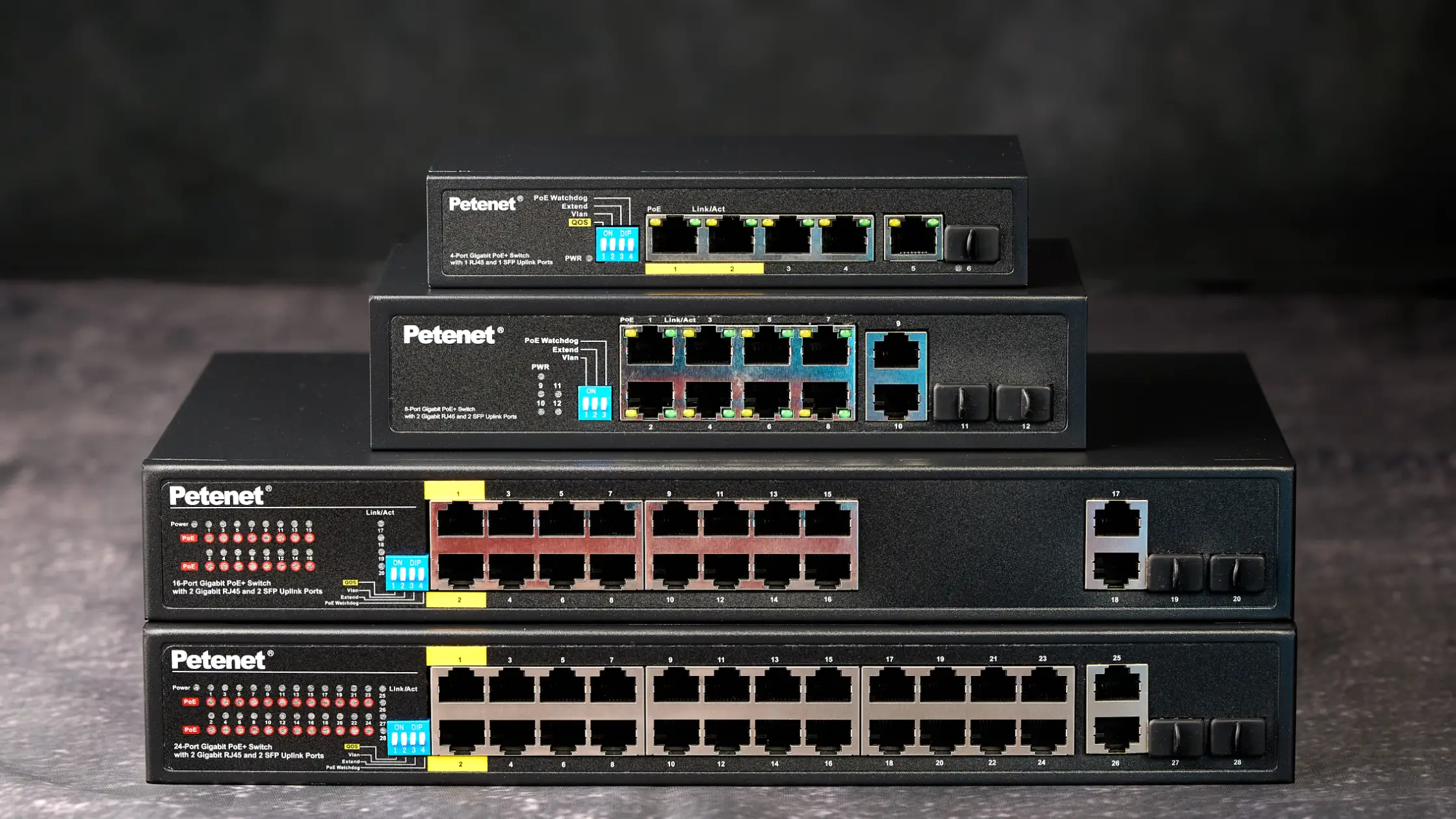

Performance “D” Series – Gigabit PoE+

PN-D7006F-4P-60

PN-D7006F-4P-604-port PoE+ w/ RJ45 + SFP uplink (60 W budget)

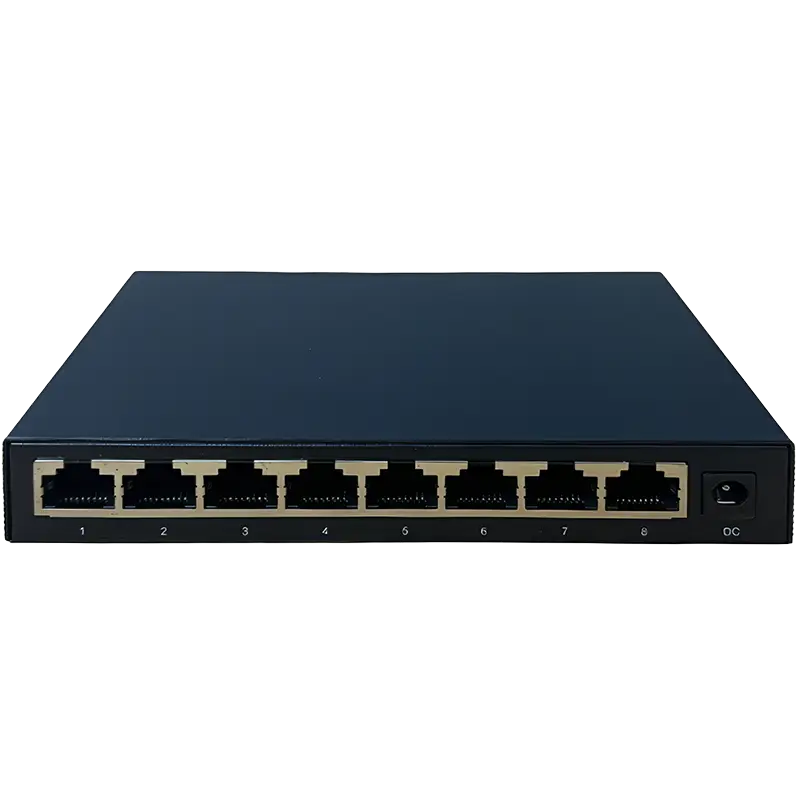

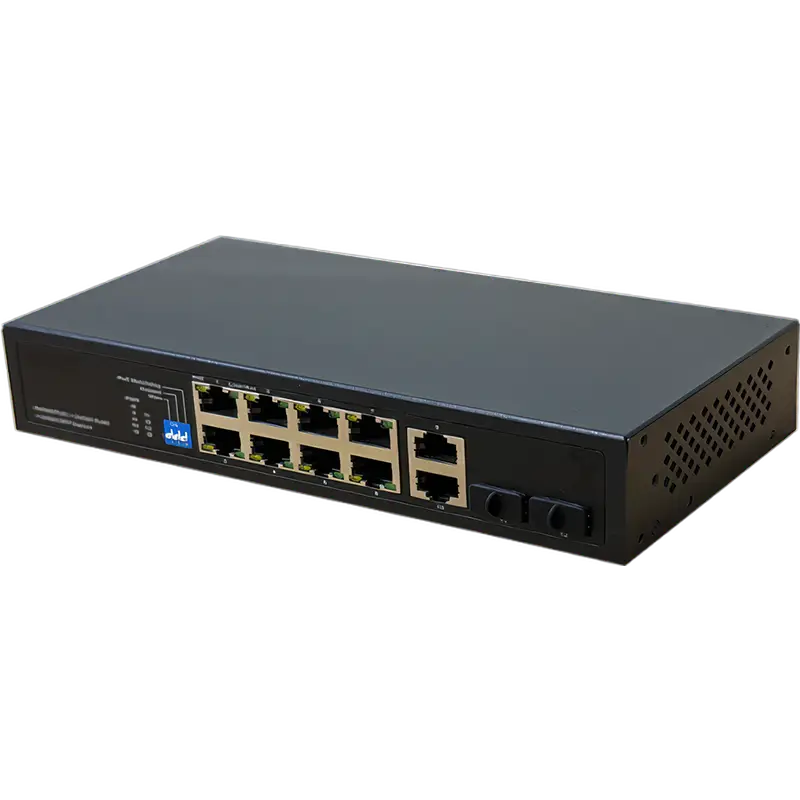

PN-D7012-8P-120

PN-D7012-8P-1208-port PoE+ w/ 2 RJ45 + 2 SFP uplinks (120 W budget)

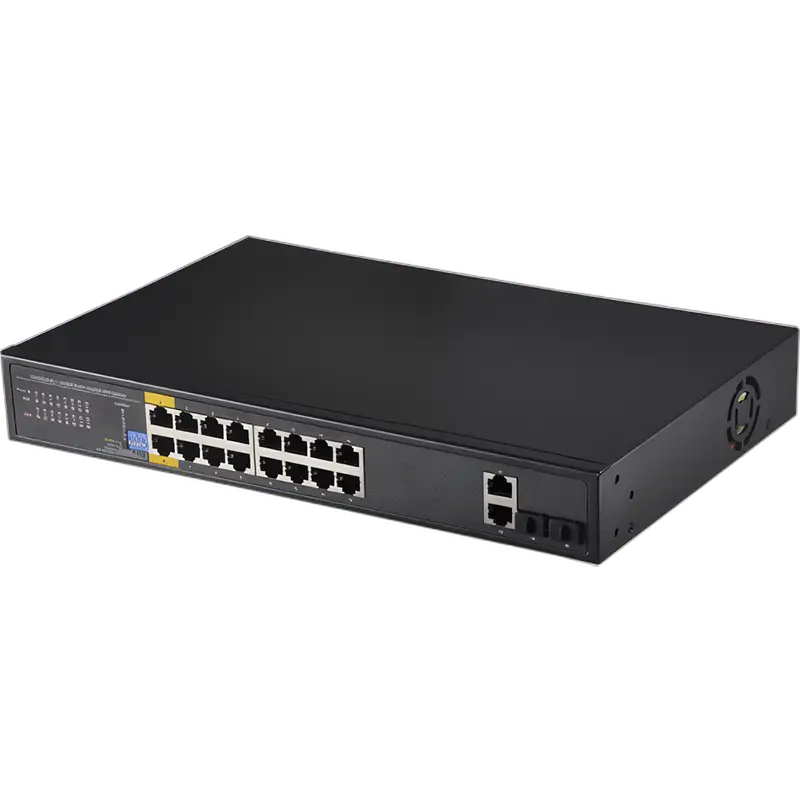

PN-D7020-16P-250

PN-D7020-16P-25016-port PoE+ w/ 2 RJ45 + 2 SFP uplinks (250 W budget)

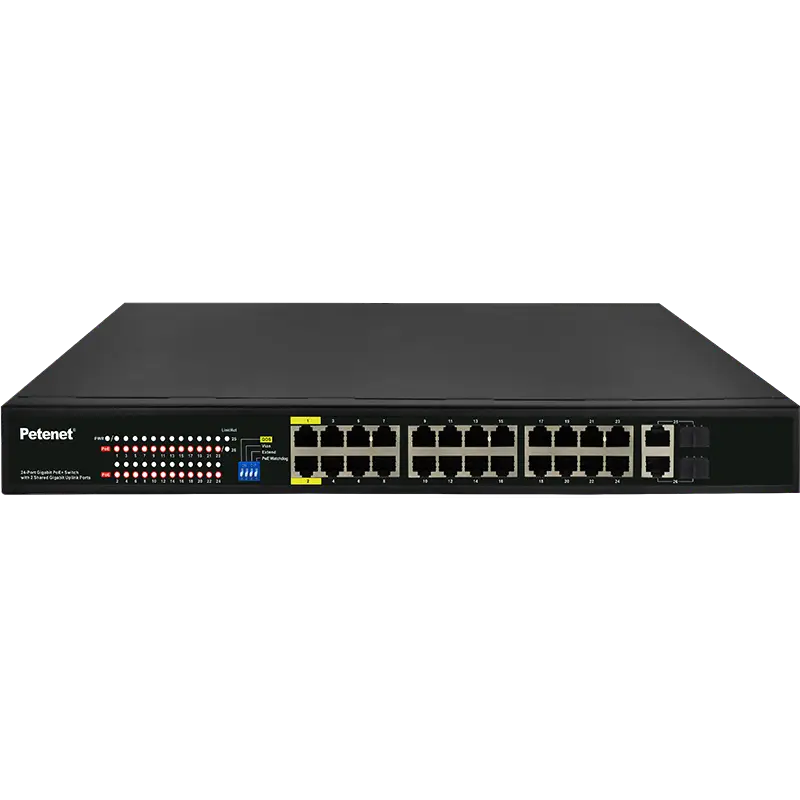

PN-D7028-24P-360

PN-D7028-24P-36024-port PoE+ w/ 2 RJ45 + 2 SFP uplinks (360 W budget)

Fast Ethernet PoE Switches (10/100 Mbps)

PN-D5006-4P-60

PN-D5006-4P-604-port PoE w/ 2 uplinks, wall-mountable (60 W budget)

PN-S5005-4P-65

PN-S5005-4P-654-port PoE w/ uplink (65 W budget)

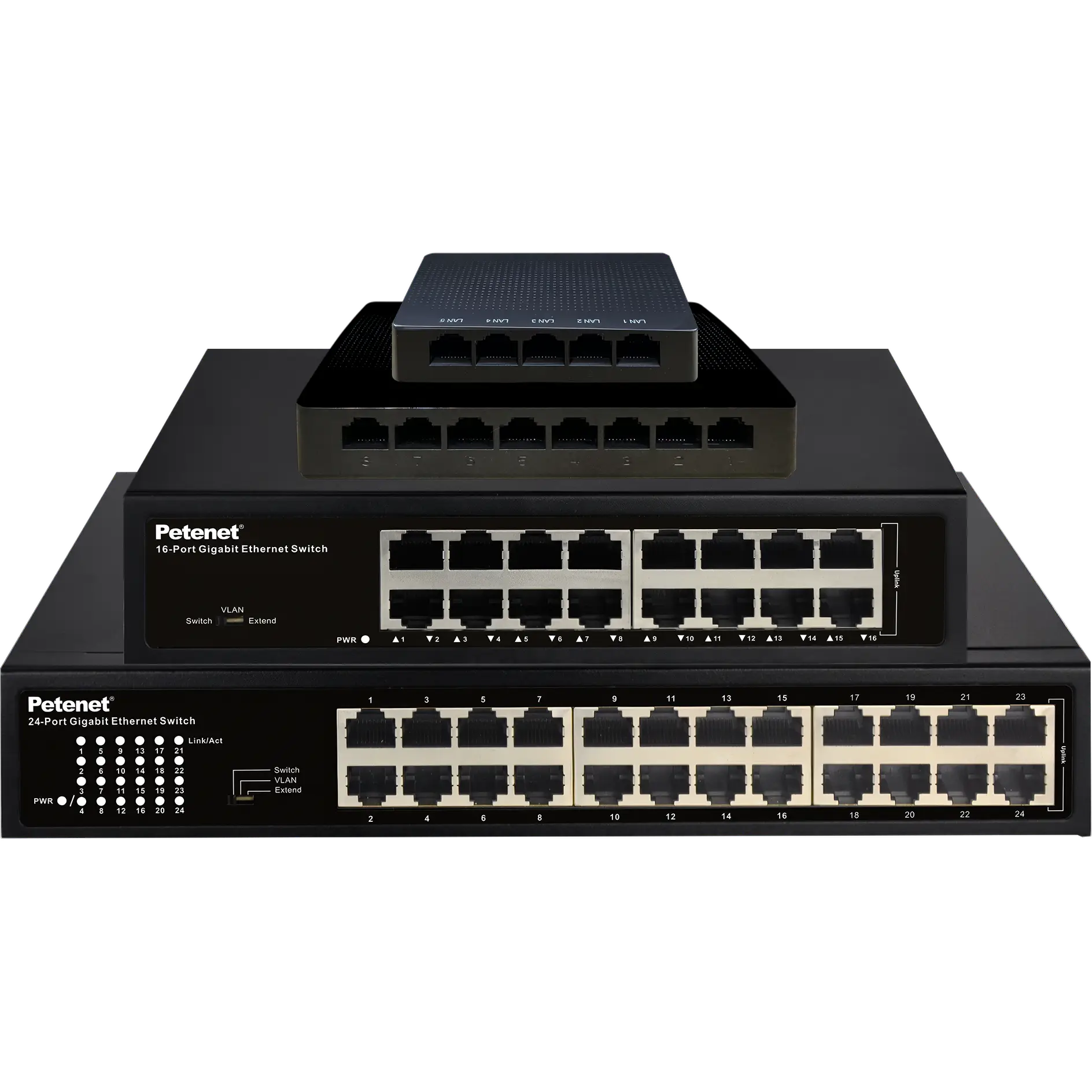

Industrial & Non-PoE Switches

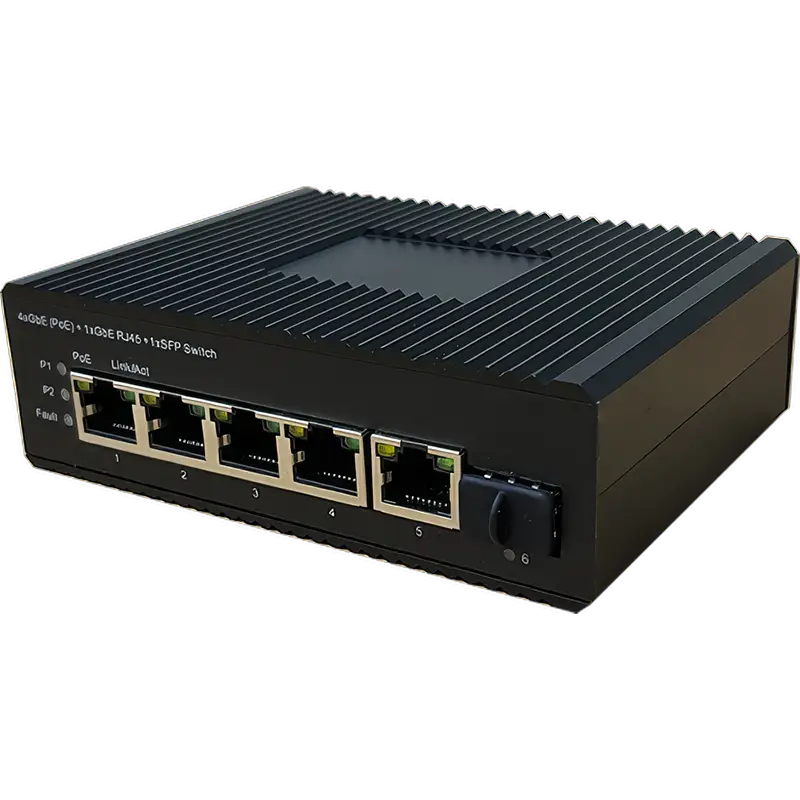

PN-S7005-4P-I

PN-S7005-4P-I4-port Gigabit PoE+ industrial switch, −40 °C to 60 °C

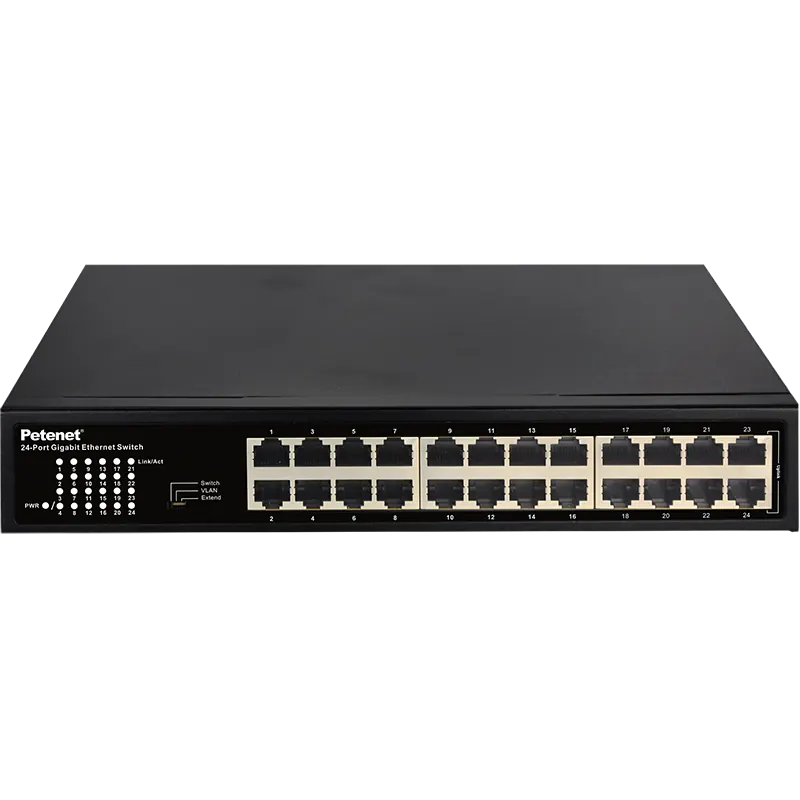

PN-S7024

PN-S702424-port Gigabit unmanaged switch (no PoE)

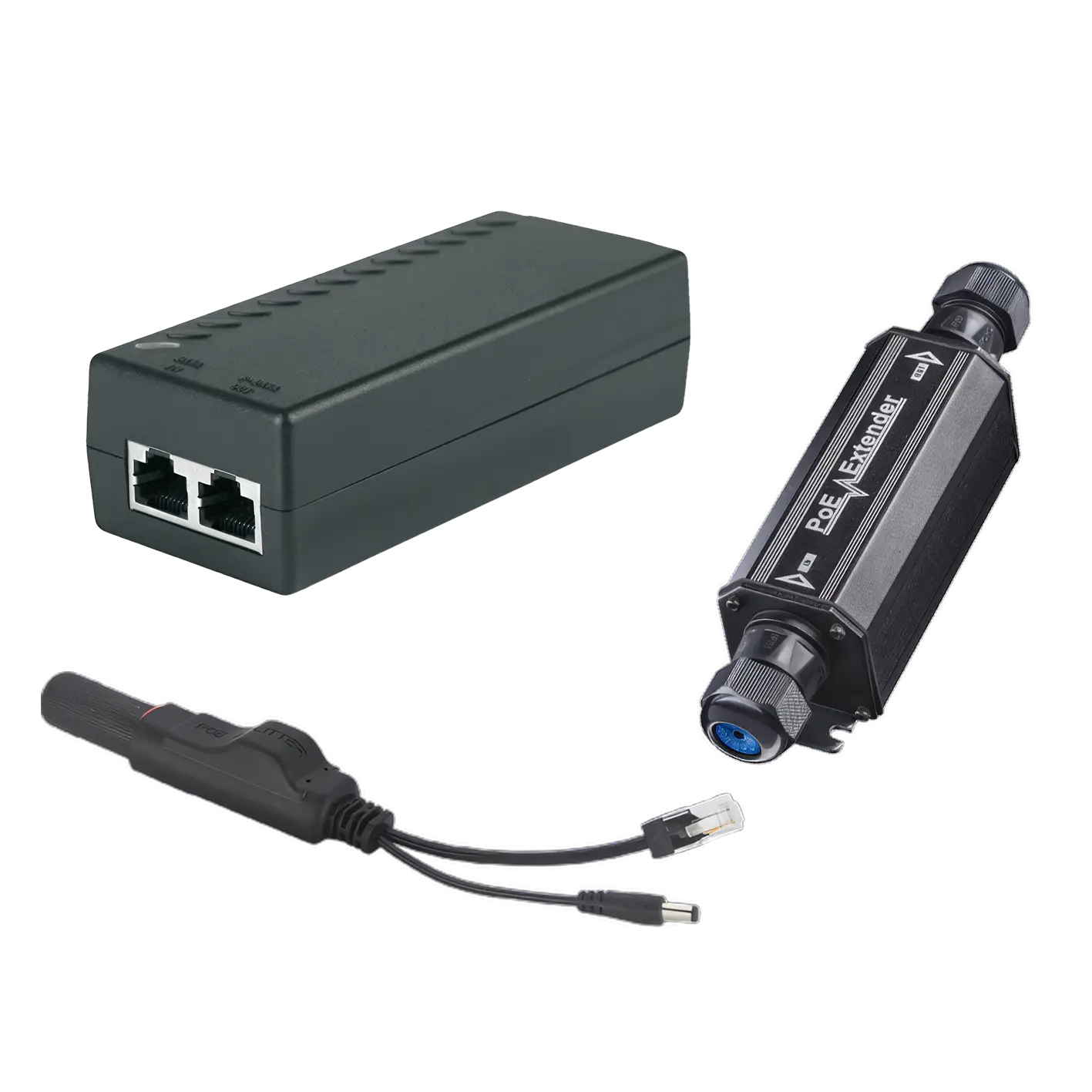

PoE Extenders, Injectors & Splitters

PoE Extenders – Go Past 100 m

PN-E7005-4P-60

PN-E7005-4P-604-port extender: 1 PoE++ input, 4 PoE+ outputs

PN-FS-E7002-1P-25

PN-FS-E7002-1P-25Outdoor Gigabit PoE extender, 1 output

PN-FS-E7002-2P-60

PN-FS-E7002-2P-60Outdoor Gigabit PoE extender, 2 outputs

PoE Injectors – Power One Device

PN-PSE101TN

PN-PSE101TN30 W Gigabit PoE+ injector

PN-PSE101HN

PN-PSE101HN60 W Gigabit PoE++ injector

PN-PSE101H+

PN-PSE101H+90 W Gigabit PoE++ injector for PTZs and high-end APs

PoE Splitters

PN-PD1001T

PN-PD1001TPoE in, selectable 5 / 9 / 12 / 18 V DC + Ethernet out

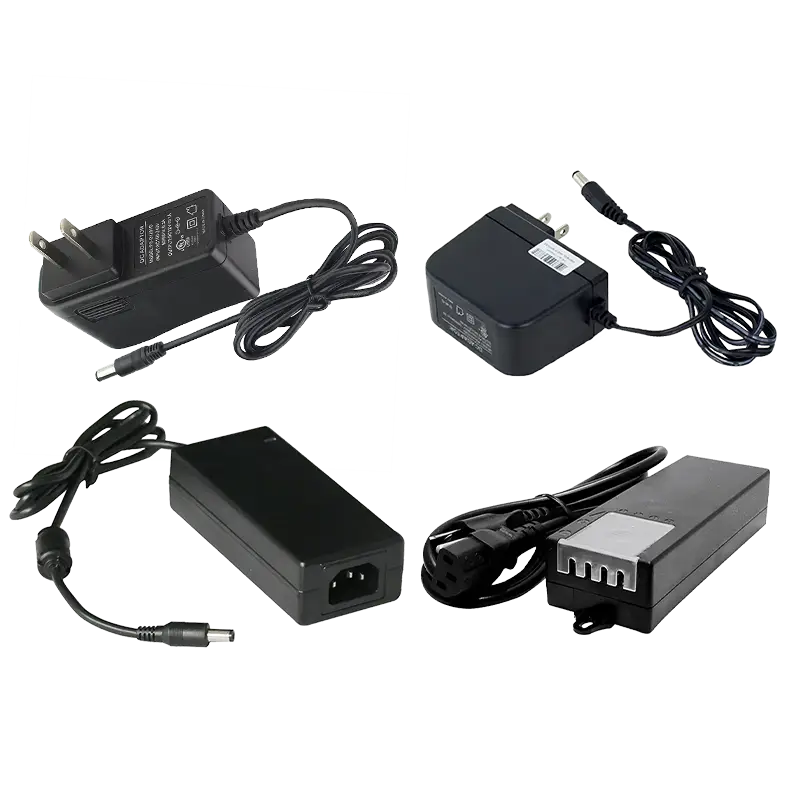

Power Supplies

12 V DC Power Supplies for Cameras

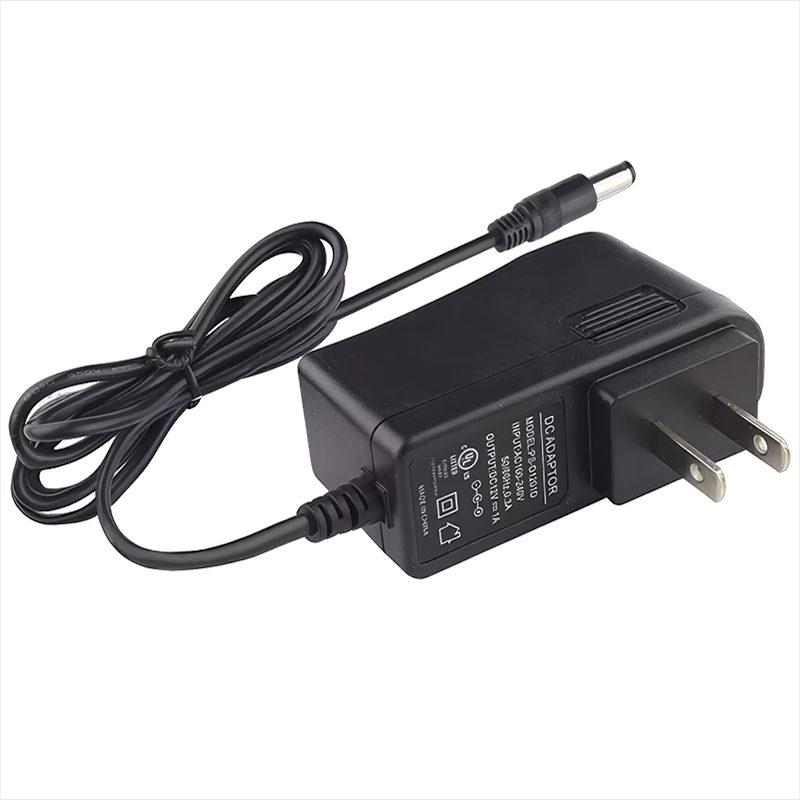

XLR-PWR-1A

XLR-PWR-1A12 V DC 1 A power adapter, UL listed

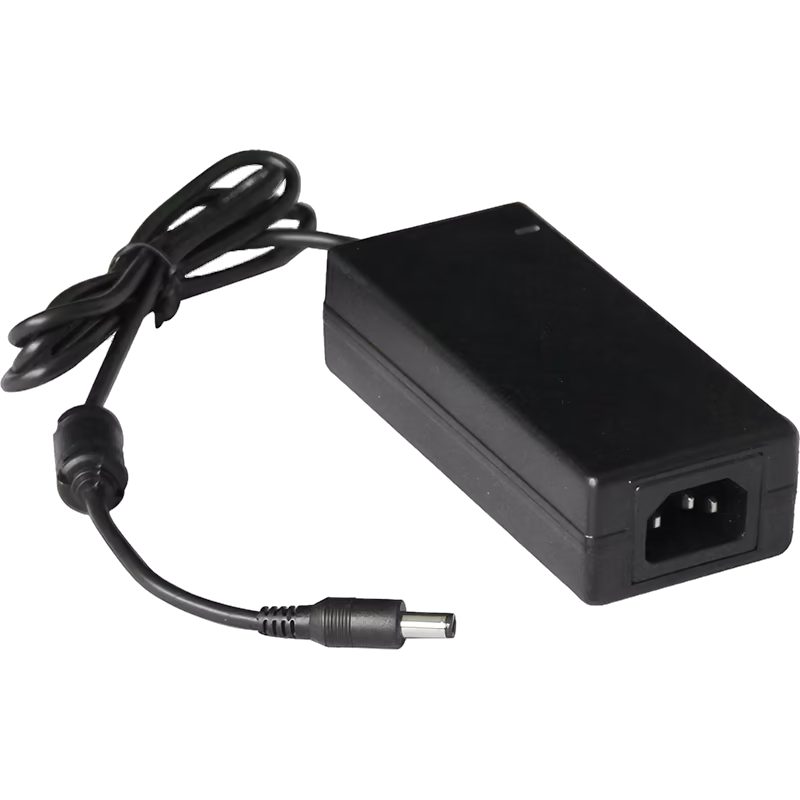

XLR-PWR-2A

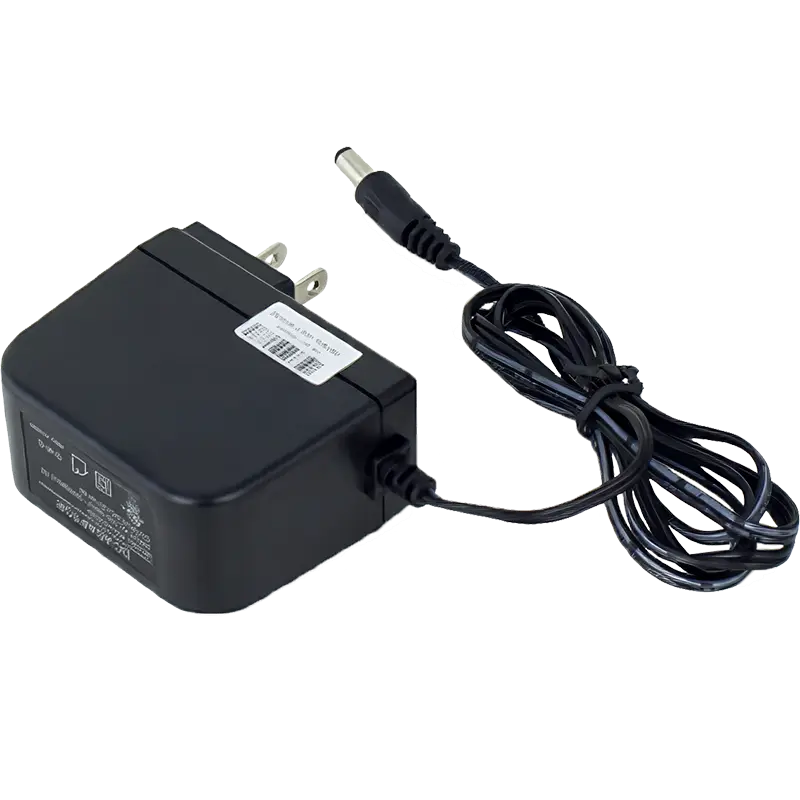

XLR-PWR-2A12 V DC 2 A power adapter, UL listed

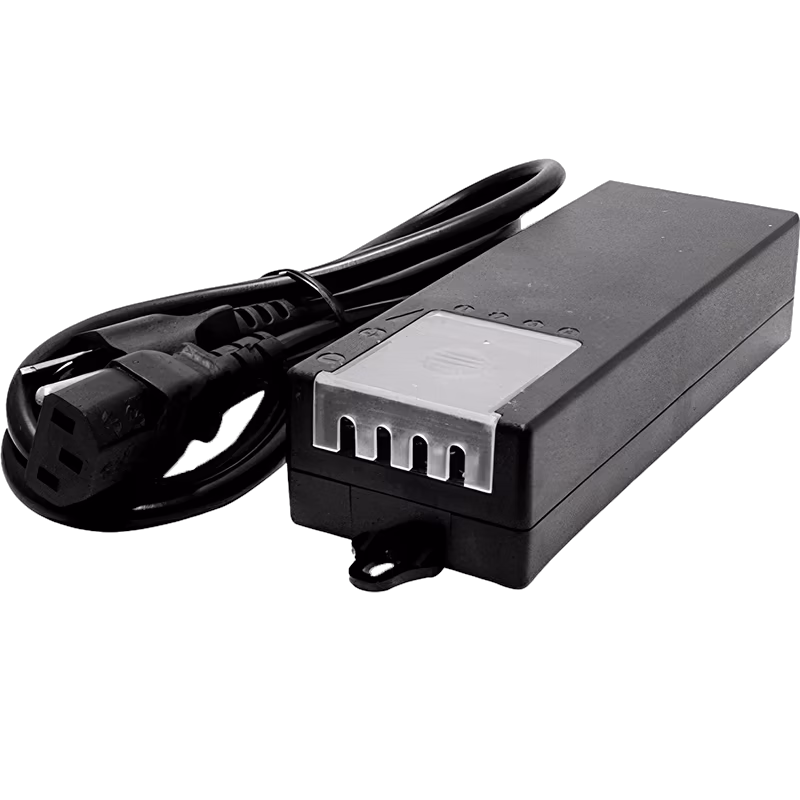

XLR-PWR-4CH5A

XLR-PWR-4CH5A4-channel 12 V DC 5 A power supply box, UL listed

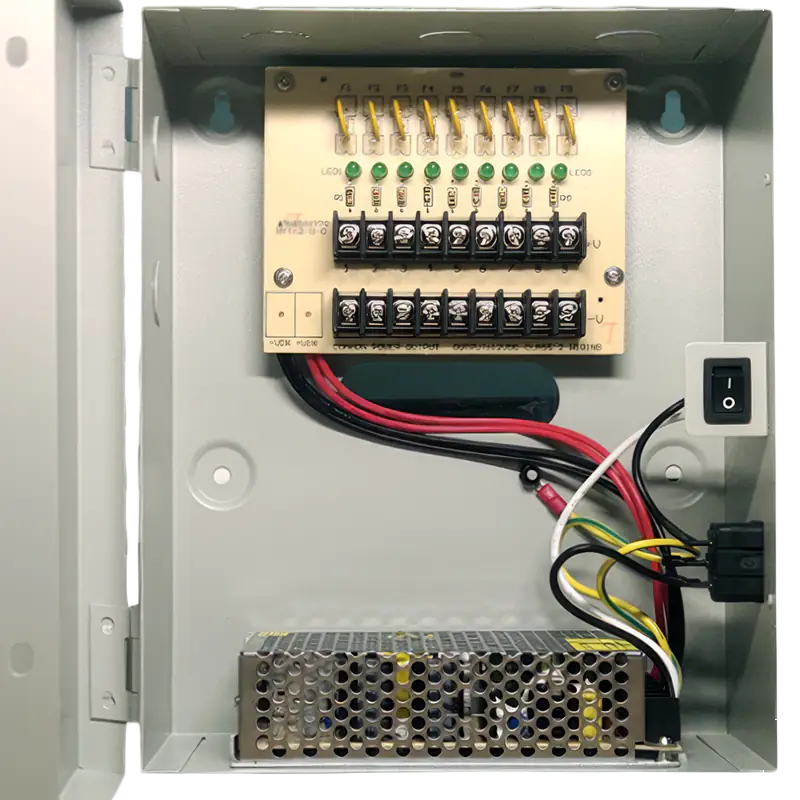

XLR-PWR-9CH10A

XLR-PWR-9CH10A9-channel 12 V DC 10 A power supply box

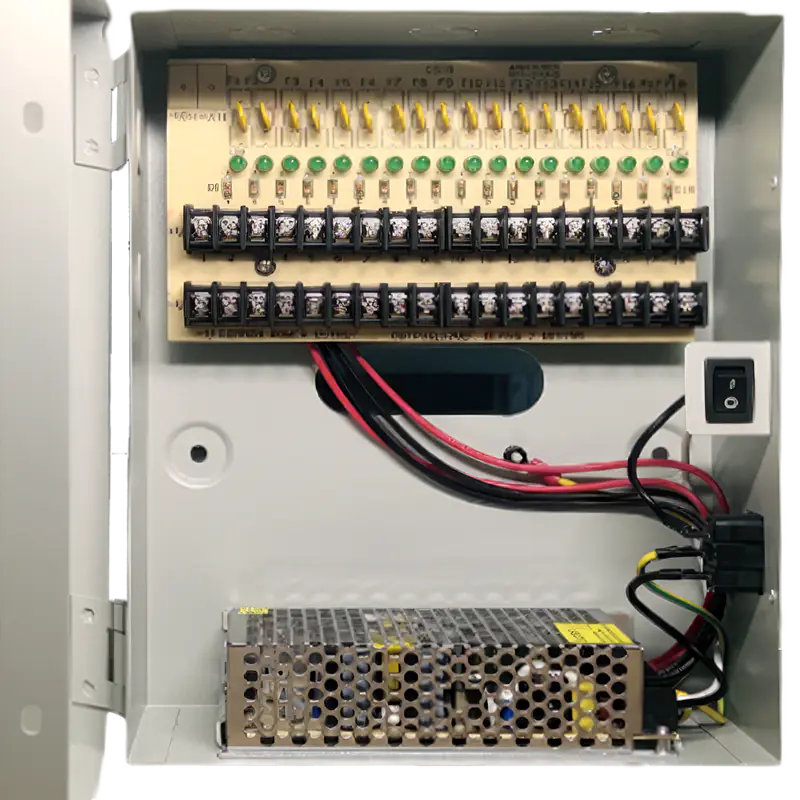

XLR-PWR-18CH10A

XLR-PWR-18CH10A18-channel 12 V DC 10 A power supply box

Smart Functions with DIP Switches

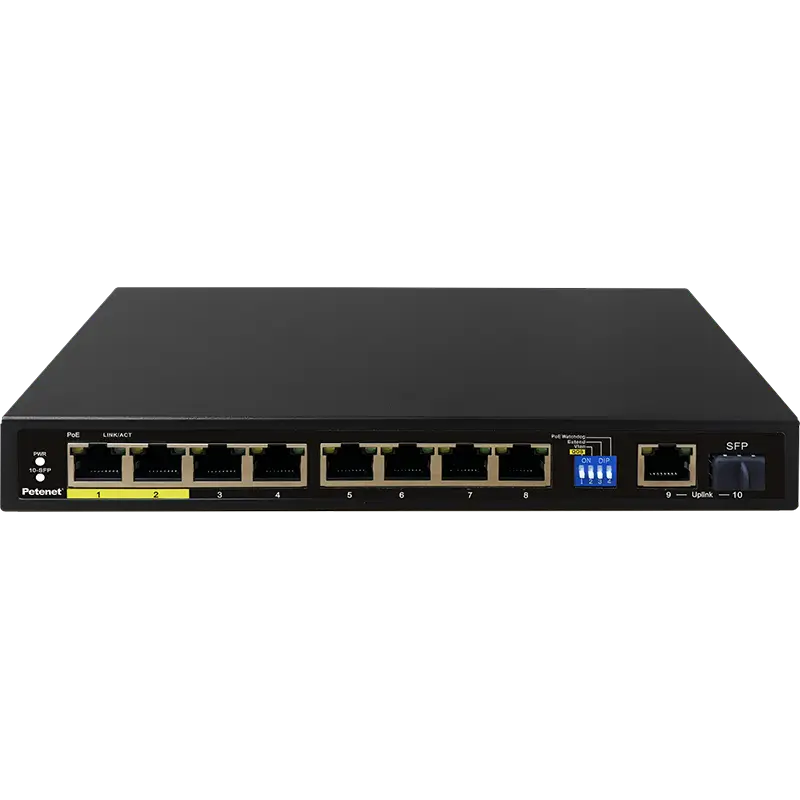

Most Petenet PoE switches, including the whole Performance “D” Series, have a three-position DIP switch on the front. Move a switch to ON to turn on a feature, with no software or login:

  • VLAN – isolates the PoE ports, so each can only talk to the uplink port and not to each other.
  • Extended PoE – stretches PoE from 100 m to 250 m, with the port limited to 10 Mbps.
  • PoE Watchdog – automatically reboots a PoE port when its device stops sending data for three minutes.
Petenet DIP switch functions: VLAN, Extended PoE and PoE Watchdog

Choosing a switch: allow one PoE port per camera plus a few spare, then add up the cameras’ maximum power and pick a switch with a higher PoE budget. The model name shows both: PN-D7012-8P-120 has 8 PoE ports and a 120 W budget. A typical fixed camera draws under 10 W; PTZ cameras and cameras with heaters, white lights or sirens draw much more.

Buy Petenet from XLR Security

You can buy Petenet switches, PoE accessories and power supplies directly from us at XLR Security. We’re in Toronto, ON, and we ship across Canada, or you can pick up from our office.

Pricing is available to dealers and installers: apply for our dealer program using the link below.
