AK-A03S
A03S is an IP-based access control terminal combining a reader and a door controller. It offers flexible credentials, including wave-to-unlock via Bluetooth, mobile access via NFC, and RFID cards.
Description

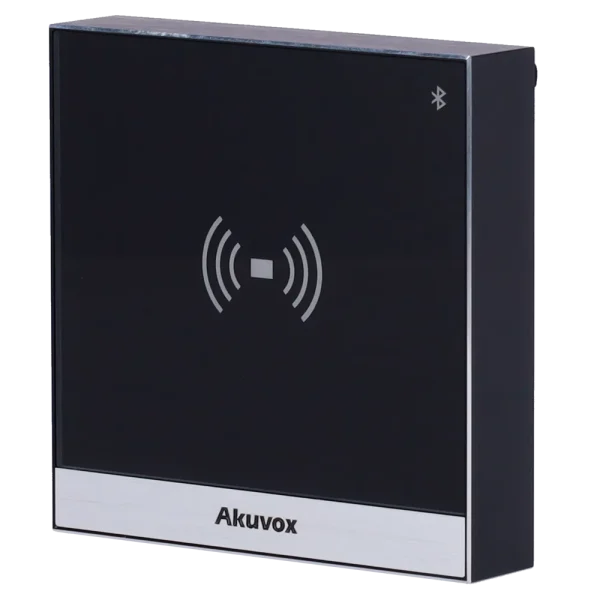

The Akuvox AK-A03S is a square-shaped access control terminal with an output relay (12V / 500mA) for connecting to electric door strikes. This terminal supports a variety of entry methods, including QR code, Bluetooth, 125 kHz & 13.56 MHz cards, PIN code, and NFC.
This is a standalone reader, which means that you can install it directly beside a door, without needing any controller. It’s made from toughened glass, offering extra vandal resistance.
Key Features – Akuvox A03S Access Control Terminal w/ Vandal Resistance
- Access Control Terminal
- Front panel: Toughened Glass
- Frame: Aluminum
- 156MHz & 125kHz RFID card reader & NFC
- Up to 20,000 cards and 100,000 card event logs
- Water-proof & Dust-proof: IP65
- Bluetooth support
- Installation: Flush mount or Wall-mount
- PoE (IEEE803af, Power-over-Ethernet)
Specification
| Brand | Akuvox |
| Model | A03S |
| Access control | Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC and Bluetooth BLE, with records |
| Capacity | Up to 20.000 users and 20.000 cards |
| Records | 100.000 registers |
| Communication | TCP/IP and Wiegand |
| Outputs | Wiegand OUT, 1 of relay for main lock (12V/500mA) |

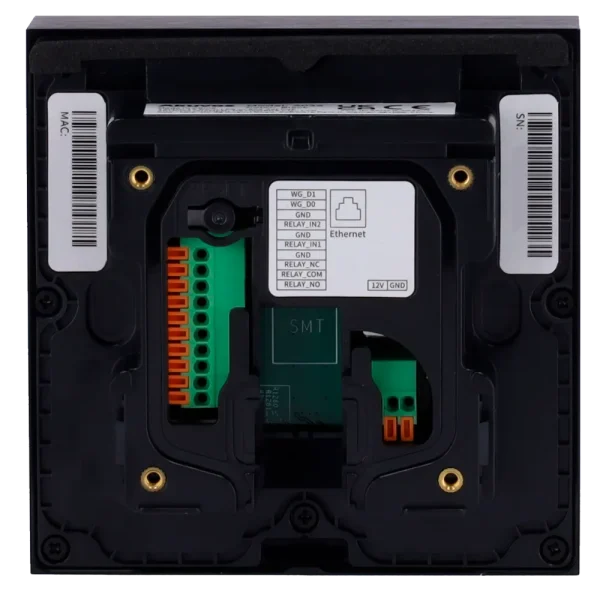

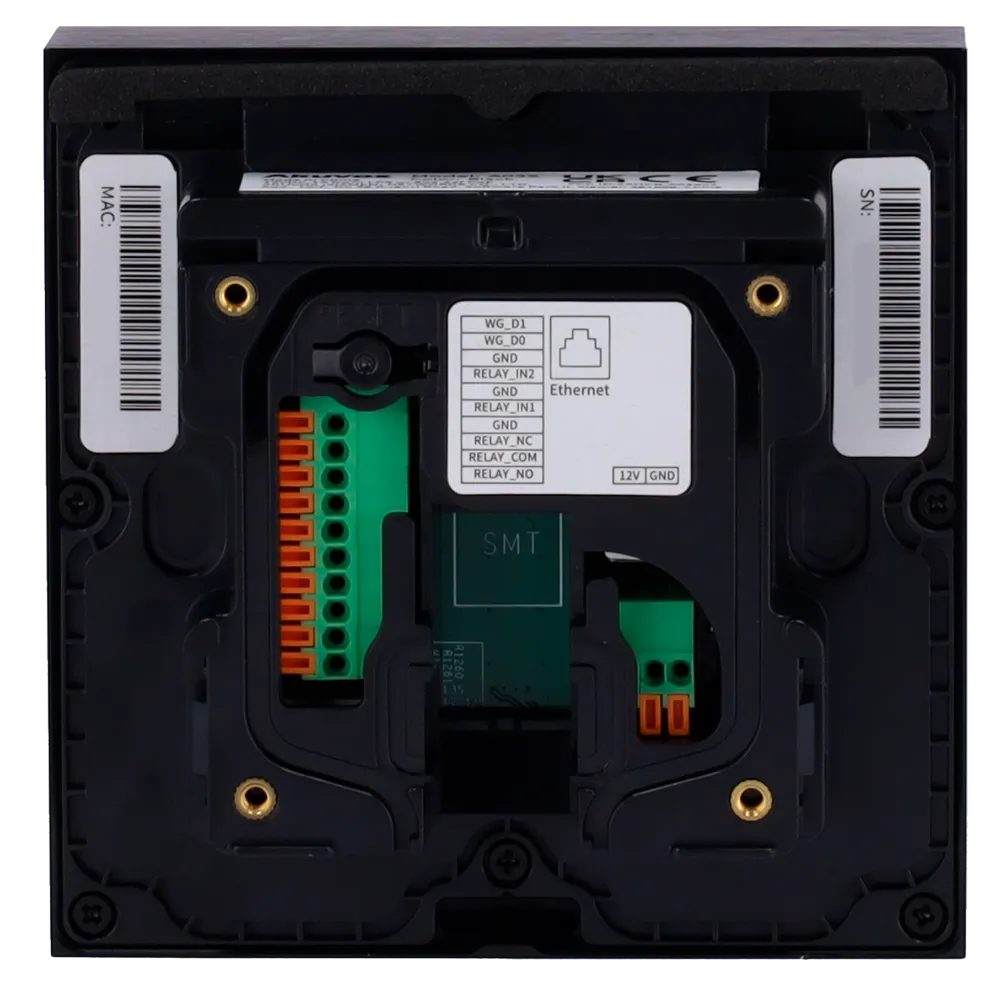

| Inputs | Wiegand IN, 2 of pushbutton, 1 of tamper |
| Advanced features | Anti-passback (configurable via Cloud, in Office Project) |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Audio | Loudspeaker for opening messages |
| Network interface | Ethernet 10/100 BaseT |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Plastic (casing), aluminium alloy (frame) and tempered glass (front) |
| Degree of protection | IP65 & IK07 |
| Temp. operation | -20 ºC ~ +55 ºC |
| Dimensions | 86 (H) x 86 (W) x 33 (D) mm |
| Power | DC 12 V / 1000 mA max. / IEEE802.3af PoE |
| Weight | 206 g |
