A metal rectangle with buttons numbered 0 through 9 with the Akuvox logo at the bottom.

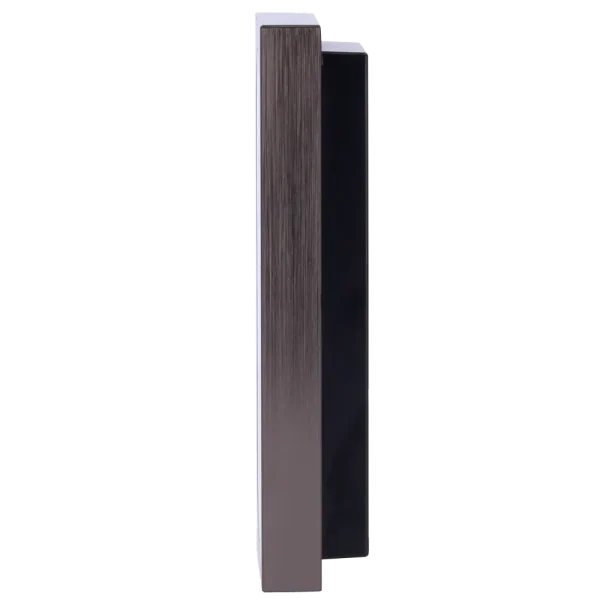

The side of Akuvox's A08K access control terminal with a grey metal body on the left, and a black plastic housing on the back

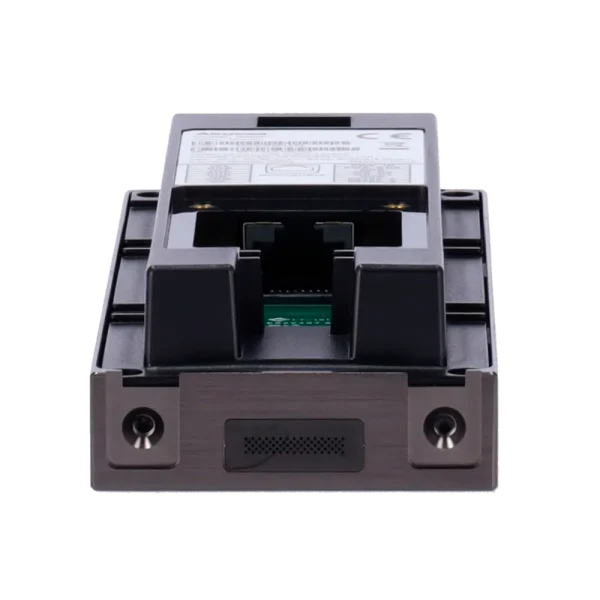

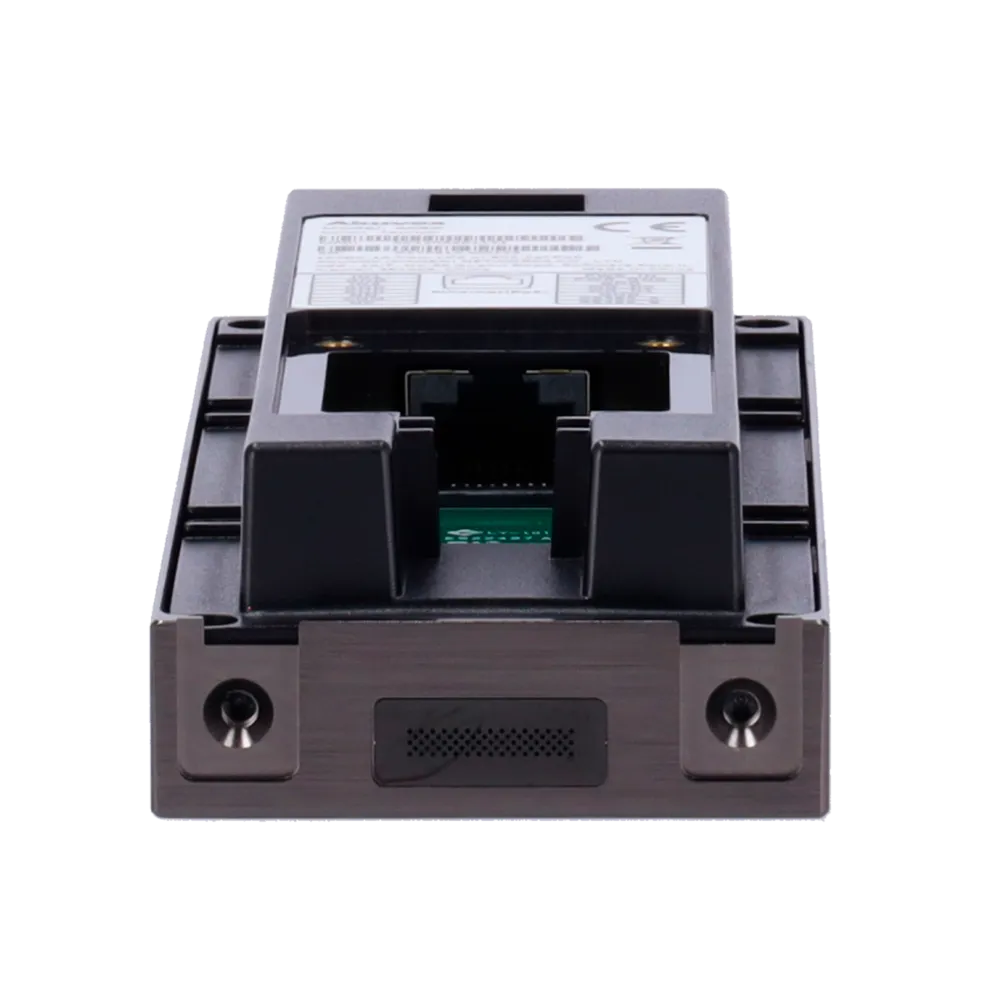

The bottom of Akuvox's A08K access control terminal, with a speaker at the bottom and an Ethernet port in the center

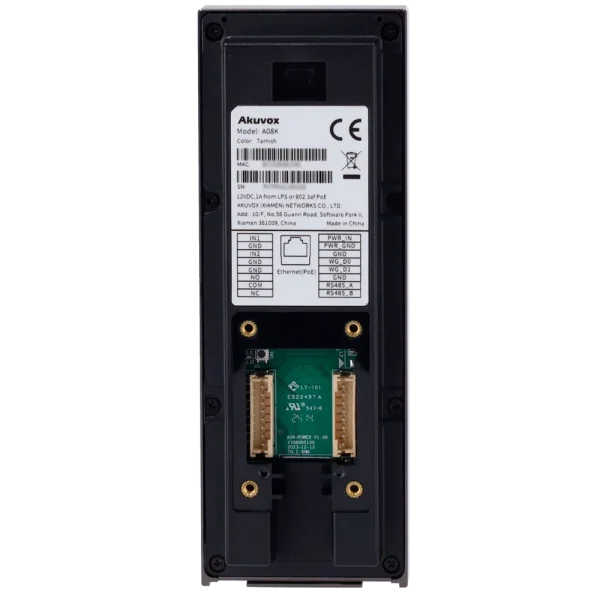

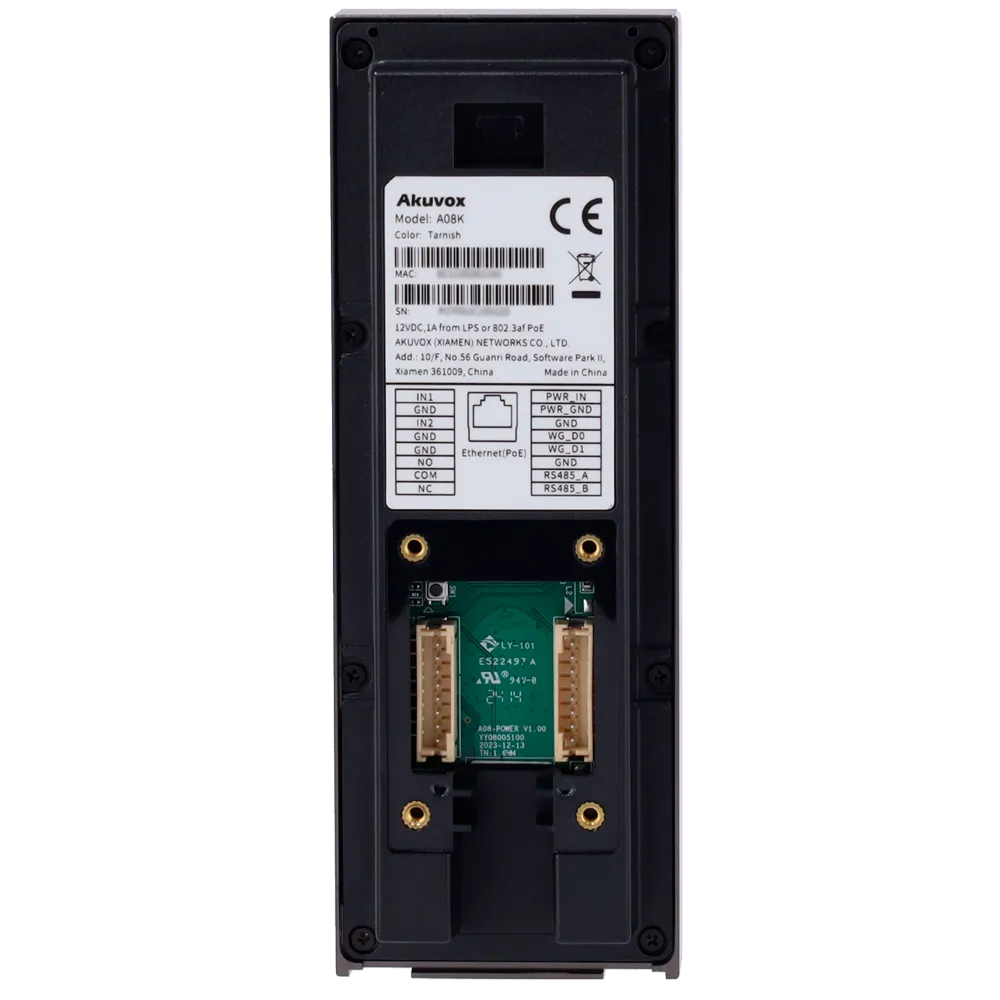

The back of Akuvox's A08K access control terminal, with a label at the top for model number, MAC address, and serial number. Underneath that is a wiring diagram, and even further underneath are the wiring terminal and Ethernet port

AK-A08K

Akuvox’s A08K is a slim access control terminal that combines door controller and card reader in one device – saving cost for building operators. It offers flexible credentials, including PIN code, mobile access via NFC and RFID cards.

Login for pricing
Category: Tag:

Description

The Akuvox AK-A08K is a mullion-sized access control terminal with an output relay (12V / 500mA) for connecting to electric door strikes. This terminal supports a variety of entry methods, including QR code, Bluetooth, 125 kHz & 13.56 MHz cards, PIN code, and NFC.

This is a standalone reader, which means that you can install it directly beside a door, without needing any controller

Key Features – Akuvox A08K Access Control Terminal

  • A08S-All-in-one Mullion Access Control Terminal
  • Touch keypad & Aluminum alloy frame
  • QR code scanner
  • 156MHz & 125kHz RFID card reader & NFC
  • 20,000 card capacity & 100,000 event logs
  • Supports Bluetooth
  • Water-proof & Dust-proof:IP65
  • Vandal resistance:IK09
  • Support OSDP & Wiegand protocol
  • Installation:Wall mount & Flush mount (Optional Flush Box)
  • 803af Power-over-Ethernet and 12V DC connector (if not using PoE)

Specification

Brand Akuvox
Model A08K
Access control Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC and PIN, with records
Capacity Up to 20.000 users and 20.000 cards
Records 100.000 registers
Communication TCP/IP, Wiegand
Outputs Wiegand OUT, 1 relay for main lock (12V/500mA) and RS485
Inputs Wiegand IN, 2 of pushbutton, 1 of tamper
Advanced features Anti-passback (configurable via Cloud, in Office Project)
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Audio Loudspeaker for opening messages
Network interface Ethernet 10/100 BaseT
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Plastic (casing), aluminium alloy (frame) and tempered glass (front)
Degree of protection IP65 & IK09
Temp. operation -20 ºC ~ +55 ºC
Dimensions 140 (H) x 50 (W) x 27 (D) mm
Power DC 12 V / 1000 mA max. / IEEE802.3af PoE
Weight 325 g
