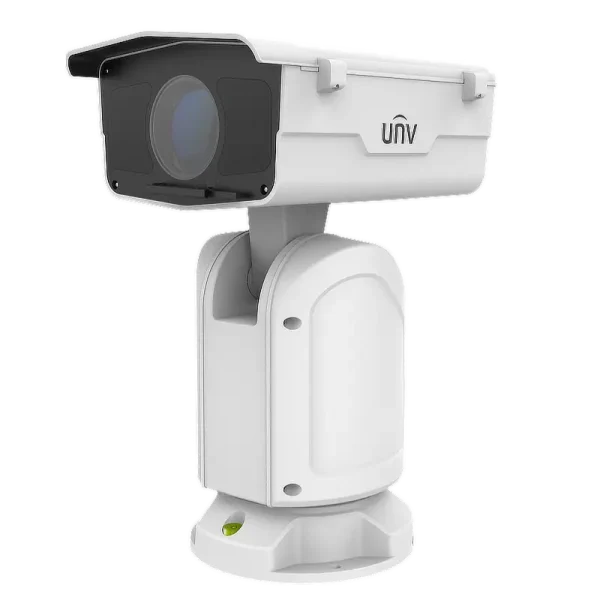

IPC7622ER-X44-VF
2MP Lighthunter Intelligent Network Positioning system, 60fps @ 1080p, IR up to 400m, IP67, Electronic Image Stabilization, Optical & Digital Defog, Varifocal 5-220mm lens (44x Zoom)
Description
Features – 2MP 44x Lighthunter IR Network Positioning system
- High quality image with 1080P, 1/2.8″ CMOS sensor
- 1920 × 1080@60 fps in the main stream
- Triple streams
- 44X optical zoom
- Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
- automatic selection of best snapshots, supports face detection masked area
- People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Supports optical defog, self-adaptive defog
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 400 m (1312.3 ft) IR distance
- Rain-sensing auto wiper
- Power supply: DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25%
- Alarm I/O: 7/2, audio I/O: 1/1
- IP67 ingress protection
Specification
| IPC7622ER-X44-VF | ||||||||
| Camera | ||||||||
| Sensor | 1/2.8″ CMOS | |||||||
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >52 dB | |||||||
| Lens | ||||||||
| Focal Length | 5 to 220 mm | |||||||
| Digital Zoom | 16X | |||||||
| Optical Zoom | 44X | |||||||
| Iris | F1.2 to F3.5 | |||||||
| Field of View (H) | 60.6° to 1.8° | |||||||
| Field of View (V) | 36.4° to 1.0° | |||||||
| Field of View (D) | 74.5° to 2.1° | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 5 to 220 mm | |||||||
| DORI Distance (Detect) | 77.6 m to 2793.1 m (254.5 ft. to 9163.7 ft) | |||||||
| DORI Distance (Observe) | 31.0 m to 1117.2 m (101.8 ft. to 3665.5 ft) | |||||||
| DORI Distance (Recognize) | 15.5 m to 558.6 m (50.9 ft. to 1832.7 ft) | |||||||
| DORI Distance (Identify) | 7.8 m to 279.3 m (25.5 ft. to 916.4 ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 400 m (1312.3 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Video | ||||||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 60 fps Sub Stream: 1080P (1920 × 1080), max. 60 fps Third Stream: D1 (720 × 576), max. 60 fps |
|||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| PTZ | ||||||||
| Pan Range | 360° (endless) | |||||||
| Pan Speed | 0.1°/s to 140°/s | |||||||
| Tilt Range | -45° to 90° | |||||||
| Tilt Speed | 0.1°/s to 50°/s | |||||||
| Number of Presets | 1024 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Preset Image Freeze | Support | |||||||
| Home Position | Support | |||||||
| Intelligent | ||||||||
| Exception Detection | Object removed, Object Left Behind | |||||||
| Auto Tracking | Support | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Image | ||||||||
| Defog | Digital defog, Optical defog | |||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Heatwave Reduction | Support | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Voltage detection, Object removed, Object Left Behind | |||||||
| General Function | Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 256 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 7/2 | |||||||
| Serial Port | 1 * RS485 | |||||||
| Built-in Mic | N/A | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 1000 M Base-TX Ethernet | |||||||
| Video Output | 1 BNC (for debugging) | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032:2015, EN55024:2010+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1-14, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25% | |||||||
| Power Consumption | Max. 103 W | |||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | 280 mm × 366 mm × 520 mm (11.0″ × 14.4″ × 20.5″) (L × W × H) | |||||||
| Weight | 14.1 kg (31.08 lb) | |||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
