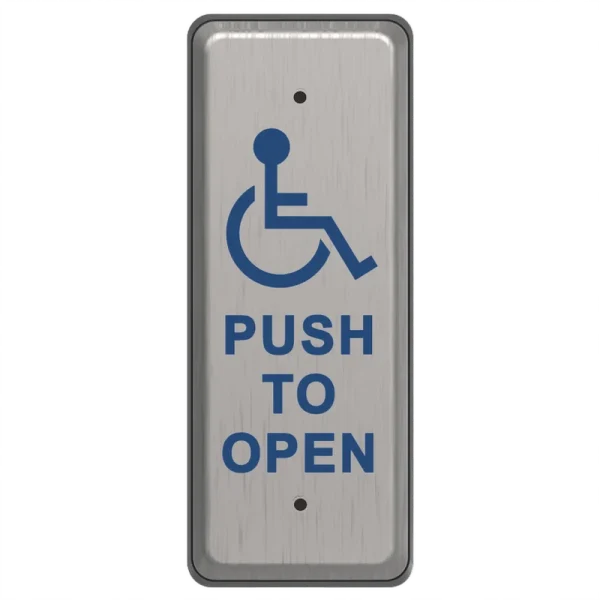

A metal push to open button with a blue handicap accessibility icon in the center, narrow version

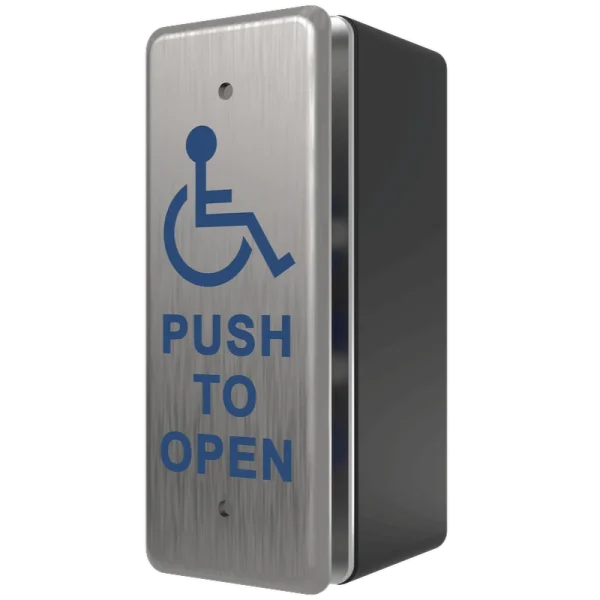

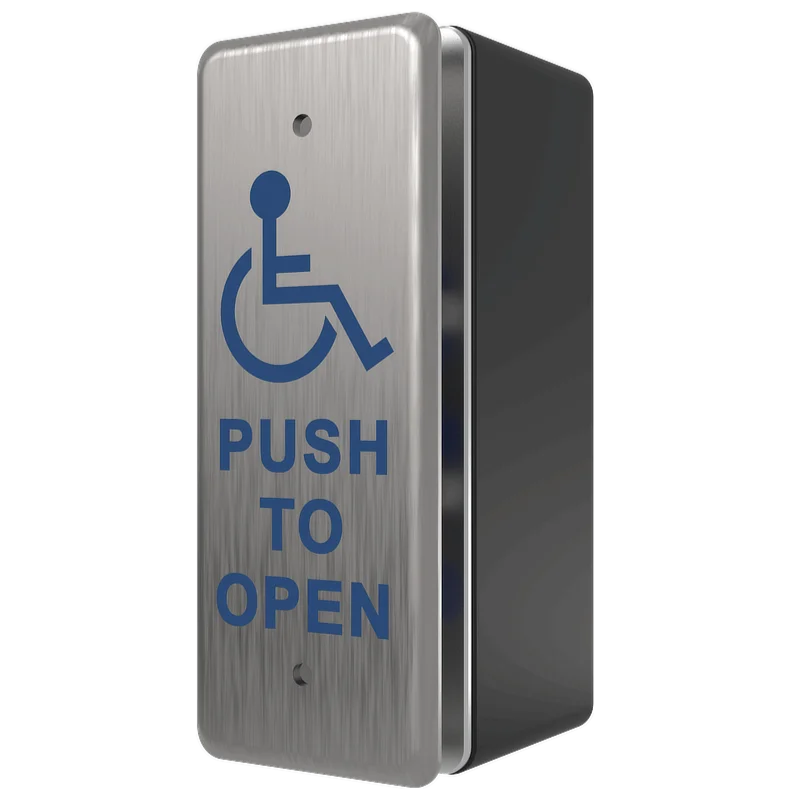

A push to open accessibility button as viewed from a side angle, showing the black junction box behind it. This is a narrow version, good for installing on thinner door frames

MZE-PB25B

This is a stainless-steel push to open switch for creating accessible doors and entrances. The narrow size (1.75″ wide) makes it suitable to install on a metal door frame or narrow surface box. These are heavy-duty buttons, designed to last for years in a commercial environment.

Login for pricing
Categories: , Tag:

Description

The PB25B is a heavy-duty all-active push switch engineered for dependable operation in commercial and institutional environments.

It features a brushed stainless steel faceplate to match diverse installation needs.
Compatible with standard single-gang electrical boxes, the switch is preassembled for quick installation using tamper-resistant Allen screws and an included hex key. All mounting screws are accessed from the front, maintaining a clean, vandal-resistant design.

Its modular two-piece structure simplifies maintenance and field replacement.

Specification

Switch Type:
Momentary
Contact Type:
COMMON / N.O. /N.C.
Current Rating:
15 A @ 250 VDC
Mounting:
Narrow (Jamb)
Dimensions: 1-3/4″ x 4-1/2″ x 1-37/64″ (44mm x 114mm x 40mm)
