MZE-PB3B

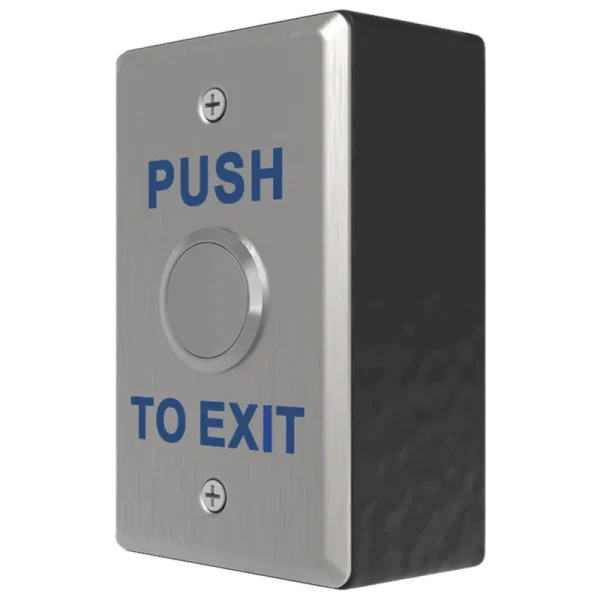

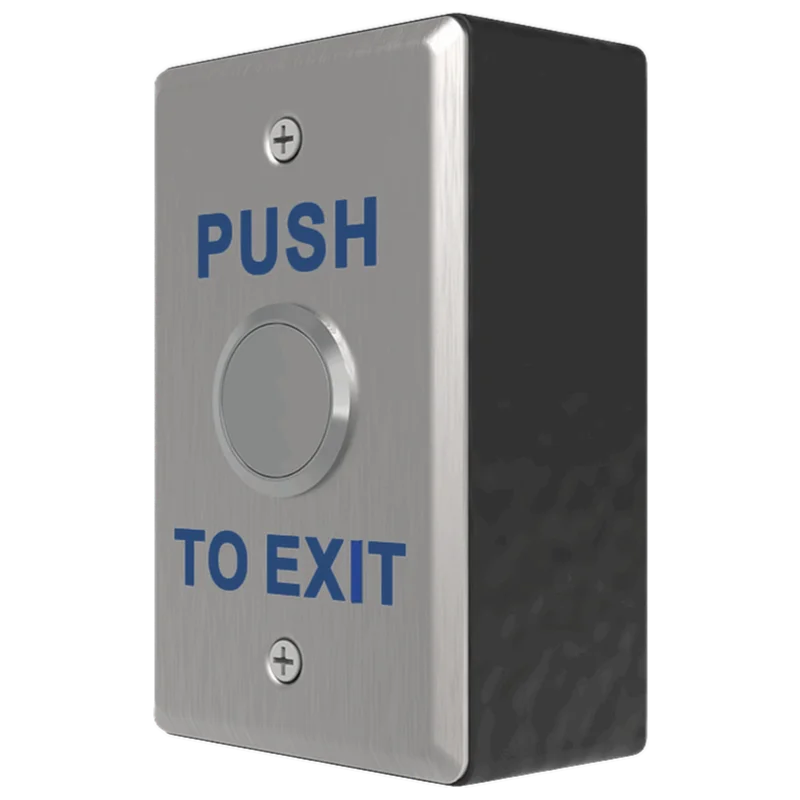

This is a push to exit switch with a 1-inch button in the center. This allows you to install it underneath concierge desks, allowing them to open the door without accidentally pressing it. A width of 2.75″ across makes this button perfect for installation on a single-gang junction box.
Description
The PB3B combines high-visibility design and rugged durability for demanding access control environments.
It features a stainless steel faceplate and a 1″ diameter button that operates easily in all conditions.
Powered by 12–24VDC, it offers field-selectable N/O, N/C, and fail-safe/fail-secure operation for flexible system compatibility.
The single-gang (2-3/4″) configuration ensures easy installation on standard electrical boxes.
Specification
| Switch Type: |
Momentary
|
| Contact Type: |
COMMON / N.O. /N.C.
|
| Current Rating: |
2A @ 36 VDC, 3A @ 220 VAC
|
| Mounting: |
Single Gang
|
| Dimensions: | 2-3/4″ x 4-1/2″ x 1-37/64″ (70mm x 114mm x 40mm) |
