MZE-PB5B

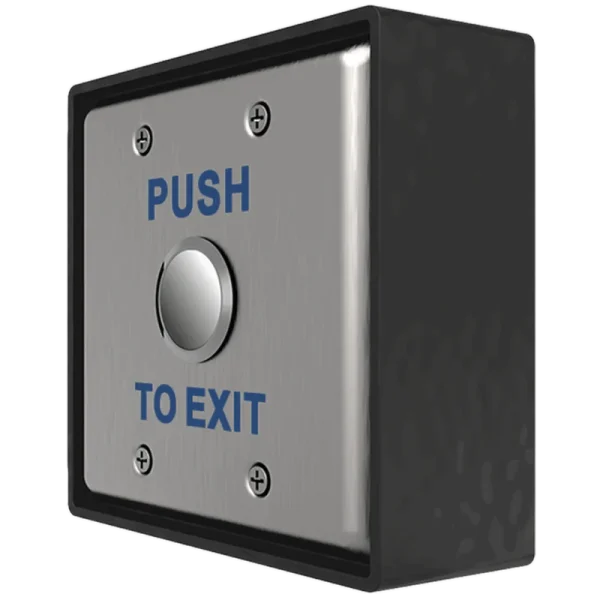

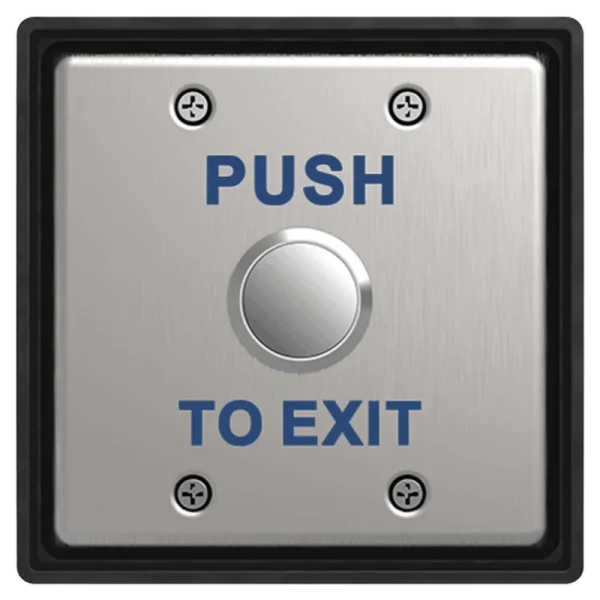

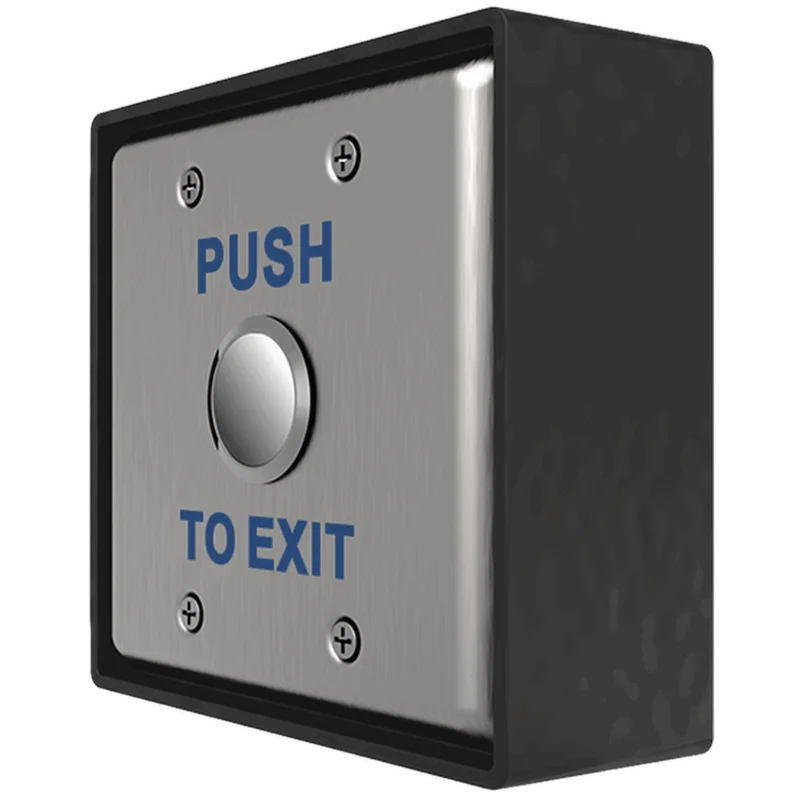

This is a push to exit switch with a 1-inch button in the center. This allows you to install it underneath concierge desks, allowing them to open the door without accidentally pressing it. A width of 4.5″ across makes this button perfect for installation on a double-gang junction box.
Description

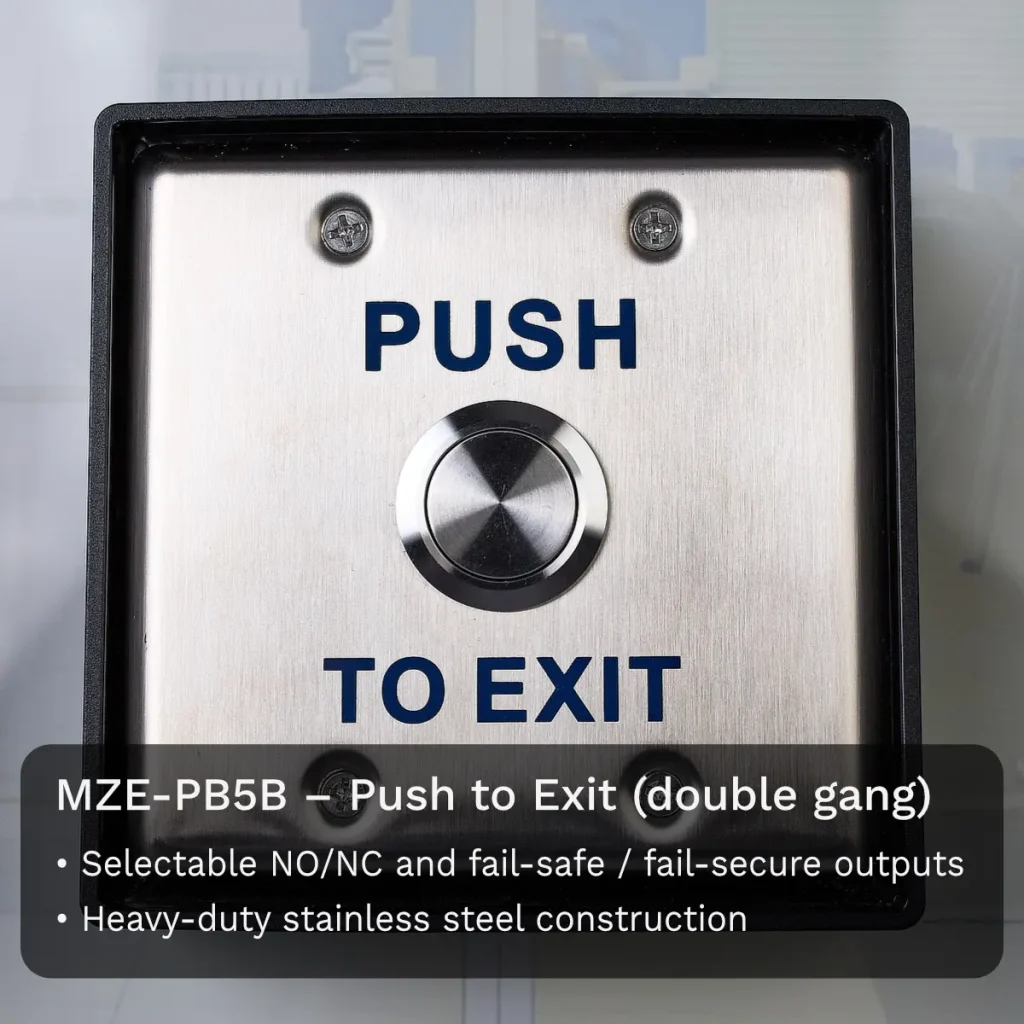

The PB5B is a weather-resistant, vandal-proof push switch designed for high-visibility access control applications. It features a rugged stainless steel faceplate and a large 1″ diameter button that is easy to operate.
Operating on 12–24VDC, it provides field-selectable N/O, N/C, and fail-safe/fail-secure output options, ensuring flexible system integration.
Its double-gang (4-1/2″) design suits both indoor and outdoor use.
Specification
| Switch Type: |
Momentary
|
| Contact Type: |
COMMON / N.O. /N.C.
|
| Current Rating: |
2A @ 36 VDC, 3A @ 220VAC
|
| Mounting: |
Double Gang
|
| Dimensions: | 4-1/2″ x 4-1/2″ x 1-37/64″ (114mm x 114mm x 40mm) |
