MZE-WB2501B

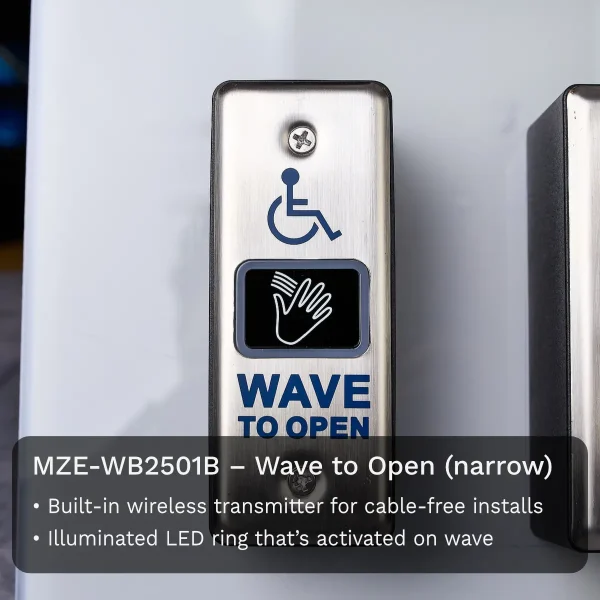

This is a wireless touch-free switch that can be triggered by waving your hand in front. The blue LED will turn green whenever the switch is successfully activated, providing immediate feedback to users. Since this unit has a built-in wireless transmitter, you can power it via a battery for cable-free installation. Then, use the WR12 Receiver to wirelessly pick up the signal and transmit it to the door operator.
Description
The MZE WB2501B offers a slim, modern design ideal for narrow door frames or mullions where standard-size switches cannot be installed.
Combining wireless flexibility with reliable touch-free activation, it enhances hygiene, accessibility, and convenience in commercial, healthcare, and public facilities.
Powered by battery or external 12/24V AC/DC, the WB2501B allows easy, cable-free installation for various environments.
Specification
| Activation Type: |
Wireless touch-free infrared sensor
|
| Detection Range: |
Adjustable 3″–9″ (7–23 cm)
|
| Power Supply: |
12/24V DC ±12% or battery powered
|
| Contact Output: |
(1) Form ‘C’ contact rated at 1A @ 30V DC
|
| Illumination: |
LED ring indicator (Dual color – Blue / Green)
|
| Construction: |
Narrow stainless steel faceplate
|
| Installation Type: |
Surface or flush mount
|
| Compatibility: |
All automatic door and access control systems
|
| Operating Temperature: |
–20 °C to +55 °C (–4 °F to +131 °F)
|
| Warranty: |
3 years
|
