MZE-WB5501B

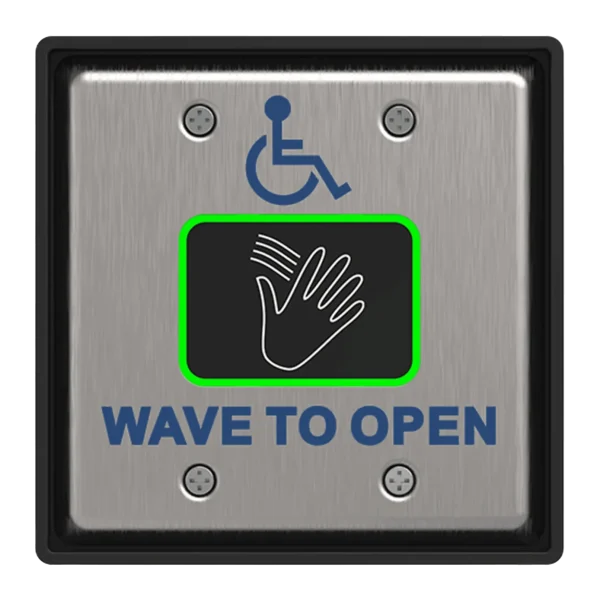

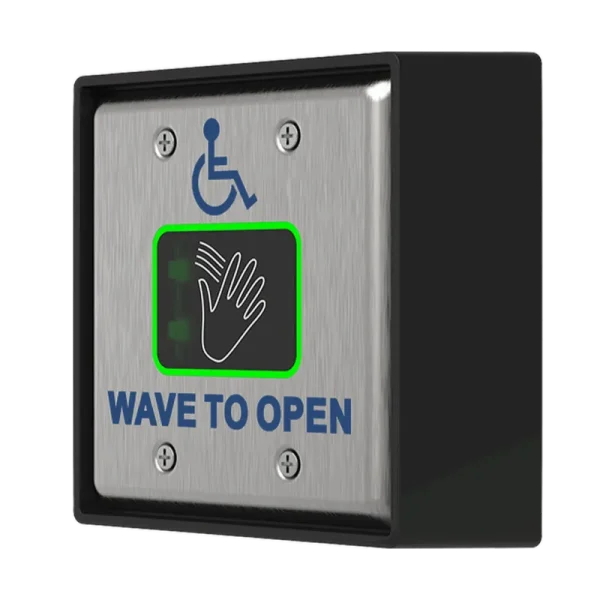

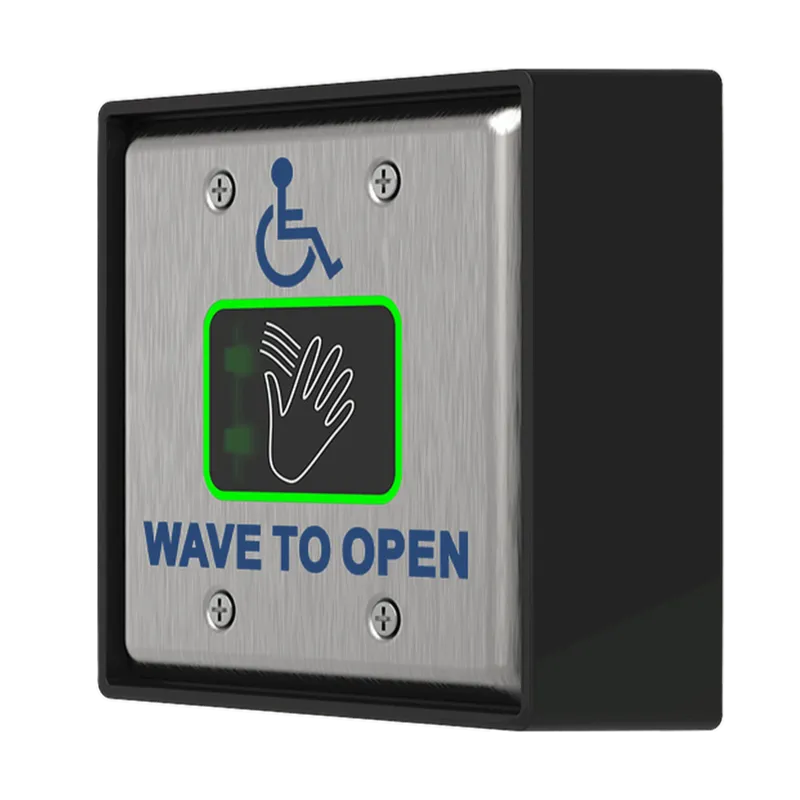

This is a wireless touch-free switch that can be triggered by waving your hand in front. The blue LED will turn green whenever the switch is successfully activated, providing immediate feedback to users. Since this unit has a built-in wireless transmitter, you can power it via a battery for cable-free installation. Then, use the WR12 Receiver to wirelessly pick up the signal and transmit it to the door operator.
Description
The WB5501B offers a clean and reliable wireless activation solution designed for high-traffic automatic door and access control systems.
It enhances hygiene and user convenience while maintaining stable wireless performance in all environments.
Powered by battery or external 12/24V AC/DC, this model allows quick, cable-free installation.
With adjustable sensor distance and delay time settings, the WB5501B ensures accurate detection and consistent operation in diverse indoor or outdoor conditions.
Specification
| Activation Type: |
Wireless Touch-free infrared sensor
|
| Detection Range: |
Adjustable 3″–9″ (7–23 cm)
|
| Power Supply: |
12/24V DC ±12% or battery powered
|
| Contact Output: |
(1) Form ‘C’ contact rated at 1A @ 30V DC
|
| Illumination: |
LED ring indicator (Dual color – Blue / Green)
|
| Construction: |
Double-gang stainless steel faceplate
|
| Installation Type: |
Surface or flush mount
|
| Compatibility: |
All automatic door and access control systems
|
| Operating Temperature: |
–20 °C to +55 °C (–4 °F to +131 °F)
|
| Warranty: |
3 years
|
