MZE-WT01
This is a wireless transmitter that can be used with any of the buttons and switches from MZE Door Controls. This tiny circuit board can be installed within the junction box of the push button, and allows you to transmit the signal wirelessly to a nearby MZE-WR12 receiver.
This transmitter includes 2× AAA batteries (alkaline) but you can replace them with lithium batteries for sub-zero temperature installations. The included batteries are designed to last for 200,000 button activations.
Description
The MZE WT01 is a compact and dependable wireless transmitter designed for easy integration with MZE push plates and push buttons. Engineered for wall-mount applications, it can be conveniently installed behind a standard wall switch or inside a protective enclosure, keeping the electronics fully dry and secure.

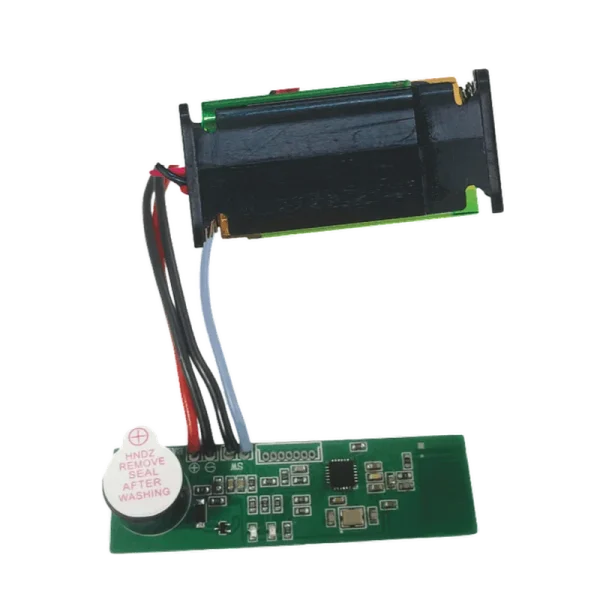

The WT01 features a lightweight circuit board with a dedicated AAA battery holder, both easily mounted for quick and clean installation. It operates on two included AAA alkaline batteries, with optional lithium batteries recommended for low-temperature environments
Specification
| Installation Type: |
Wall-mount installation (behind wall switch or inside enclosure)
|
| Compatibility: |
Works with all MZE push buttons
|
| Power Source: |
2 × AAA alkaline batteries
|
| Optional Battery: |
Lithium batteries recommended for environments ≤ 0 °C (32 °F)
|
| Battery Life: | Up to 200,000 activations per battery set |
| Response Time: |
Instant response for momentary activations
|
| Environment: |
Indoor / dry location only
|
Download
No downloads available at this time.
