RG-NBS3200-24GT4XS

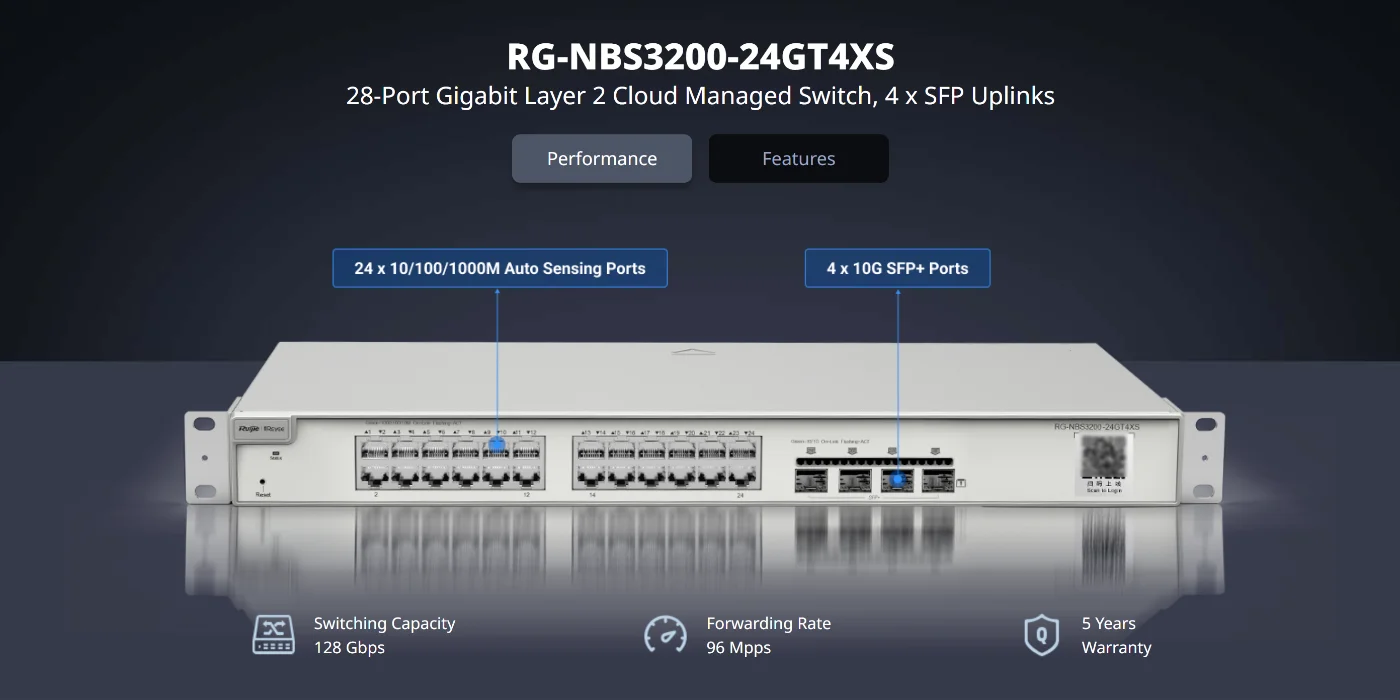

Managed 24-port gigabit switch, 4× 10G SFP+ uplink ports, 128 Gbps switching capacity. This switch is designed to maximize your network speeds – allowing for 10 Gigabit connections along the backplane of your network via the four SFP+ ports. It supports layer-2 functionality such as VLAN, STP, IGMP snooping, and loop prevention.
Description
This is a 24-port Gigabit switch from Reyee with 4× SFP+ (10 GE) ports, unlocking blazing-fast speeds across your network backplane. It supports all the common layer-2 features such as VLAN, STP, IGMP snooping, and loop prevention.
As with all Reyee networking equipment, this switch can be managed remotely through the Ruijie Cloud Portal.
This switch can be rack mounted using the included brackets and M4 screws.
Highlight Features
- 24-Port gigabit Layer 2+ managed non-PoE switch, 4 SFP+ uplink

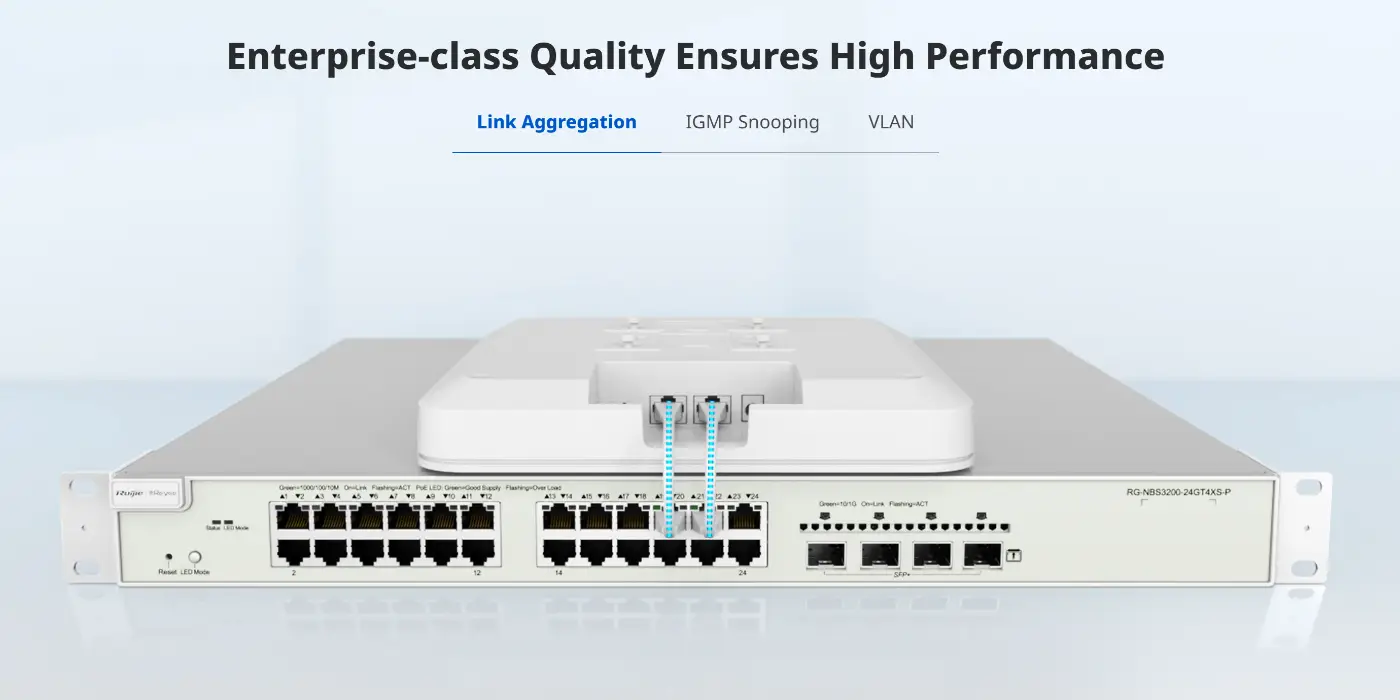

- Enterprise-class Quality Ensures High Performance
- IP Camera Recognition, Unique Value for CCTV Network
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
Specification
| RG-NBS3200-24GT4XS | |
| Ports | 24 × 10/100/1000Base-T, 4 × SFP+ 10GE ports |
| Switching Capacity | 128 Gbps |
| MAC Address Table | 16000 |
| Fan | 1 Fan with hardware-based speed adjustment |
| Dimensions (W x D x H) | 240 mm × 207.5 mm × 43.6 mm |
| MTBF | ~400,000 hours |
| PoE | N/A (non-PoE switch) |
| Fowarding Rate | 15 Mpps |
| Max VLANs | Up to 4094 VLANs |
| Port Surge Protection | 6 kilovolts |
| Weight (including packaging) | 4.02kg (8.86 lbs) |
| Warranty | 3 Years |
