AK-E12W

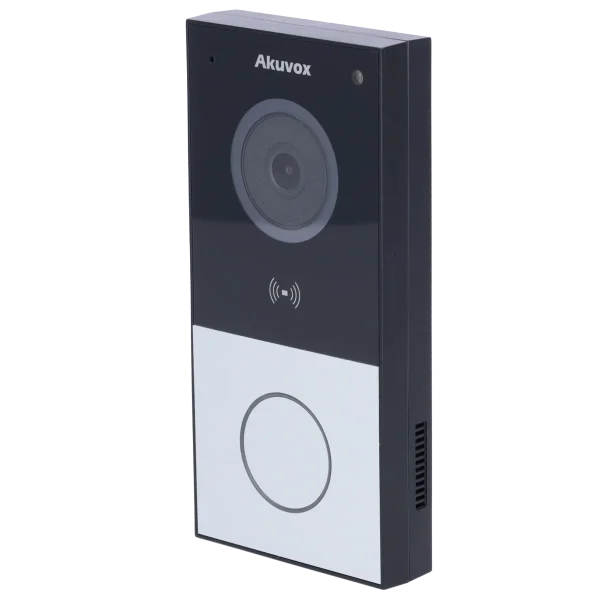

The E12 video door phone features a 2MP camera, built-in card reader supporting 13.56MHz RFID cards and NFC, plus a relay output for connecting to a door strike or operator.
Description
This compact video door phone allows you to communicate with visitors through the Akuvox SmartPlus app, via an indoor monitor, or directly to a mobile phone. It features a 2MP camera, two-way audio, and a card reader that supports 13.56MHz RFID cards and NFC communication.

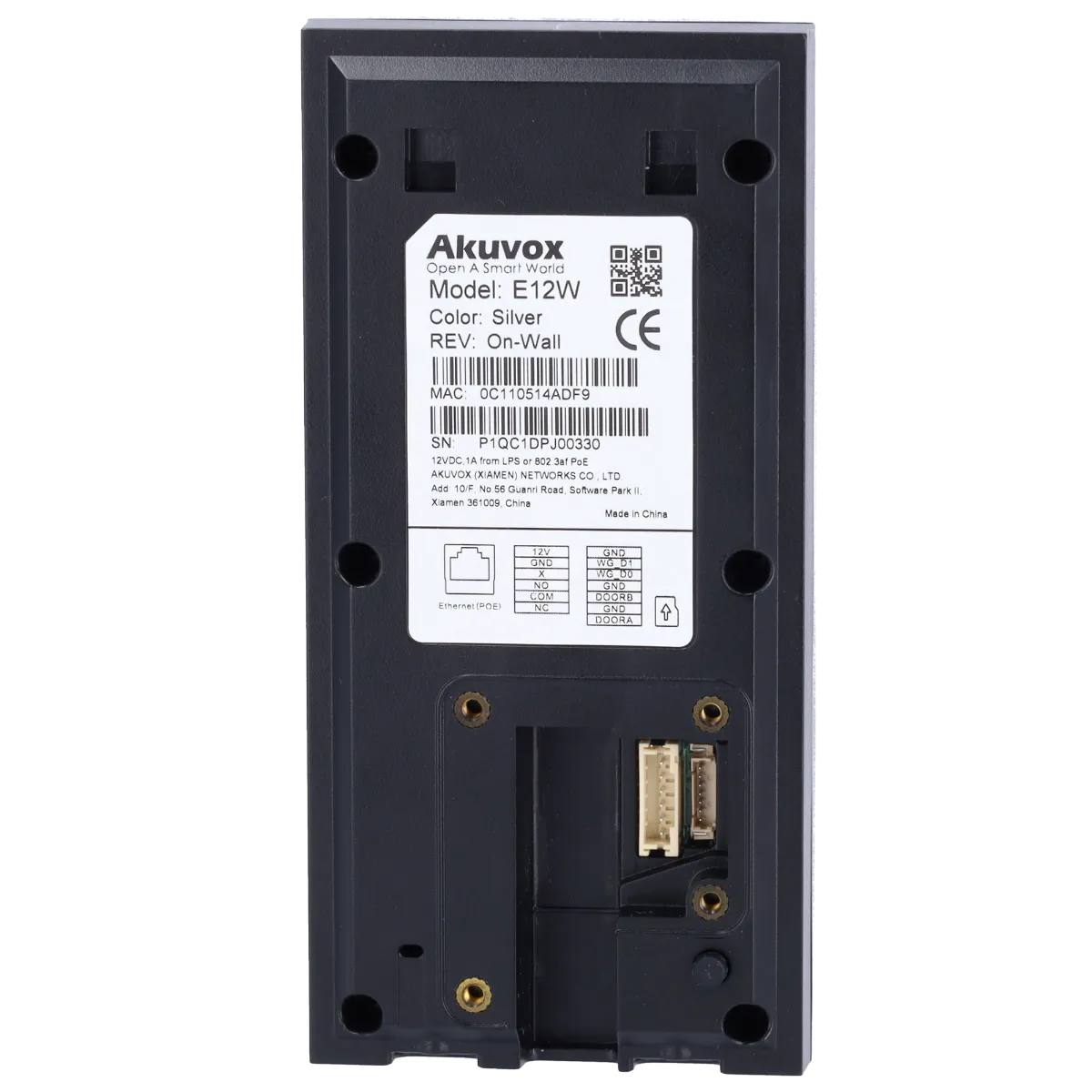

There are two relay inputs and one relay output for connecting to door strikes or operators. This video door phone is powered over PoE (IEEE 802.3af / 15.4W) and has a web interface for simple configuration. You can also add it to the Akuvox Cloud Portal for easy remote management and programming. Overall, this is a cost-effective video intercom for residential and commercial applications.
Key Features – E12W Compact Video Door Phone
- SIP Video Door Bell with Relay & Wifi
- Body material: ABS plastics
- Camera: 2M pixels with angle: 123°(H) / 69°(V) and LED White Light
- Two Relay in and one Relay out

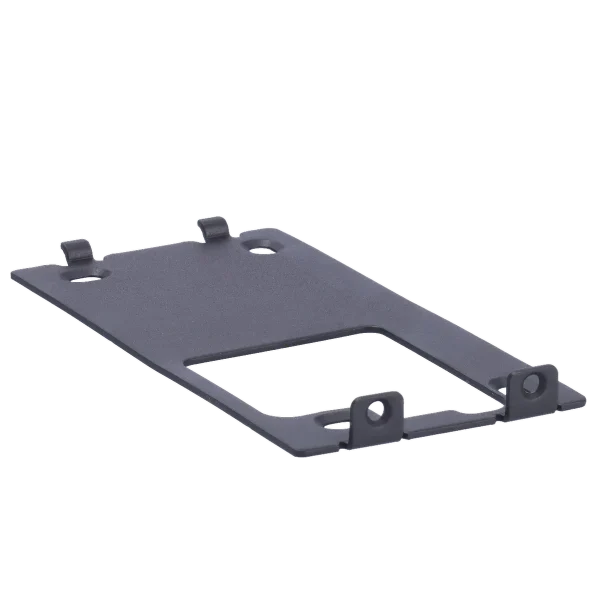

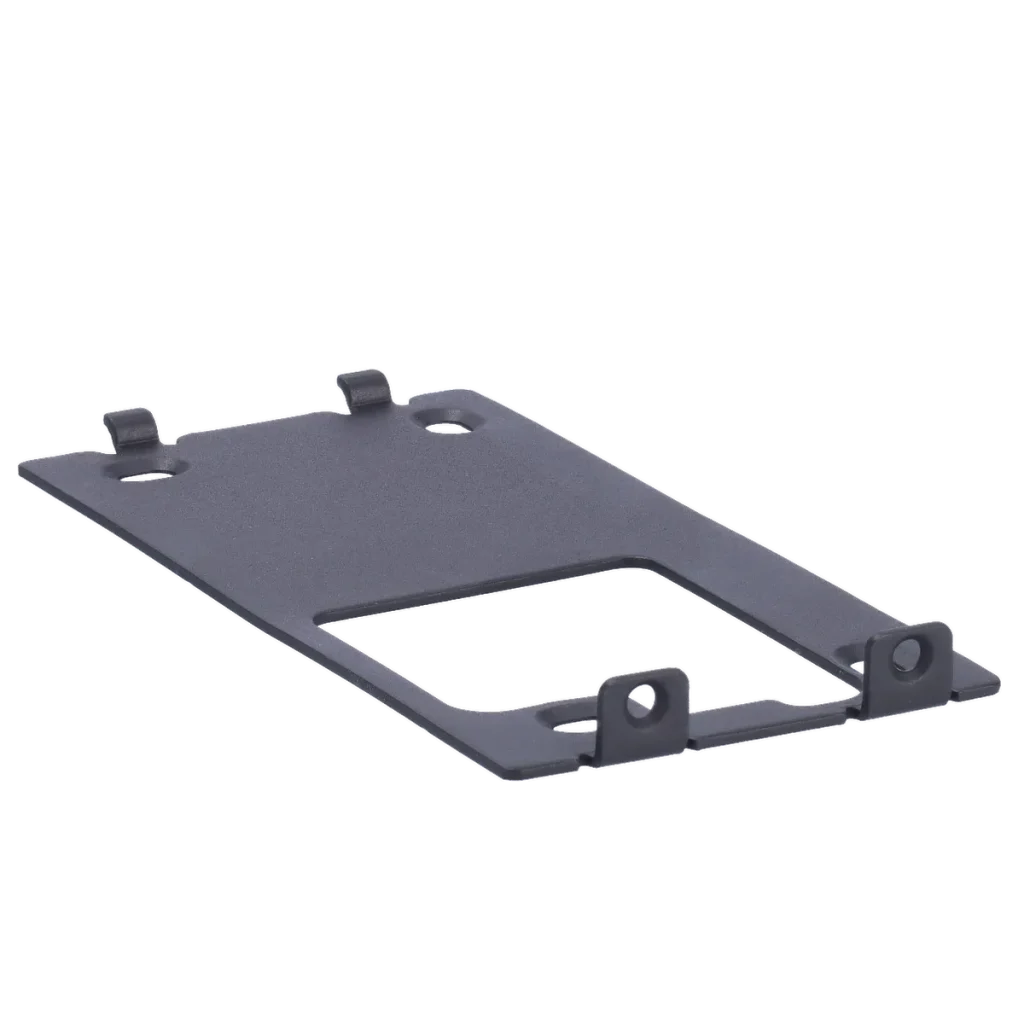

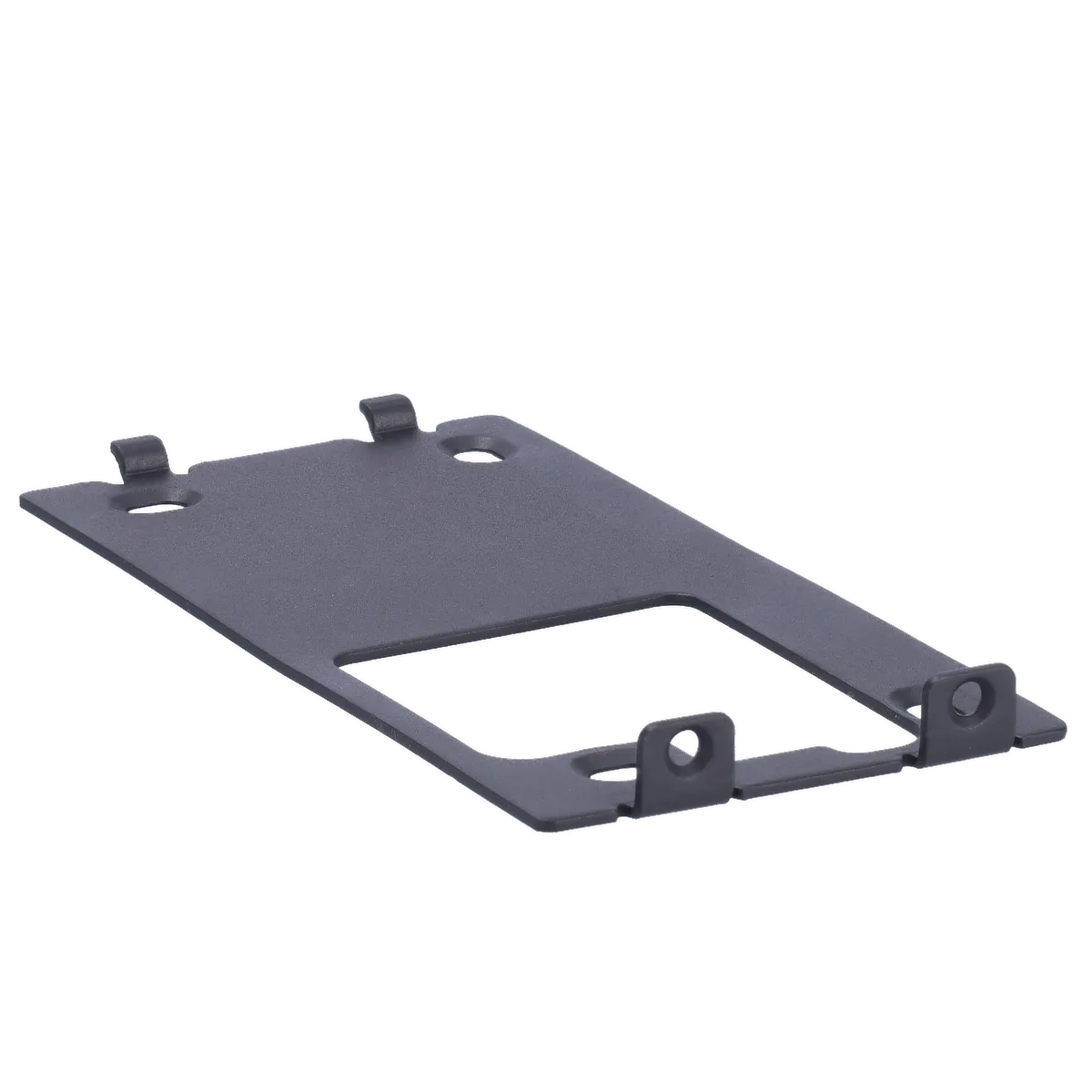

- Installation: Wall-mounted
- Water-proof & Dust-proof: IP65
- PoE (IEEE803af, Power-over-Ethernet)
- Button: 1 call button with backlight
- Two-way audio communication over IP networks with Echo Cancel
- Complies with SIP standard for easy integration in every SIP PBX
- WiFi: IEEE8011b/g/n, 4GHz
Specification
| Brand | Akuvox |
| Model | E12W |
| Access control | Door opening with MF card 13.56 MHz, NFC and Bluetooth, with records |
| Capacity | Contacts: 1.000 RFID users: 5.000 card(s) |
| Keypad | Mechanical call button with configurable LED illumination |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.7″ 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing Angle | 123° (H) / 69° (V) |
| Camera resolution | 1920×1080 – 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 y H.265 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Memory | MicroSD slot up to 32 GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Plastic |
| Degree of protection | IP65 |
| Temp. operation | -40 ºC ~ +55 ºC |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Weight | 600 g |
| Range | EasyAccess |
