AK-S532

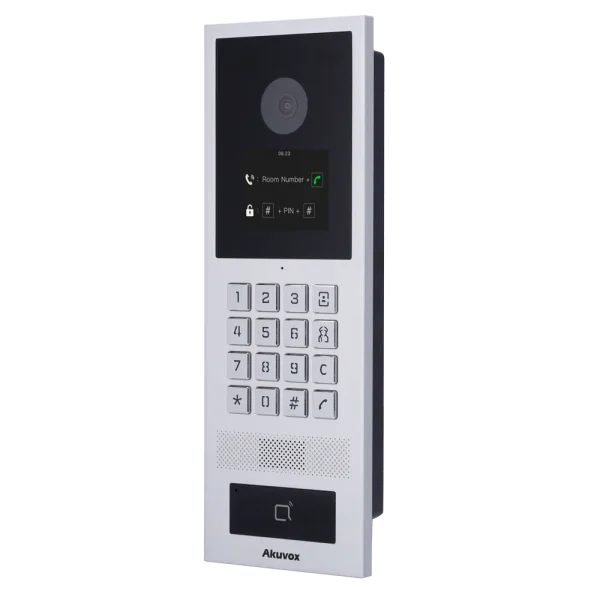

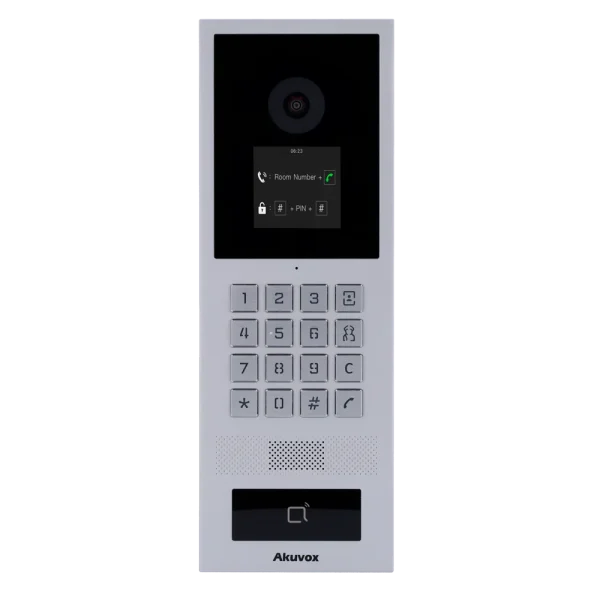

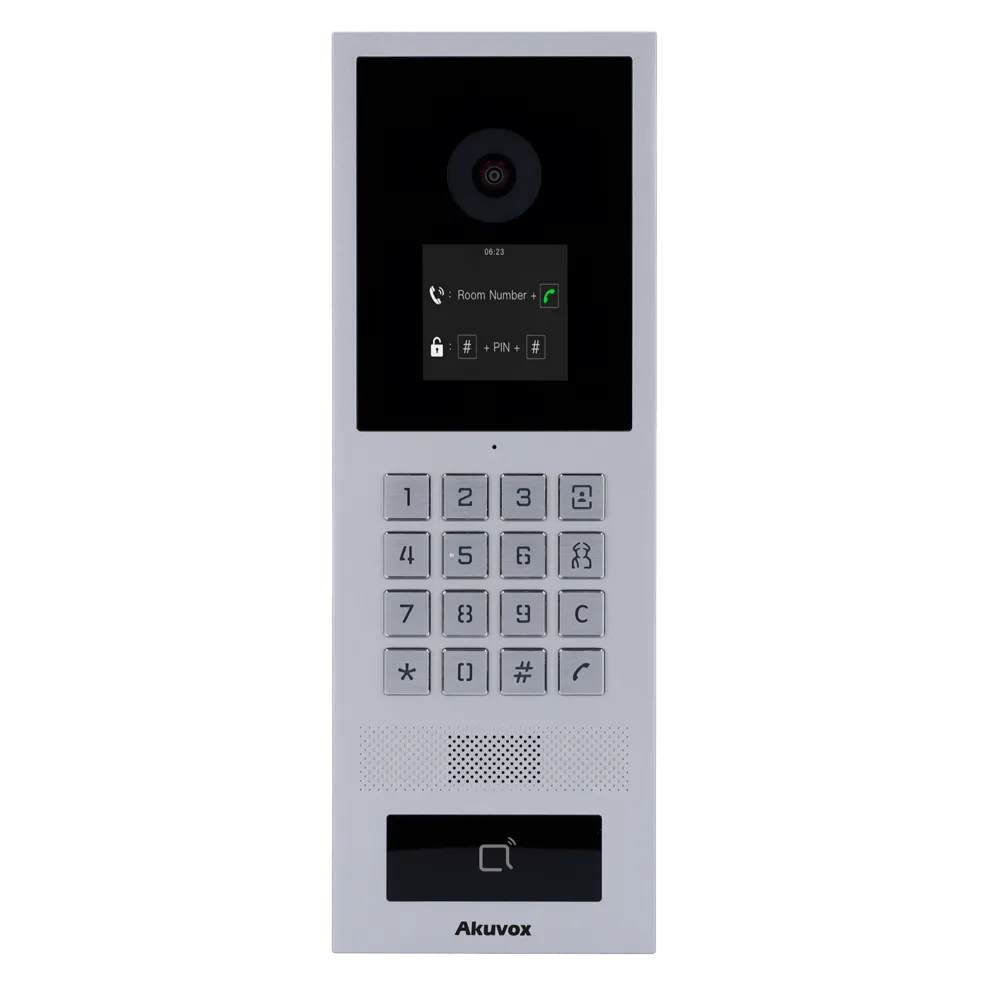

The S532 intercom from Akuvox has a 2.8″ LCD screen and a physical keypad. It’s designed for small to medium-sized projects and supports a variety of credentials such as EM prox, Mifare, PIN, and Bluetooth. It’s made from a tough aluminium housing and has both IP66 and IK08 ratings for weatherproof and vandal resistance.
Description
The Akuvox S532 is a hybrid video intercom that can be used as a regular IP intercom, but also has analog outputs that can be used to connect with 2-wire analog handsets. This makes it a true hybrid intercom, allowing it to co-exist with older analog devices
It features a 2MP camera with powerful IR lights for a quality image at night. It’s IP66 weather resistance and IK08 vandal rating makes it suitable for installation in rough environments. And a minimum operating temperature of -40°C allows it to keep operating even during the coldest weather.
This intercom supports a variety of entry methods, including 125 kHz EM Prox, 13.56 MHz Mifare Desfire (including EV1/EV2/EV3), PIN, and Bluetooth.
It also has a 2.8″ LCD screen to display the contacts list and show calling status. It’s not a touchscreen, so you must use the physical buttons for navigation.
Key Features – Akuvox S532 Hybrid Video Intercom w/Physical Keypad
- Hybrid Intercom with Keypad and RF card reader
- Body material: Aluminum Diecasting
- Display: 8″ LCD
- Wide-angle camera: 130º（H）& 90º（V）
- Multiple access control (PIN, IC, ID, NFC, Bluetooth)
- Output Relay: 2 output relays for door opener
- Support analog audio handset
- Powered by PoE+ or external power supply
- IP66 / IK08
- Installation: Supports Surface Mount and Flush Mount by using different bracket or box
Specification
| Brand | Akuvox |
| Model | S532 |
| Access control | Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC, BLE and PIN, with records |
| Capacity | Contacts: 10.000 RFID users: 50.000 cards/passwords |
| Screen | 2.8″ Color TFT |

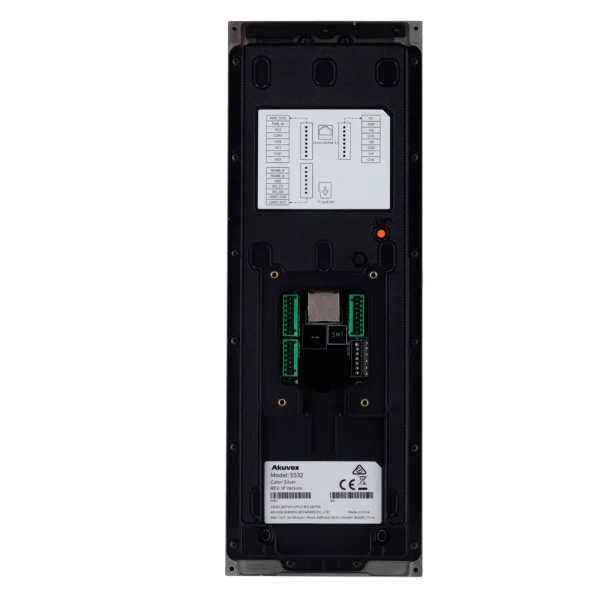

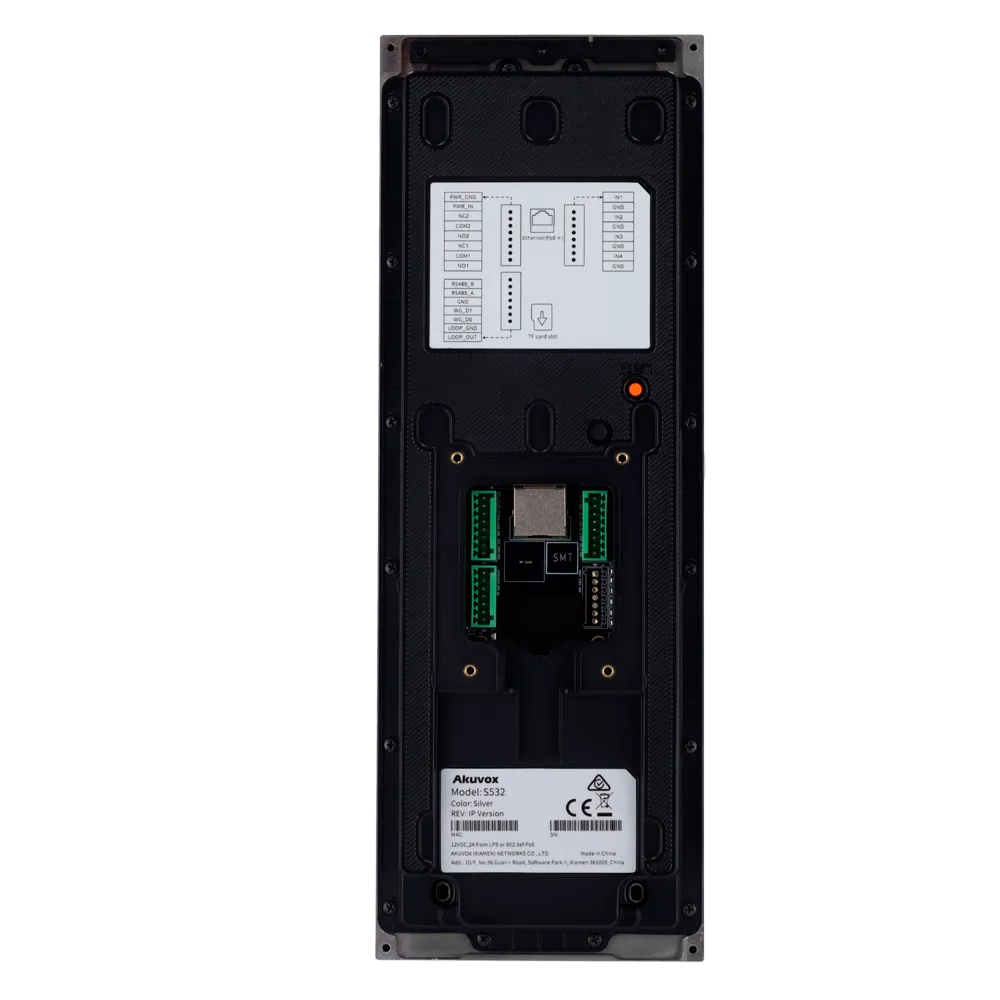

| Outputs | 2 x lock relay (12V/500mA), 1 x Wiegand OUT, 1 x RS485 and 1 x magnetic loop |
| Inputs | 4 x output pushbutton and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.8″ 2 Megapixel CMOS with infrared sensor and light sensor HDR technology |
| Viewing angle | 130° (H) / 90° (V) |
| Camera resolution | 1920×1080 – 30fps / CIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology Automatic voice detection |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Aluminium alloy |
| Degree of protection | IP66 & IK08 |
| Temp. operation | -40 ºC ~ +60 ºC |
| Dimensions | 310 (H) x 106 (W) x 38 (D) mm |
| Power | DC 12 V / 2000 mA max. / PoE+ IEEE802.3at |
| Weight | 1500 g |
