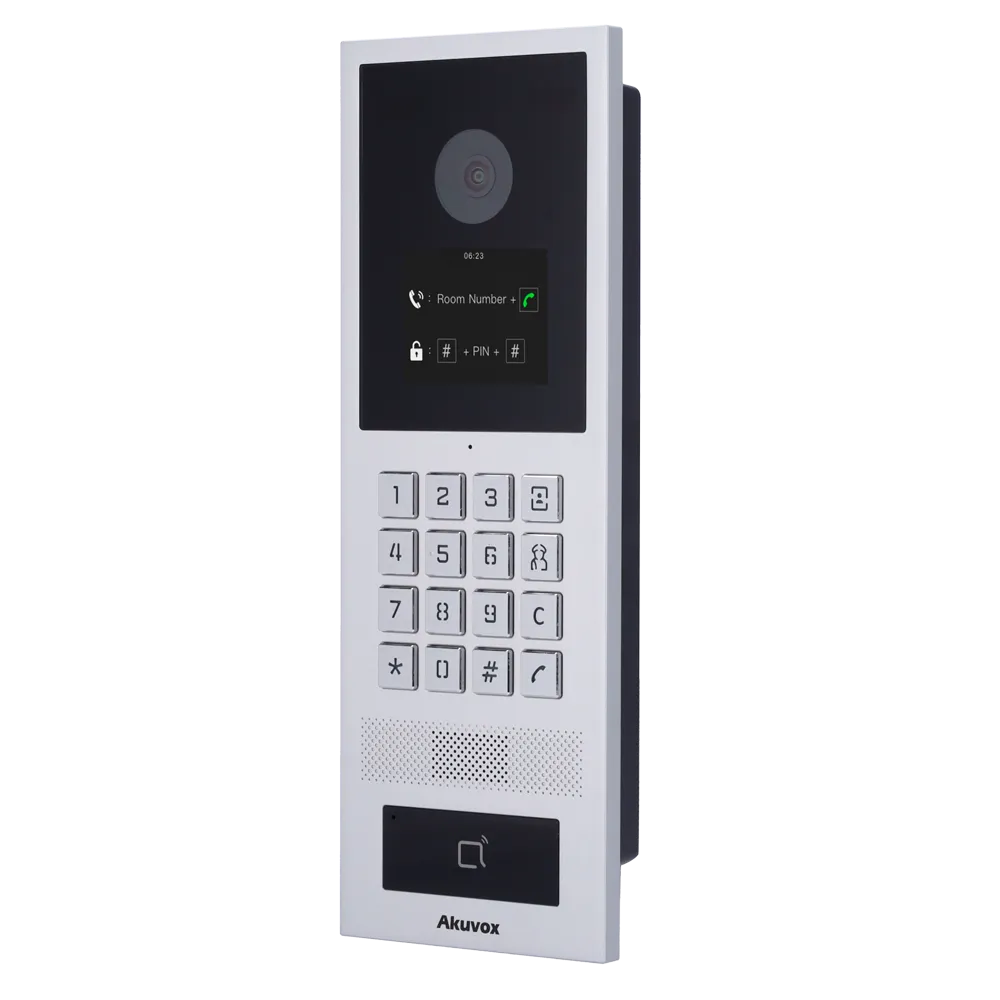

The S532 intercom from Akuvox has a 2.8″ LCD screen and a physical keypad. It’s designed for small to medium-sized projects and supports a variety of credentials such as EM prox, Mifare, PIN, and Bluetooth. It’s made from a tough aluminium housing and has both IP66 and IK08 ratings for weatherproof and vandal resistance.
Description
The Akuvox S539 is a premium video intercom with an ultra-stylish appearance, full 10″ touchscreen, and dual microphones for crystal-clear audio quality. The 5MP main camera has a starlight sensor, providing clear video even under backlit conditions. It also features a dedicated QR code camera, allowing you to scan your face and QR code at the same time for faster entry.
This intercom supports more than 15 access methods, including face recognition, PIN, NFC (android only), QR code, EM prox, Mifare card, Bluetooth, and a combination of two methods (such as face + PIN) for additional security. You can add up to 50,000 users and 200,000 cards, practically ensuring you will never run out of space to add more users.
Despite being packed with technology, this video intercom is also extremely tough – featuring both IP66 and IK08 ratings for weather resistance and vandal protection. It supports a minimum operating temperature of -30°C for cold Canadian weather.

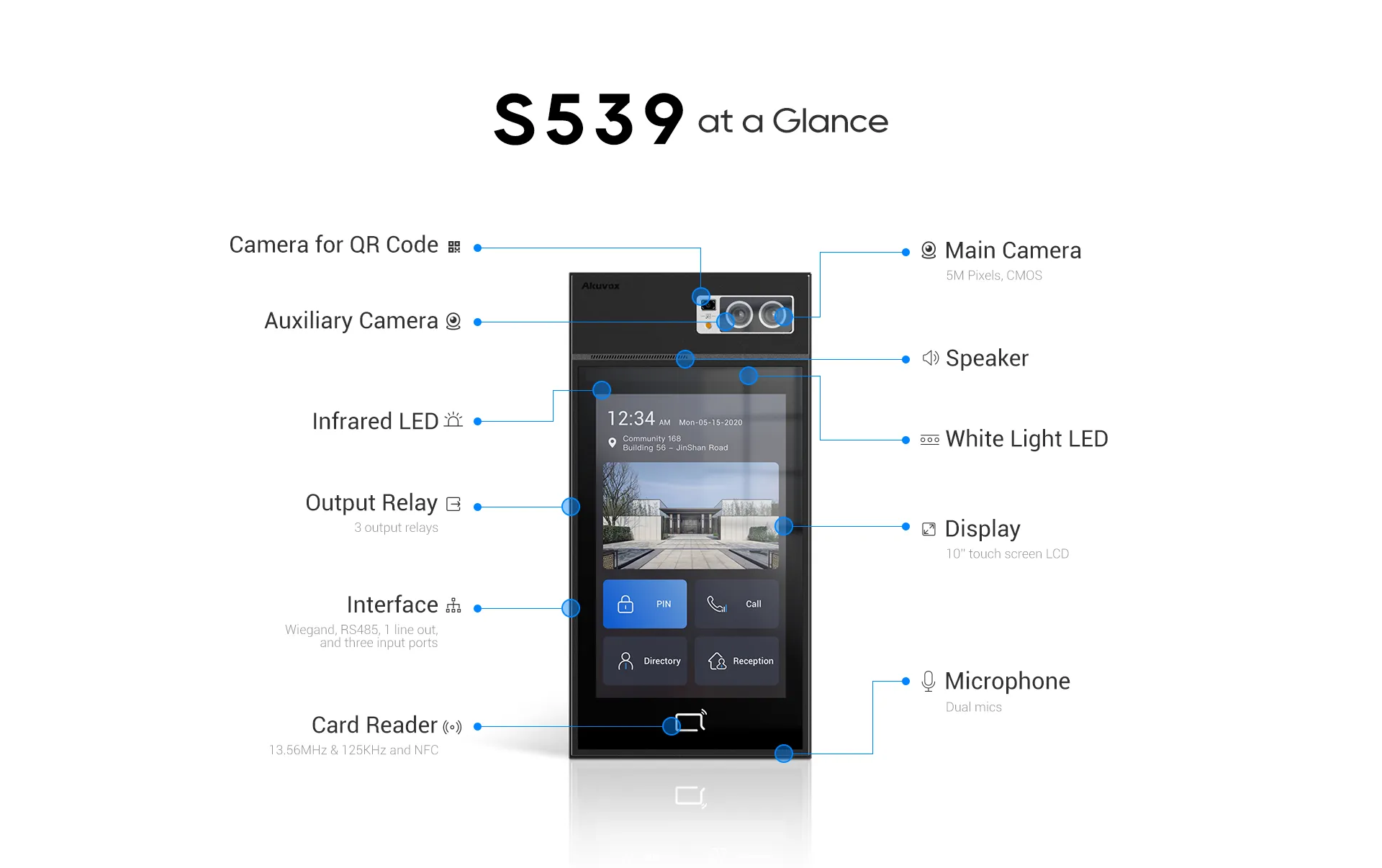

Key Features – Akuvox S539 Premuim Video Intercom w/10″ Touchscreen
- Android 12 Smart Door Phone with 10 Inch Touch Screen
- Ultra clear, stylish appearance
- Vandal resistant body
- Main camera features a built-in HDR mode & Starlight
- Dual cameras for anti-spoofing against photo and video
- Extra camera for QR code scanning
- 10 Inch display presents unique information
- Multiple verification modes
- Powered by PoE+ or external power supply
Specification
| Brand | Akuvox |
| Model | S539 |
| Access control | Door opening with facial recognition, RFID card EM 125 kHz and MF 13.56 MHz, NFC, BLE, QR and PIN, with records |
| Capacity | Contacts: 3.000 RFID users: 20.000 faces and 20.000 cards/passwords |
| Screen | Android 10″ IPS LCD full color touch |

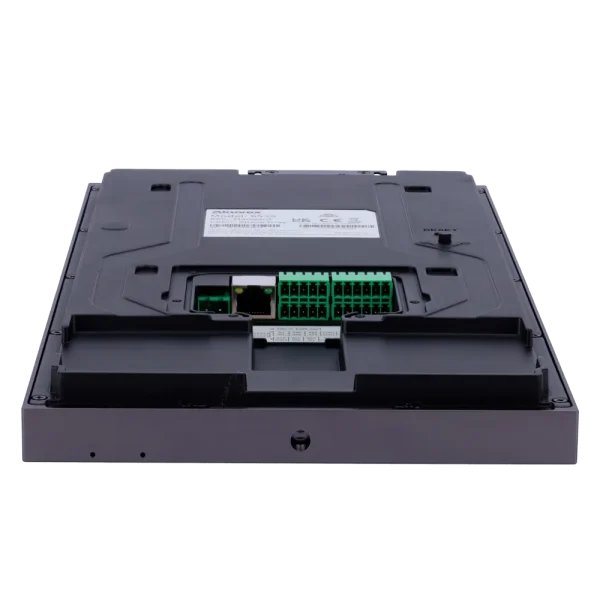

| Outputs | 3 x lock relay (12V/1A), 1 x Wiegand OUT, 1 x RS485 and 1 x magnetic loop |
| Inputs | 3 x output pushbutton and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.7″ 2 Megapixel CMOS with infrared sensor and light sensor Starlight and HDR technology |
| Viewing angle | 120° (H) / 72° (V) |
| Camera resolution | 1920×1080 – 30fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Secondary camera | 2 Mpx for anti-spoofing technology |
| Video encoding | H.264 |
| Audio | Two-way audio with dual microphone and dual loudspeaker with noise reduction and Crystal Clear Audio technology Automatic voice detection |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Aluminium alloy |
| Degree of protection | IP66 & IK08 |
| Temp. operation | -30 ºC ~ +55 ºC |
| Dimensions | 364 (H) x 180 (W) x 31 (D) mm |
| Power | DC 12 V / 3 A max. / DC 24 V / 1.5 A max. / PoE+ IEEE802.3at |
| Weight | 1800 g |
