AK-X916S

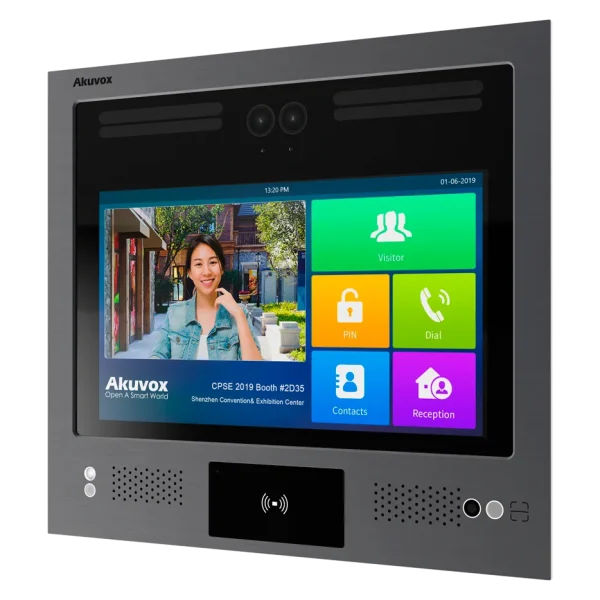

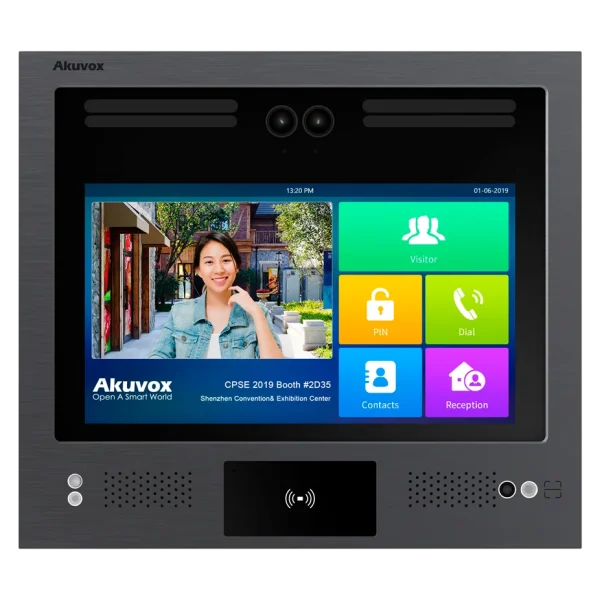

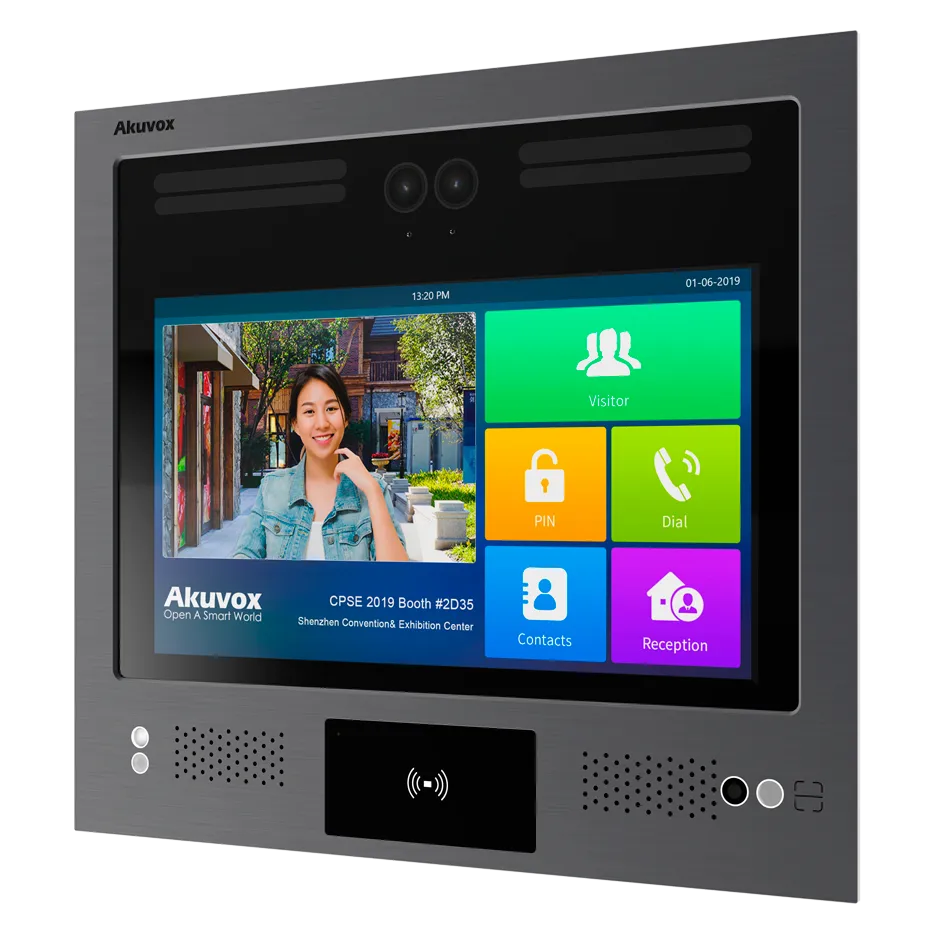

This is a premium Akuvox video intercom with an 8-inch touchscreen and a 5Mp starlight camera. It supports multiple entry methods, including face recognition, keycard, QR code, PIN, and Bluetooth. This intercom is designed for large apartment and condominium buildings – it’s also IK10 vandal resistant and rated for -40°C cold weather.
Description
The Akuvox X916S is a premium video intercom with a full 13″ colour touchscreen and a 5MP starlight camera. It features a variety of entry methods, such as face recognition, keycard (125 KHz 13.56 MHz), PIN, QR Code, and Bluetooth. It supports multiple card types, such as EM prox, Mifare, and DesFire (EV1/EV2/EV3).
It has a secondary 2MP camera for anti-spoofing – preventing people from opening the door using a photo of a person’s face. You can store up to 3,000 contacts in the contact’s list and up to 20,000 cards/passwords.
This intercom supports an extremely cold operating temperature of -40°C, which makes it suitable for harsh Canadian weather. It also has an IK08 rating, making it vandal resistant – as well as an IP65 rating for weather resistance.
Key Features – Akuvox X916S Vandal Resistant Intercom w/Full Colour 13″ Touchscreen
- SIP Android Door Phone for High end Buildings
- H.264 video and G.722 audio codec
- Front Panel: 316 grade stainless steel
- Android OS V0 for any 3rd party software or customization
- Display: 13″ fully-color IPS LCD
- Camera: Three cameras for anti-counterfeit and QR code scane
- Water-proof & Dust-proof: IP65
- Collision-proof: IK07
- Support Wiegand, RS485, 156MHZ&125KHZ Card reader
- Complies with ONVIF standard for easy integration with any network surveillance system
- Installation: Support Surface Mount and Flush Mount by using different bracket or box
Specification
| Brand | Akuvox |
| Model | X916S |
| Access control | Door opening with facial recognition, RFID card EM 125 kHz and MF 13.56 MHz, QR and PIN, with records |
| Capacity | Contacts: 3.000 RFID users: 20.000 faces and 20.000 cards/passwords |
| Screen | Android 13″ IPS LCD full color touch |
| Outputs | 4 x relay for lock (12V/500mA), 1 x Wiegand OUT y 1 x RS485 |
| Inputs | 4 x output pushbutton, 2 x USB and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.8″ 2 Megapixel CMOS with infrared sensor and light sensor Starlight and HDR technology |
| Viewing angle | 115° (H) / 63° (V) |
| Camera resolution | 1920×1080 – 30fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p Supports bidirectional video |
| Additional cameras | 2 Mpx for anti-spoofing technology 0.3 Mpx for QR reading |
| Video encoding | H.264 |
| Audio | Two-way audio with dual microphone and dual loudspeaker with noise reduction and Crystal Clear Audio technology Automatic voice detection |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / LTE |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Anti-corrosion steel SUS316 |
| Degree of protection | IP65 & IK08 |
| Temp. operation | -20 ºC ~ +55 ºC |
| Dimensions | 339 (H) x 384 (W) x 49 (D) mm |
| Power | DC 12 V / 1500 mA max. / PoE+ IEEE802.3at |
| Weight | 2200 g |
