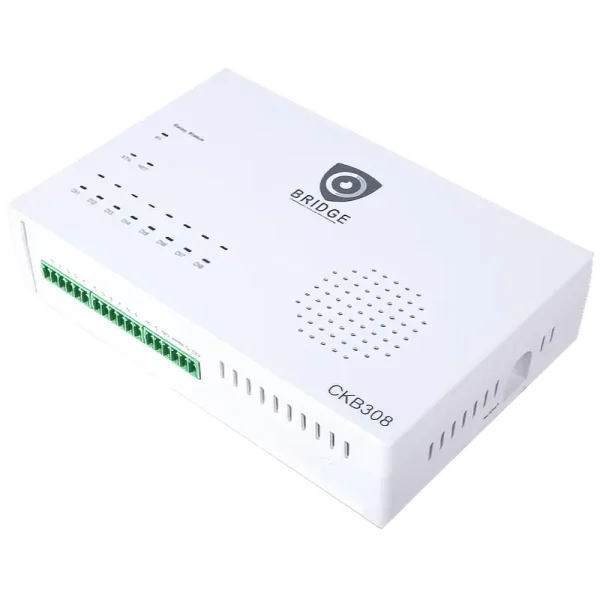

CKB-308
This is an alarm panel that can integrate with your security cameras. It integrates with camera via ONVIF and uses smart events to notify the remote monitoring centre. This panel can integrate with up to 8 security cameras and is powered via PoE or 12V DC.
Description

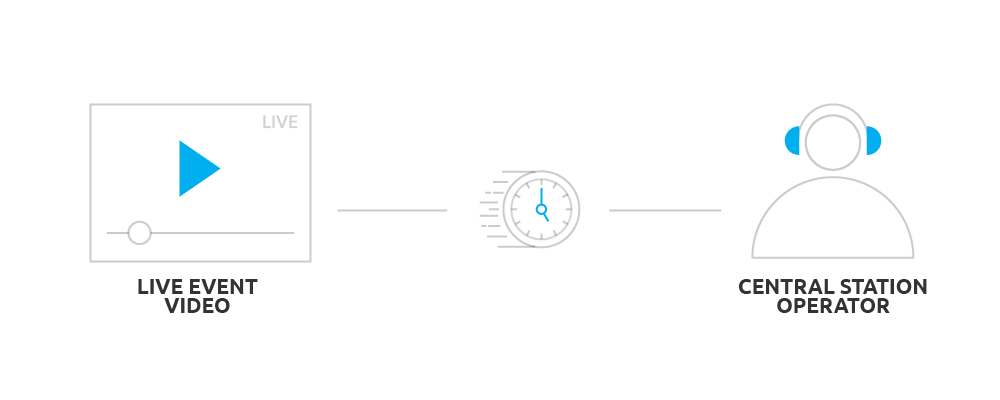

The Chekt 8-channel visual security bridge is like an alarm panel for your security cameras. It converts video events into alarm signals – allowing the remote centre to respond to the situation effectively.
- 8 Camera Channels
- Event Triggers; Camera Analytics, Physical Sensors, & API Events
- Pair Cameras with Existing Alarm Panel Zones
- 1 Normally Open and Closed Controllable Relay Output
- Arming & Disarming Options
- Converts Video Analytics Alarm Signals for Central Station Response
- IP Audio Integration for Audio Messaging
- Line-level Analog Audio Capability
- End-User Mobile App
- POE Power or 12v DC
Specification
| General | ||
|---|---|---|
| Model | CKB308 | |
| Digital Alarm Inputs | 8 Physical Input Zones | |
| Relay Output | 1 x Relay Output (NO/NC) – 100mAmps @24v DC | |
| Audio Output | 1/8″ (3.5mm) Line Level Output (non-amplified)
IP Audio Integrations |
|
| Reset Button | Bridge Factory Reset | |
| LED Indicators | ||
| STA (Status) | Bridge Power – On (Armed Status – Red[Armed] ; Green[Disarmed]) | |
| Net (Network) | Network Connection Indicator | |
| DI (Alarm 1-4) | Physical Input Indicators (Red – Alarm, Off – Normal) | |
| Operational | ||
| Video Source Recommendations | IP devices with available RTSP Stream. Video Source Requirements:~ D1 Resolution: 720×480 & 6 FPS | |
| Video Compression Support | H.264 | |
| Video Authentication Options | ONVIF, RTSP, HTTP | |
| Video Transmission Security | TLS/SSL Encryption to Cloud and Central Station | |
| Video Analytics Support | ONVIF Event Messaging Protocol, API Calls | |
| Event Triggers | Physical Input Zones, ONVIF Event Topics, AI via Local API | |
| Alarm Events | Alarm Communication via IP to Central Station Automation | |
| Audio In | Available on supported cameras with audio in the video stream | |
| Network | ||
| Ethernet | RJ-4510/100/BASE-T Connection | |
| EncryptionSecurity | TLS/SSL (Secure Socket Layer) | |
| Environmental & Electrical | ||
| Operating Temperature /Humidity | 0C ~ +40°C (32°F ~ 85°F) / Less than 85% RH | |
| Bridge Power Source | POE & 12v DC | |
| Power Consumption | 800mAmps Peak | |
| Physical Input Zones | Input Voltage Range: 0-12v DC (All Ground Termals Are Common) | |
| Relay Output | max 100mApms @24v DC | |
| Arming Input | Input Voltage Range: 0-12v DC (All Ground Termals Are Common) – 1.87v ADC Reading with no external Connection
Scheduled Arming Mobile App Arming API Arming |
|
| Mechanical | ||
| Color / Material | White / Polycarbonate (PC) | |
| Product dimensions / weight | 82mm x 100.7mm x 36mm (3.2″ x 3.9″ x 1.4″), Weight : 170g (0.4lb) | |
