EC-T4F28M-V3

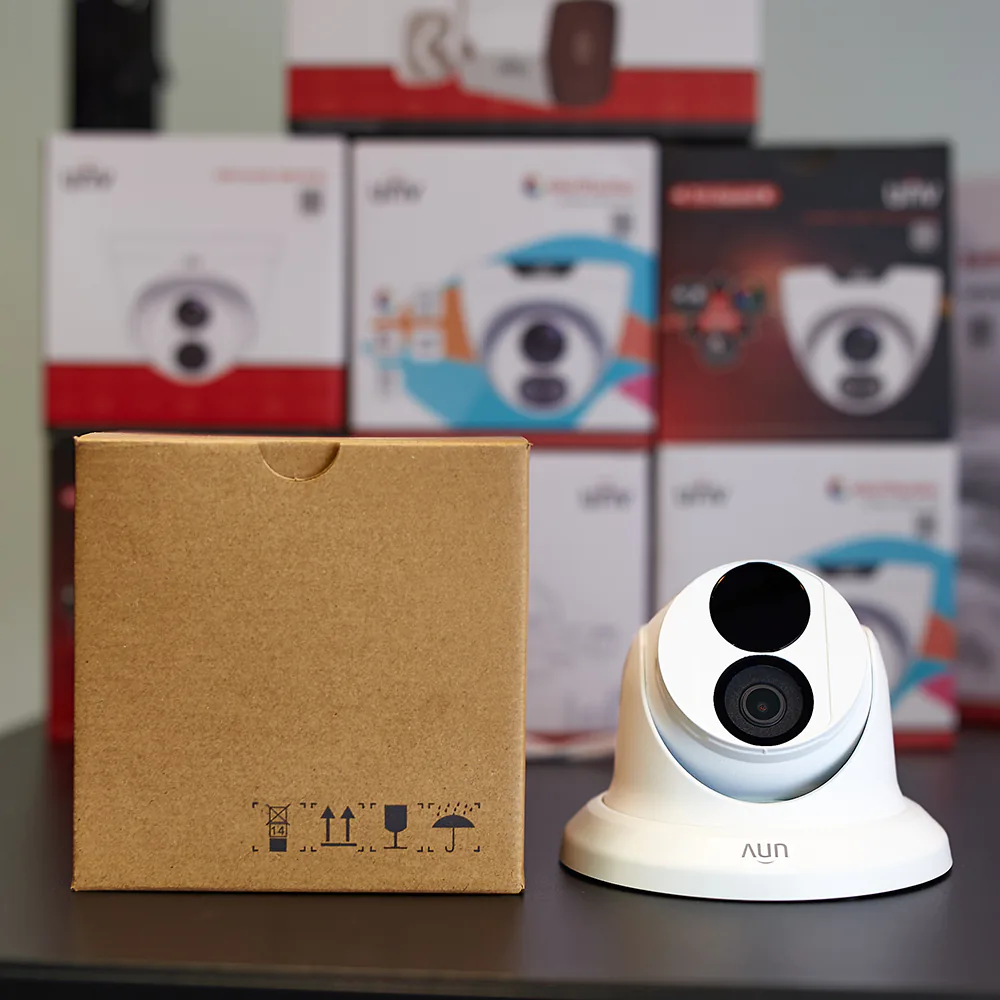

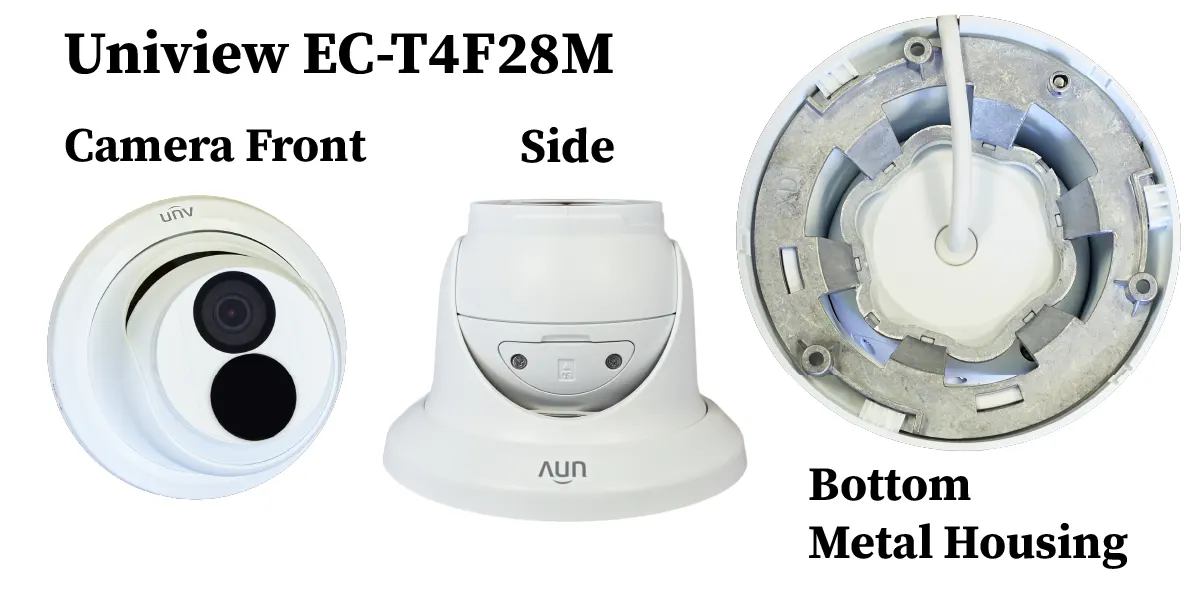

This is a cost-effective 4MP security camera made by Uniview. It has a built-in microphone, metal base for durable mounting, and an IR light that provides black & white illumination in complete darkness. This camera lacks some of the more intelligent features found on other camera, but if you need a simple security camera to monitor an area – this one does the trick. It’s also IP67 weather resistant and can operate in temperatures as cold as -30°C.
Discontinued: Replaced by Uniview EC-T4F28M-DL – 4MP Dual Light Turret
Description

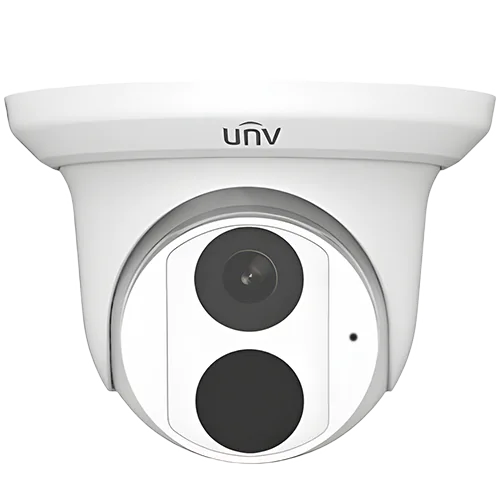

Uniview EC-T4F28M-V3 is an economic series fixed turret camera. It has a 4MP sensor, wide 2.8mm angle lens, and is IP67 rated for outdoor use. Uses the TR-JB03-H-IN and TR-WM03-B-IN junction boxes (optional) for mounting.
This camera is ideal for use in residential and commercial applications, where cost-effectiveness is a priority. The -V3 is a new edition released in May 2024 – it features a built-in microphone. This is a heavily requested feature so we’re glad it’s finally arrived while keeping the same price and features.
Features – 4MP Fixed Dome Network Camera
- High quality image with 4MP, 1/2.9″CMOS sensor
- 4MP (2560*1440)@20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Smart IR, up to 30m (98ft) IR distance
- Support 128 G Micro SD card
- Support PoE power supply
- 3-Axis
Specification
| EC-T4F28M-V3 | |||||||
| Camera | |||||||
| Sensor | 1/2.9″, 4.0 megapixel, progressive scan, CMOS | ||||||
| Min. Illumination | Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | ||||
| S/N | >52dB | ||||||
| WDR | 120dB | ||||||
| Lens | |||||||
| Lens Type | 2.8mm @F2.0 | ||||||
| Iris | Fixed | ||||||
| Field of View (H) | 101.5° | ||||||
| Field of View (V) | 55.6° | ||||||
| Field of View (D) | 111.6° | ||||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||
| Illuminator | |||||||
| IR Range | Up to 30m (98ft) | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||||
| U-code | Support | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video stream | Dual streams | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion | ||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 128GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZView EZLive |
||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | |||||||
| Audio I/O | N/A | ||||||
| Alarm I/O | N/A | ||||||
| Serial Port | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | N/A | ||||||
| WIFI | N/A | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
| Certification | |||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
| Protection | IP67 (IEC 60529) | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 4.0W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (Ø x H) | Φ126 x 94mm (Φ5.0” x 3.7”) | ||||||
| Weight | 0.30kg (0.66lb) | ||||||
| Material | Metal+Plastic | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KVs | ||||||
| Reset Button | N/A | ||||||
