IPC9312LFW-AF28-2X4

2MP Dual Lens PTZ, IR up to 50m + White LED up to 10m, MicroSD Slot, Human Auto-Tracking, Built-in Mic + Speaker, Varifocal 2.8-12mm lens + 2.8mm Fixed lens

Description

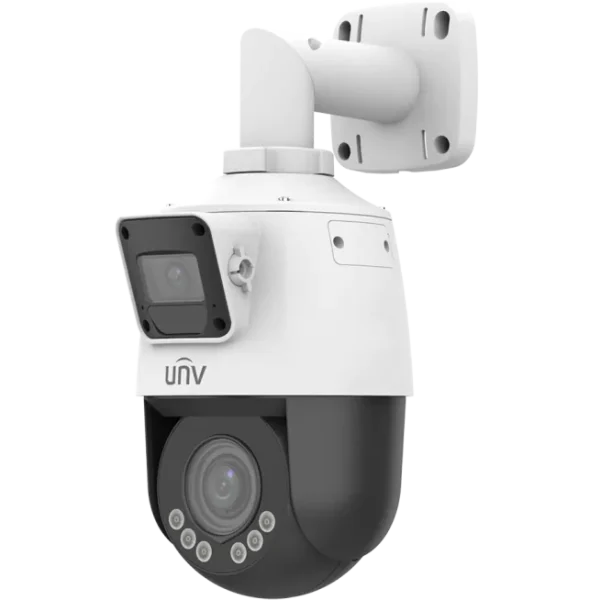

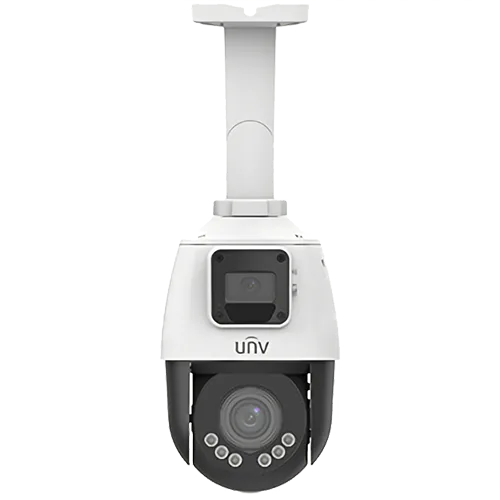

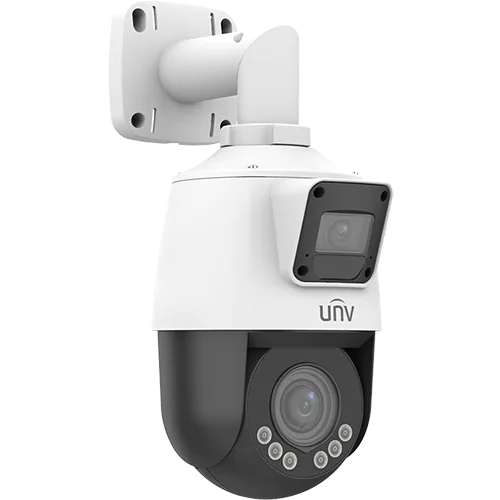

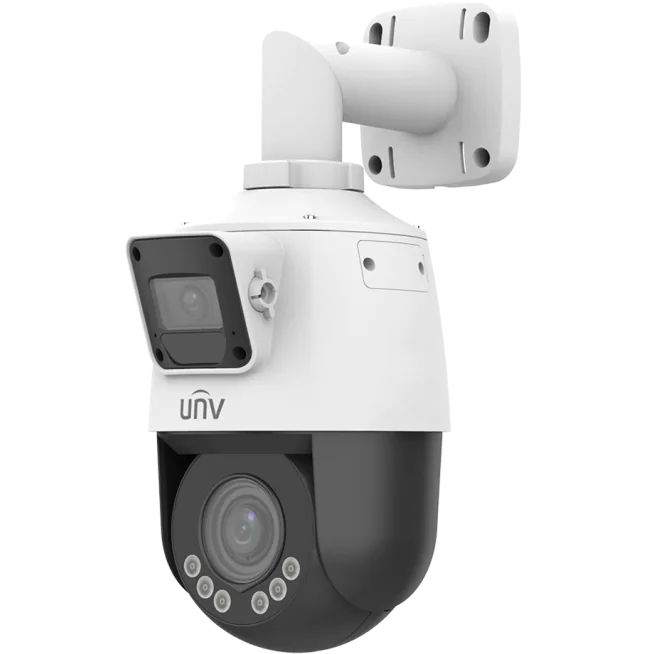

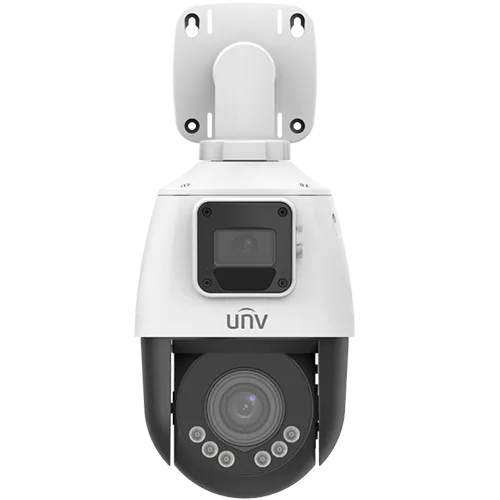

Uniview’s IPC9312LFW-AF28-2X4 is a 2MP Dual Lens PTZ with advanced features. The top lens is a fixed 2.8mm lens which can be adjusted during installation to give overall coverage of the scene. The bottom lens is a 2.8-12mm camera which can pan, tilt, and zoom. The bottom lens is also capable of automatically tracking people and vehicles in the scene.

In addition, this dual lens PTZ features Uniview Active Deterrence technology for triggering an audio alert and powerful white floodlights when detecting an intruder. Furthermore, you can enable an automatic voice warning from 10 presets, or record your own voice from the EZView App and upload it to the camera. And finally, the camera has LightHunter technology for excellent performance at night.

To summarize, the dual lens PTZ is a great option for residential or smaller commercial applications. There is a lot of flexibility with this camera. To setup the dual lens with auto-tracking, you will need to enable the master-slave linkage between the top and bottom lens. For more information, visit this guide on How To Configure Master-Slave Linkage.

Features – 2*2MP Lighthunter Dual-lens Network PTZ camera

  • Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
  • High quality image with 2MP,1/2.8″ CMOS sensor
  • 1920*1080@25fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • 4X optical zoom of PTZ channel allows for closer viewing of subjects
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • PTZ channel can be linked by fixed channel’ smart intrusion prevention to track the objects triggering the rule
  • Lighthunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Built-in 2*mic & high-power speaker, support two-way audio, has better sound performance
  • Support ceiling mount and wall mount
  • IR & warm light illumination to deal with different scenes and achieve full-color illumination
  • DC12V or PoE+(IEEE 802.3at) power supply

Specification

IPC9312LFW-AF28-2X4
Camera Panorama Detail
Sensor 1/2.8″, 2MP, CMOS
Min. Illumination Color:0.002 lux (F1.6, AGC ON)
0 lux with IR
Color:0.002 lux (F1.6, AGC ON)
0 lux with IR/Warm light
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB DWDR
S/N >52dB
Lens
Lens type 2.8mm@F1.6 2.8~12mm@F1.6,
AF automatic focusing and motorized zoom lens
Optical Zoom N/A 4X
Iris Fixed aperture
Field of View (H) 102.4° 106.6° ~ 30.6°
Field of View (V) 54.9° 56.5° ~ 17.4°
Field of View (D) 133.1° 138.6° ~ 37.6°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8(Panorama) 43.4(142.5ft) 17.4(57.0ft) 8.7(28.5ft) 4.3(14.3ft)
2.8(Detail) 43.4(142.5ft) 17.4(57.0ft) 8.7(28.5ft) 4.3(14.3ft)
12(Detail) 162.9(534.6ft) 65.2(213.8ft) 32.6(106.9ft) 16.3(53.5ft)
Illuminator
IR Range Up to 10m (32.8 ft) Up to 50m (164.0 ft)
Warm Light Range N/A Up to 10m (32.8 ft)
Wavelength 850nm (IR)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 1080P (1920*1080),Max 25fps
Sub Stream: 720P (1280*720), Max 25fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support (Main stream)
ROI Up to 8 areas
Video stream Dual streams
OSD Up to 4 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital defog
Intelligent
Smart Intrusion Prevention Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
Linkage Function Support, Triggered by fixed lens via smart intrusion prevention function to track target
Events
Basic Detection Audio detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range N/A 0° ~ 345°
Pan Speed N/A 1°/s ~ 40°/s
Preset speed: N/A Preset speed: 40°/s
Tilt Range 18° ± 5° -10° ~ 100°
Tilt Speed N/A 1°/s ~ 50°/s
Preset speed: N/A Preset speed: 50°/s
Number of Presets 256
Preset Patrol 16 patrol routes, up to 64 presets for each route
Patrol Stay Time 1000s~1800s
Preset Image Freeze N/A
Home Position Support
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support (Mic*2)
Built-in Speaker Support
Wi-Fi N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC12V, PoE+(IEEE 802.3at)
Power consumption: MAX 16W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”)
Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”)
Weight 1.03kg (2.27lb)
Working Environment -20℃ ~ 60℃(-4°F ~ 140°F),Humidity: ≤95% RH (non-condensing)
Storage Environment -30℃ ~ 70℃(-22°F ~ 158°F),Humidity: ≤95% RH (non-condensing)
Surge protection 2KV
Reset button Support
