GCB01-B7

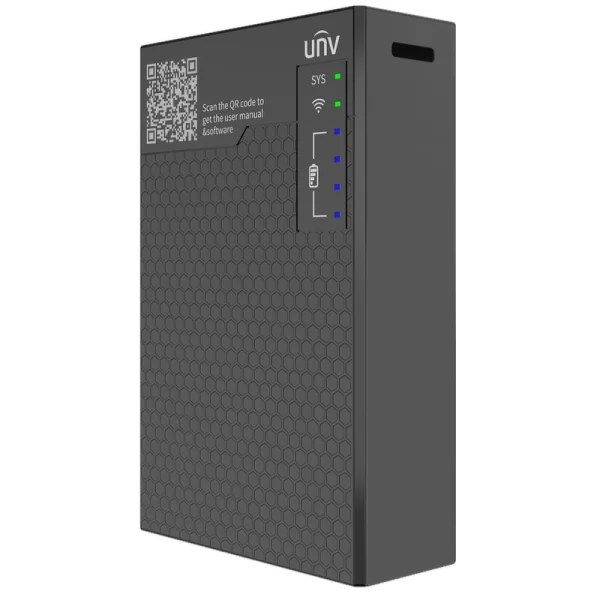

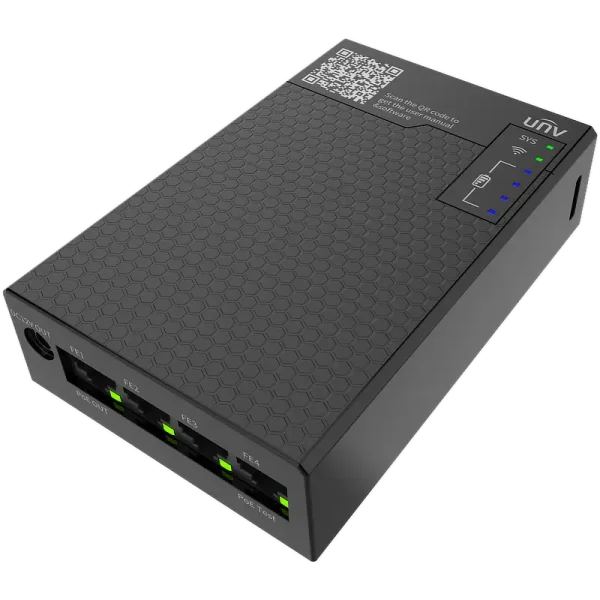

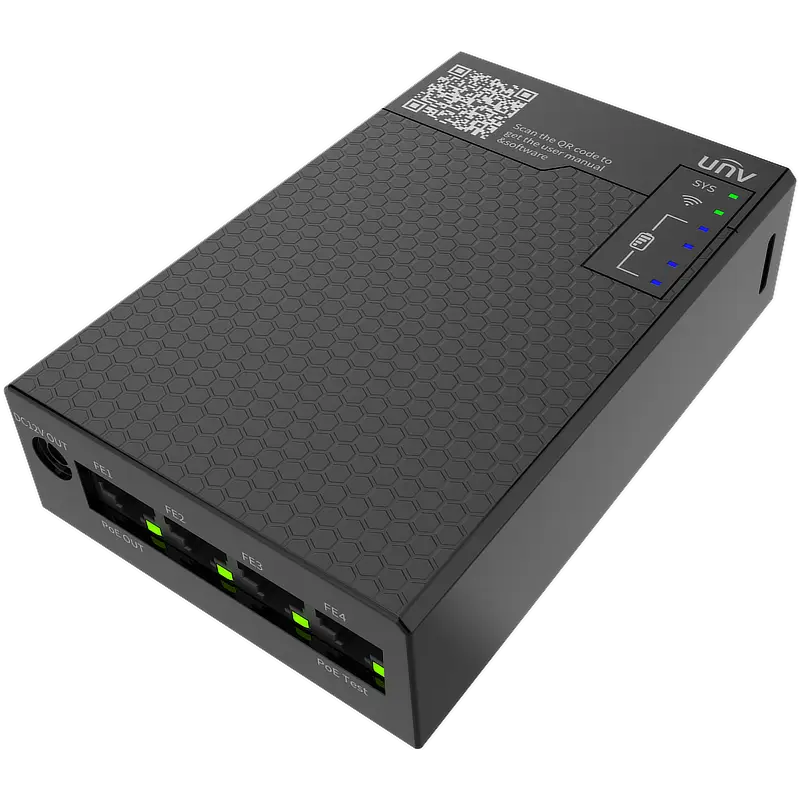

The Uniview connect pro box allows you to power up an IP camera and view it through a laptop or using your smartphone. This is helpful for installing cameras on a jobsite without power – allowing you to aim the cameras and configure them immediately. The 7500mAH can power cameras for ~5 hours before needing to be recharged.
Description
This helpful tool allows you to easily configure or troubleshoot cameras while on the job site. It has a single PoE output and a PoE test port. It also has a built-in Wi-Fi hotspot, allowing you to connect your mobile phone to view the camera through the UNV-Link Pro app or directly through the IP address using your laptop.
It also has a USB charging port (5V/1A) which lets you charge a device such as a smartphone while on the job. So even if you’re not testing cameras, this UNV Pro Connect Box is a handy tool to keep in your kit.
For detailed instructions on how to use it, read pages 23 – 24 of the UNV-Link Pro User Manual.
Specification
| GCB01-B7 | ||||||||
| Interface | ||||||||

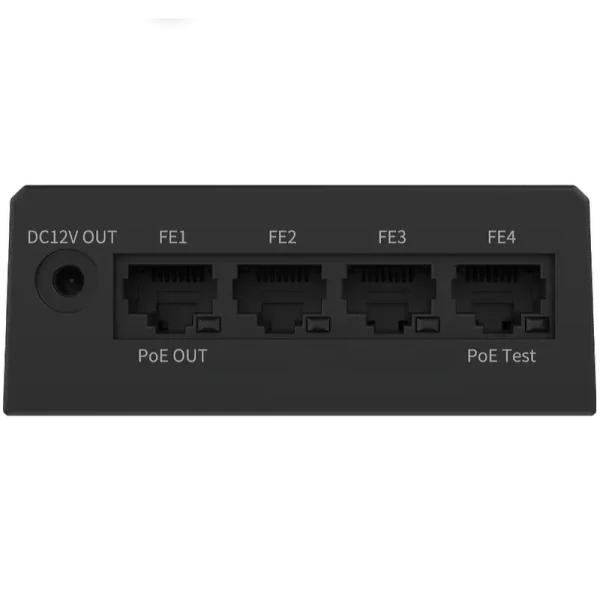

| Network | 4 x RJ45 10M/100M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test | |||||||
| Voltage Test | 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range： 1V~56V) |
|||||||
| Network | ||||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n) | |||||||
| Structure / Environment | ||||||||
| Battery Capacity | 18650 lithium battery, 7500mAH | |||||||

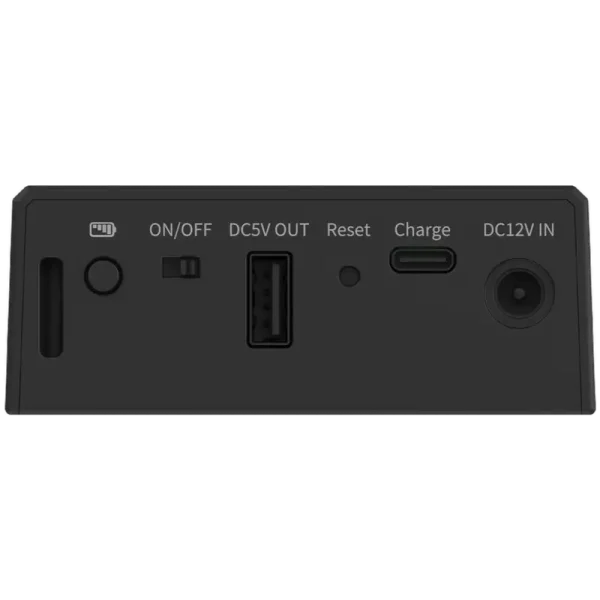

| Power Input | 1 x DC 5V/2A max, type-c | |||||||
| Power Output | 1 x DC 12V/1A output; 1 x DC 5V/1A output, type-A | |||||||
| General | ||||||||
| LED Indicator | System indicator, WiFi indicator, Battery indicator | |||||||
| Dimensions | 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H) | |||||||
| Working Environment | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
| Reset Button | Support | |||||||
