ED-R1

This doorbell chime can be plugged directly into a wall outlet and connects wirelessly to Uniview’s video doorbell. It supports three different ringtones and five volume levels.

Special orderWe can special order this item from our suppliers. Please contact us for lead time.

Installer & dealer pricing

Prices are shown to approved installers and dealers. Log in to see your pricing and order online.

Same-day shippingWeekday orders by 3 PM EST
Local pickupToronto warehouse, Mon–Fri 9–5

Product Overview

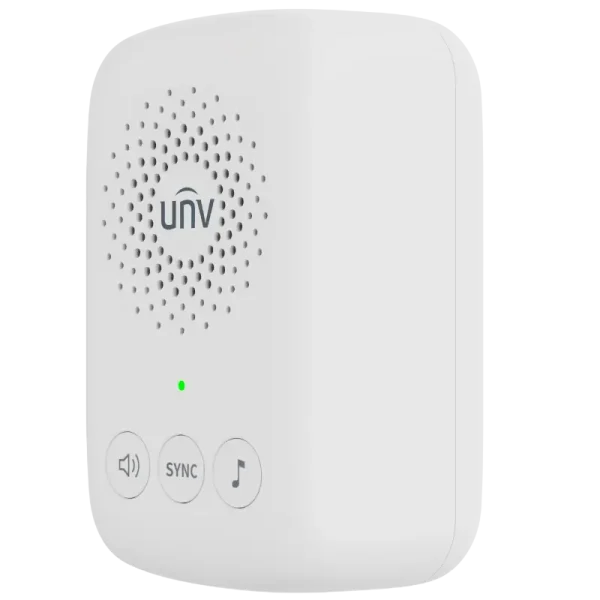

The ED-R1 wireless doorbell chime is compatible with the ED-525B-WB dual-lens video doorbell. It can be plugged into a wall outlet, making for a quick and easy install.

This chime comes with 3 built-in ringtones and 5 adjustable volume levels. You can tap the buttons on the front to adjust these settings – the left button changes the volume, the center button syncs with the video doorbell, and the right button cycles between the different ringtones.

It connects to the video doorbell using sub-1 GHz frequency, allowing the signal to effectively penetrate walls and avoiding any interference with Wi-Fi.

Specification

ED-R1
Chime
Connection method Sub-1 GHz
Speaker Built-in speaker
General
Power source As per definitions by different countries/regions
Installation method Install the plug directly into the socket

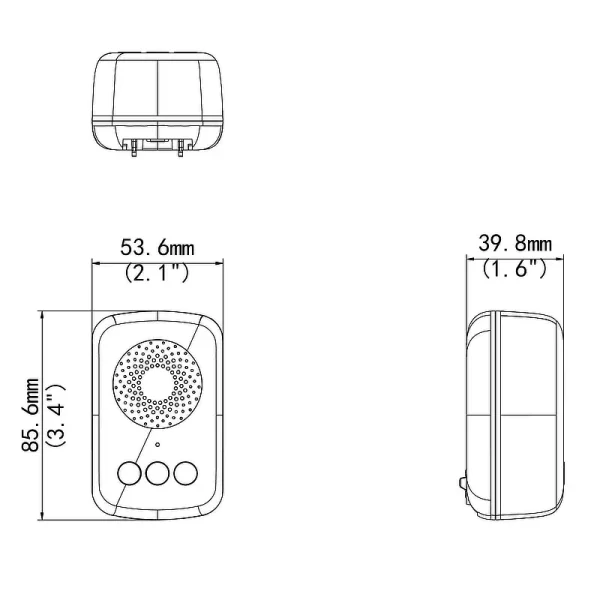

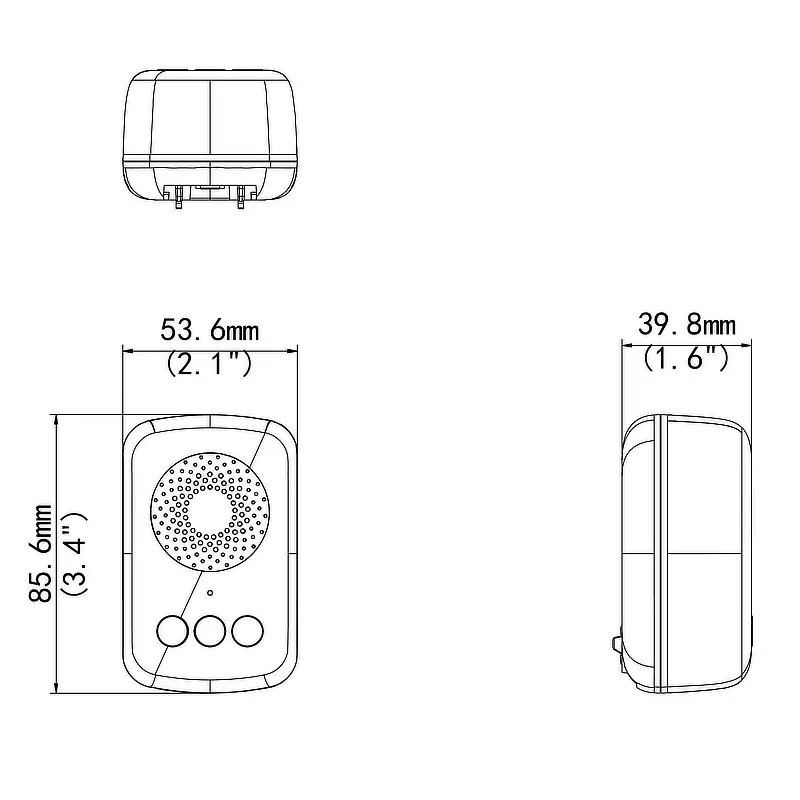

Dimensions 53.6 mm × 85.6 mm × 39.8 mm
Weight Net weight: 80g
Gross weight: 125g
Power consumption 3W
Button From left to right: volume adjustment, reset status, change ringtone
Operating temperature -20 °C to 50 °C
