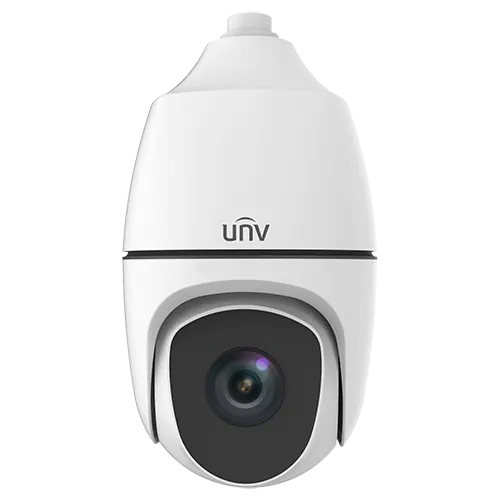

IPC6854SR-X38UP-VC
4MP LightHunter PTZ Dome Camera, 60fps @ 4MP, IR up to 250m, IP66, MicroSD Slot, EIS via Gyroscopic Stabilization, Varifocal 5.7-216.6mm lens (38x Zoom)
Description
Features – 4MP 38X Network IR PTZ Dome Camera
- High quality image with 4MP,1/1.8″ CMOS sensor
- 2688*1520@60fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Five streams
- 38X Optical Zoom
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 250m (820ft) IR distance
- Gyroscope stabilization for stable picture
- AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt) power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP66 ingress protection
Specification
| IPC6854SR-X38UP-VC | |||||
| Camera | |||||
| Sensor | 1/1.8″, 4.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Colour: 0.001Lux (F1.3, AGC ON) 0Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens type | 5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 38 | ||||
| Iris | Auto/manual; F1.3 ~ F4.6 | ||||
| Angle of View (H) | 58.5° ~ 2.1° | ||||
| Angle of View (V) | 34.9° ~ 1.2° | ||||
| Angle of View (O) | 72.0° ~ 2.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5.7 | 103.7(340.1ft) | 41.5(136.0ft) | 20.7(68.0ft) | 10.4(34.0ft) | |
| 216.6 | 3249.0(10659.4ft) | 1299.6(4263.8ft) | 649.8(2131.9ft) | 324.9(1065.9ft) | |
| Illuminator | |||||
| IR Range | UP to 250m (820ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 4MP (2688*1520)@60fps; Sub Stream: 2MP (1920*1080)@60fps; Third Stream: D1 (720*576)@60fps; Fourth Stream:D1(720×576)@60fps; Fifth Stream:D1(720×576)@60fps; |
||||
| H.264 Type | Baseline Profile/Main Profile/High Profile | ||||
| H.265 Type | Main Profile | ||||
| U-code | Support | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Five streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas(Up to 8 blacks or 8 mosaics in the same picture) | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| EIS | Support (gyroscope) | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Optical Defog & Digital Defog | ||||
| Events | |||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation Ezview EZLive |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 180°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 180°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
| Interface | |||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 RJ45 10M / 100M Base-TX Ethernet | ||||
| Video output | N/A | ||||
| Certification | |||||
| EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
||||
| Safety | IEC 62368-1 EN 62368-1 UL 60950-1 |
||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||
| Protection | Ingression protection: IP66 (IEC 60529-2013) | ||||
| General | |||||
| Power | AC 24V ±25%, DC 24V ±25%, PoE++ (IEEE 802.3bt) (IEEE802.3bt switch required) | ||||
| Power consumption: Max 70W | |||||
| Power Interface | Wires with cold-pressed terminal | ||||
| Dimensions (Ø x H) | Φ270 x 496.7mm (Φ10.6” x 19.6”) | ||||
| Weight | 9.69kg (21.4lb) | ||||
| Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 6KV | ||||
| Vandal Resistant | N/A | ||||
| Ingress Protection | IP66 | ||||
| Reset Button | Support | ||||
