IPC2225SE-DF40K-WL-I0

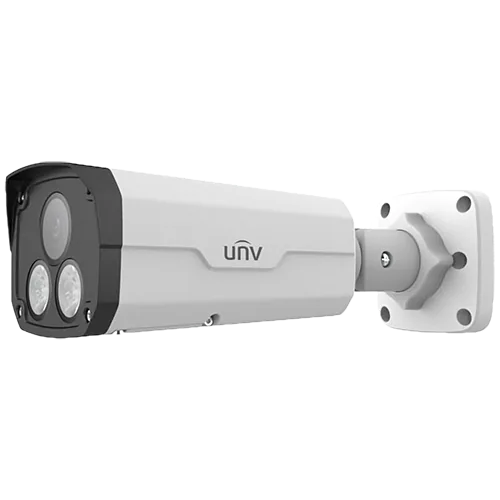

5MP ColorHunter Bullet IP Camera, White Light up to 30m, IP67, MicroSD Slot, Fixed 4.0mm lens

Description

Features – 5MP HD ColorHunter Fixed Bullet Network Camera

  • High quality image with 5MP, 1/2.7″CMOS sensor
  • 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps;3MP (2304*1296)@30/25fps; 2MP (1920*1080)@ 30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Supports 256 G micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply

Specification

IPC2225SE-DF40K-WL-I0 IPC2225SE-DF60K-WL-I0
Camera
Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
WDR 120dB
S/N >56dB
Lens
Lens 4.0mm@F1.0 6.0mm@F1.0
Angle of View (H) 80.2° 53.4°
Angle of View (V) 43.0° 29.2°
Angle of View (O) 94.7° 61.6°
DORI
DORI Distance Lens (mm) Detect(m) Observe(m) Recognize(m) Identify(m)
4.0 90.0 36.0 18.0 9.0
6.0 135.0 54.0 27.0 13.5
Illuminator
LED Distance Up to 30m (98ft)
LEDs Number 2
LED On/Off Control Auto/Manual
Video
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps;3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P(1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction 2D/3D DNR
Smart Illumination Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping NA
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
Statistical Analysis People counting, support tripwire people counting and area people counting
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way audio Support
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
RS485 N/A
Built-in Mic N/A
Built-in Speaker N/A
WIFI N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 62368-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)
Vandal resistant: IK10 (IEC 62262:2002)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L × W × H) 246× 86 × 85mm (9.7” × 3.4” × 3.3”)
Weight 0.92kg (2.02lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection 4KV
Reset Button NA
