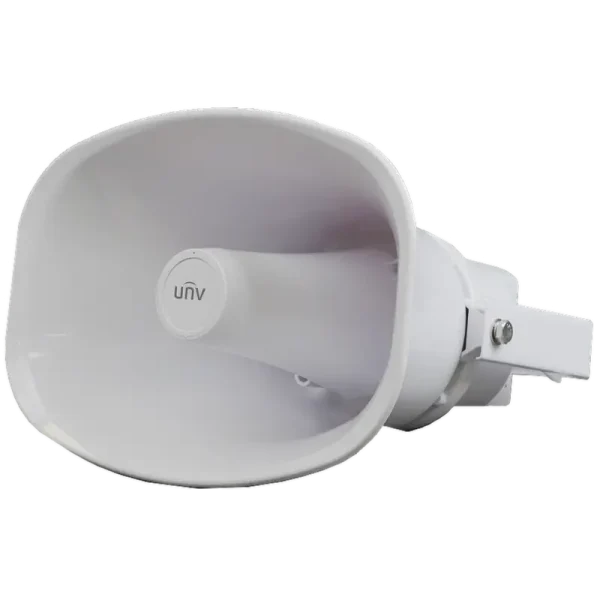

IPS3020-S
This is an outdoor IP speaker that supports two-way communication and custom audio uploads. It can be powered via PoE+ (30W) and added to a Uniview NVR. It can also be triggered by events on the cameras such as cross-line or intrusion detection.
Description
This powerful 30W outdoor speaker can be connected to a Uniview NVR and configured through the network similar to an IP camera. It supports two-way audio and can be triggered by IP cameras via Ultra Motion Detection or Smart Intrusion Prevention.
It also supports a scheduled broadcast, allowing you to play a message at the same time(s) every day. You can also upload your own sound to the IP speaker in an MP3 or WAV format up to 10MB in size. The IP speaker has a built-in 64MB of storage for custom audio files.
Features – Outdoor 30W IP Speaker
- Built in 1 high-quality speaker with loud sound, long penetration and clear
- Support alarm broadcast with uniview NVR, video and audio linkage.
- Built in storage, support uploading custom audios
- Support two-way audio
- Support PoE power supply
Specification
| IPS302030-S | ||||||||
| Speaker | ||||||||
| Rated Power | 30 W | |||||||
| Max. Acoustic Pressure | 130 dBSPL | |||||||
| Frequency Response | 300 Hz to 12.5 kHz | |||||||
| Impedance | 8 Ω | |||||||
| Material | ||||||||
| Material | ABS Plastic | |||||||
| Network | ||||||||
| Network Protocol | IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH | |||||||
| Interface Protocol (API) | ONVIF, RTSP, RTP, LAPI | |||||||
| Browser | Firefox 87+, Chrome 90+, Edge 90+, Safari 17+ | |||||||
| Build in Mic | ||||||||
| Amount | 1 | |||||||
| Frequency Response | 100 Hz to 8 kHz | |||||||
| Sensitivity | -37 dBV/Pa | |||||||
| Sampling Rate | 8 kHz | |||||||
| Quantization Bits | 16 bit | |||||||
| Audio | ||||||||
| Broadcast | Regular Broadcast, Live Broadcast, Alarm Broadcast | |||||||
| Two-Way Audio | Support | |||||||
| Audio Compression | G.711U | |||||||
| Audio File Format | MP3, WAV | |||||||
| Audio File Size | 2 KB ≤ Audio File Size ≤ 10 MB | |||||||
| Audio File Storage | 64 MB | |||||||
| Audio File Number | 100 (Include system built-in files ) | |||||||
| Language | ||||||||
| Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||||||
| Interface | ||||||||
| Network Interface | 1 RJ45 10 M/100 M self adaptive Ethernet Interface | |||||||
| Audio In | RCA (only be used for sound amplification,cannot be used for intercom) | |||||||
| Alarm In | 2 | |||||||
| Power Supply | PoE (IEEE 802.3at), DC 24 V/1.4 A, DC 12 V/2.5 A | |||||||
| Working Environment | ||||||||
| Working Temperature | -30 ℃ to 55 ℃ (-22 ℉ to 131 ℉) | |||||||
| Working Humidity | ≤ 90% RH (non-condensing) | |||||||
| Dimensions | ||||||||
| Dimensions | 282mm × 205mm× 285mm (11.1″×8.1″×11.2″) | |||||||
| Approval | ||||||||
| Protection | IP66 | |||||||
