MZE-WR-WAVE-KIT1
This washroom kit allows for touch-free operation of a washroom door – including the ability to lock it using the ‘wave-to-lock’ switch. The LED lights on the switches will turn red when the door is locked, and green when it’s unlocked. This clear visual feedback makes it easy to understand whether the washroom is occupied or vacant.
Description
This MZE washroom kit includes the following components:
- 2× Touch-Free Wave Switch (double gang) – MZE-WB5501B
- 1× Wave to Lock Switch (double gang) – MZE-WB5501BL

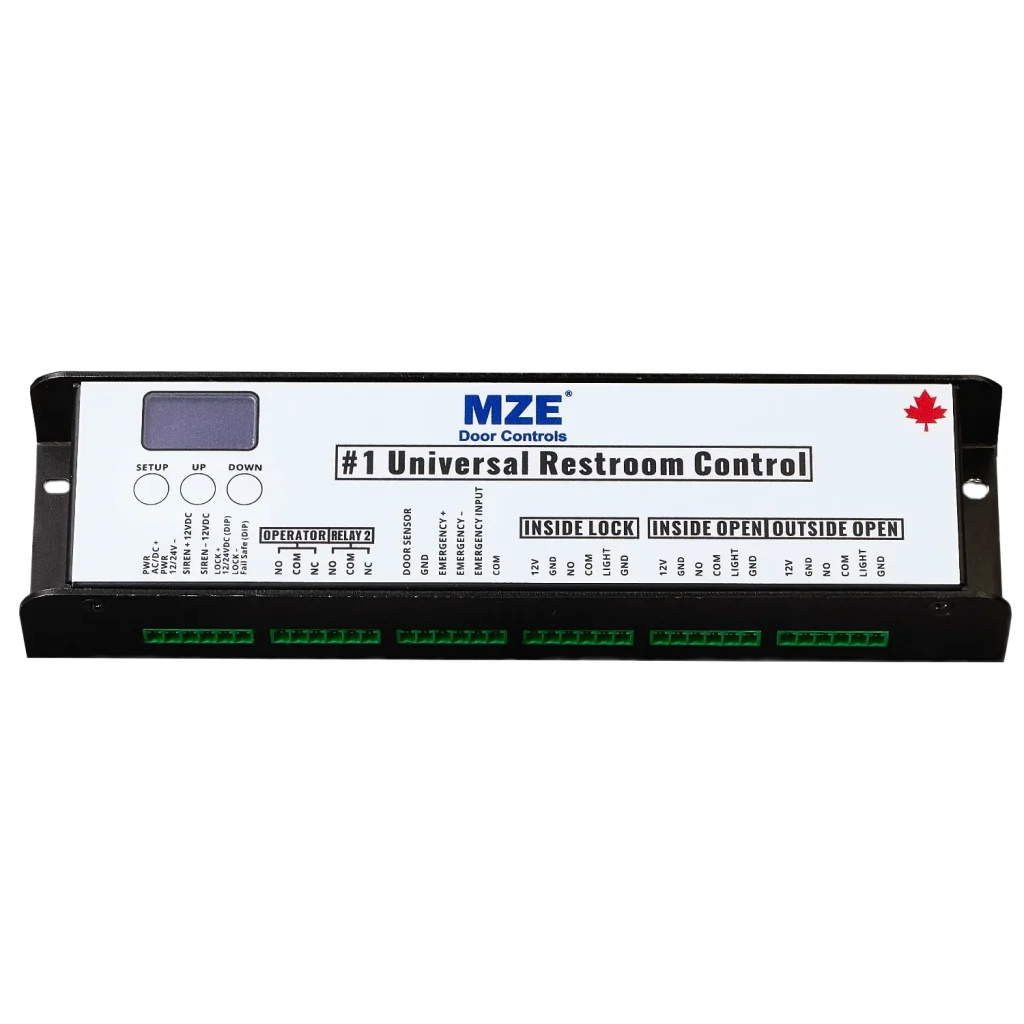

- 1× Advanced Logic Controller – MDC24
- 1× Magnetic Door Contact – DS01
- 2× Occupied / Vacant Status Signs
These components provide everything you need to create a barrier-free washroom installation. The led lights alternate between green and red to show that the washroom is either vacant or occupied. The magnetic door contact will reset the door lock status to ‘open’ if the door is opened from the inside without using the buttons.
You can pair it with the washroom emergency assistance kit (MZE-WR-EB-KIT) to alert building staff in the event of an emergency.
Specification
| Activation Type: |
Touch-free wave switches
|
| Illumination: |
LED indicators (red/green status display)
|
| Function: |
Automatic door activation and occupancy indication
|
| Power Supply: |
12/24V DC
|
| Mounting: |
Narrow
|
| Mounting Type: |
Surface or flush mount
|
| Application: |
Barrier-free / public restroom systems
|
| Material: |
Stainless steel faceplate
|
| Operating Temperature: |
–20 °C to +55 °C (–4 °F to 131 °F)
|
| Warranty: |
3 years
|
