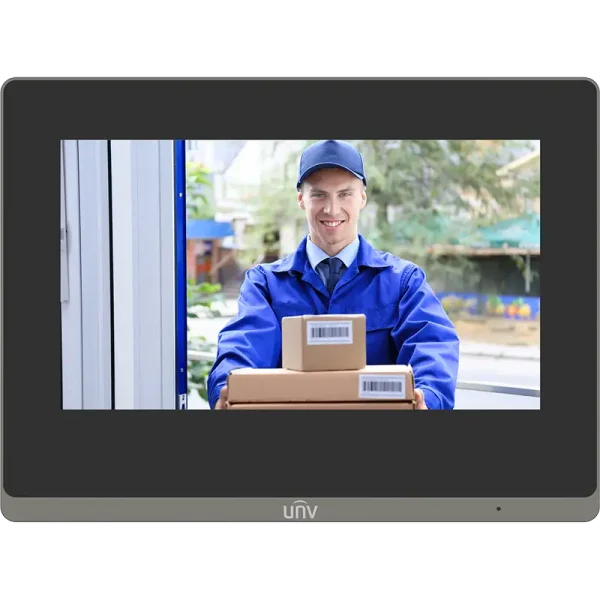

An indoor station for Uniview's intercom with a 7-inch touch screen allowing you to answer calls

OEI-372S-H-W

This is a 7-inch touchscreen indoor station for the Uniview 2MP intercom door station. It supports two-way audio, Wi-Fi, and can be powered over PoE or 12V DC.

Login for pricing
Category: Tag:

Description

This is a 7-inch touch screen with a glass panel and a 1024 x 600 resolution screen. It’s meant to be used with the OEU-201S-HMK-W Villa Door Station. It lets you answer calls from the intercom and speak with them in real time. If the intercom is connected to an electric door strike, you can tap the unlock button to disengage the lock and open the door.

There’s also a microSD card slot, allowing you to record and playback footage from the intercom. You can even add other network cameras to this indoor station, allowing you to view them directly on the screen.

You can link multiple indoor stations to a single outdoor station, or vice-versa.

Wall Mounted 7-Inch Indoor Station(Touch Screen)

  • ABS casing and glass panel, solid and durable
  • Supports Wi-Fi
  • Supports touchscreen operation
  • 1024 x 600 HD screen
  • Supports remote door opening by sending signal to the door station
  • Allows to view live video of connected door stations and network cameras

A poster showing a man viewing his video intercom camera on his smartphone

Specification

OEI-372S-H-W
Hardware Specification
Power Supply DC12V±25%,IEEE802.3af, Standard PoE
Power Consumption ＜10W
Screen 7-inch ultra-thin TFT LCD screen
Screen Resolution Screen resolution 1024×600
Operation System Linux
Audio Quality Noise suppression, echo cancellation and AGC
Audio Input 1 built-in omnidirectional microphone
Audio Output 1 built-in speaker
Audio Compression Standard MP3 G711
Audio Compression Bitrate 128Kbps
Interface Power*1, network*1, WiFi*1, RS485*1, IO output*2, IO input*8, TF card slot*1
Network 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ
Weight 360g
Dimensions (L x W x H) 193mm×143mm×25mm
Operating Environment -10°C to +55°C, 10% to 90%, non-condensing, indoor
Basic Business
Protocol UNV private protocol
Network protocol TCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Specification Index
Capacity 200 ScreenShots
200 Zone Alarms
A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells
Linked Indoor Station Capacity 19 extensions
