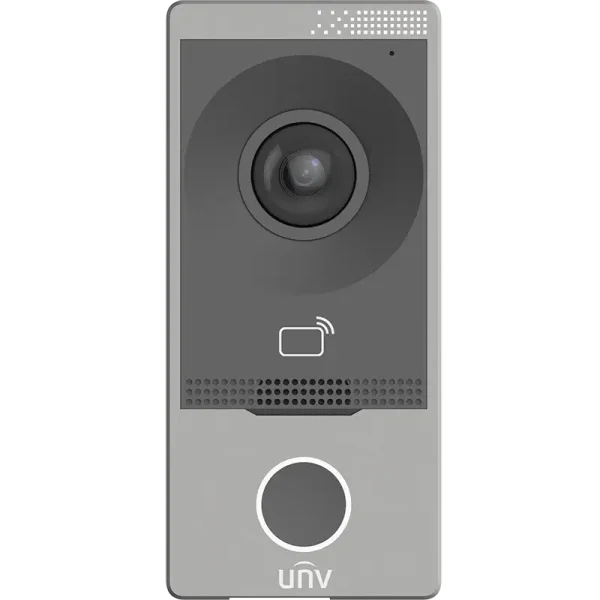

OEU-201S-HMK-W
This 2MP outdoor intercom supports electric door strikes, can be powered via 12V DC or PoE, and can ring a user’s phone through the UNV-Link User app. It also supports Wi-Fi, giving you added flexibility for how you install it.
Description
This is a 2MP outdoor intercom station made with hardened aluminium alloy. It supports for electric door strikes via two dry relay contacts – which are activated through the app or from the built-in card reader. It can be powered over PoE or 12V DC and supports Wi-Fi communication for added flexibility with installation. This door station can also be added to an NVR as an IP camera, allowing it to be recorded continuously.
Furthermore, the OEU-201S-HMK-W supports two-way audio so that you can chat with the person before unlocking the door for them. It also supports MIFARE classic cards as an access credential – you simply login to the intercom via the web interface and add credentials by tapping the card onto the reader.
Note: There is an SD card slot on the back of the intercom but it’s not functional (as of August 1st, 2025). Footage can only be stored on the indoor station, the app, or an NVR.
Villa Door Station(IC Card,WiFi)
- Front panel: Aluminum alloy
- Supports batch configuration
- Supports call and intercom with the connected indoor stations and UNV Link.
- Supports monitoring functions, security alarm, tamper alarm
- Supports Wi-Fi
- Built-in IC card reader
Specification
| OEU-201S-HMK-W | ||||||||
| Hardware Specification | ||||||||
| Operation System | Linux | |||||||
| Supplement Light | IR light(Adaptive infrared compensation) | |||||||
| FOV | Horizontal:124.3° Vertical:67.5° Diagonal:147.2° |
|||||||
| Power Consumption | ＜10W | |||||||
| Volume Adjustment | Adjustable | |||||||
| Audio Quality | Noise suppression, echo cancellation and AGC | |||||||
| Audio Input | 1 built-in omnidirectional microphone | |||||||
| Audio Output | 1 built-in speaker | |||||||
| Audio Compression Standard | PCM, G711, MP3 | |||||||
| Audio Compression Bitrate | 128Kbps | |||||||
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) IK08 |
|||||||
| Power Supply | DC 12V±25% input;IEEE802.3af, Standard PoE | |||||||
| Weight | 0.267Kg | |||||||
| Mount Method | Wall mounted, flush installation | |||||||
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply，WIFI | |||||||
| Interface | Power *1, network port *1, RS485, door lock interface *2, IO input *4 | |||||||
| Resolution | 2MP | |||||||
| Dimensions (L x W x H) | 79mm×171mm×34mm | |||||||
| Operating Environment | ﹣30℃~﹢60℃,10%～90%, non-condensing, outdoor | |||||||
| Basic Business | ||||||||
| WDR | Support DWDR | |||||||
| Protocol | UNV private protocol | |||||||
| Button | 1 physical button | |||||||
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP | |||||||
| Specification Index | ||||||||
| Card Capacity | 10000 | |||||||
| Linked Indoor Station Capacity | 20 | |||||||
