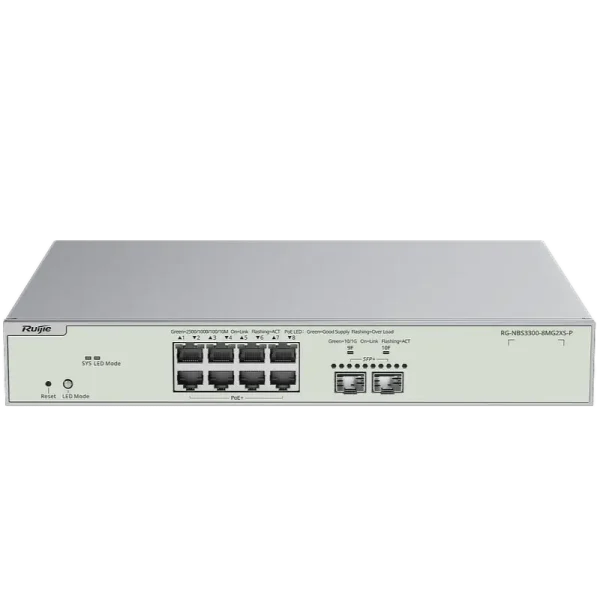

An 8-port PoE switch with two 10 Gigabit SFP+ ports and eight 2.5 Gigabit RJ45 ports. There's a reset button on the bottom left.

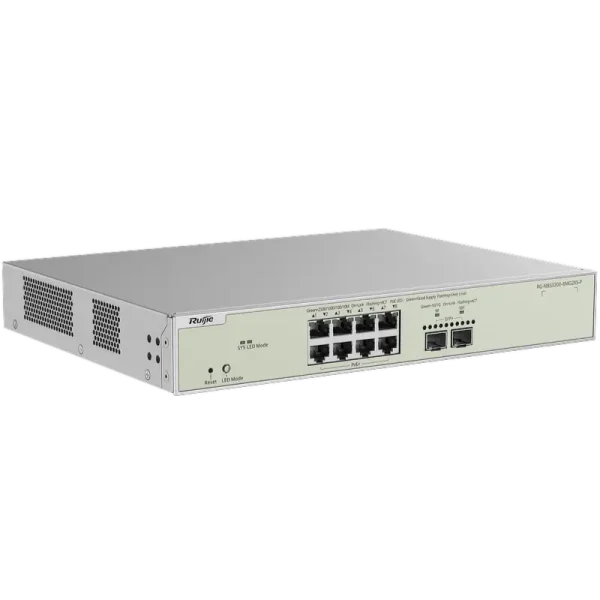

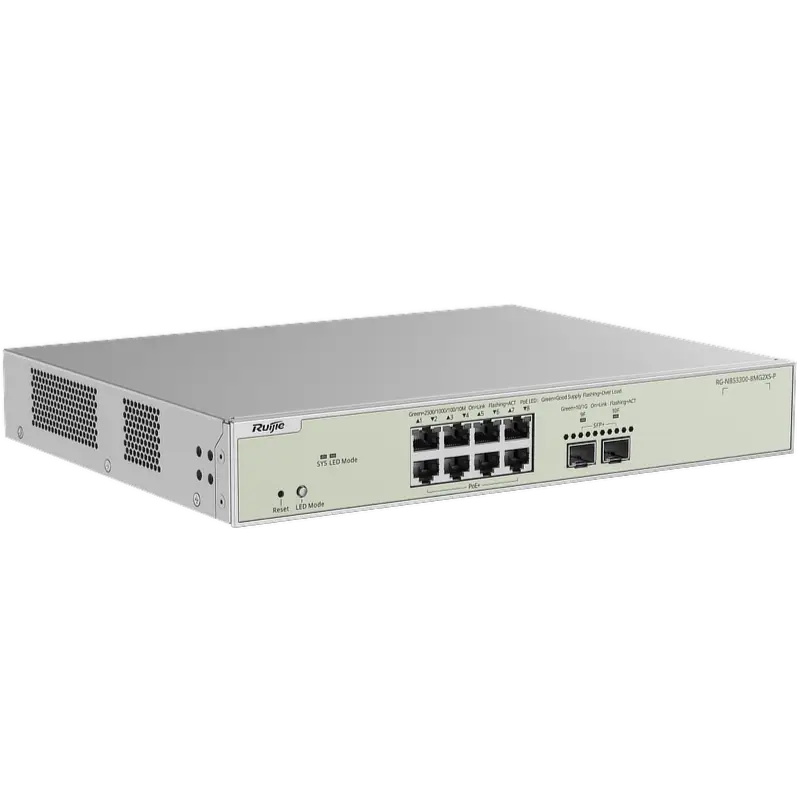

An 8-port PoE switch with 10 Gigabit SFP+ uplink ports made by Reyee

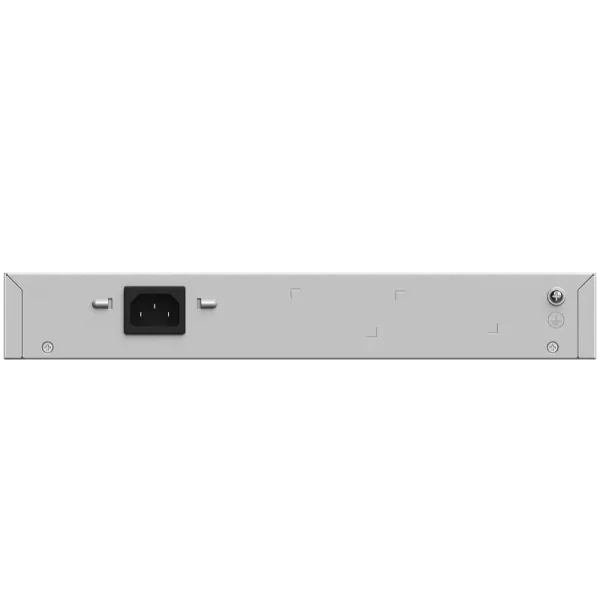

The back of Reyee's 10 Gigabit 8-port PoE switch showing a female connector for power and a screw terminal for grounding.

RG-NBS3300-8MG2XS-P

Managed enterprise level switch, 8× 2.5G PoE+ ports, 2× 10G SFP+ uplink ports, 80 Gbps switching capacity, 240W PoE budget
Login for pricing
Category: Tags: , , , ,

Description

This is an 8-port Gigabit PoE+ switch from Reyee with 2× SFP+ (10 GE) ports. This switch has 2.5 Gigabit ports, unlocking additional bandwidth across your network and allowing you to fully utilize your multi-gigabit fibre connection. It supports all the common layer-2 features such as VLAN, STP, IGMP snooping, and loop prevention.

As with all Reyee networking equipment, this switch can be managed remotely through the Ruijie Cloud Portal.

This switch can be rack mounted using the included brackets and M4 screws.

Highlight Features

  • 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of Wi-Fi 6/7 APs
  • CPP protects the CPU from attacks, ensuring CPU performance and stability
  • Enterprise-grade quality ensures high performance
  • Multiple security policies protect your network
  • Easy Cloud Management Anytime and Anywhere

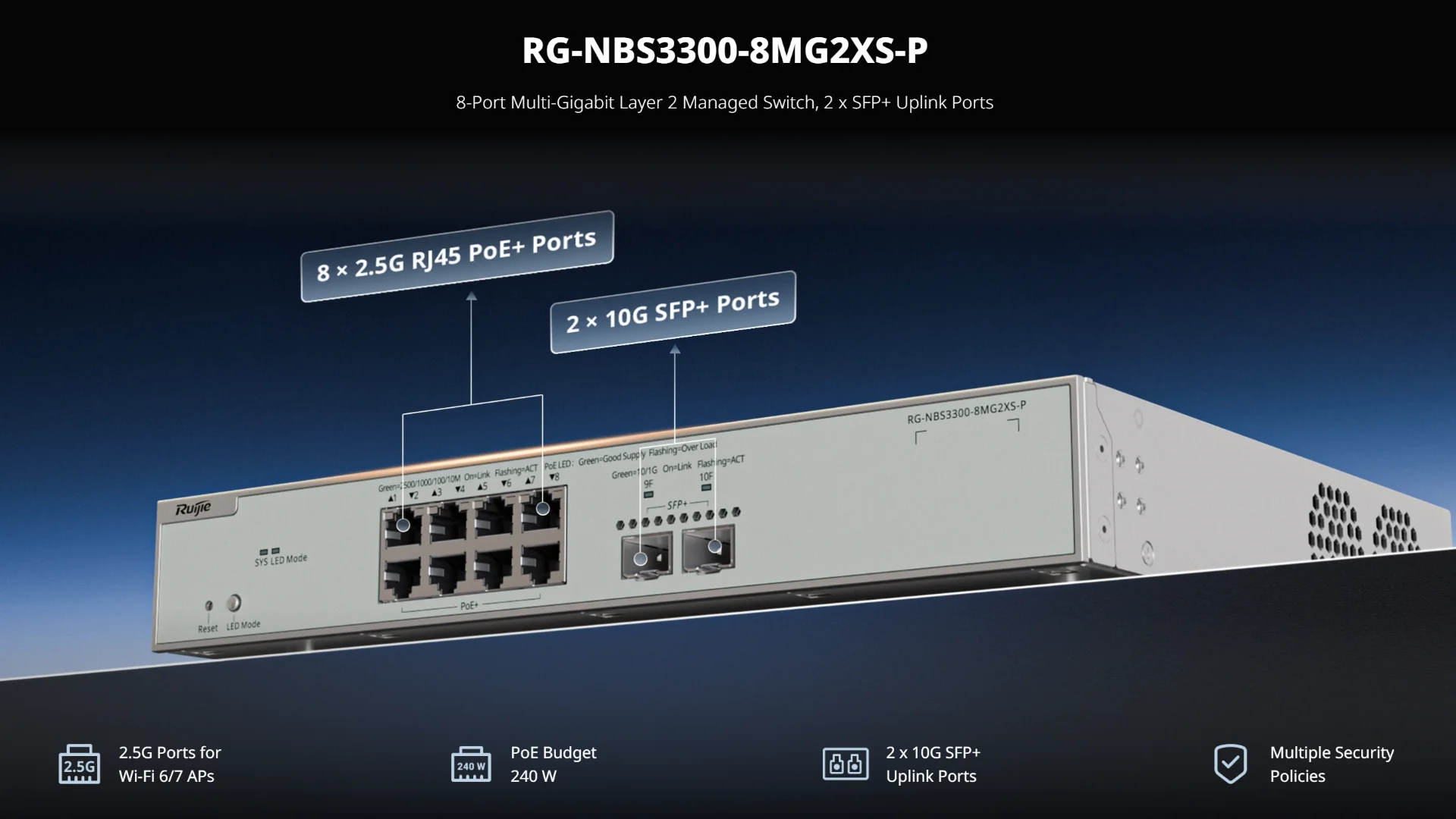

A photo of an 8-port 2.5 gigabit switch with text overlayed highlighting features such as a PoE budget of 240 watts and two 10 Gigabit SFP+ uplink ports

Specification

RG-NBS3300-8MG2XS-P
Ports 8 × 10/100/1000/2500 Base-T, 2 × SFP+ 10GE ports
Switching Capacity 80 Gbps
MAC Address Table 16000
Fan 2 fans with fixed speed
Dimensions (W x D x H) 300 mm x 233 mm x 43.6 mm (11.81 in. x 9.17 in. x 1.72 in.)
MTBF ~400,000 hours
PoE PoE+ (30 W) with a 240 W power budget
Fowarding Rate 58.72 Mpps
Max VLANs Up to 4094 VLANs
Port Surge Protection 6 kilovolts
Weight (including packaging) 3.45 kg (7.61 lbs)
Warranty 3 Years

Download
