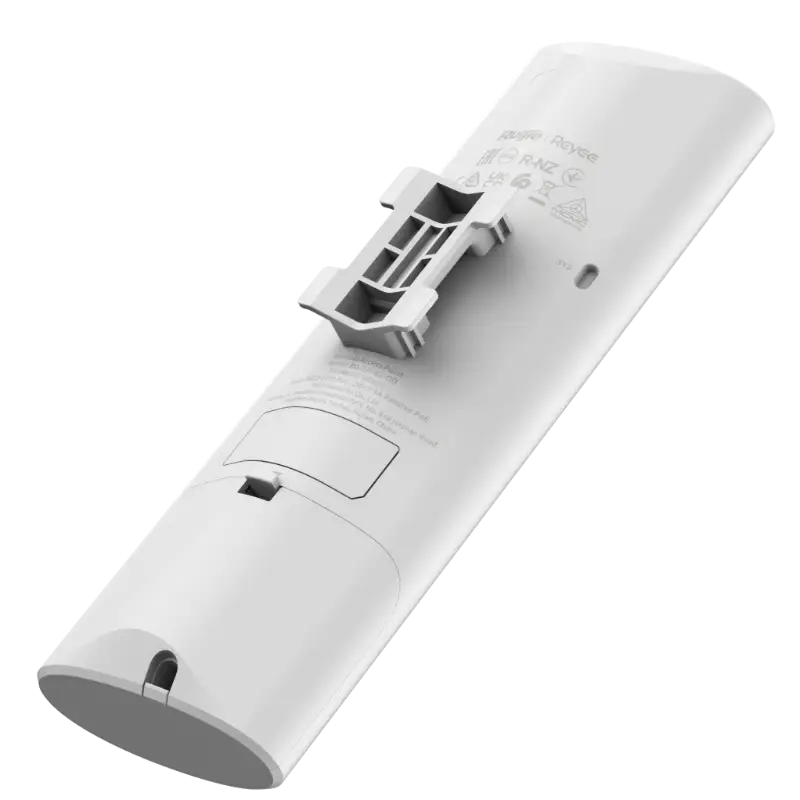

The back of a Reyee Wi-Fi 6 access point showing mounting hardware for wall or pole mounting

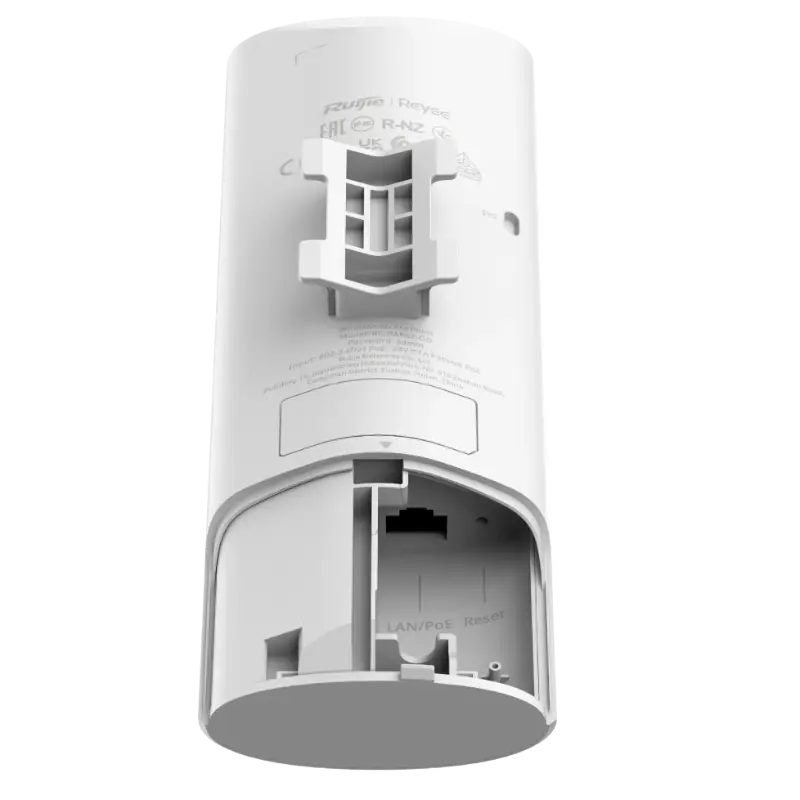

The underside of a Reyee outdoor Wi-Fi 6 access point, showing a LAN/PoE port and reset button

RG-RAP62-OD

This is a Wi-Fi 6 outdoor AP with weatherproof IP65 protection. It has a powerful omni-directional antenna for long range coverage, and supports up to 500 simultaneous clients. It powers via PoE+ and includes a bracket for wall mounting. You can manage the device through the Ruijie Reyee app, including remotely through the cloud.

Description

The Reyee RG-RAP62-OD is an outdoor Wi-Fi 6 access point designed for school campuses, plazas, parks, and more. It’s IP65 weather resistant and designed for temperatures as low as -30°C, perfect for cold Canadian weather! It supports up to 512 simultaneous users, but we recommend less than 110 users for optimal performance.

This device can be managed remotely using the Ruijie Reyee app on your phone. Simply connect the RAP62-OD to your network, scan the QR code on the back of the device, and click add within the Reyee app. There’s also a 3-year warranty should anything happen to the device within that timeframe.

Highlight Features

  • AX3000 Versatile Outdoor/Indoor Mesh AP for Villas and Retail Businesses
  • Wall or Pole Mounting to Fit in Any Location
  • IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
  • Build-in Antennas for Coverage Where Needed
  • Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features

Two reyee wireless access points in the foreground with the text 'Small but That Fine Wi-Fi' at the top centre. A modern style house with a pool can be seen in the background.

Specification

RG-RAP6262
Wireless Protocol 802.11ax (Wi-Fi 6), 2.97Gbps
Network Port 1 x 10/100/1000 Base-T
Antenna High gain 6.5dBi omni-directional antenna
MIMO 2×2 @2.4 GHz, 2×2 @5 GHz
Maximum / Recommended Clients Up to 512 clients / Recommended up to 110 clients
Operating Temperature -30°C to 65°C
Dimensions 200 mm x 70 mm x 35 mm (excluding mounting bracket)
Weight 0.4 kg (excluding mounting bracket)
Power Supply 802.3at PoE+
Power Consumption ≤16 watts
Certifications CE, ROHS, UKCA, EAC
Warranty 3 Years
