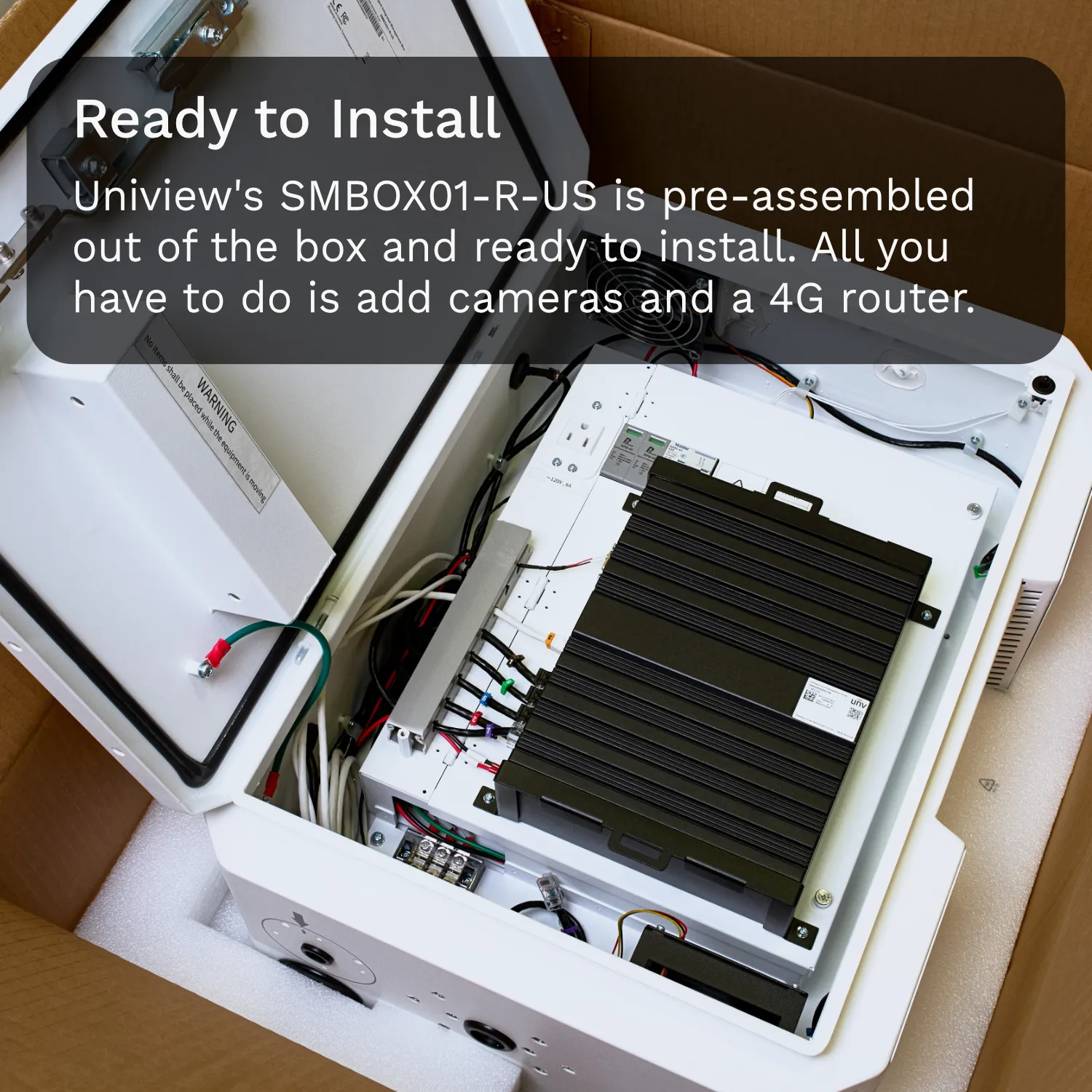

A top-down view of a white metal box with a black video recorder inside. Multiple wires are running alongside the inner-edge of the box, connecting the various components together.

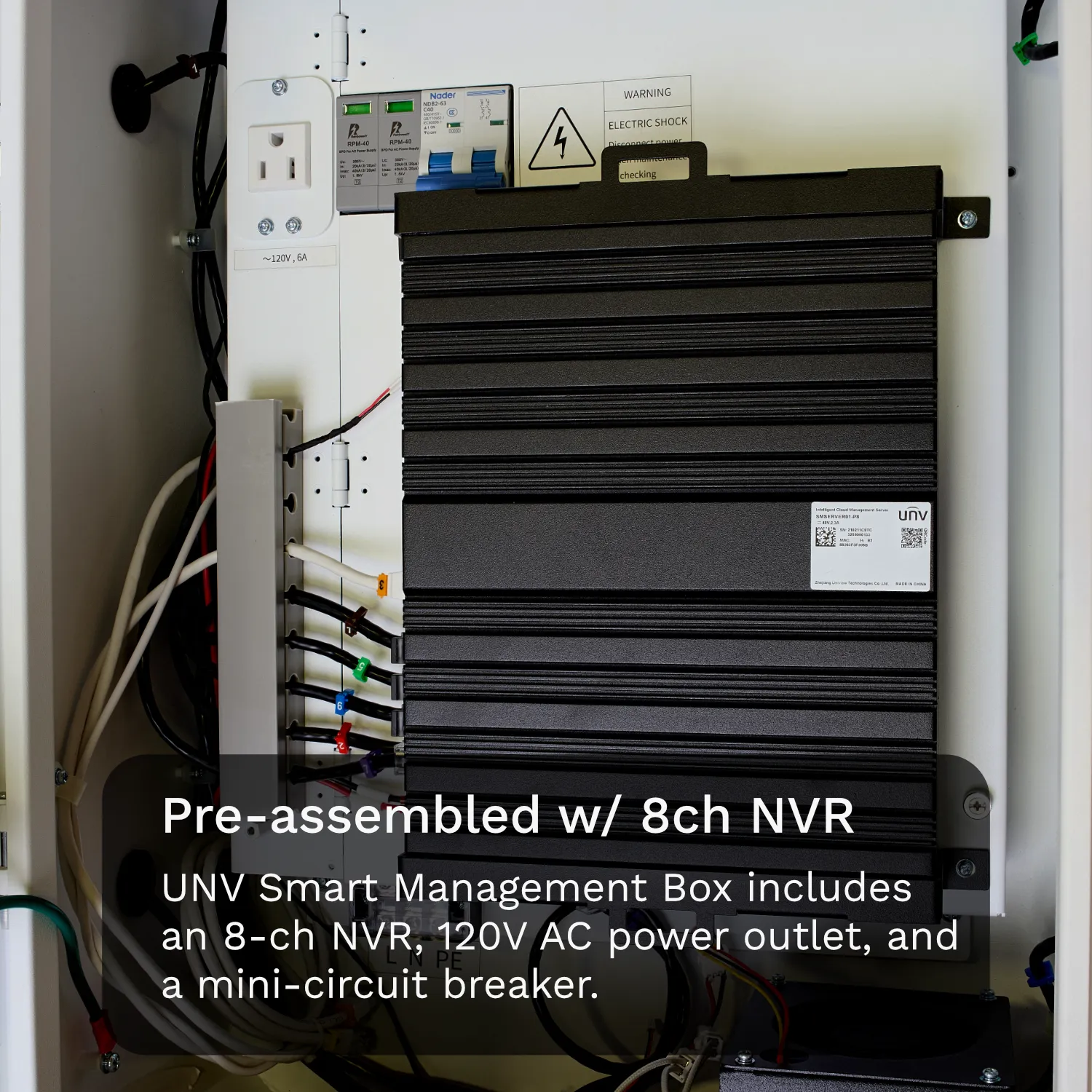

The inside of Uniview's SMBOX01-R-US showing neat cable management and an 8ch NVR

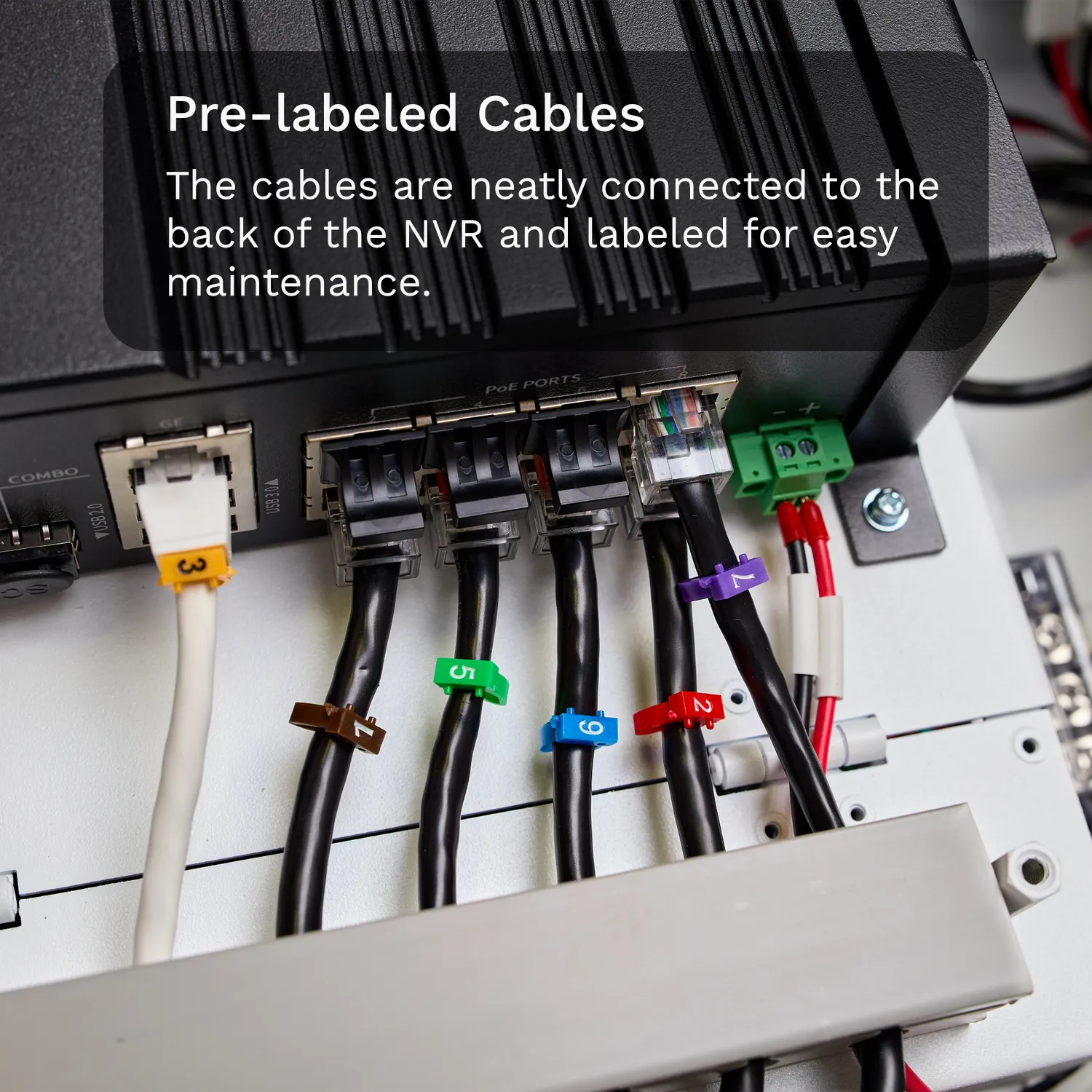

The cables at the back of Uniview's smart management box are neatly connected and labeled for easy maintenance

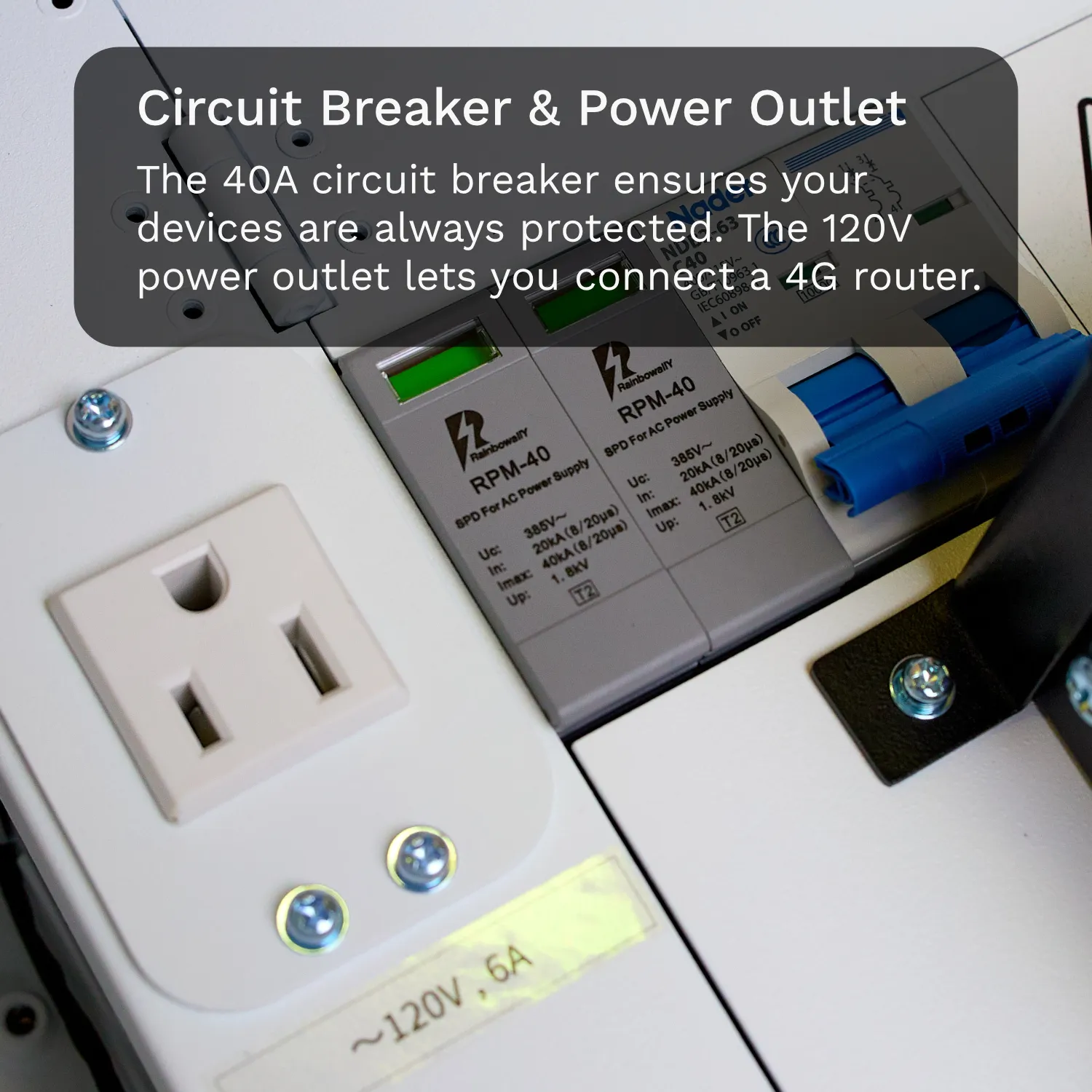

A close-up view of a circuit breaker and standard North America power outlet inside of Uniview's smart management box.

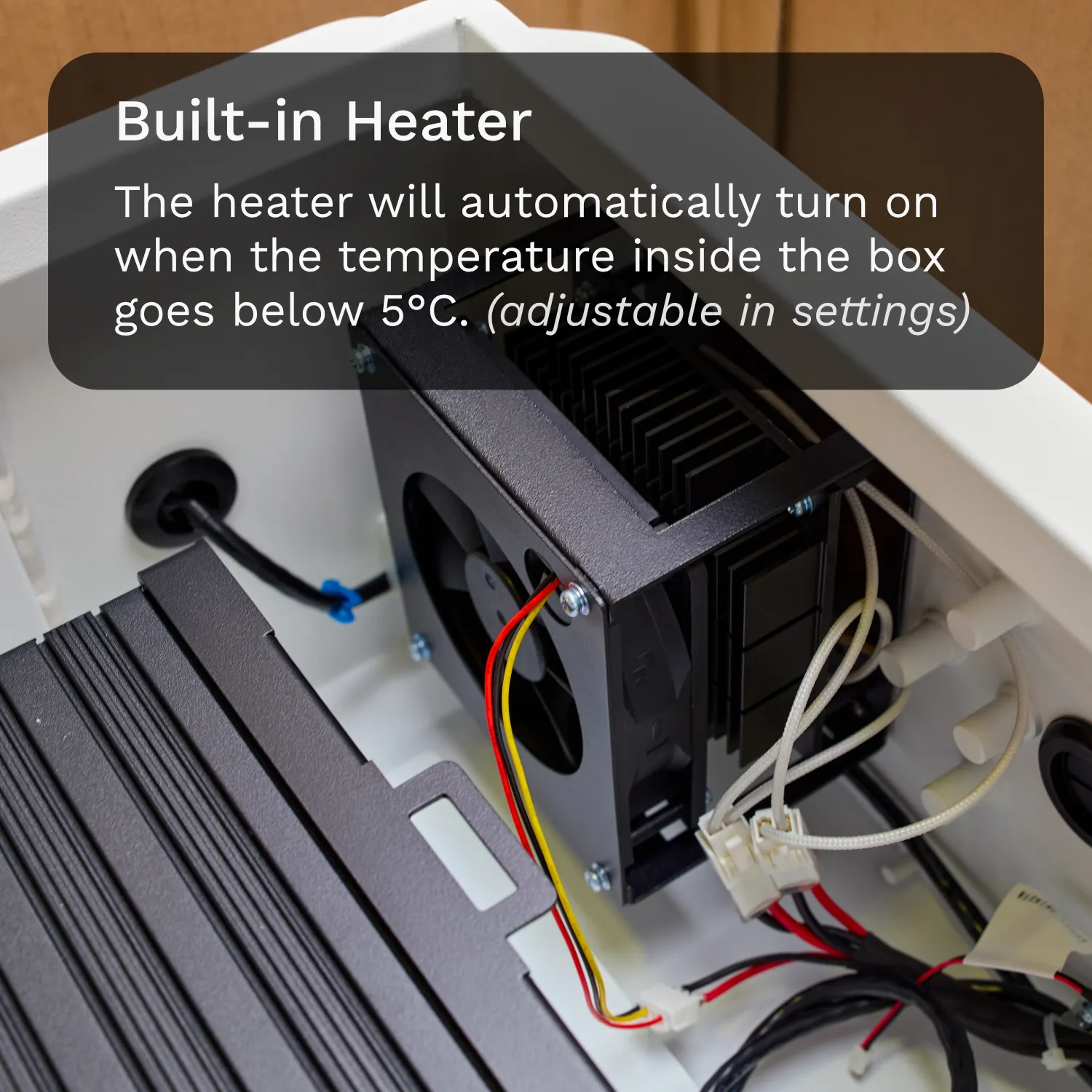

A thermostatic heater with a fan on top, with red, yellow, and black wires connected and leading away from it.

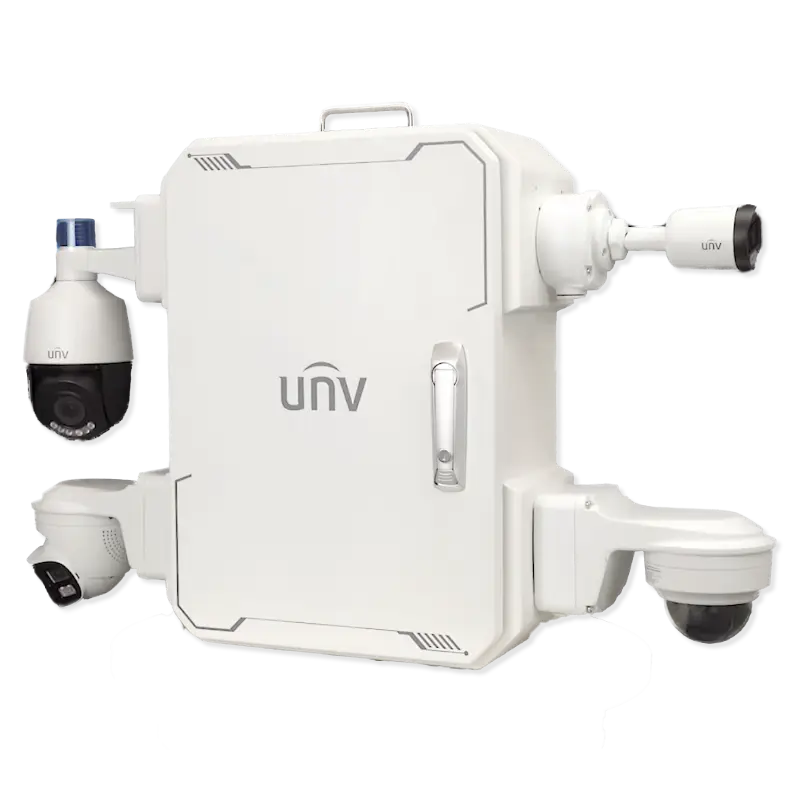

A large metal box with four CCTV cameras installed along the left and right side

SMBOX02-R

This smart management box connects to DC power. It has a built-in circuit breaker, heater, fan, and an 8ch NVR. There are two slots along either side of the box, allowing you to mount up to four cameras using TR-JB07-D-IN and TR-WM03 wall brackets. There’s also a slot on the bottom for mounting a PTZ camera with TR-UF45-A-IN, or an IP Speaker.

Login for pricing
Categories: , Tags: ,

Description

Uniview’s smart management box combines a heater, fan, circuit breaker, and a working 8ch NVR – all in one industrial-grade housing. It offers a complete, plug & play solution for construction sites, remote locations, and temporary facilities.

The smart management box has room to house a 4G/LTE router and an SSD or HDD. There’s ventilation at the bottom (with a dustproof filter) to help dissipate heat in the summer and a waterproof gasket along the door and cable outlet for each of the cameras.

You can mount two cameras on either side of the box, along with one camera at the bottom and an IP speaker at the top. This gives you a total of five cameras and one IP speaker, giving you flexibility in how you build the box for your customers. You can check the Quick Start Guide for a list of hole dimensions and bracket compatibility for each of the mounting locations.

Once the box has been setup, you can easily move it between sites – allowing you to rent it to customers and giving you a new way to generate revenue for your business.

Features – Overseas Intelligent Operation & Maintenance Box

  • Integrated design, combining the SMSERVER, smart power management module, power supply switch, heater, fan, and warning light into one. Most IPC and IP Speaker models can be installed on the smart management box.
  • Users can remotely monitor the working status of the smart management box and its loaded devices and receive alarm notifications via mobile app and EZCloud.
  • Supports automatic restart of power port for network devices. When the smart management box detects a network disconnection, it will automatically power off the network devices and restart them.
  • Supports manual restart of PoE port. If devices such as IPC or IP Speaker are faulty, users can manually restart the PoE power output port of the cloud management server via mobile app and EZCloud.
  • Equipped with surge protector, circuit breaker, and software protection function, forming a three-layer protection mechanism to effectively resist risks such as lightning, short circuit, overvoltage, and overcurrent.
  • Integrated design eliminates the need for manual wiring, simplifying installation for users.

A flyer showing the features of Uniview's latest smart management box

Specification

SMBOX02-R
Power Input
Input Type DC 10.8 V to DC 14.4 V, 12A
Input Port 3-pin Connector
Power Output
Socket N/A
DC 12V 1-ch 2.5A, DC5521, Used for powering the router
PoE 8 RJ45 10M/100M self adaptive Ethernet Interface
PoE Power Max 30 W for single port, Max 75 W in total
PoE Standard IEEE 802.3at, IEEE 802.3af
Dedicated Power Interface (Pre-Wired Internal Cabling)
NVR Power Interface DC 10.8 ~ 14.4V to DC 48V, 2.5A
Router Power Interface DC12V, 2.5A
Warning Light Power Interface DC12V, 2.5A
Function
System Functional Description Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis
SMSERVER
Decoding Format Ultra 265, H.265, H.264
Decoding Capability Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30
Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30
Audio Compression G.711A, G.711U
Bandwidth 80 Mbps
Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
IP Video Input 8-ch
FTP/Schedule/Event Snapshot 4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Recording Resolution 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Smart by IPC Face Detection,Vehicle Detection,SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area),Ultra Motion Detection (UMD),Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection),People Counting (People Flow Counting, Crowd Density Monitoring),Video Metadata,Traffic Monitoring
Smart by SMBOX Face Detection,Ultra Motion Detection (UMD),Smart Intrusion Prevention (SIP)
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
by SMBOX with face detection cameras 8-ch
by SMBOX with normal cameras 2-ch
Vehicle Picture Library Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by SMBOX 4-ch
UMD by SMBOX 8-ch
Capacity of Snapshot Records 500 thousand records for face snapshot, One and a half millions records for SIP and vehicle
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion
Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk
Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
Network Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB 1 × USB2.0, 1 × USB3.0
ONVIF Support
Hard Disk
Hard Disk 1 x SATA interface, up to 16TB HDD (2.5″ or 3.5″), or up to 4TB SSD (2.5″)
Power Lightning Protector
Maximum discharge current 40 kA
Rated discharge current 20 kA
Response time L-PE ≤ 25 ns, N-PE ≤ 25 ns
General
Surge Protection 6 kV
Working Temperature When using HDDs: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉); When using SSDs: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Working Humidity ≤ 90% RH (non condensing)
Weight (Without Camera) ≤ 15 kg (33.07 lb)
Dimensions 650 (H) × 424 (W) × 230 (D) mm
Slot dimensions The space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 3 LAN ports.
Rating IP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements.
Certification CE-EMC, FCC
Consumption
No-load power consumption At ambient temperature of 25°C: 12.6 W (No HDD, No HDD Heating, No Fan, No Alarm Light)
Full-load power consumption At ambient temperature of 25°C: 134.8 W (16T HDD, HDD Heating, Full POE Output (75W), Fan, Alarm Light)
SMSERVER power consumption At ambient temperature of 25°C:
≤8W (No HDD+ No POE Output)
96.5W (Full POE Output + 16T HDD)
122.2W (Full POE Output + 16T HDD + Heating Film)
Adaptable Mounting Bracket
Left side Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2
Right side Up to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2
Bottom Up to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ)
Top Support the installation of an IP speaker, no mounting bracket required.
Example
Operating Time At ambient temperature of 25°C and under No-load conditions, the device operates for 203 hours when powered solely by battery (SLR-B2560-H) .
At ambient temperature of 25°C and under Full-load conditions, the device operates for 19 hours when powered solely by battery (SLR-B2560-H) .
Note: The above operating Time is tested under laboratory conditions. Actual operating time may vary depending on load power consumption and ambient temperature. This is for reference only.
