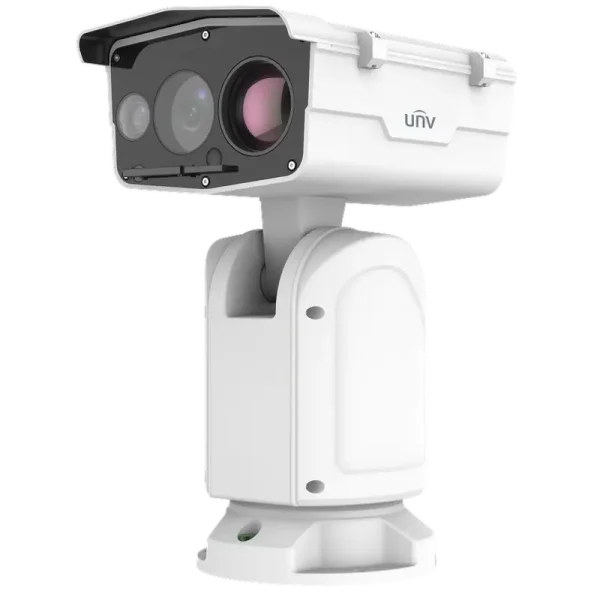

TIC7626EL-GAF75-4X56-VH1
This is an extremely powerful 56× zoom PTZ camera with a thermal and optical lens. The optical lens is a 6 – 336 mm zoom lens, while the thermal lens is fixed at 75mm for long-range detection of objects and fires.
Description
The TIC7626EL-GAF75-4X56-VH1 is an top-of-the-line PTZ from Uniview. It features dual-spectrum imaging – using both an optical and a thermal image sensor. It also has gyroscopic image stabilization, helping it counter the effects of wind vibration and produce a smoother image.
The thermal lens allows for target detection in difficult scenarios, such as during foggy or rainy weather. It can also be used to detect fires, allowing for a quicker emergency response.
Features – Thermal & Optical Dual-spectrum Positioning System
- Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
- Passive infrared thermal imaging, meets the requirement of concealed monitoring and is not affected by bad weather conditions such as fog, smoke, rain, snow, and night
- Thermal channel supports fire detection, and the optical channel can link to the fire position and zoom in for more accurate fire situation judgment
- Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously : cross line, enter area, leave area, intrusion, support smart tracking
- Optical channel supports 4 MP@60 fps, providing smoother motion images
- Optical channel supports gyroscope stabilization for stable pictures
- Optical channel supports heat wave reduction, which can reduce heat wave phenomena and improve image quality
- Varifocal laser: 800 m (2624.7 ft) distance, proportional to optical zoom of camera module
- Rain-sensing auto wiper, providing clear images in harsh weather
- Supports 1/1 audio in/out, 7/2 alarm in/out, 1 serial port RS485
- Power supply: DC 48 V ± 25%, DC 24 V ± 15%, AC 24 V ± 25%
- IP66
Specification
| TIC7626EL-GAF75-4X56-VH1 | ||||||||
| Channel | ||||||||
| Camera | ||||||||
| Sensor | 1/1.8″ CMOS | Vanadium oxide uncooled focal plane arrays | ||||||
| Min. Illumination | Colour : 0.0003lux(F1.2, AGC ON) B/W : 0.0001lux(F1.2, AGC ON) 0 Lux with Laser |
N/A | ||||||
| Pixel Size | N/A | 12 um | ||||||
| NETD | ≤ 40 mk@F1.0@25 ℃ | ≤ 40 mk@F1.0@25 ℃ | ||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s | ||||||
| WDR | 120 dB | 120 dB | ||||||
| S/N | >52 dB | >52 dB | ||||||
| Lens | ||||||||
| Focal Length | 6 ~ 336 mm | 75mm | ||||||
| Optical Zoom | 56X | N/A | ||||||
| Iris | F1.2 to F4.6 | F1.0 | ||||||
| Field of View (H) | 57.9°~ 1.6° | 6.1° | ||||||
| Field of View (V) | 34.6°~ 0.9° | 4.8° | ||||||
| Field of View (D) | 71.2°~ 1.9° | 7.2° | ||||||
| DORI | ||||||||
| DORI Distance (Detect) | 155.5m(510.1ft)~4829.4m(15844.5ft) | N/A | ||||||
| DORI Distance (Observe) | 62.2m(204.0ft)~1931.8m(6337.8ft) | N/A | ||||||
| DORI Distance (Recognize) | 31.1m(102.0ft)~965.9m(3168.9ft) | N/A | ||||||
| DORI Distance (Identify) | 15.5m(51.0ft)~482.9m(1584.4ft) | N/A | ||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | Up to 800m(2624.7ft) | N/A | ||||||
| Video | ||||||||
| Video Resolution | Main Stream: 4MP (2688×1520): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps; |
1080P(1920*1080), Max.30fps | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
| U-code | Support | Support | ||||||
| ROI | Support | Support | ||||||
| Video Stream | Triple streams | Triple streams | ||||||
| OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
| Privacy Mask | 24 areas, up to 8 areas per scene | N/A | ||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | N/A | ||||||
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | Normal, Flip vertical, Flip horizontal, 180° | ||||||
| Defog | Digital defog, Optical defog | N/A | ||||||
| Low Illumination Characteristics | ColorHunter with wise-ISP | ColorHunter with wise-ISP | ||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle) | ||||||
| Smoke Detection | Support | N/A | ||||||
| Auto Tracking | Support tracking targets automatically, capturing detailed information at a distance | Support tracking targets automatically, capturing detailed information at a distance | ||||||
| Events | ||||||||
| Fire Detection | N/A | Support | ||||||
| Basic Detection | Motion detection, Tampering alarm, Audio detection | N/A | ||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | ||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
| Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
| Two-way Audio | Support | Support | ||||||
| Sampling Rate | 16KHZ | 16KHZ | ||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
| Network Storage | ANR, NAS (NFS) | ANR, NAS (NFS) | ||||||
| PTZ | ||||||||
| Pan Range | 360° (endless) | 360° (endless) | ||||||
| Pan Speed | 0.02°/s ~ 140°/s | 0.02°/s ~ 140°/s | ||||||
| Tilt Range | -90° ~ 45° | -90° ~ 45° | ||||||
| Tilt Speed | 0.02° ~ 50°/s | 0.02° ~ 50°/s | ||||||
| Number of Presets | 1024 | 1024 | ||||||
| Preset Image Freeze | Support | Support | ||||||
| Home Position | Support | Support | ||||||
| Number of Presets (IPC) | 1024 | 1024 | ||||||
| 3D Location | Support | Support | ||||||
| Number of Patrol | 16 | 16 | ||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | ||||||
| Alarm I/O | 7/2 | 7/2 | ||||||
| Serial Port | 1 channel RS485 interface | 1 channel RS485 interface | ||||||
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP | ||||||
| Video Output | N/A | 1 BNC (for debugging) | ||||||
| General | ||||||||
| Power | DC 48V±25%、DC 24V±15%、AC 24V±25% | DC 48V±25%、DC 24V±15%、AC 24V±25% | ||||||
| Power Consumption | Max 135W | Max 135W | ||||||
| Power Interface | Wires with cold-pressed terminal | Wires with cold-pressed terminal | ||||||
| Dimensions | 366 x 283 x 509 mm (14.4″ x 11.1″ x 20.0″)(L x W x H) | 366 x 283 x 509 mm (14.4″ x 11.1″ x 20.0″)(L x W x H) | ||||||
| Weight | 17.98kg(39.64lb) | 17.98kg(39.64lb) | ||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
| Surge Protection | 6 KV | 6 KV | ||||||
| Reset Button | Support | Support | ||||||
| RTC | Support | Support | ||||||
| Certification | ||||||||
| Protection | IP66 | IP66 | ||||||
| Live View | ||||||||
| OSD Font | Vector | Vector | ||||||
| OSD Character Number | 40 | 40 | ||||||
