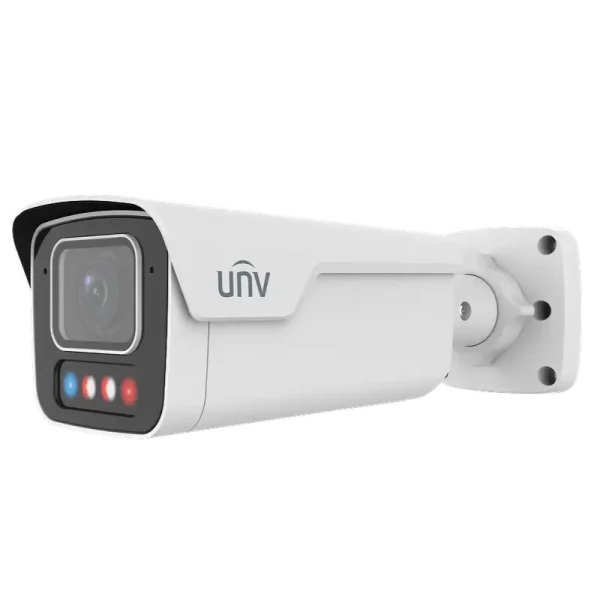

IPC2B18SE-ADZKMC-WP-I1
This is an 8MP OwlView camera with a motorized 2.8 – 12mm lens and Tri-Guard 2.0 features. It features both IR and white LED lights, as well as two-way audio. Wise-ISP technology allows for excellent image quality in extremely low-light scenarios.
Description
This camera is a fusion between the OwlView and Tri-Guard 2.0 series, with an added bonus of a motorized varifocal lens. It allows you to see clearly in extremely low-light scenarios, while also giving you the flexibility to zoom in to exactly where you need to see.
This camera also has a built-in speaker and strobe lights that can be configured to activate when a person or vehicle enters the scene. Also, it has both IR and white light LEDs which allow you to keep this camera hidden until a person walks in front of it.
Essentially, this is a premium security camera that combines all the features you could ask for into a single device. It uses the TR-JB07-D-IN junction box.
Features – 8MP OwlView Plus Tri-Guard VF Dual-light Bullet Network Camera
- High quality image with 8MP, 1/1.8″ CMOS sensor
- Features an F1.2 large-aperture lens
- 8MP (3840 × 2160)@30/25 (default) fps; 5MP (3072 × 1728)@30/25 fps; 4MP (2560 × 1440)@30/25 fps; 2MP (1920 × 1080)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise ISP technology ensures 24 hour full color images
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)
- 130 dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm: 1 in/1 out, Audio: 1 in/1 out, Built in Mic and Speaker
- Smart IR, up to 30 m (98.4 ft) IR distance
- White Light, up to 30 m (98.4 ft) warm light distance
- Supports up to 512 GB Micro SD Card
- IK10 vandal resistant and IP67 protection
Specification
| Model | IPC2B18SE‑ADZKMC‑WP‑I1 |
| Camera | |
| Max Resolution | 8 MP |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour: 0.0005 lux ( F1.2, AGC ON) |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | > 56 dB |
| WDR | 130 dB |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Iris Type | Fixed |
| Iris | F1.2 |
| Field of View (H) | 111.5° to 54.1° |
| Field of View (V) | 60.2° to 30.6° |
| Field of View (D) | 128.7° to 61.9° |
| Lens Type | Motorized |
| DORI | |
| DORI Distance (Lens) | 2.8 mm, 12.0 mm |
| DORI Distance (Detect) | 63.0m (206.7ft), 270.0m (885.8ft) |
| DORI Distance (Observe) | 25.2 m (82.7 ft), 108.0 m (354.3 ft) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft), 54.0 m (177.2 ft) |
| DORI Distance (Identify) | 6.3 m (20.7 ft), 27.0 m (88.6 ft) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate‑Main Stream | 8MP (3840 × 2160), Max 30 fps; 5MP (3072 × 1728), Max 30 fps; 4MP (2560 × 1440), Max 30 fps; 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps; |
| Frame Rate‑Sub Stream | 1080P (1920 × 1080), Max 30 fps; ; 720P (1280 × 720), Max 30 fps; D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps; |
| Frame Rate‑Third Stream | D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps; |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U‑code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Auto Scene Match (ASM) | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non‑motor vehicle and vehicle) |
| Statistical Analysis | N/A |
| People Counting | Support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two‑way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | UNV‑Link, UNV‑Link Pro, EZStation |
| Web Browser | Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug‑in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p‑p], 1 Output: impedance 600 Ω, amplitude 2 V [p‑p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built‑in Mic | Built‑in two mics |
| Built‑in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130‑4)
FCC (FCC 47 CFR part15 B) |
| Safety | CE‑LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE
(2012/19/EU) |
| Protection | IP67 (IEC 60529)
IK10 (IEC 62262) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 7.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 265.2 × 95.2 × 85.1 mm (10.4″ × 3.7″ × 3.2″ ) (L × W × H) |
| Weight | 0.86 kg (1.89 lb) |
| Material | Metal + Plastic |
| Working Environment | ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) |
| Storage Environment | ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
