LYS-CPE3-P
This is a wireless bridge with a range of up to 3 KM. It supports PoE input (24V & 48V) as well as regular PoE output (up to 15.4 W), letting you power up to two cameras directly from the bridge.
You can quickly pair it to wireless bridge by holding the pair button for two seconds. A single receiver can be paired with up to five transmitters.
Description

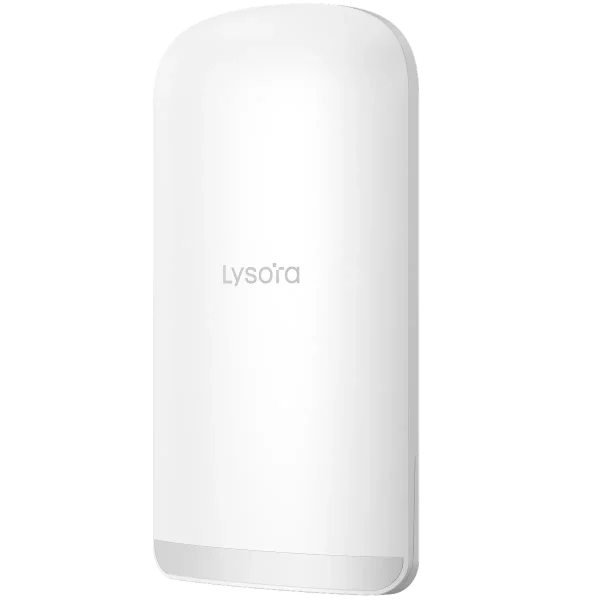

The Lysora CPE3-P is a wireless bridge that’s specially designed for video surveillance. It has two PoE outputs that can supply up to 15.4W (total budget) to security cameras – allowing you to streamline your installations and saving you the cost of a PoE switch or injector.

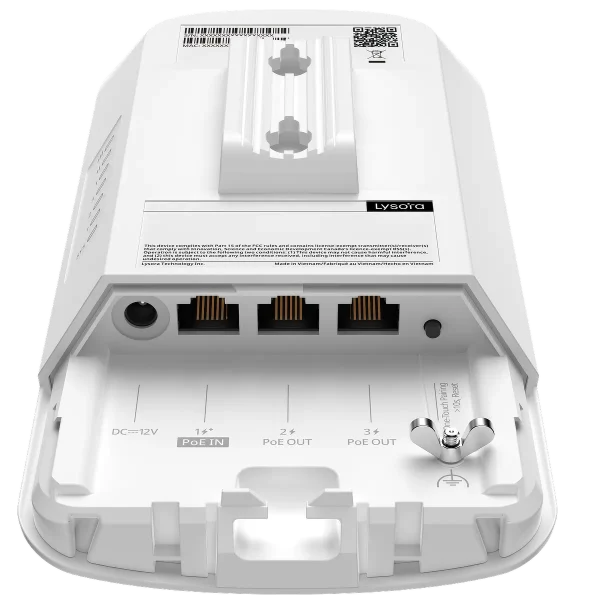

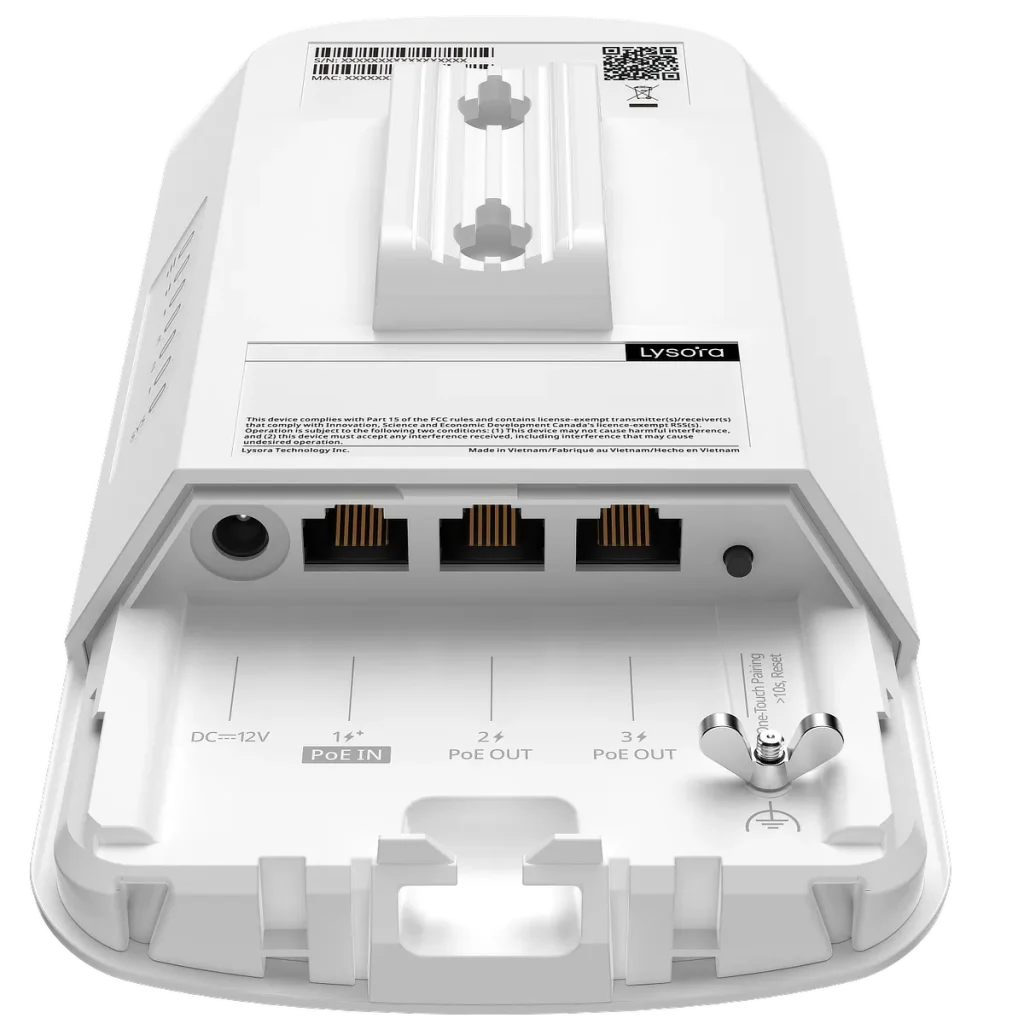

This wireless bridge comes with a 24V passive PoE injector, but you can also power it using regular 48V PoE. This means you can connect it directly to the back of the NVR – saving you from needing to find an extra power outlet – and making your installation that much cleaner.
Features – 5 GHz CPE3-P with 13 dBi Built-in Antenna
- 5 GHz wireless bridge CPE with maximum wireless rate of 867 Mbps
- Equipped with a 13 dBi high-gain directional antenna for stable long-distance transmission
- Supports point-to-multipoint deployment with TDMA and up to 5 CPE clients
- Up to 3 km (1.86 miles) wireless transmission distance
- Three 10/100 Mbps Ethernet ports for flexible connectivity
- IP55 weatherproof enclosure designed for outdoor deployment
- Managed through eWeb and Lysora Cloud for remote monitoring and configuration
- Includes 24 V DC power adapter and PoE injector for easy installation
Specification
| Overview | |
| Dimensions | 103mm x 53.4 mm x 199 mm (excluding mounting bracket) |
| Weight | 0.37 kg (without packaging); 0.91 kg (with packaging) |
| Coverage Area | 3km (1.86 miles) |

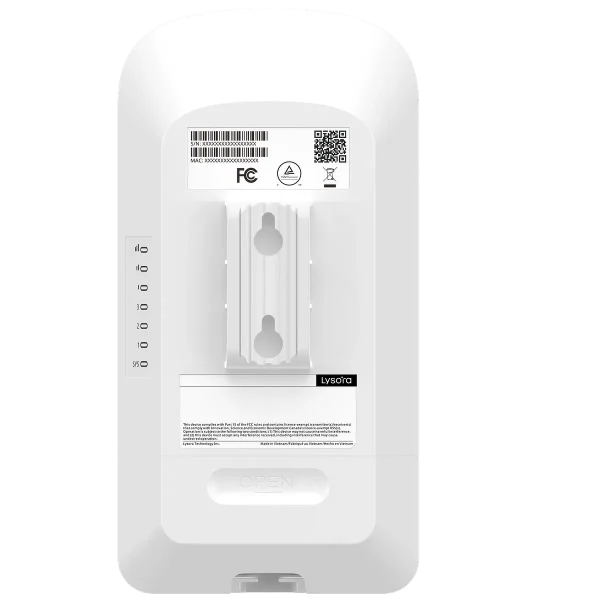

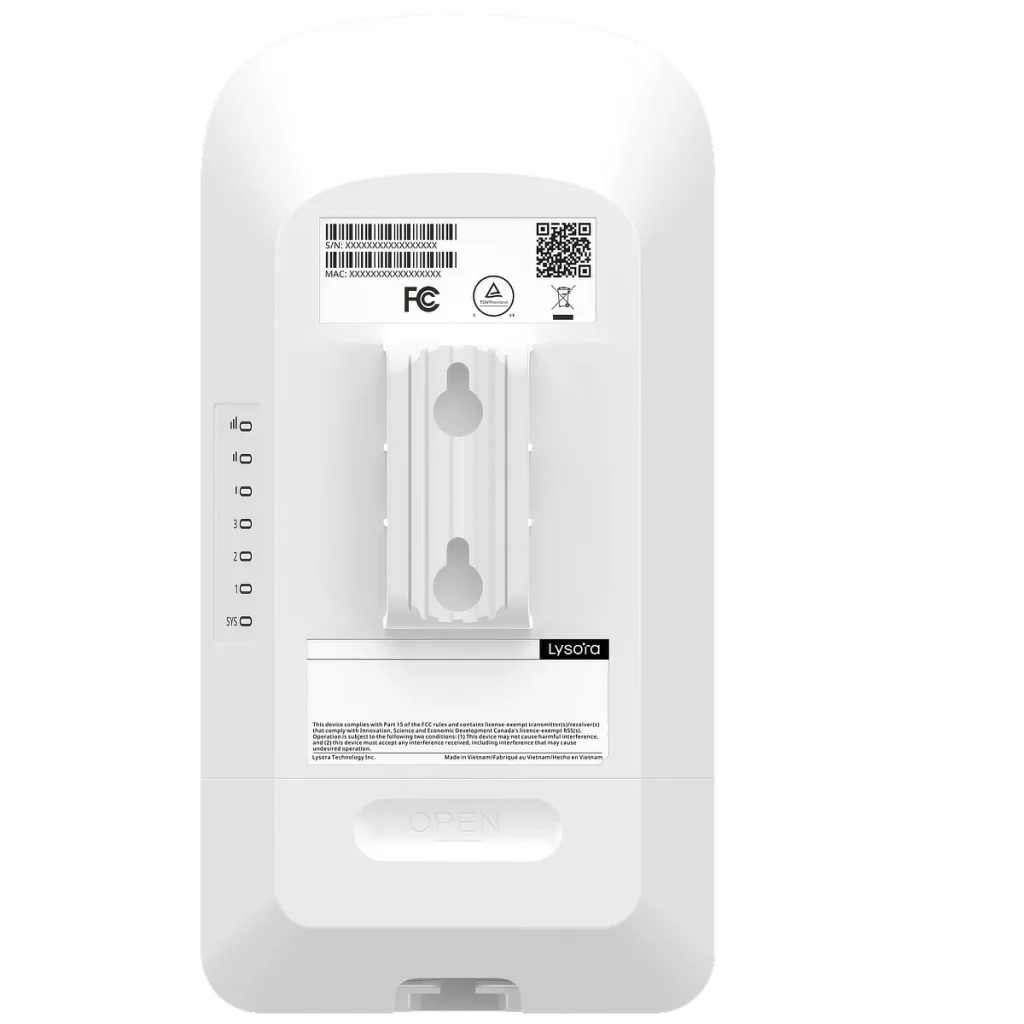

| Mounting Type | Wall or Pole |
| Hardware & Networking | |
| CPU | Single-core processor, 575/580 MHz clock frequency |
| Flash Memory & RAM | 16 MB Flash Memory, 64 MB RAM |
| Networking Interface | 3 x 10/100BASE-T ports |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac |
| Antenna Gain | 2.4 GHz: 2 dBi, 5 GHz: 13 dBi |
| Antenna Orientation | Horizontal: 30°, Vertical: 30° |
| Max. Transmit Power | 2.4 GHz: 20 dBm 5 GHz: 29 dBm |
| Power Specifications | |
| Power Consumption | 9 W (Without PoE Out) 24.4 W (With PoE Out) |
| Power Method | 12 V, 1 A DC connector or 24 V, 0.6 A DC Passive PoE injector Also supports standard PoE & PoE+ (IEEE 802.3af, 802.3at) |
| PoE Budget | 15.4 W for two ports (when powered by 24 V passive PoE or 802.3at) When powered by 12 V DC or 802.3af, the device cannot supply power to other devices via PoE |
| Performance & Bridging | |
| Max Wireless Data Rate | 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
| Max Bridge Distance | 3 km (1.86 miles) |
| Bridge Throughput (HT40) | 0.5 km: 90 Mbps 1 km: 80 Mbps 2 km: 60 Mbps 3 km: 40 Mbps |
| Recommended Cameras (4-5 Mbps) | 0.5 km: 12 cameras 1 km: 10 cameras 2 km: 8 cameras 3 km: 5 cameras |
| Software & Management | |
| Working Modes | Base Station, CPE, Bridge |
| Management Features | SSID hiding, Antenna alignment, Spectrum scan, VLAN, SNMP, SSH |
| Configuration | Web management (via local IP address) and Cloud management (via Lysora Cloud Portal) |
| Environmental & Certifications | |
| Operating Temperature | -30°C to +55°C (-22°F to +131°F) |
| Weather Resistance | IP55 rating |
| Certifications | FCC, IC, cTUVus |
| Compliance | NDAA Compliant |
