LYS-CPE5
This is a wireless bridge with a range of up to 5 KM. The ports are full Gigabit, which makes these bridges suitable for both CCTV cameras and high-speed internet connectivity. It has a horizontal beam-width of 31° and 14° vertically.

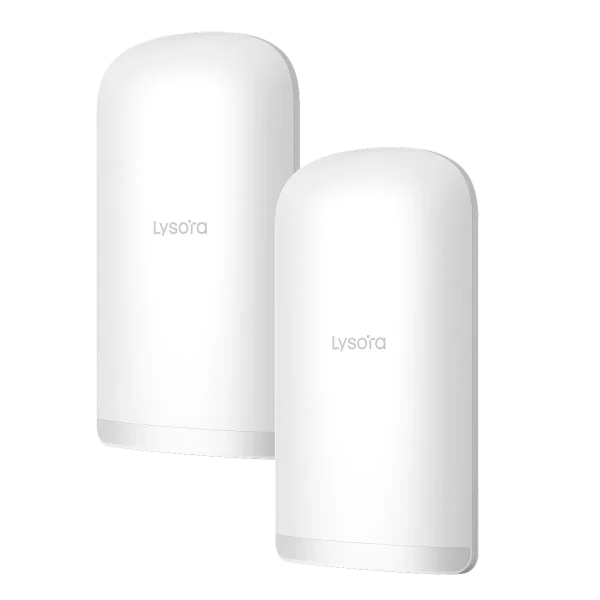

These are sold pairs and come pre-paired out of the box. To add more transmitters, hold the pair button on the main receiver for 2 seconds to enroll other nearby bridges (within 50 m).
Description
The Lysora CPE5 is a wireless bridge with gigabit ports, supporting full bandwidth 10/100/1000 Mbps data transmission across distances of up to 5 km. They are sold in pre-paired kits for easy installation, but can be paired with up to 5 transmitters for point-to-multipoint connectivity.
These bridges can be powered via the included 24V passive PoE adapter, or via 48V PoE – which means you can connect it directly to a PoE switch or to the back of an NVR.

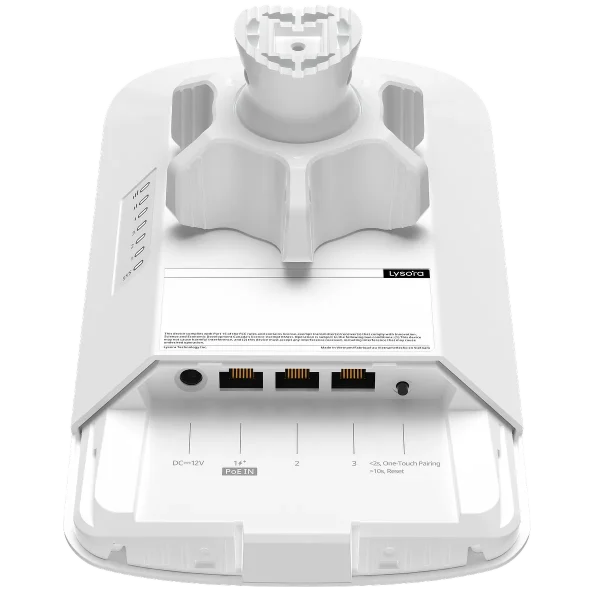

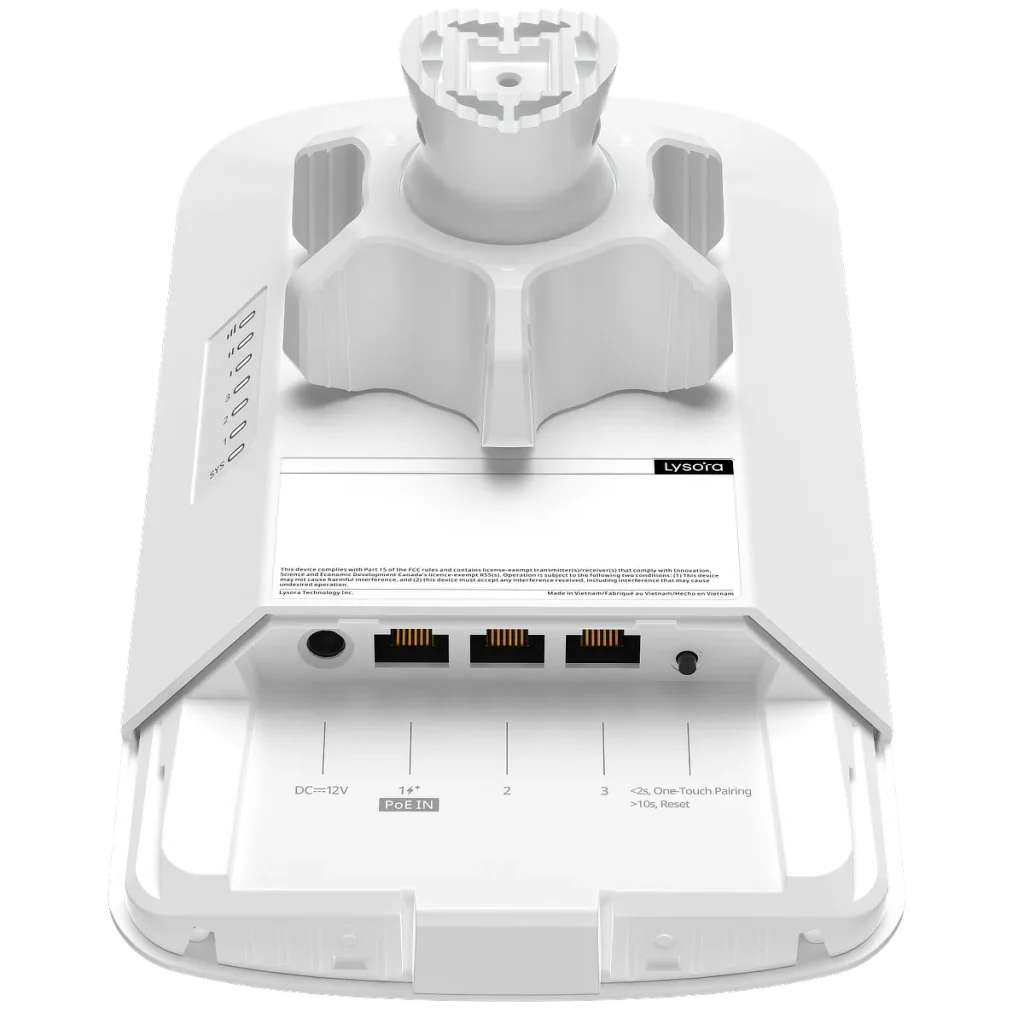

There’s a reset button on the back, which will restore the device to factory default settings after being held for 10 seconds. If you hold it for two seconds, it will quickly pair nearby Lysora wireless bridges to the same network, saving you lots of time when it comes to setting up point-to-multipoint networks.
Features – 5 GHz CPE5 with 16 dBi Built-in Antenna
- 5 GHz wireless bridge delivering up to 867 Mbps wireless throughput
- Built-in 16 dBi high-gain directional antenna for stable long-distance links
- Supports point-to-multipoint (PTMP) connections with up to 5 CPEs via TDMA
- Reliable long-distance transmission up to 5 km (3.11 miles)
- Three Gigabit Ethernet ports for flexible wired connectivity
- IP55 weatherproof design for outdoor deployments
- Web and Lysora Cloud management supported
Specification
| Overview | |
| Dimensions | 240 mm x 133mm x 108 mm (excluding mounting bracket) |
| Weight | 0.56 kg (without packaging); 2.55 kg (with packaging) |
| Coverage Area | 5 km (3.11 miles) |

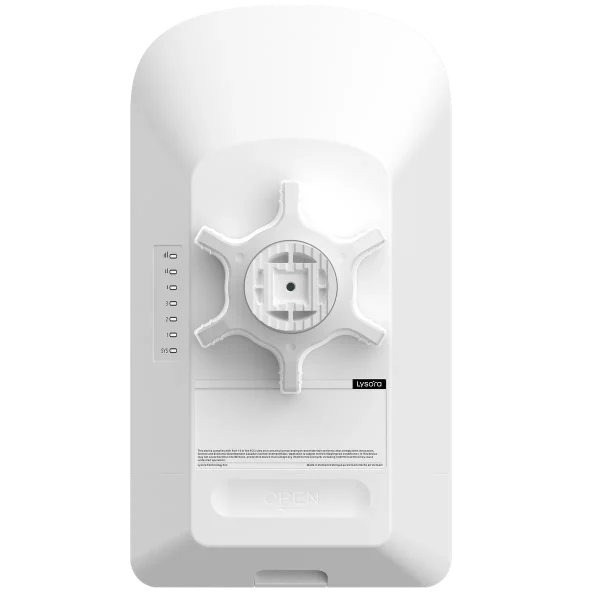

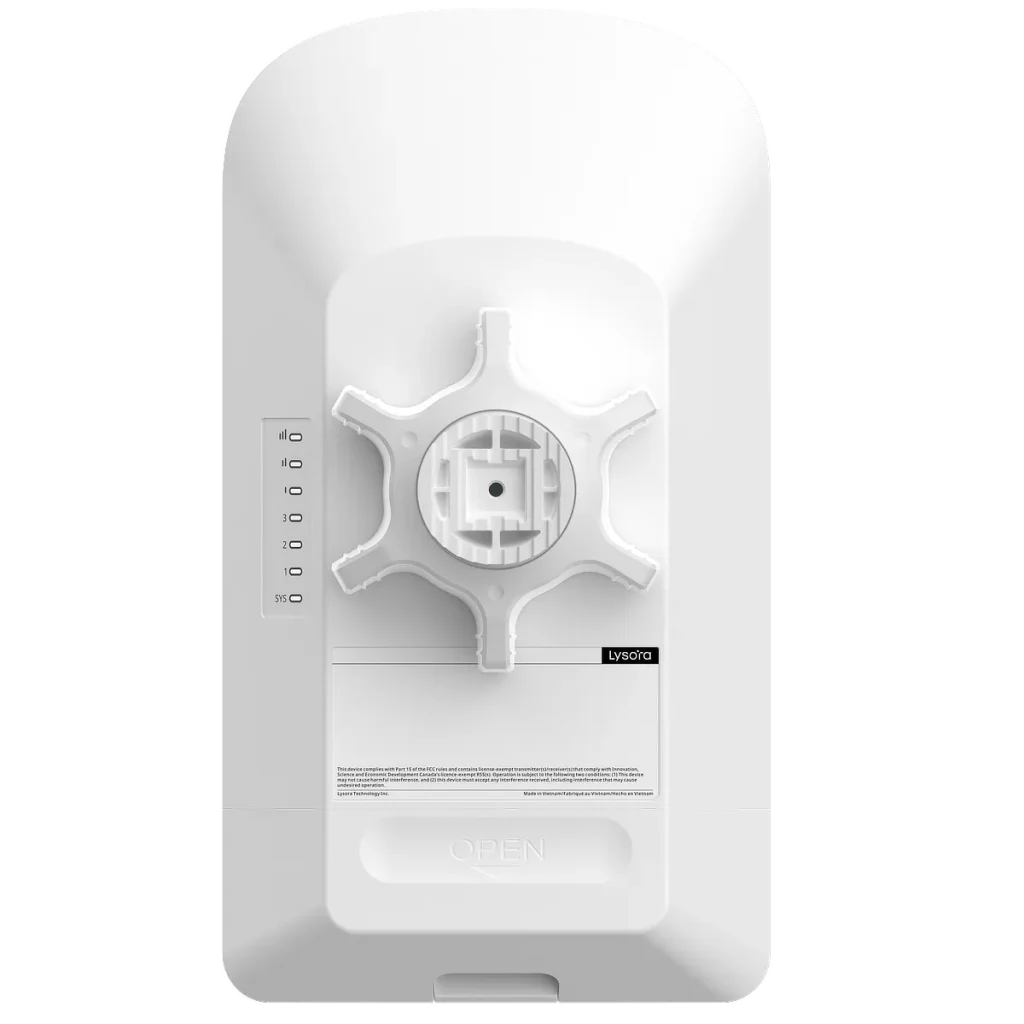

| Mounting Type | Wall or Pole |
| Hardware & Networking | |
| CPU | Dual-core processor, 880 MHz clock frequency per core |
| Flash Memory & RAM | 16 MB Flash Memory, 128 MB RAM |
| Networking Interface | 3 x 10/100/1000 BASE-T ports |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac |
| Antenna Gain | 2.4 GHz: 2 dBi, 5 GHz: 16 dBi |
| Antenna Orientation | Horizontal: 30°, Vertical: 30° |
| Max. Transmit Power | 2.4 GHz: 20 dBm 5 GHz: 29 dBm |
| Power Specifications | |
| Power Consumption | ≤ 12 W |
| Power Method | 12 V, 1 A DC connector or 24 V, 0.6 A DC Passive PoE injector Also supports standard PoE & PoE+ (IEEE 802.3af, 802.3at) |
| PoE Budget | – |
| Performance & Bridging | |
| Max Wireless Data Rate | 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
| Max Bridge Distance | 5 km (3.11 miles) |
| Bridge Throughput (HT40) | 1 km: 230 Mbps 3 km: 200 Mbps 5 km: 150 Mbps |
| Recommended Cameras (4-5 Mbps) | 1 km: 30 cameras 3 km: 25 cameras 5 km: 12 cameras |
| Software & Management | |
| Working Modes | Base Station, CPE, Bridge |
| Management Features | SSID hiding, Antenna alignment, Spectrum scan, VLAN, SNMP, SSH |
| Configuration | Web management (via local IP address) and Cloud management (via Lysora Cloud Portal) |
| Environmental & Certifications | |
| Operating Temperature | -30°C to +55°C (-22°F to +131°F) |
| Weather Resistance | IP55 rating |
| Certifications | FCC, IC, cTUVus |
| Compliance | NDAA Compliant |
