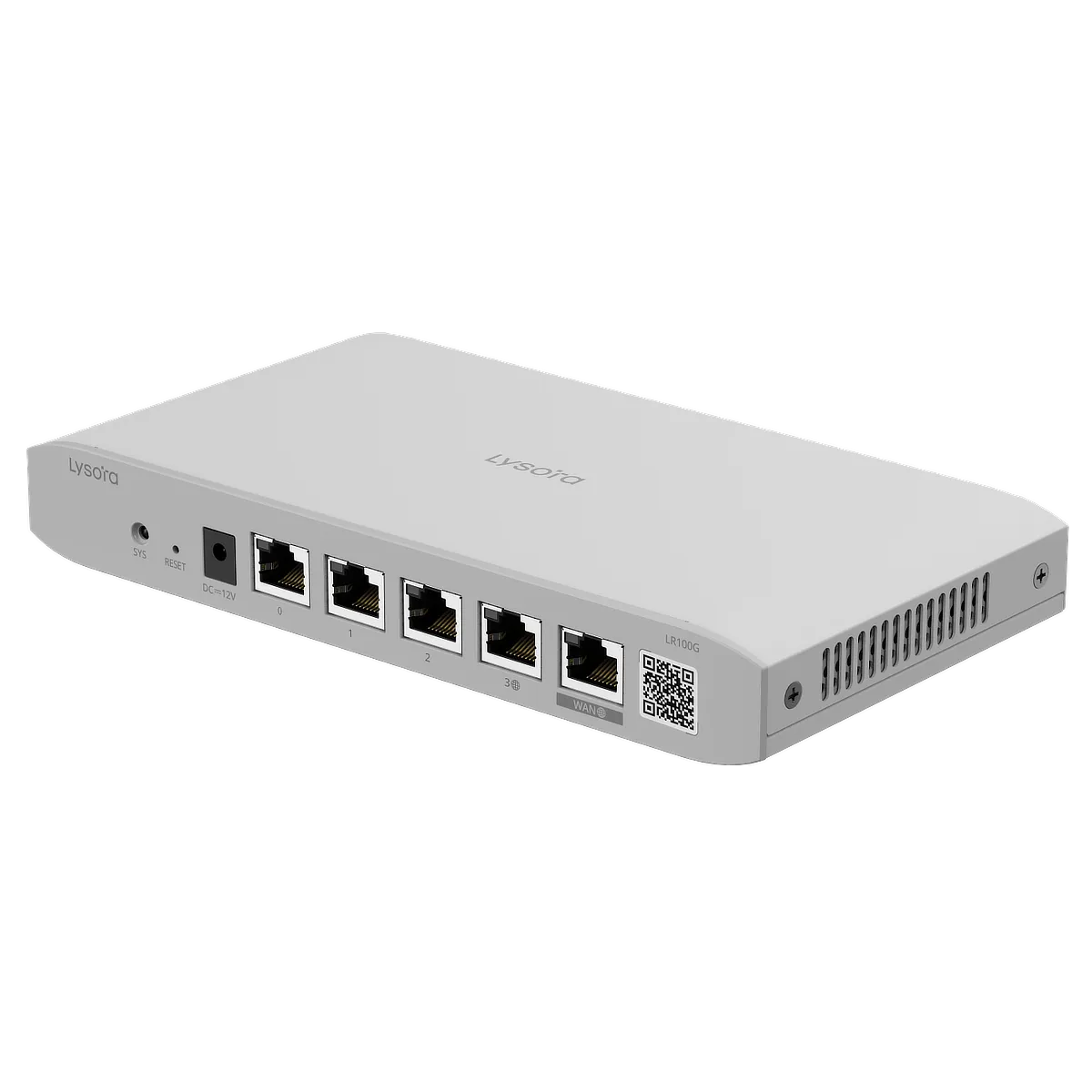

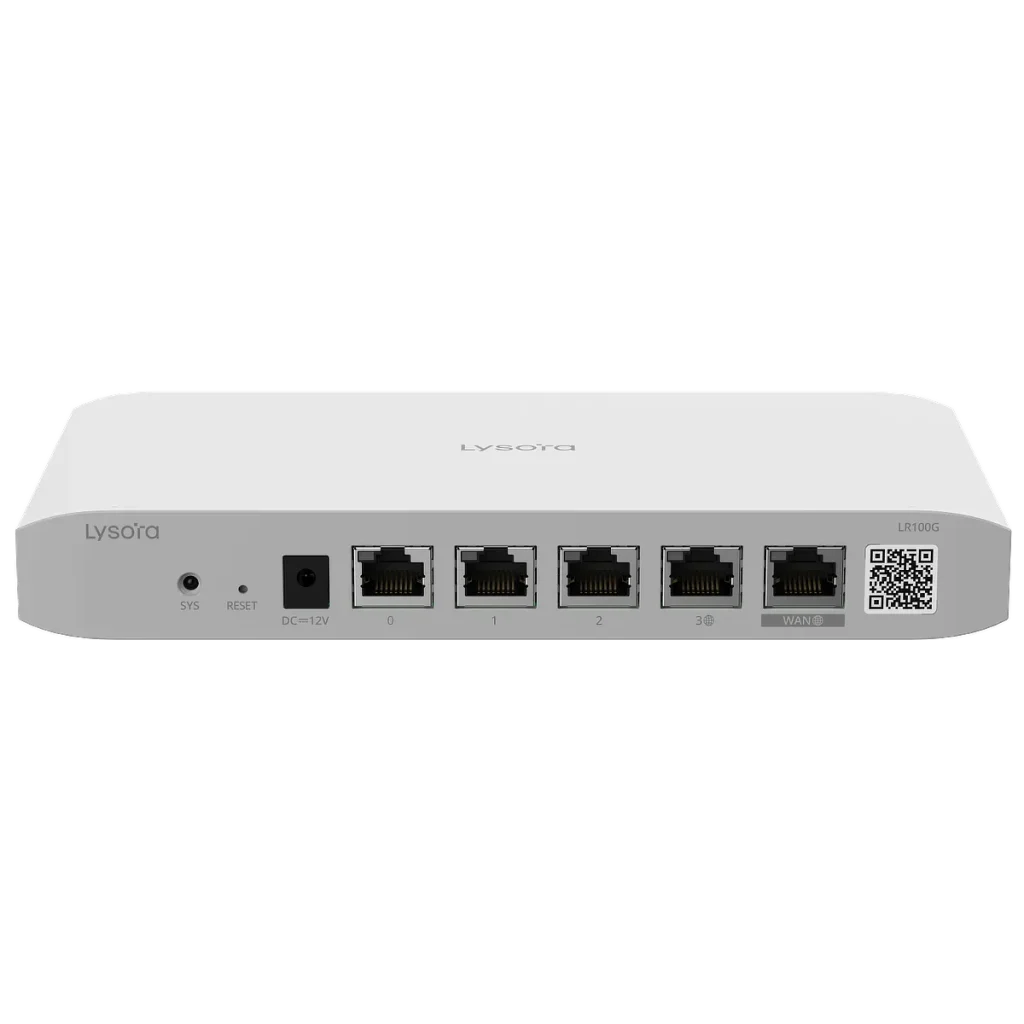

LYS-LR100G

This is a 5-port Gigabit router that supports up to two WAN links for load-balancing and multi-WAN failover. It has a built-in VPN – with support for both OpenVPN and WireGuard.

Categories: Lysora Technology, RoutersTags: Router

Product Overview

The Lysora  LYS-LR100G is a Gigabit router with 4-LAN ports and a single WAN port. You can convert one of the LAN ports to a WAN port for multi-WAN connectivity. It supports popular VPN protocols such as OpenVPN and Wireguard, allowing you to connect to your home or office network securely from a remote location.

As with all Lysora products, you can manage it remotely through the Lysora Cloud Portal.


The Lysora Cloud Portal allows you to manage your network easily from anywhere.

Features – 5-Port Cloud Managed Router

  • 5-Port Gigabit Cloud-Managed Router
  • 5 x 1GE service ports, support up to 2 WAN links
  • 100 concurrent users
  • 600 Mbps (1000 Mbps in Turbo mode)

Specification

General Specifications
Product Model LR100G
Device Description 5-Port Cloud Managed Router
Dimensions 206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.)
Weight 0.85 kg (1.88 lbs) (with packaging materials), 0.41 kg (0.9 lbs) (without packaging materials)
Enclosure Material Plastic
Mounting Desktop Mounting, Wall-mounted
Warranty 3 years
Hardware & Performance
1GbE RJ45 Ports 5
1G SFP Ports –
PoE/PoE+ Out Ports –
Recommended number of clients 100 clients
Throughput 1000 Mbps (Turbo Mode), 600 Mbps (Normal Mode)
VPN Support L2TP, PPTP, OpenVPN, IPsec, WireGuard, L2TP over IPsec, SD-WAN
CPU Dual-core processor, 880 MHz clock frequency per core
Power & Environment
PoE Budget –
Max. Power Consumption 5 W
Operating Temperature 0°C to 40°C (32°F to 104°F)
Cooling Fanless design / Natural cooling
Management & Compliance
Management Options Cloud, App, and Web management
SSH & Telnet No
NDAA Compliant Yes
Certifications FCC, IC, cTUVus

Download
