PKC2640@Z80-IR-P

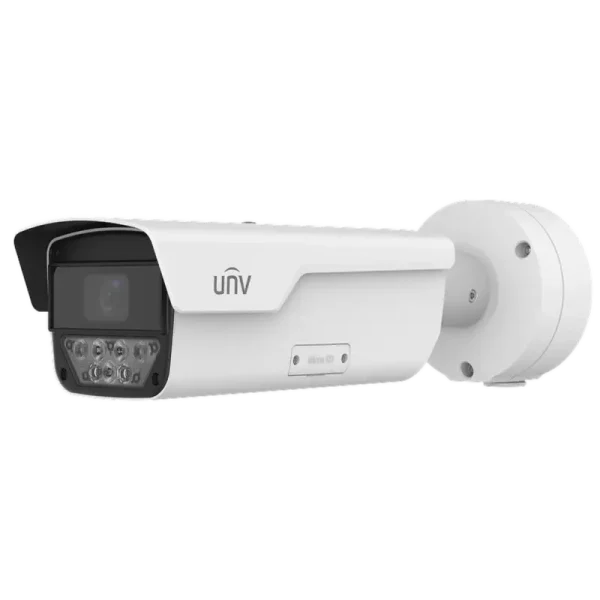

This is an updated license plate recognition camera from Uniview with a 4MP sensor and 8 – 32 mm motorized lens. It comes with a junction box for weatherproofing your outdoor installation. Will automatically store license plates in the database when paired with a compatible Uniview NVR.
Description
Uniview’s PKC2640@Z80-IR-P is a camera built for one purpose: to capture license plates. It has four powerful IR LEDs, allowing plate detection up to 164 ft at night. In addition, its 4MP LightHunter sensor allows for crystal-clear video at 30fps. The sensor’s high dynamic range allows it to practically ignore car headlights, ensuring you capture license plates during day and night.

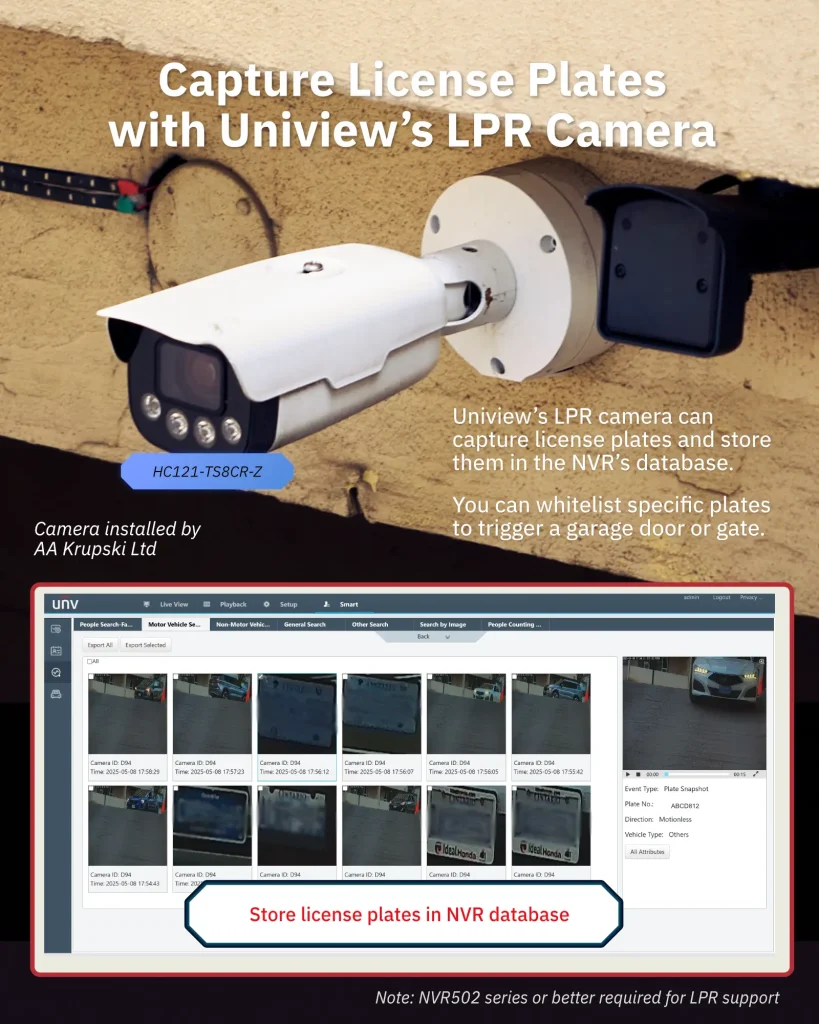

The camera has a built-in LPR (license plate recognition) algorithm, allowing the camera to read and store plate information in plain text. This information can be used to configure whitelists and blacklists or to search for when a specific plate came into the area.
Uniview LPR works best with the following Uniview NVR models:
- NVR502-08B-P8 | NVR502-16B-P16
- NVR504-16B-P16 | NVR504-32B-P16
- NVR508-32E-R | NVR508-64E-R
- NVR516-128
- NVR824-128R | NVR824-256R
These NVRs support plate search, allowing you to perform VCA search by license plate number.
Features – 4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera
- Built-in lens supports motorized zoom to adapt to different scenes and allows for easy installation.
- Automatic gain control, white balance, and WDR for various light conditions.
- Advanced H.265 encoding technology improves compression efficiency.
- Custom OSD allows various vehicle information to be overlaid on the video image.
- Built-in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries.
- Supports capturing vehicle head only.
- Supports plate allowlist and blocklist configuration.
- Supports vehicle access control when connected to a barrier.
- Supports Micro SD cards of up to 256GB.
- Automatic network replenishment (ANR) allows to automatically store video to SD card in case of network disconnection.
- Supports DC 12V and PoE (802.3at) power supplies.
- Cast aluminum body offers excellent heat dissipation.
- 3-axis mounting bracket for various installation scenarios.
- A junction box on the mounting bracket is convenient for storing tail cables.
Specification
| PKC2640@Z80-P | PKC2640@Z80-IR-P | PKC2640@Z80-P | PKC2640@Z80-IR-P | |||||||||||||
| Camera | ||||||||||||||||
| Sensor | 1/1.8-inch 4MP CMOS | |||||||||||||||
| Focal length | 8 to 32mm 8 to 32mm, motorized zoom |
8 to 32mm, motorized zoom 8 to 32mm, motorized zoom |
||||||||||||||
| Shutter | Auto/Manual, range: 1/30 to 1/100000s | |||||||||||||||
| Minimum illumination | 0.002lux (F1.7) | |||||||||||||||
| Image | ||||||||||||||||
| Image collection format | 2688*1520@30 (default), 2688*1520@25 | |||||||||||||||
| Resolution | Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF | |||||||||||||||
| Frame rate | 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 | |||||||||||||||
| Video compression | H.264 (default), H.265 | |||||||||||||||
| ROI | Supports up to 8 regions | |||||||||||||||
| Video OSD | Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents | |||||||||||||||
| Image OSD | Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location | |||||||||||||||
| Smart | ||||||||||||||||
| Application scenario | ≤ 80km/h for regular roads; Camera with the focal length of 8 to 32mm can be used for regular roads |
|||||||||||||||
| Vehicle detection mode | Supports video detection | |||||||||||||||
| License plate number recognition | Supports recognition of license plates with numbers and letters by default | |||||||||||||||
| List configuration | Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations |
|||||||||||||||
| Barrier opening policy | Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID |
|||||||||||||||
| Storage | ||||||||||||||||
| Edge storage | Supports ANR with a Micro SD card, up to 256GB | |||||||||||||||
| Structure | ||||||||||||||||
| Illumination | Built-in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on/off control Built-in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on/off control |
Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control |
||||||||||||||
| Bracket | 3-axis mounting bracket | |||||||||||||||
| Junction box | The camera comes with a junction box for storing tail cable | |||||||||||||||
| Interface | ||||||||||||||||
| Network interface | 1 × 10M/100M RJ45 | |||||||||||||||
| Serial port | 1 × RS485 | |||||||||||||||
| Boolean output | 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A | |||||||||||||||
| Boolean input | 2 x input, supports level (up to DC 5V) and switch signal | |||||||||||||||
| Audio interface | 1 × audio input, 1 × audio output | |||||||||||||||
| Storage interface | 1 × Micro SD card slot | |||||||||||||||
| General | ||||||||||||||||
| Power supply | DC12V + 25% – 10% Max. power consumption: 20W Supports PoE (802.3at, class 4) |
|||||||||||||||
| Dimensions (L×W×H) | 406mm x 126mm x 130mm | |||||||||||||||
| Weight | 2.1kg | |||||||||||||||
| Operating environment | -40℃ to 60℃, ≤90% RH | |||||||||||||||
| Ingress protection | IP67, IK10 | |||||||||||||||
