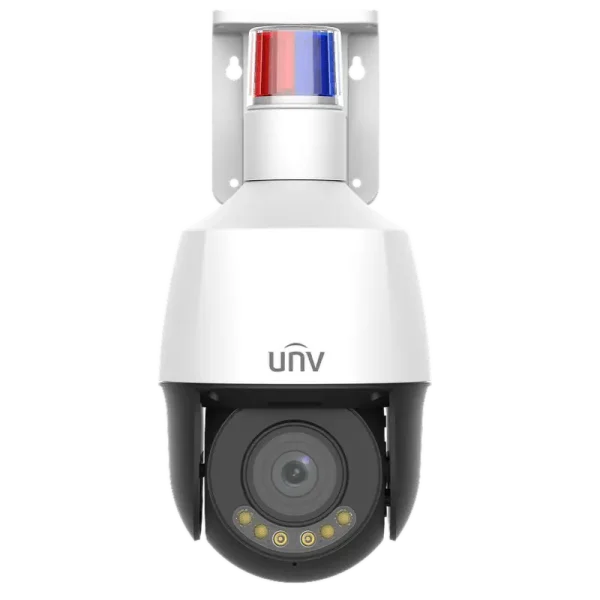

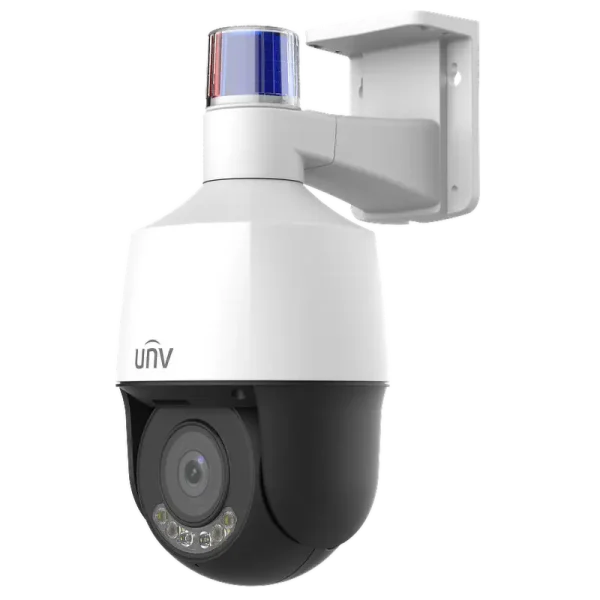

IPC6324LWH-AX5C-VG2
This is a 4MP OwlView PTZ with 5x optical zoom, two-way audio, and auto-tracking. It has a white LED that can shine up to 40 m (131 ft) to keep the scene in colour.
Description
This camera is a 4MP OwlView PTZ camera with excellent low-light performance and a 5x optical zoom lens (2.8 – 12mm). It has a built-in microphone and speaker, which can be triggered via cross-line or intrusion detection to sound a warning and flash red & blue strobe lights.
It also features auto-tracking, allowing the camera to automatically pan from left to right and track a person across the scene.
The Wise-ISP technology in this camera allows it to capture colourful detail in extremely low-light scenarios. For more information, read this article about Wise-ISP technology.
4MP 5X Wise-ISP Tri-Guard Warm light Network PTZ Camera
- High quality image with 4 MP, 1/1.8″ CMOS sensor
- Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
- Ultra 265, H.265, H.264, MJPEG
- 2880 × 1620@30 fps in the main stream, 16 : 9 aspect ratio
- Smart intrusion prevention, support false alarm filtering, Cross Line Detection, Intrusion Detection
- Up to 120 dB WDR (Wide Dynamic Range)
- Built-in Mic and Speaker
- 40 m (131.23 ft) warm light distance
- Micro SD, up to 512GB
- IP66 protection
- DC 12 V or PoE (IEEE 802.3at) power supply
Specification
| IPC6324LWH-AX5C-VG2 | ||||||||
| Camera | ||||||||
| Sensor | 1/1.8″ CMOS | |||||||
| Min. Illumination | Colour: 0.0005 Lux (F1.2, AGC ON) | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >56 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.7 to 13.5 mm | |||||||
| Optical Zoom | 5X | |||||||
| Field of View (H) | 113.69° to 50.29° | |||||||
| Field of View (V) | 59.46° to 28.45° | |||||||
| Field of View (D) | 156.23° to 59.34° | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.7 to 13.5 mm | |||||||
| DORI Distance (Detect) | 98.6 to 209.9 m (323.3 to 688.7 ft) | |||||||
| DORI Distance (Observe) | 39.4 to 84.0 m (129.3 to 275.5 ft) | |||||||
| DORI Distance (Recognize) | 19.7 to 137.7 m (64.7 to 137.7 ft) | |||||||
| DORI Distance (Identify) | 9.9 to 21 m (32.3 to 68.9 ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance (Warm Light) | 40 m | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| OSD | Up to 8 OSDs | |||||||
| Frame Rate-Main Stream | 4MP (2560 x 1440)@25fps (Default) 4MP (2688 x 1520), Max 30fps; 4MP (2560 x 1440), Max 30fps |
|||||||
| Events | ||||||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication | |||||||
| Motion Detection | Support | |||||||
| Tampering Detection | Support | |||||||
| Audio Detection | Support | |||||||
| UMD (Ultra Motion Detection) | Support | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz, 16 kHz | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Intelligent | ||||||||
| Auto Tracking | Support, target filtering: human only | |||||||
| Smart Intrusion Prevention | Support false alarm filtering: cross Line detection, intrusion detection (based on human body and vehicle detection) | |||||||
| Network | ||||||||
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S,Profile G,Profile T), API | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
| Client | EZStation, EZLive, EZView | |||||||
| Web Browser | Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| PTZ | ||||||||
| Number of Presets | 1024 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 120 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Number of Presets (IPC) | 1024 | |||||||
| Pan Range | 0° to 345° | |||||||
| Pan Speed | 1°/s to 50°/s | |||||||
| Tilt Range | -10° to 100° | |||||||
| Tilt Speed | 1°/s to 40°/s | |||||||
| Number of Patrol | 16 | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) |
|||||||
| Safety | UL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) |
|||||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
| Protection | IP66 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3at) | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 2 KV | |||||||
| Reset Button | Support | |||||||
| Material | Metal | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
| Heater | Support | |||||||
| Live View | ||||||||
| Maximum Bitstream | 35 | |||||||
| OSD Color | Support | |||||||
| OSD Character Number | 40 | |||||||
