LYS-L6Lite
This is a Wi-Fi 6 wireless AP, designed for small and medium-density projects. It has 4 spatial streams, supports up to 256 simultaneous users, and has a coverage area of 125 m².
Description
The Lysora L6Lite is a Wi-Fi 6 ceiling-mounted access point, designed for low to medium-density applications. It supports up to 256 users, with a maximum bandwidth of 1774 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 4 spatial streams with a coverage area of 125 m² (1345 ft²).
This access point can be powered via standard PoE and consumes up to 12.95 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.
Features – Wi-Fi 6 AX1800 Dual-Band Ceiling Mount Access Point
- Wi-Fi 6 AX1800 dual-band ceiling mount access point with built-in antennas
- 1 x 1GE LAN port
- Dual-band 2.4 GHz/5 GHz
- Compliant with 802.11ac and 802.11ax (Wi-Fi 5 & Wi-Fi 6)
- Wireless data rate of up to 1774 Mbps
- AP mode and routing mode
- Layer 3 roaming
- Unified networking and management based on Lysora Cloud App
- PoE In and local power supply (PoE injector and DC adapter purchased separately)
Specification
| Overview | |
| Dimensions | 175mm × 39mm (Ø6.89 in. × 1.54 in.) (excluding the mounting bracket) |
| Weight | ≤0.4 kg (0.88 lbs) (without packaging); ≤0.6 kg (1.32 lbs) (with packaging) |
| Coverage Area | 125 ㎡ (1345.49 square ft.) |

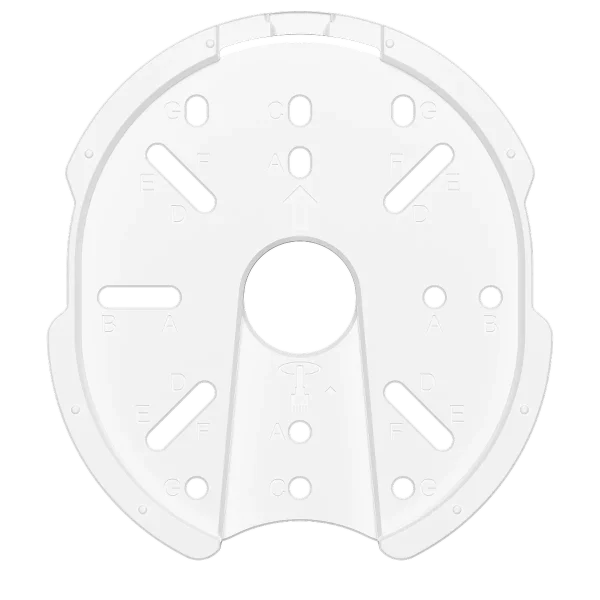

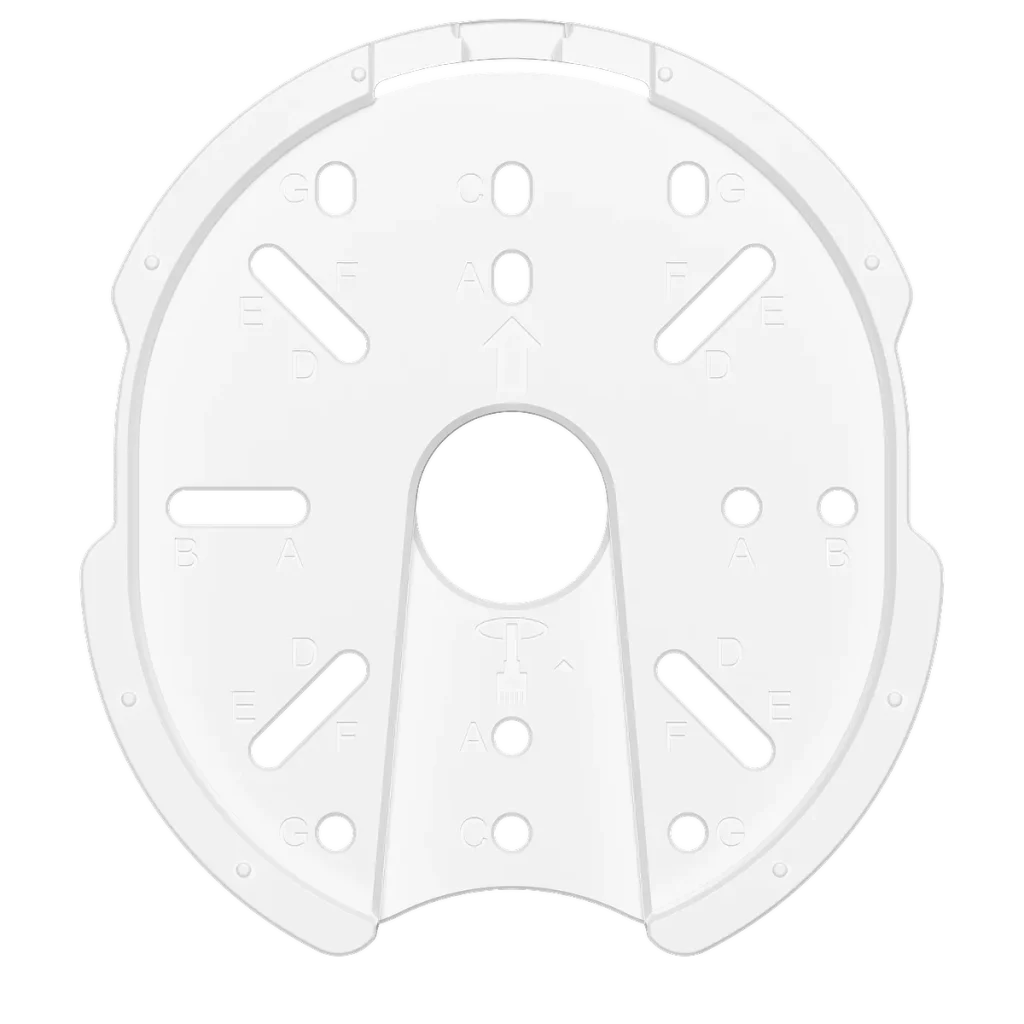

| Mounting Type | Ceiling Mount, Wall-mounted (Mounts Included) |
| Hardware & Networking | |
| Networking Interface | 1 x 1 GE RJ45 port |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 5 & Wi-Fi 6) |
| Antenna Gain | 2.4 GHz: 3.13 dBi, 5 GHz: 4.58 dBi |
| Max. Transmit Power | 2.4 GHz: 25.7 dBm, 5 GHz: 24 dBm |
| LED | 1 × System Status LED |
| Button | 1 × Factory Reset Button |
| Wireless Performance | |
| Max Wireless Data Rate | 2.4 GHz: 573 Mbps, 5 GHz: 1201 Mbps |
| Max. Client Count | 256 (2.4 GHz and 5 GHz enabled) |
| MIMO | 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO |
| Spatial Streams | 4 |
| Power Specifications | |
| Power Consumption | < 12.95 W |
| Power Method | POE or DC (12 V, 1.5A) (Adapter not included) |
