LYS-L7
This is a Wi-Fi 7 wireless AP, designed for medium-density projects. It has 5 spatial streams, supports 110+ simultaneous users, and has a coverage area of 145 m².
Description

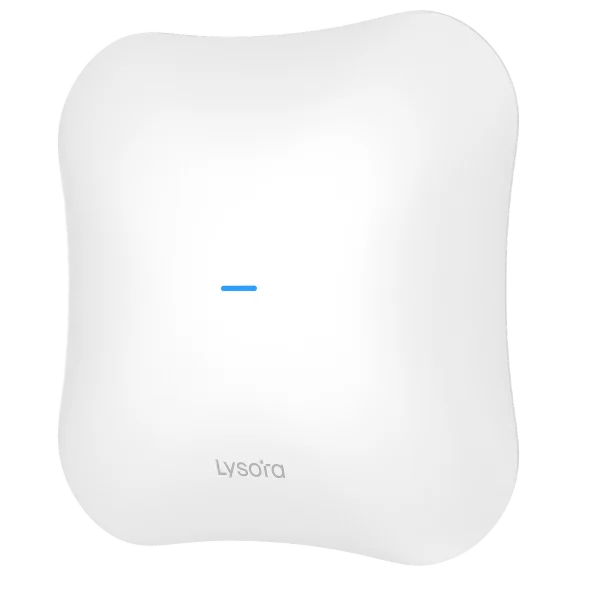

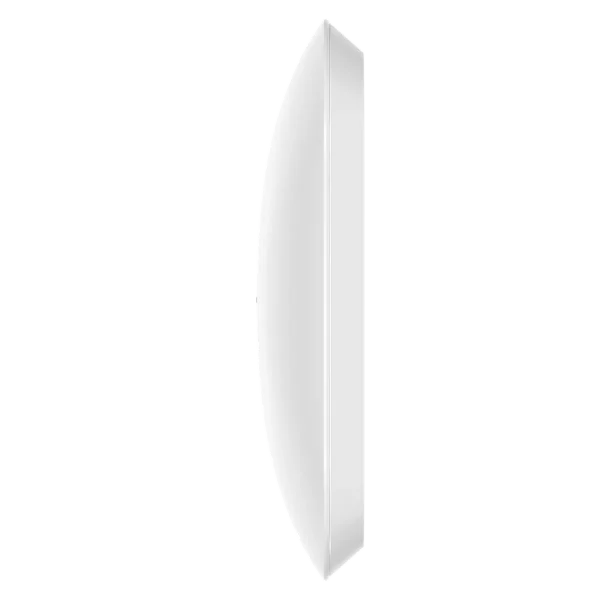

The Lysora L7 is a Wi-Fi 7 ceiling-mounted access point, designed for medium-density applications. It supports 110+ users, with a maximum bandwidth of 5011 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 4 spatial streams with a coverage area of 145m² (1560ft²).
This access point can be powered via PoE+ and consumes up to 30 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.
Features –Wi-Fi 7 BE5040 Dual-Band Ceiling Mount Access Point
- Wi-Fi 7 BE5000 dual-band ceiling mount access point
- Dual-band 2.4 GHz/5 GHz, high throughput with 5 spatial streams
- 1 x 100/1000/2500BASE-T port and 1 x 100/1000BASE-T port
- AP and routing mode
- Unified networking and management based on Lysora Cloud App
- Max power consumption < 30 W
- 802.3at PoE In and 12V DC power supply (PoE injector and DC adapter purchased separately)
Specification
| Overview | |
| Dimensions | 208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.) |
| Weight | ≤ 0.75 kg (1.65 lbs.) |
| Coverage Area | 145㎡ (1560 square ft.) |

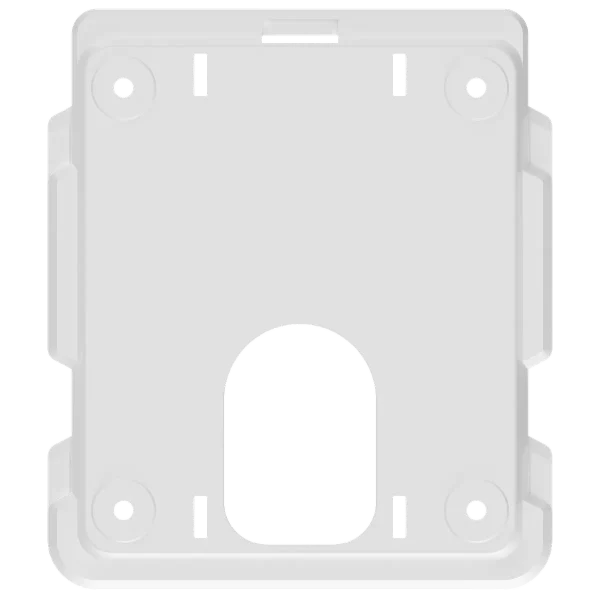

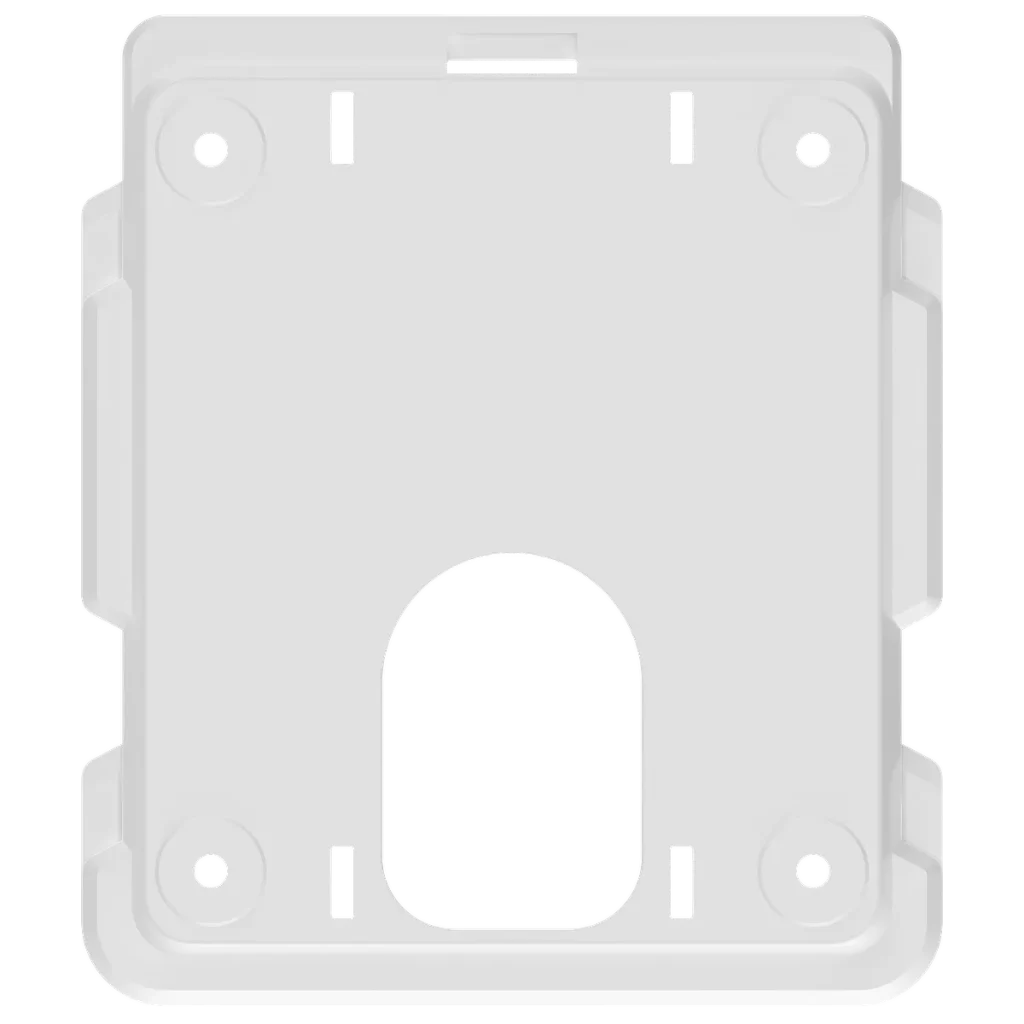

| Mounting Type | Ceiling Mount, Wall-mounted (Mounts Included) |
| Hardware & Networking | |

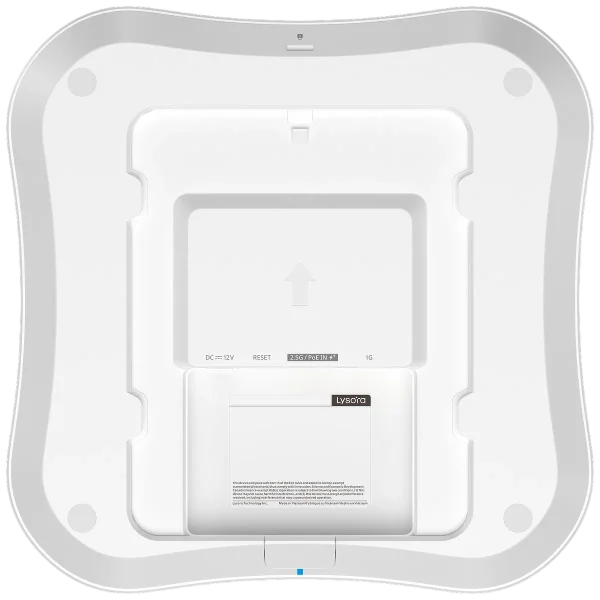

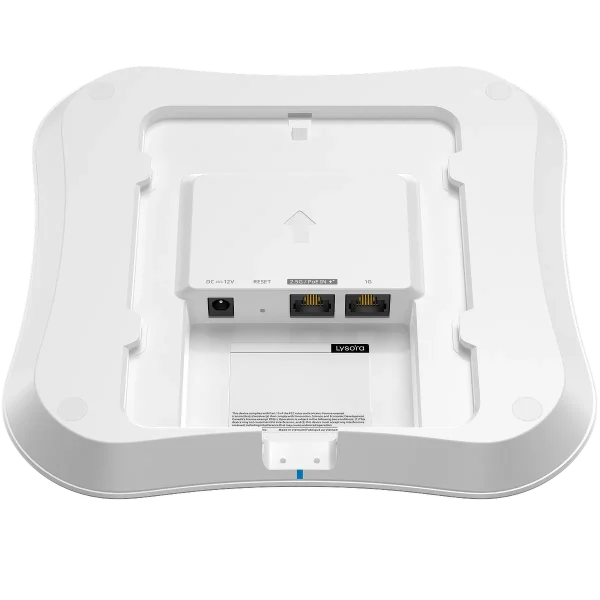

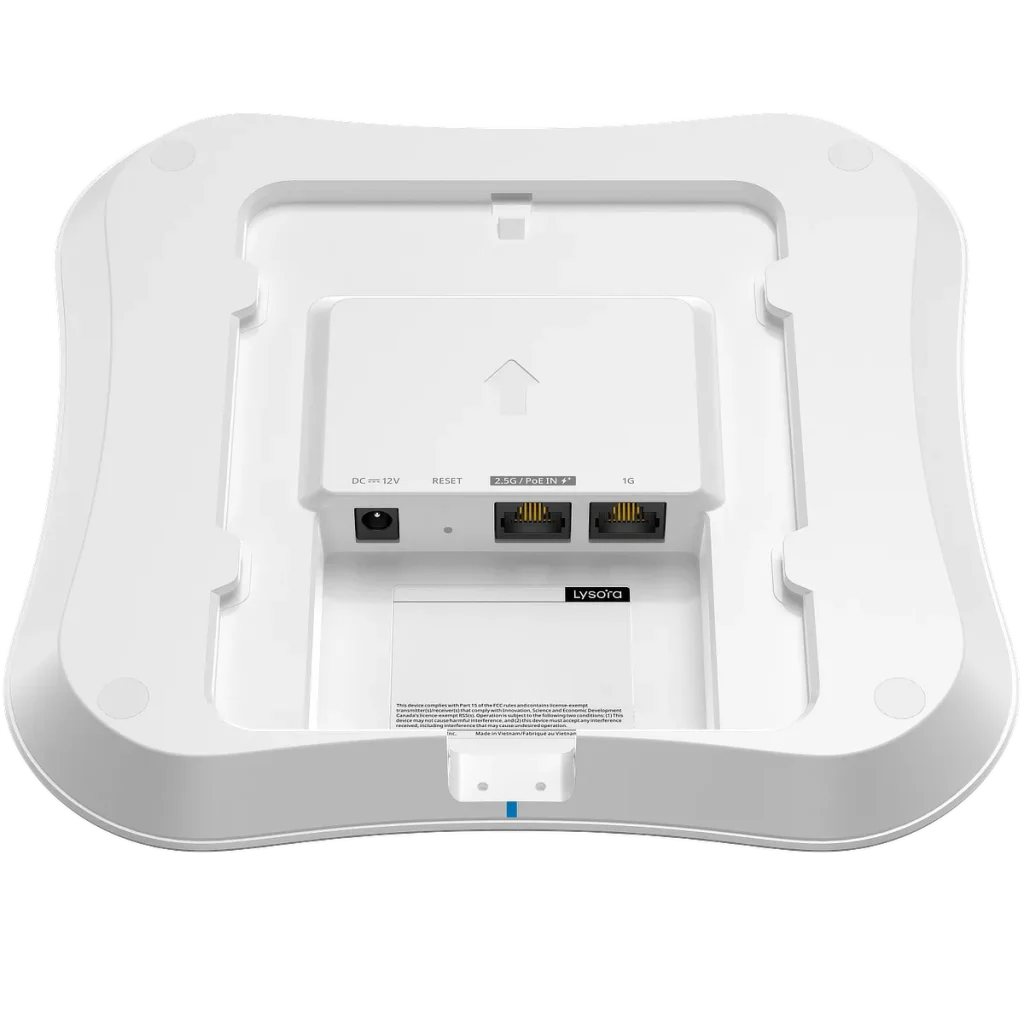

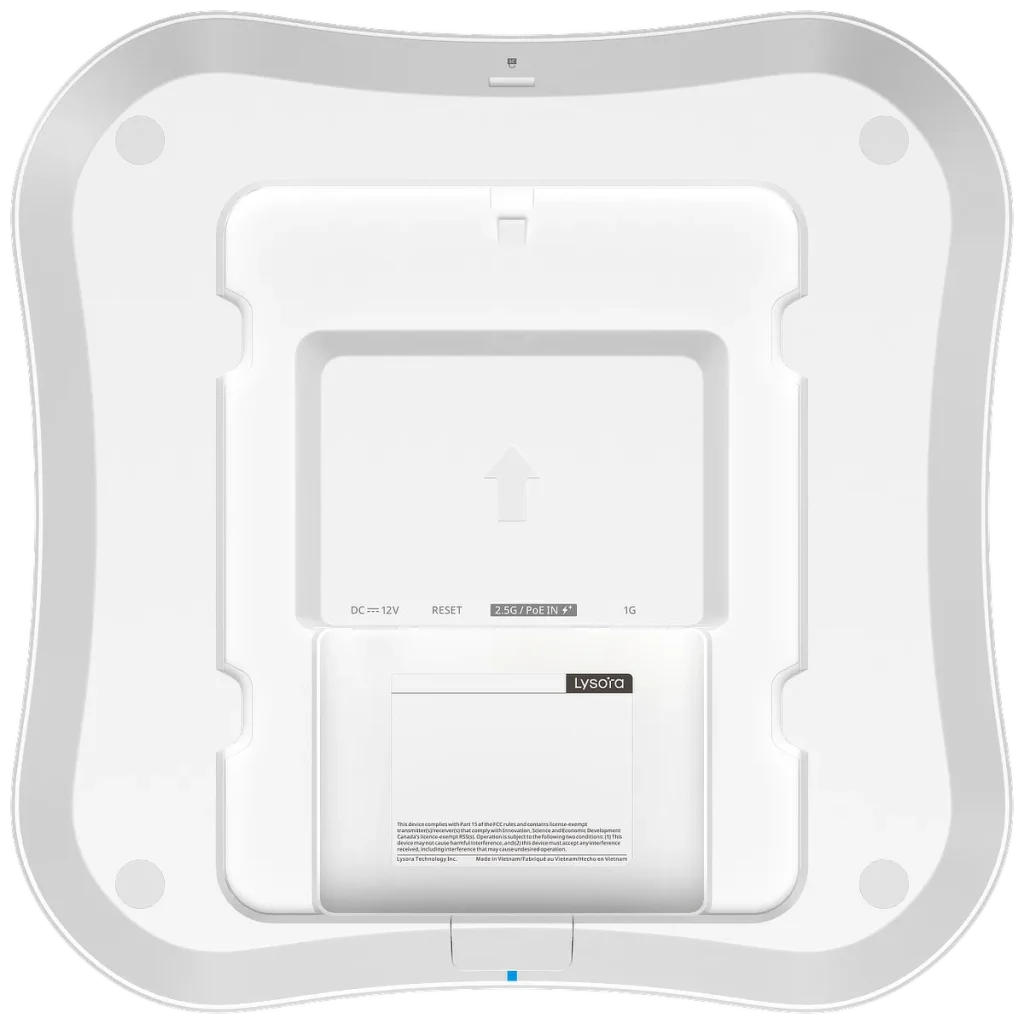

| Networking Interface | (1) 2.5GbE RJ45 port (1) 1GbE RJ45 port |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 5, Wi-Fi 6, & Wi-Fi 7) |
| Antenna Gain | 2.4 GHz: 3.00 dBi, 5 GHz: 4.00 dBi |
| Max. Transmit Power | 2.4 GHz: 27 dBm, 5 GHz: 29.7 dBm |
| LED | 1 × System Status LED |
| Button | 1 × Factory Reset Button |
| Wireless Performance | |
| Max Wireless Data Rate | 2.4 GHz: 688 Mbps, 5 GHz: 4323 Mbps |
| Max. Client Count | 110+ simultaneous clients |
| MIMO | 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 3 x 3 MU-MIMO |
| Spatial Streams | 4 |
| Power Specifications | |
| Power Consumption | ≤ 30 W |
| Power Method | PoE+ or DC (12 V, 2.5A) (Adapter not included) |
