LYS-L7-W
This is an in-wall Wi-Fi 7 AP with 1× Gigabit WAN port and 4× Gigabit LAN ports. It has 4 spatial streams, supports 64+ simultaneous users, and has a coverage area of 55 m².
Note: This product is not available yet. It’s scheduled to arrive in June 2026.
Description
The Lysora L7-W is an in-wall Wi-Fi 7 AP, designed for low to medium-density applications. It supports 55+ users, with a maximum bandwidth of 3570 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 5 spatial streams with a coverage area of 55 m² (590 ft²).
This access point can be powered via PoE+ and consumes up to 30 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.
Features –Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point
- Wi-Fi 7 BE3600 dual-band wall-plate access point
- Up to 4 spatial streams
- 1 x 100/1000/2500BASE-T port and 4 x 10/100/1000BASE-T ports (with 1 port supporting PoE Out )
- Unified networking and management based on Lysora Cloud App
- Max power consumption < 15 W (when the PoE output of LAN 4 port is disabled)

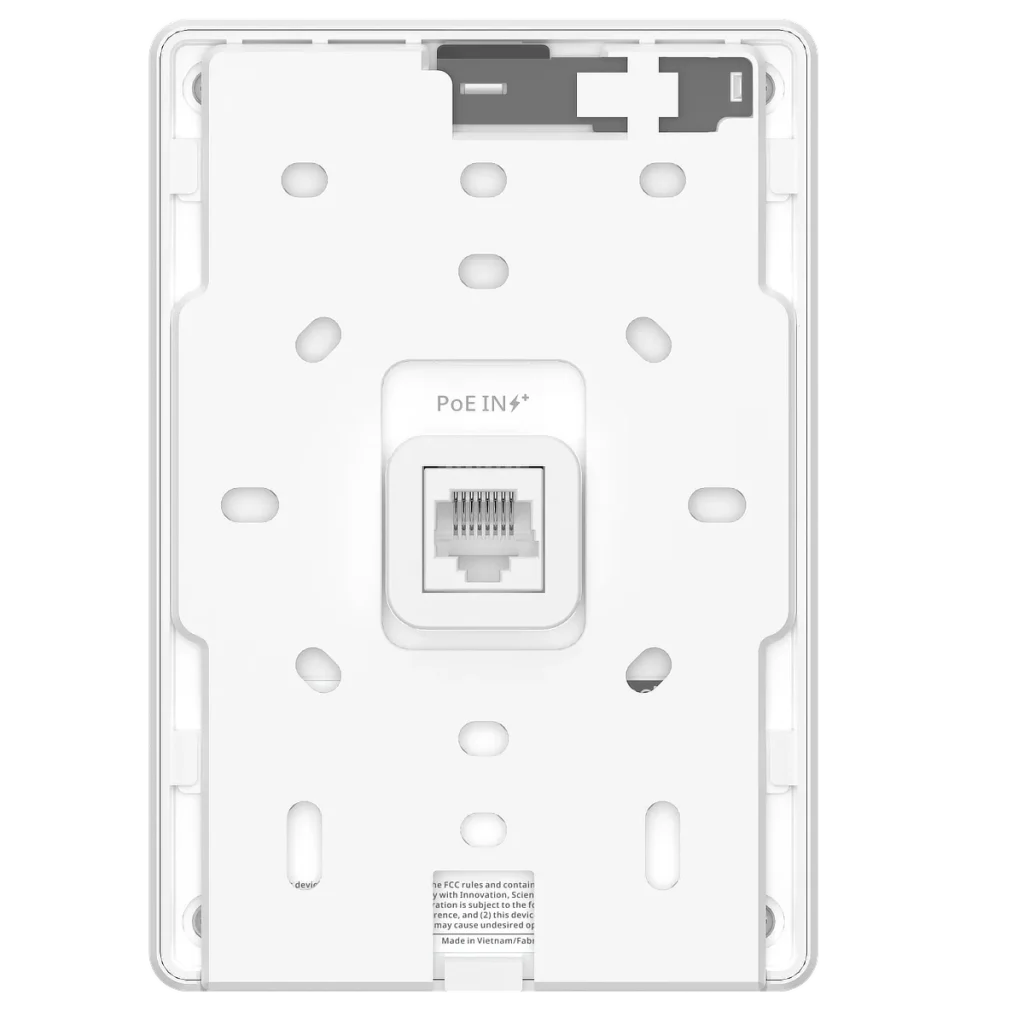

- 802.3af/at PoE input
Specification
| Overview | |
| Dimensions | 86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.) |
| Weight | ≤ 0.27 kg (0.60 lbs.) (without packaging materials) |
| Coverage Area | 55 ㎡ (592.02 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference. |

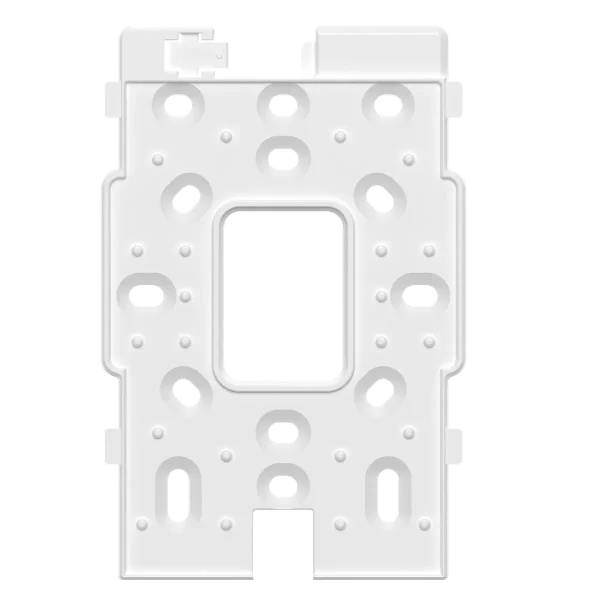

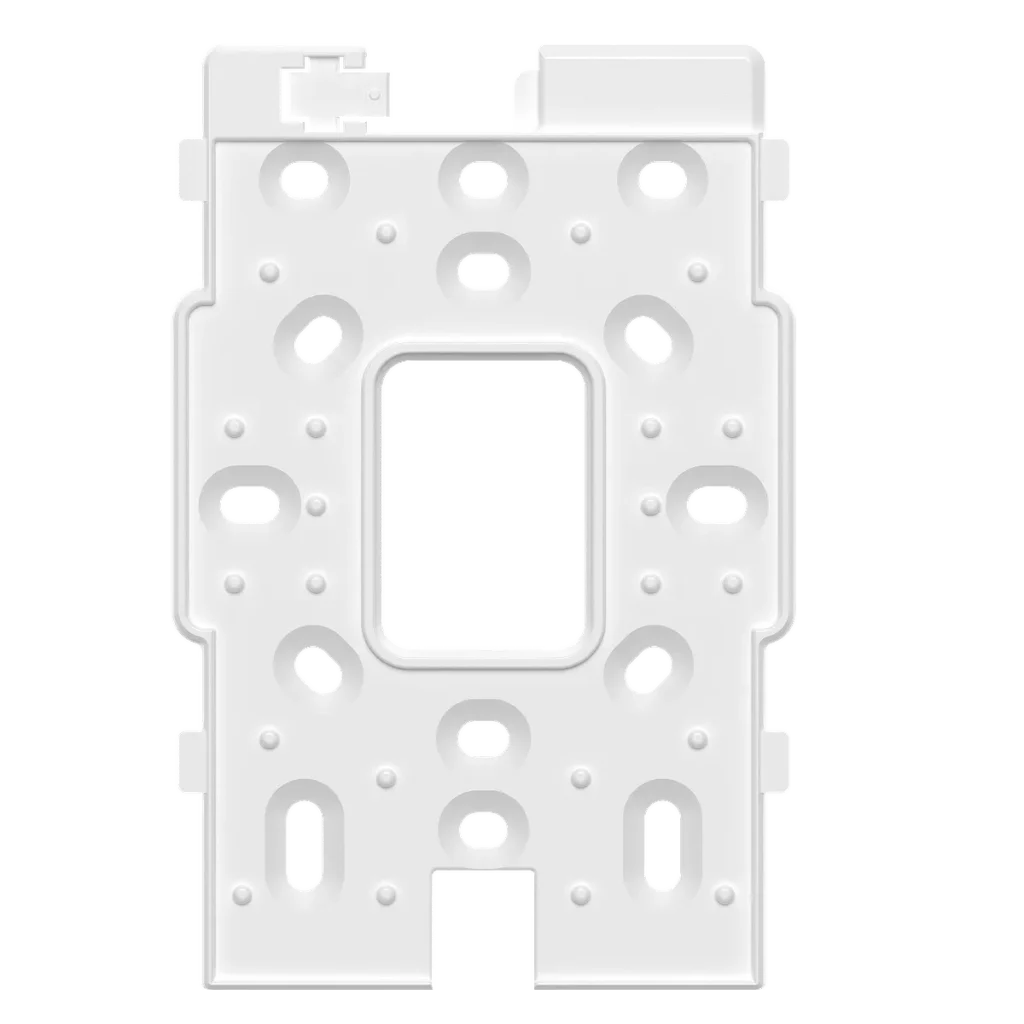

| Mounting Type | In-wall (Mounts Included) |
| Hardware & Networking | |

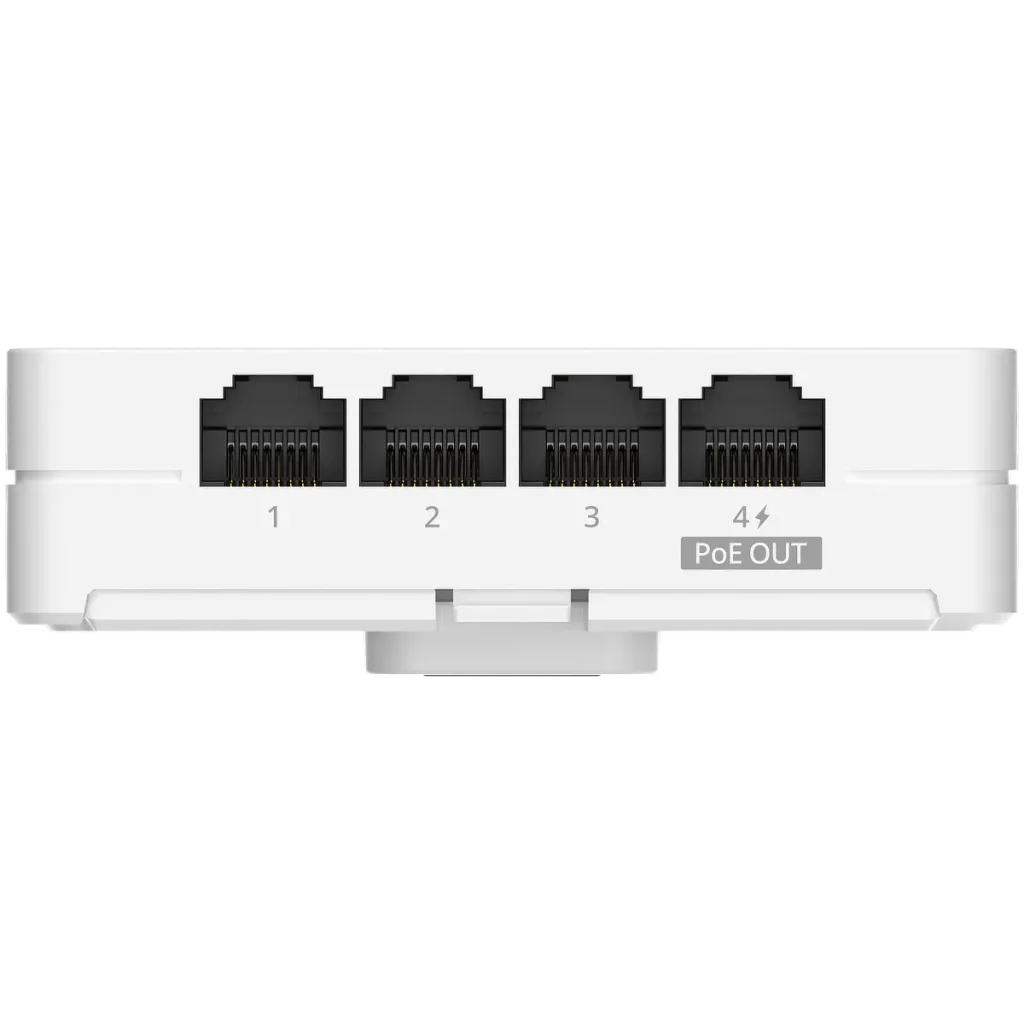

| Networking Interface | (1) 2.5GbE RJ45 port (WAN) (4) Gigabit RJ45 ports (1 port supports 15 W PoE output) |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 5, Wi-Fi 6, & Wi-Fi 7) |
| Antenna Gain | 2.4 GHz: 2.84 dBi, 5 GHz: 4.56 dBi |
| Max. Transmit Power | 2.4 GHz: 20 dBm, 5 GHz: 21.7 dBm |
| LED | 1 × System Status LED |
| Button | 1 × Reset Button |
| Wireless Performance | |
| Max Wireless Data Rate | 2.4 GHz: 688 Mbps, 5 GHz: 2882 Mbps |
| Max. Client Count | 64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled) |
| MIMO | 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO |
| Spatial Streams | 4 |
| Power Specifications | |
| Power Consumption | ≤ 15 W (excluding PoE output) |
| Power Method | PoE+ |
