LYS-L7Lite
This is a Wi-Fi 7 wireless AP, designed for low to medium-density projects. It has 4 spatial streams, supports 100+ simultaneous users, and has a coverage area of 140 m².
Description

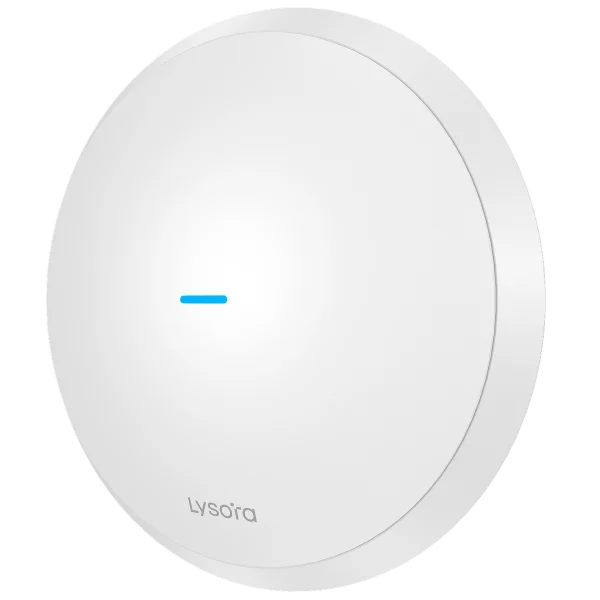

The Lysora L7Lite is a Wi-Fi 7 ceiling-mounted access point, designed for low to medium-density applications. It supports 100+ users, with a maximum bandwidth of 3570 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 4 spatial streams with a coverage area of 140m² (1500ft²).
This access point can be powered via standard PoE and consumes up to 14 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.
Features –Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point
- Wi-Fi 7 BE3600 dual-band ceiling mount access point
- Dual-band 2.4 GHz/5 GHz, high throughput with 4 spatial streams
- 1 x 100/1000/2500BASE-T port
- AP and routing mode
- Unified networking and management based on Lysora Cloud App; max power consumption < 14 W
- 802.3at PoE In and 12 V DC power supply
Specification
| Overview | |
| Dimensions | Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket) |
| Weight | ≤ 0.6 kg (1.32 lbs.) |
| Coverage Area | 140㎡ (1500 square ft.) |

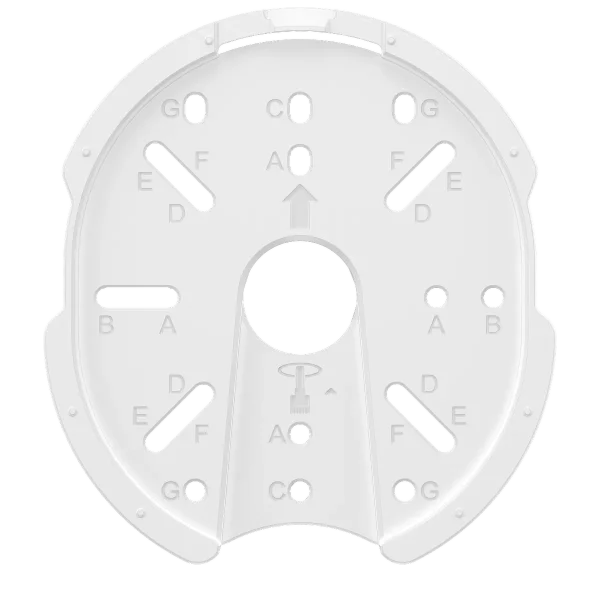

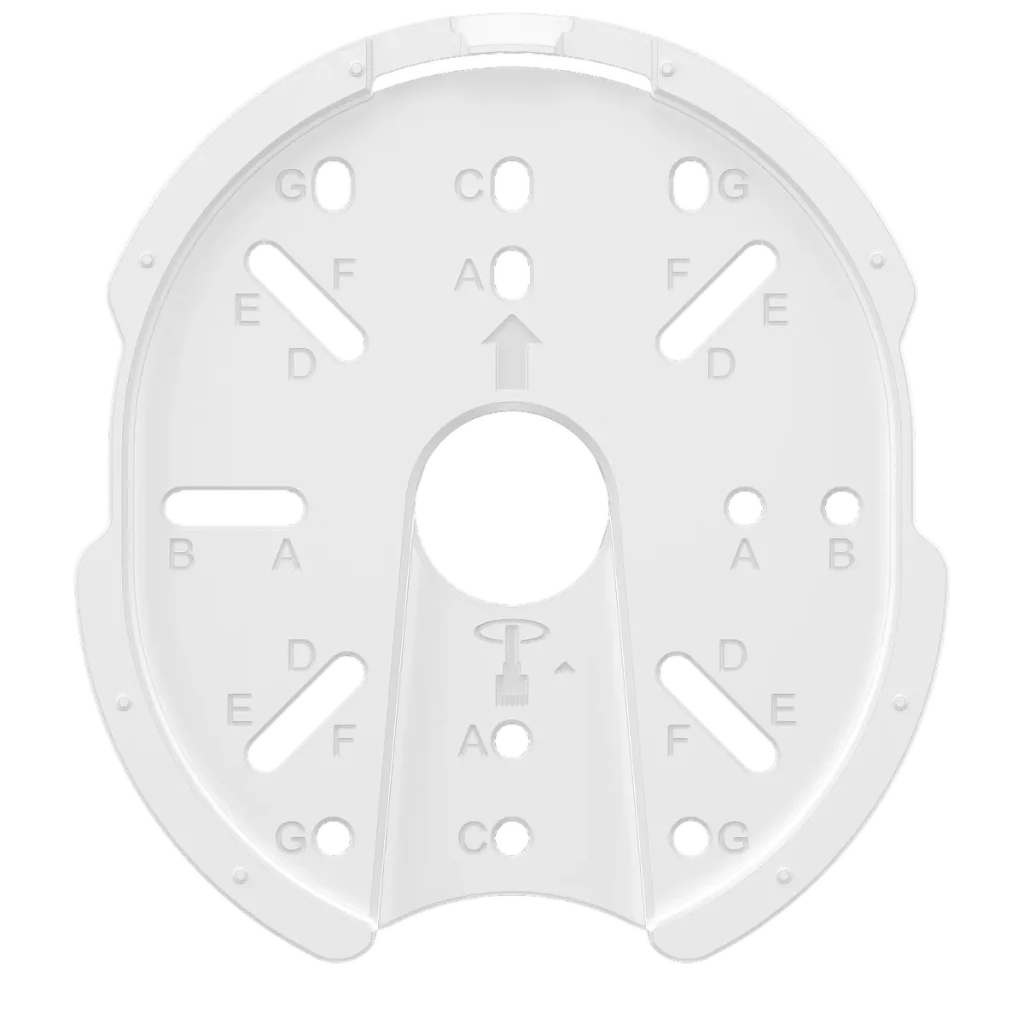

| Mounting Type | Ceiling Mount, Wall-mounted (Mounts Included) |
| Hardware & Networking | |
| Networking Interface | (1) 2.5GbE RJ45 port |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 5, Wi-Fi 6, & Wi-Fi 7) |
| Antenna Gain | 2.4 GHz: 3.23 dBi, 5 GHz: 4.44 dBi |
| Max. Transmit Power | 2.4 GHz: 25.7 dBm, 5 GHz: 25 dBm |
| LED | 1 × System Status LED |
| Button | 1 × Factory Reset Button |
| Wireless Performance | |
| Max Wireless Data Rate | 2.4 GHz: 688 Mbps, 5 GHz: 2882 Mbps |
| Max. Client Count | 100+ simultaneous clients |
| MIMO | 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO |
| Spatial Streams | 4 |
| Power Specifications | |
| Power Consumption | < 14 W |
| Power Method | PoE or DC (12 V, 1.5A) (Adapter not included) |
