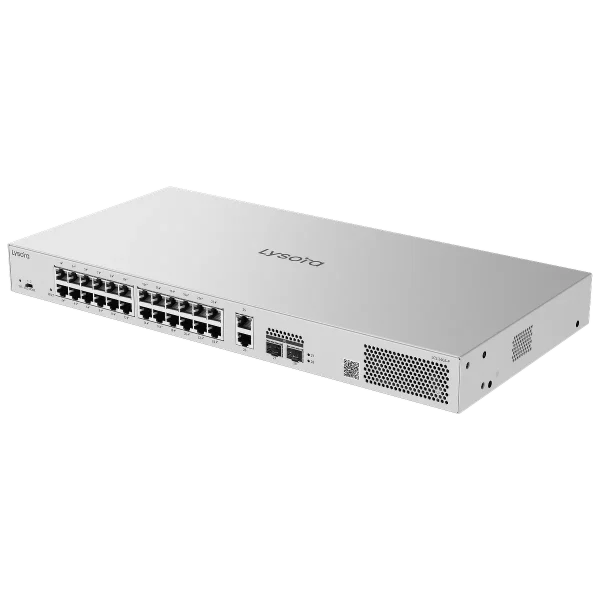

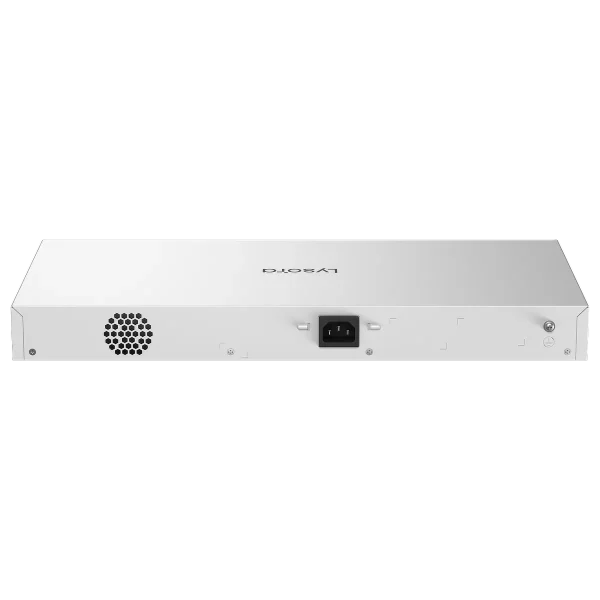

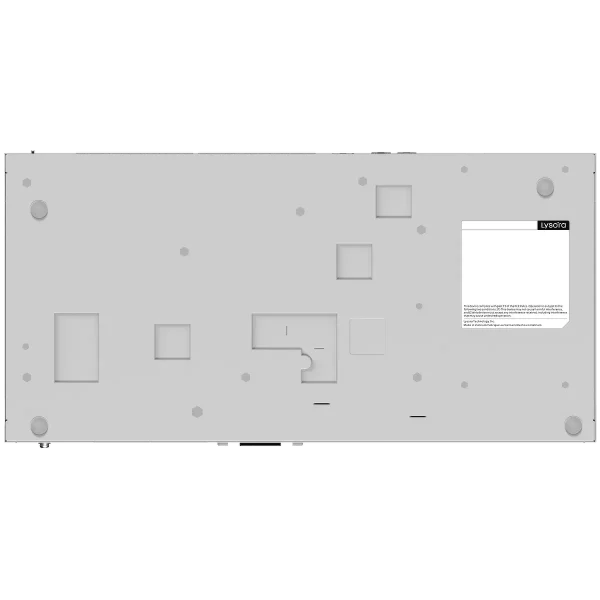

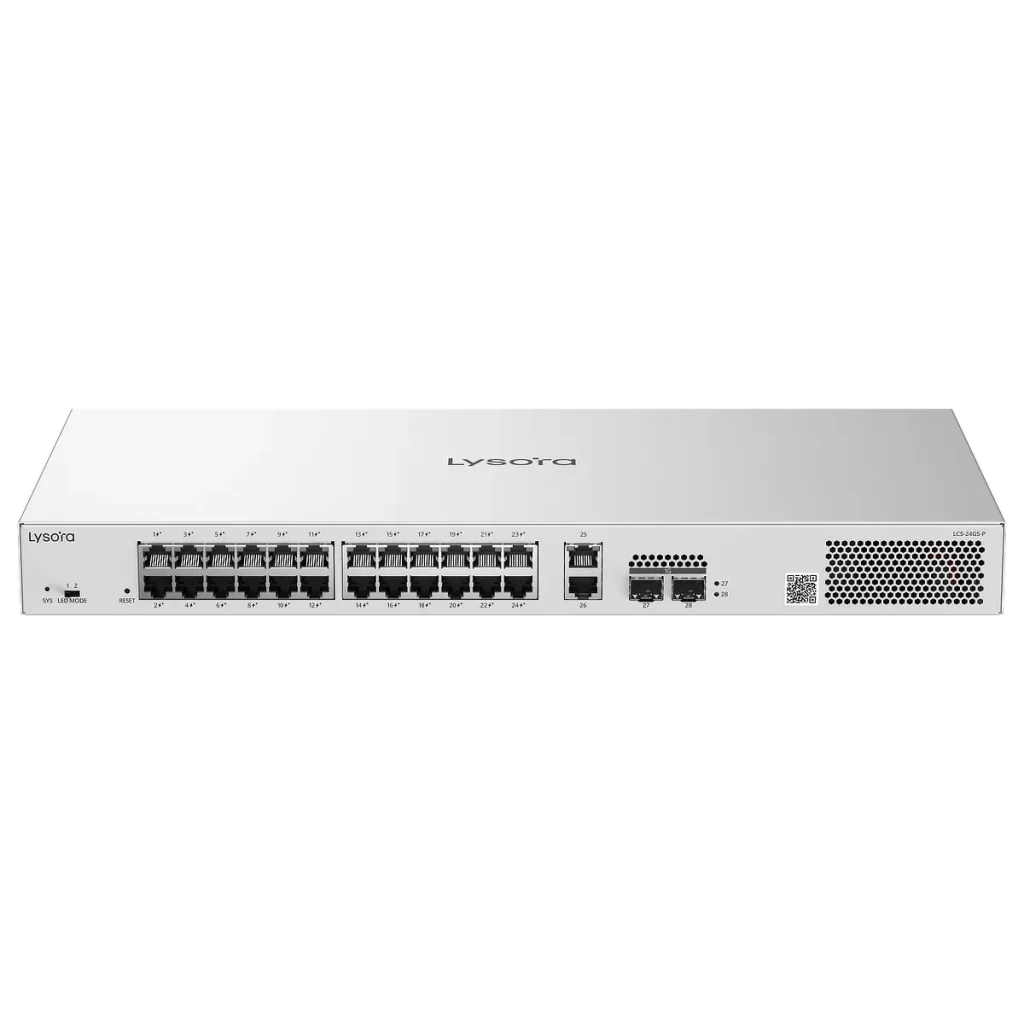

LYS-LCS-24GS-P
This is a 24-port managed PoE switch with two uplink ports and two SFP ports. It supports PoE+ on 24 ports, with a total PoE budget of 370 W. It also has layer-2 features such as VLAN configuration, DHCP snooping, and rebooting individual PoE ports.
Description
The Lysora LCS-24GS-P is a twenty-four port managed PoE switch with a 370 W PoE budget. You can manage it remotely through the Lysora Cloud Portal, letting you reboot individual ports and monitor the PoE usage of each port.
This is a layer-2 switch, which means you can use it to segment your network into different VLANs – improving security and reducing cross-talk between different devices.
This switch also supports the following features:
- DHCP Snooping – Set certain ports as trusted, which means only devices on those ports can assign DHCP addresses to the rest of your network (improves security).
- Loop Prevention – Block the signal from any ports that are looped, preventing the network from crashing.
- Long-distance PoE – Allows you to connect a device up to 250 m (820 ft), but lowers the speed of the port to 10 Mbps.
- PoE Watchdog – Will automatically reboot the PoE port if no traffic is detected after 90 – 1800 seconds (adjustable).
Features – 24-Port Cloud Managed PoE Switch with 370 W PoE Budget
- 28-Port Gigabit Smart POE Switch
- 24 PoE/POE+ Gigabit RJ45 Ports with 2 Gigabit RJ45/2 SFP uplink ports
- 370W PoE power budget
- Desktop Steel Case
- Supports Layer-2 features such as VLAN, Rate Limiting, DHCP Snooping, Static Mac Address, and more
Specification
| General Specifications | |
| Product Model | LCS-24GS-P |
| Device Description | 24-Port Cloud Managed PoE Switch with 370 W PoE Budget |
| Dimensions | 440 mm x 214.9 mm x 44 mm (17.32 in. x 8.46 in. x 1.73 in.) |
| Weight | 2.84 kg (6.62 lbs) (without packaging materials), 4 kg (8.12 lbs) (with packaging materials) |
| Enclosure Material | Metal |
| Mounting | Rack/Desk |
| Warranty | 3 years |
| Hardware & Performance | |
| 1GbE RJ45 Ports | 26 |
| 1G SFP Ports | 2 |
| PoE/PoE+ Out Ports | 24 |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.6 Mpps |
| MAC Address Table | 8000 entries |
| Jumbo Frame (MTU) | 10,000 bytes |
| MTBF | 200,000 hours |
| Power & Environment | |
| PoE Budget | 370 W |
| Max. Power Consumption | 25 W (with no PoE load), 400 W (with PoE full load) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Cooling | 1 × Fixed fan, front-to-rear airflow |
| Management & Compliance | |
| Management Options | Cloud, App, and Web management |
| PoE Watchdog | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC |
