LYS-LR300G-P

This is a 10-port cloud managed router that supports PoE+ output and multi-WAN connections.

Login for pricing
Categories: ,

Description

The Lysora  LR300G-P is a 10-port Gigabit router with 8 PoE+ ports (110 W power budget) and support for multi-WAN connections. It also supports popular VPN protocols such as OpenVPN and Wireguard, allowing you to connect to your home or office network securely from a remote location.

As with all Lysora products, you can manage it remotely through the Lysora Cloud Portal.

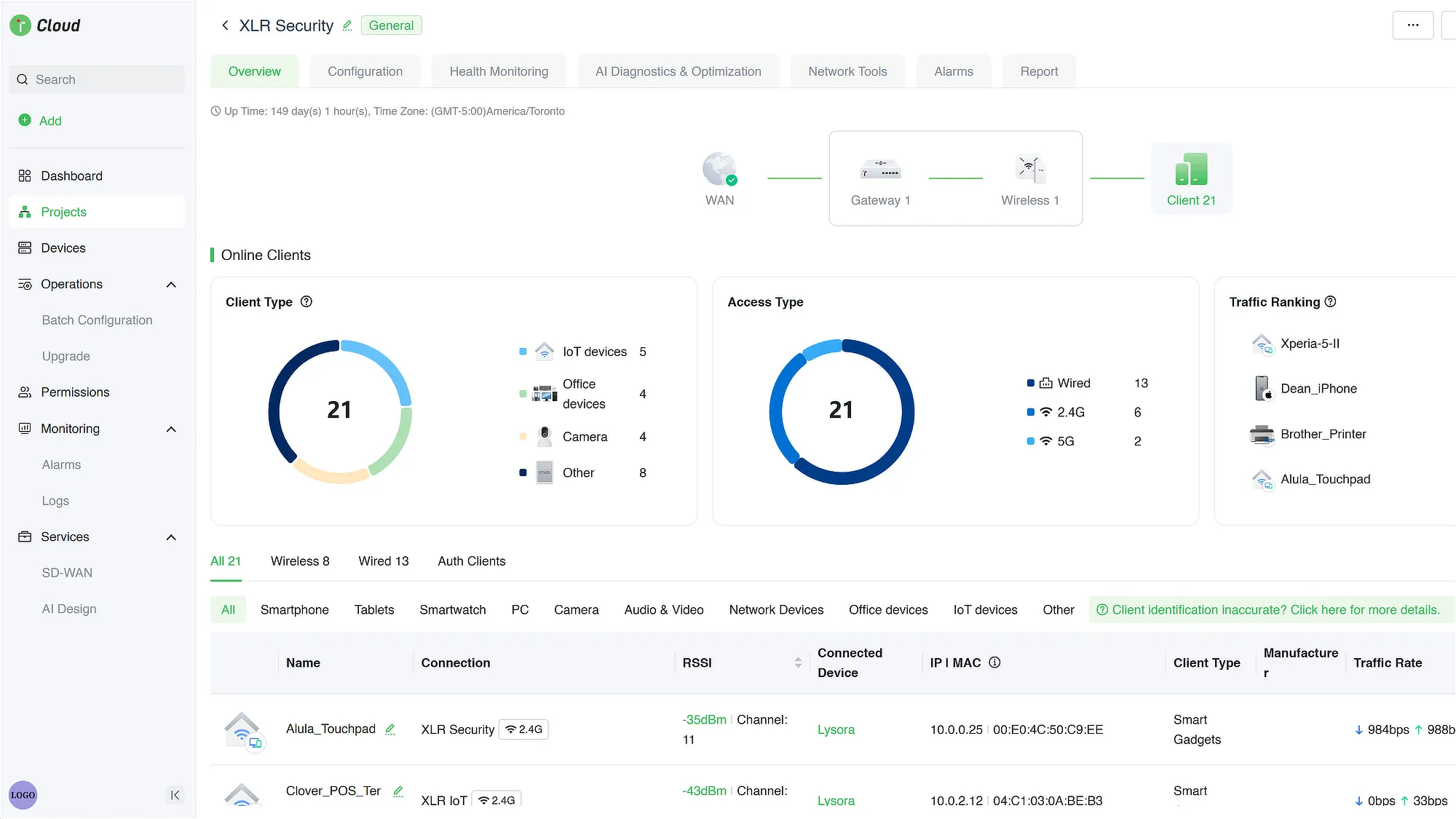

The Lysora Cloud Portal allows you to manage your network easily from anywhere.

Features – 10-Port Cloud Managed Router with 110 W PoE Budget

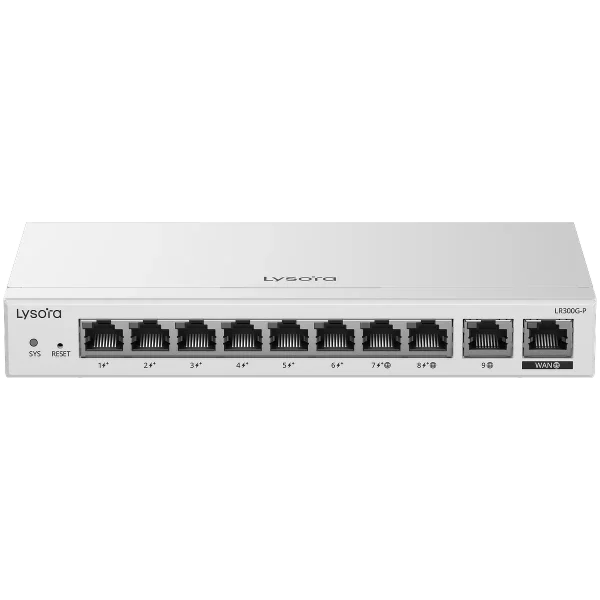

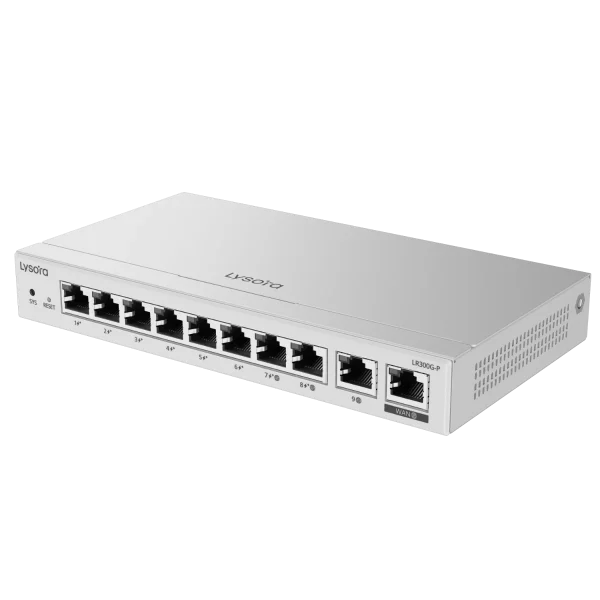

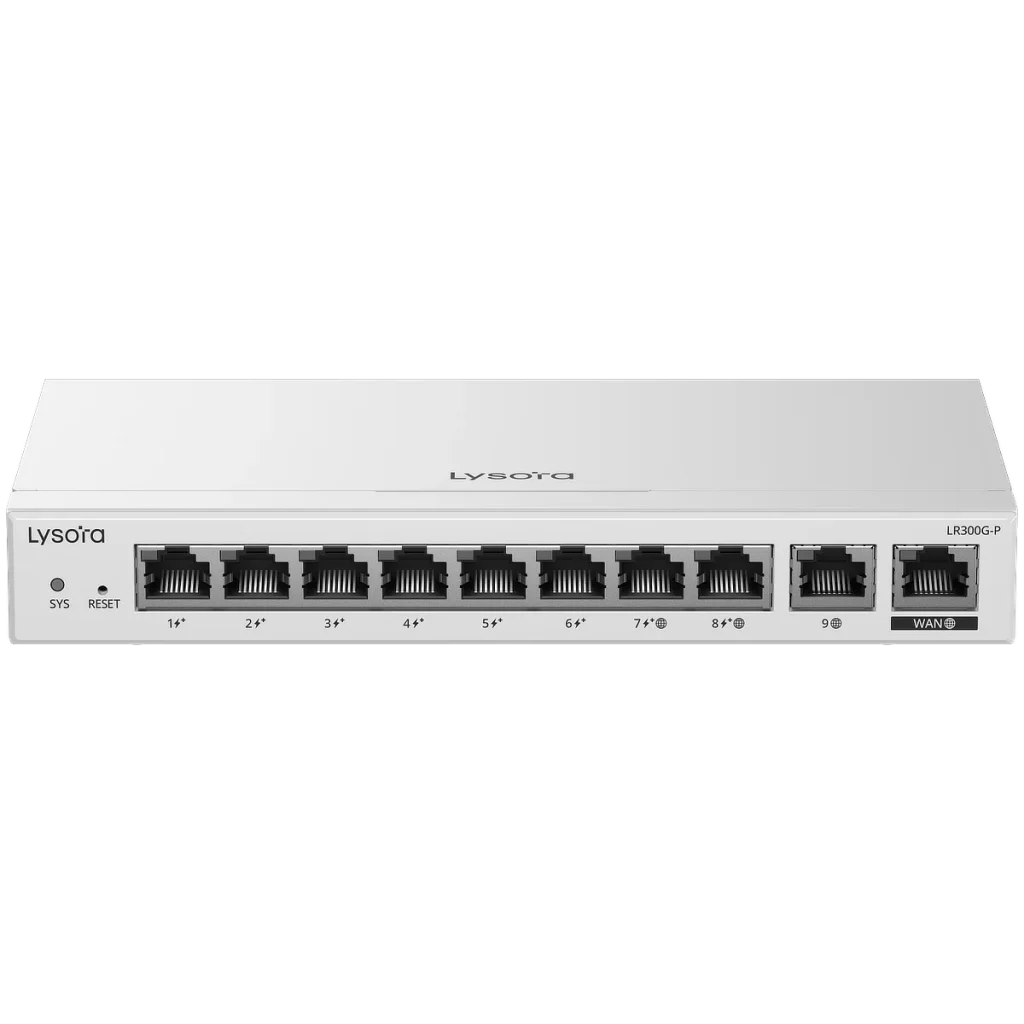

  • Desktop 10-port full gigabit router, providing one WAN port, six LAN ports, and three LAN/WAN ports
  • Supports eight PoE/PoE+ interfaces, up to a maximum of 110 W power
  • Recommended 300 simultaneous users, maximum 1.5 Gbps throughput
  • Cloud remote management supported (via Lysora Cloud Portal)

Specification

General Specifications
Product Model LR300G-P
Device Description 10-Port Cloud Managed Router with 110 W PoE Budget
Dimensions 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.)
Weight 1.62 kg (3.57 lbs) (with packaging materials), 0.55 kg (1.212 lbs) (without packaging materials)
Enclosure Material Metal
Mounting Desktop Mounting
Warranty 3 years
Hardware & Performance
1GbE RJ45 Ports 10
1G SFP Ports –
PoE/PoE+ Out Ports 8
Forwarding Rate 8.9 Mpps
Recommended number of clients 350 clients
Throughput 1.5 Gbps
VPN Support L2TP, PPTP, OpenVPN, IPsec, WireGuard, L2TP over IPsec, SD-WAN
CPU Dual-core processor, 1.35 GHz clock frequency per core
Power & Environment
PoE Budget 110 W
Max. Power Consumption 9 W (with no PoE load), 119 W (with PoE full load)
Operating Temperature -10°C to 50°C (14°F to 122°F)
Cooling Fanless design / Natural cooling
Management & Compliance
Management Options Cloud, App, and Web management
SSH & Telnet No
NDAA Compliant Yes
Certifications CE, FCC, IC, cTUVus, UL 62368-1

Download
