LYS-L6
This is a Wi-Fi 6 wireless AP, designed for medium-density projects. It has 4 spatial streams, supports up to 512 simultaneous users, and has a coverage area of 145 m².
Description

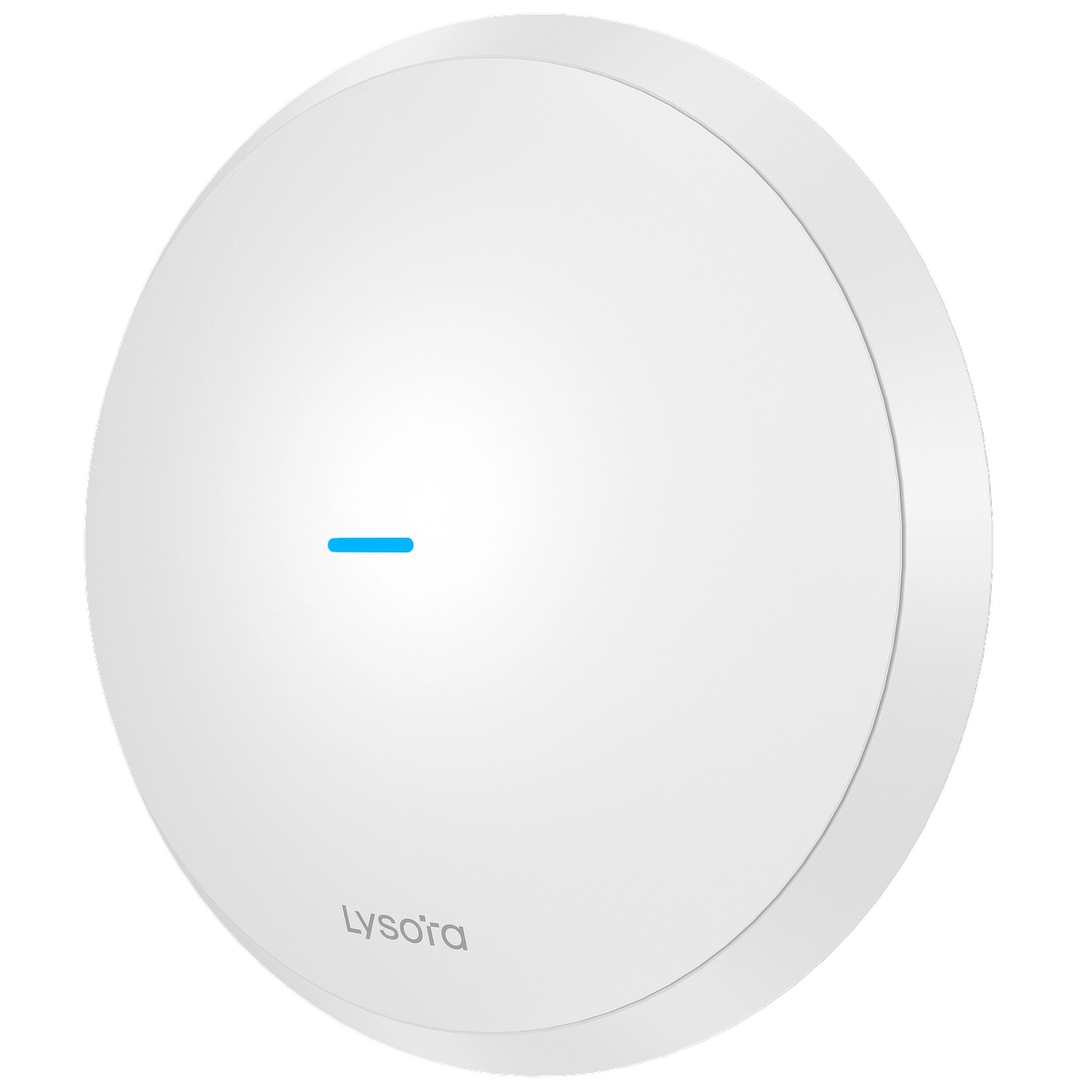

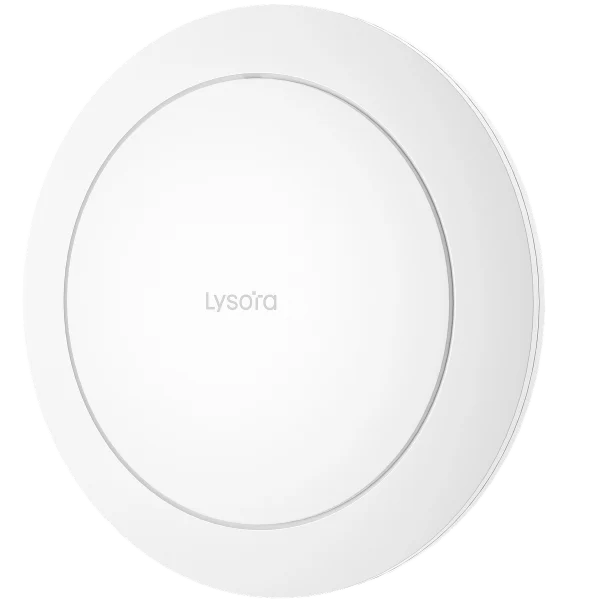

The Lysora L6Lite is a Wi-Fi 6 ceiling-mounted access point, designed for medium-density applications. It supports up to 512 users, with a maximum bandwidth of 2974 Mbps between the 2.4 GHz and 5.8 GHz channels. There are 4 spatial streams with a coverage area of 145m² (1560ft²).
This access point can be powered via standard PoE and consumes up to 18 W of power. You can manage it remotely through the Lysora Cloud Portal – allowing you to configure the SSID(s) and other settings for your customer before installation.
Features – Wi-Fi 6 AX1800 Dual-Band Ceiling Mount Access Point
- Wi-Fi 6 AX3000 dual-band ceiling mount access point with built-in antennas

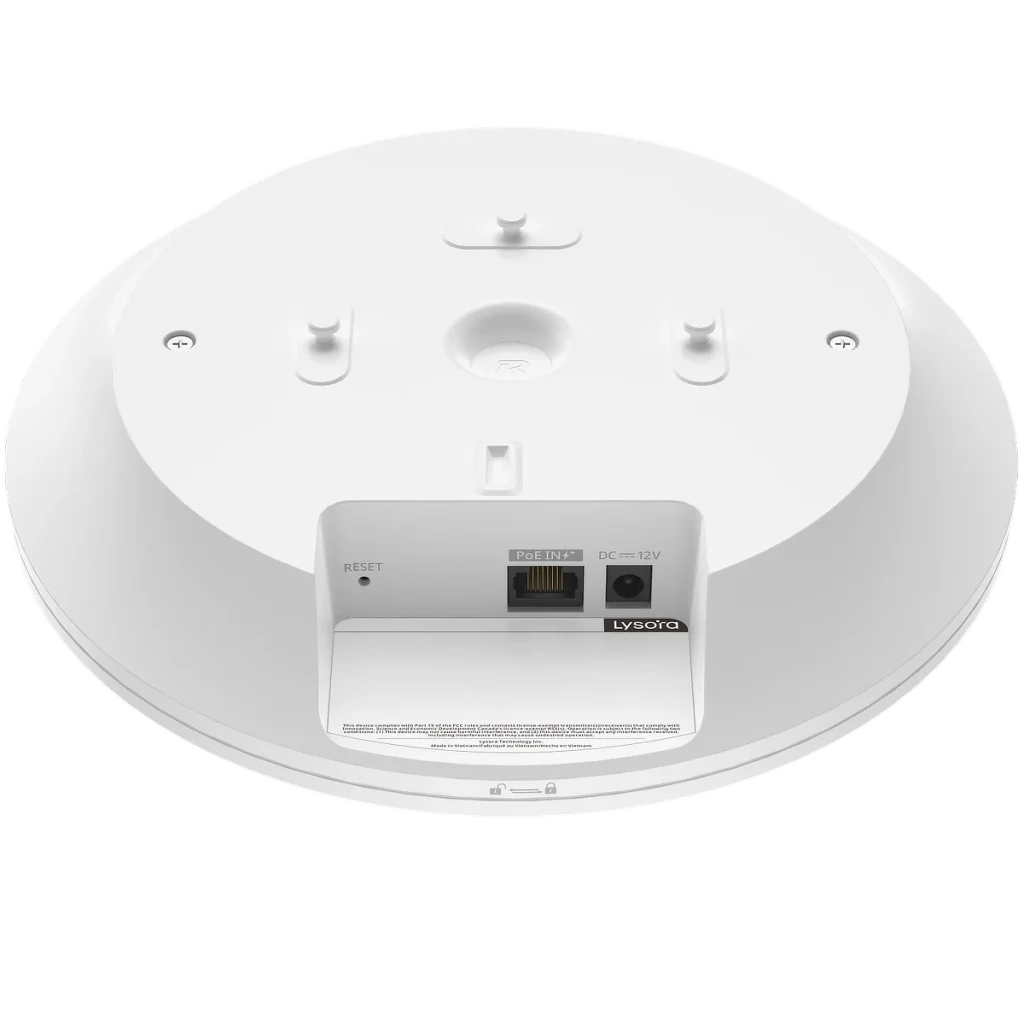

- 1 x 1GE LAN port
- Dual-band 2.4 GHz/5 GHz
- Compliant with 802.11ac and 802.11ax (Wi-Fi 5 & Wi-Fi 6)
- Wireless data rate of up to 2974 Mbps
- AP mode and routing mode
- Layer 3 roaming
- Unified networking and management based on Lysora Cloud App
- PoE input and local power supply (PoE injector and DC adapter purchased separately)
Specification
| Overview | |

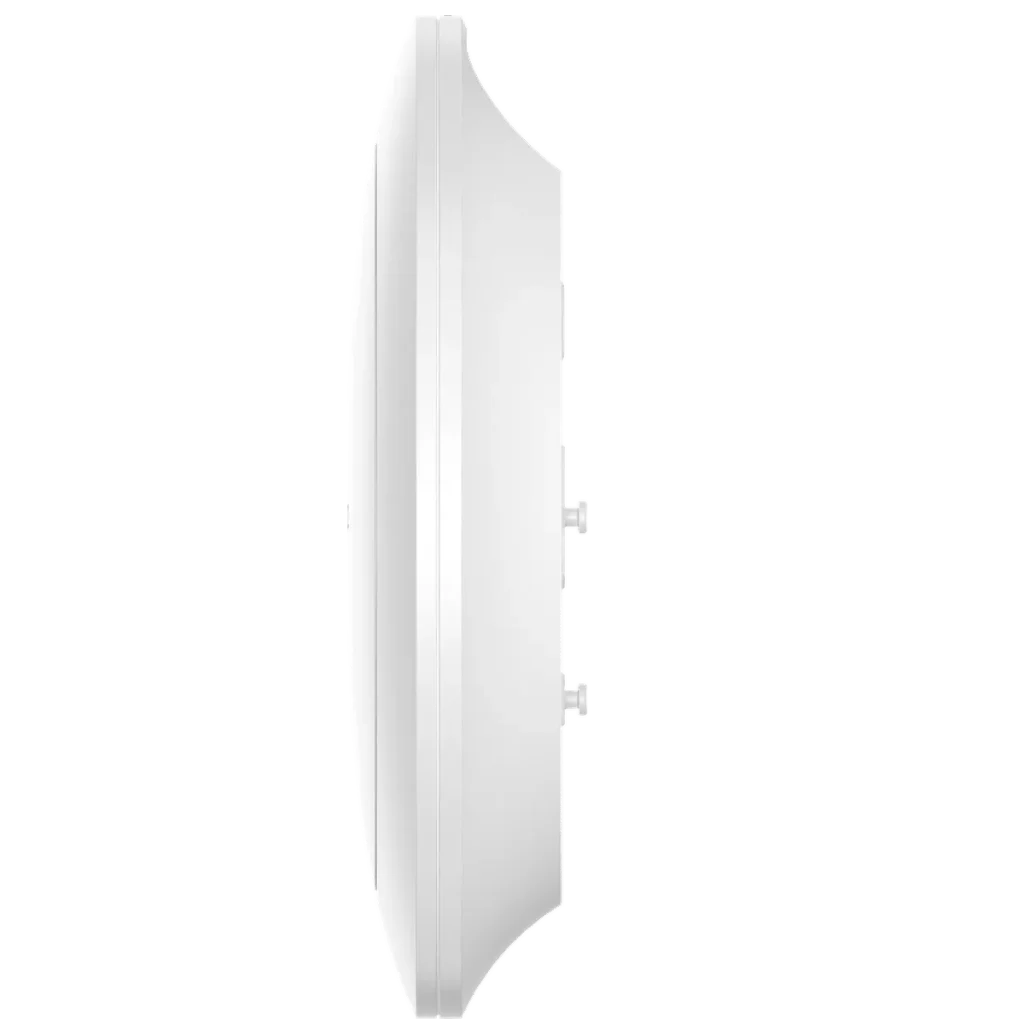

| Dimensions | Ø220 mm x 52.6 mm (Ø8.66 in. x 2.07 in.) (excluding the mounting bracket) |
| Weight | ≤0.5 kg (1.10 lbs) (without packaging); ≤0.7 kg (1.54 lbs) (with packaging) |
| Coverage Area | 145㎡ (1560.77 square ft.) |

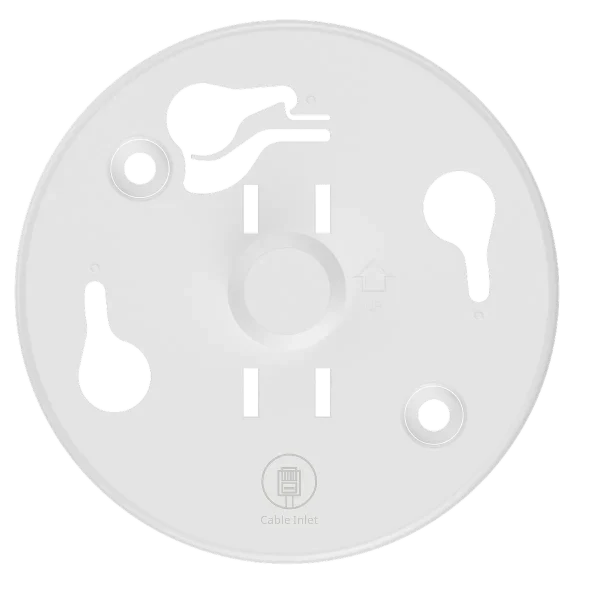

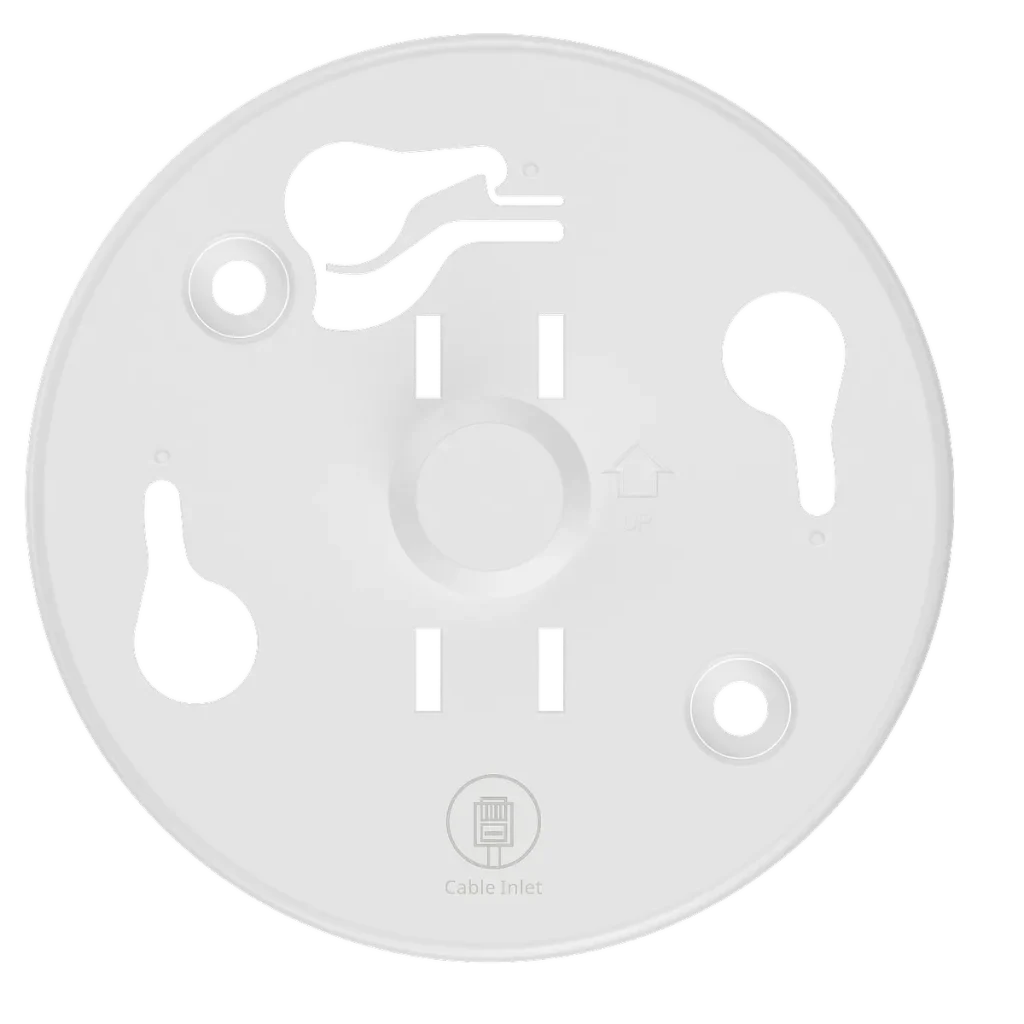

| Mounting Type | Ceiling Mount, Wall-mounted (Mounts Included) |
| Hardware & Networking | |

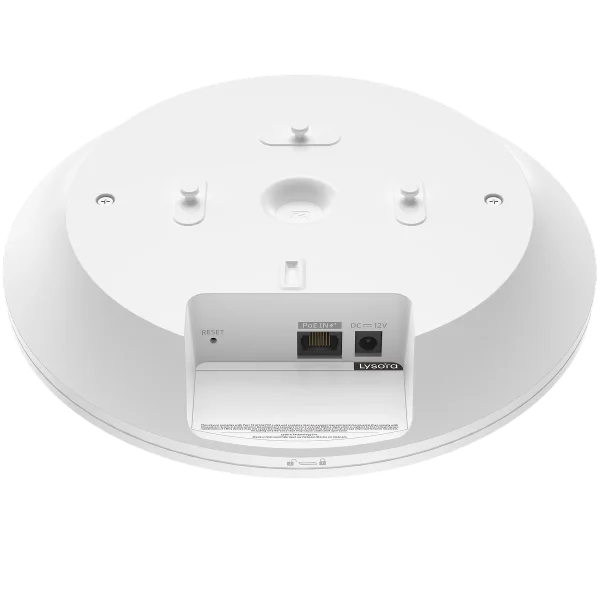

| Networking Interface | 1 x 1 GE RJ45 port |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 5 & Wi-Fi 6) |
| Antenna Gain | 2.4 GHz: 3.53 dBi, 5 GHz: 5.15 dBi |
| Max. Transmit Power | 2.4 GHz: 28 dBm, 5 GHz: 29.7 dBm |
| LED | 1 × System Status LED |
| Button | 1 × Factory Reset Button |
| Wireless Performance | |
| Max Wireless Data Rate | 2.4 GHz: 573 Mbps, 5 GHz: 2401 Mbps |
| Max. Client Count | 512 (2.4 GHz and 5 GHz enabled) |
| MIMO | 2.4 GHz: 2 x 2 MU-MIMO, 5 GHz: 2 x 2 MU-MIMO |
| Spatial Streams | 4 |
| Power Specifications | |
| Power Consumption | < 18 W |
| Power Method | PoE/PoE+ or DC (12 V, 2A) (Adapter not included) |
