LYS-LCS-8GS-P
This is a 8-port managed PoE switch with two uplink ports and one SFP port. It supports PoE+ of power on the eight main ports, up to a total PoE budget of 120 W. It also has layer-2 features such as VLAN configuration, DHCP snooping, and rebooting individual PoE ports.
Description

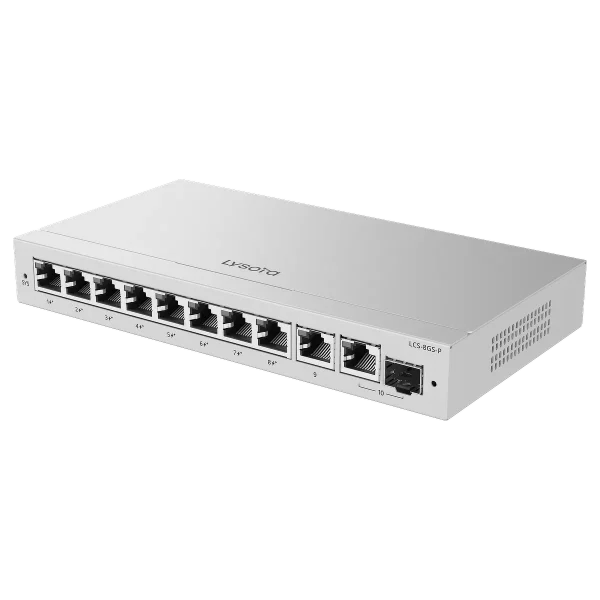

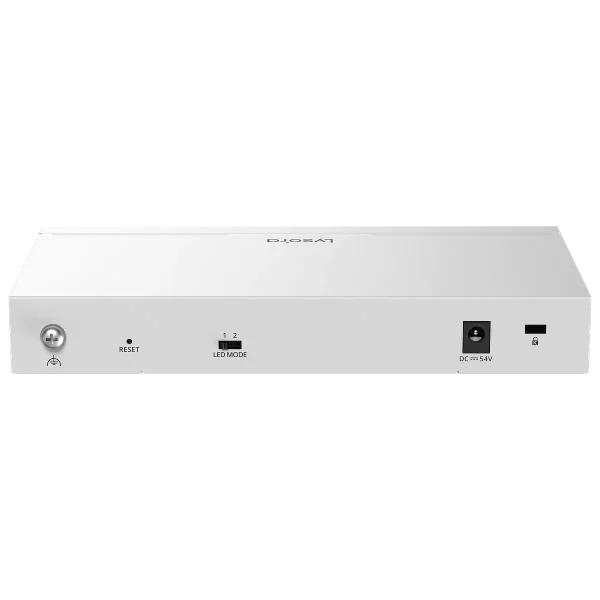

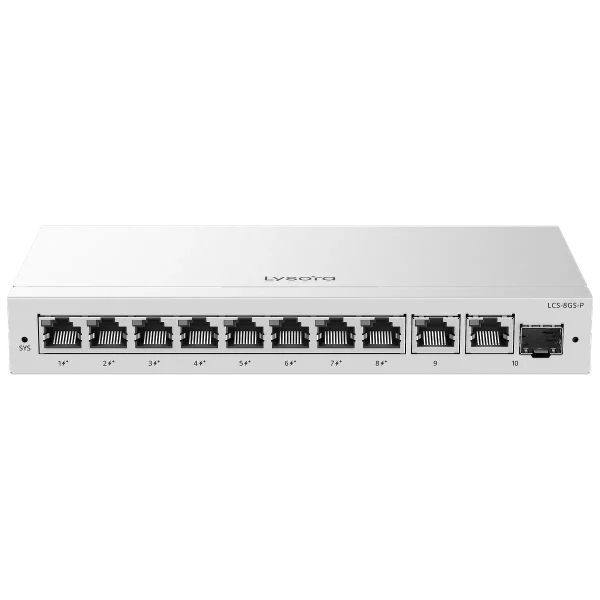

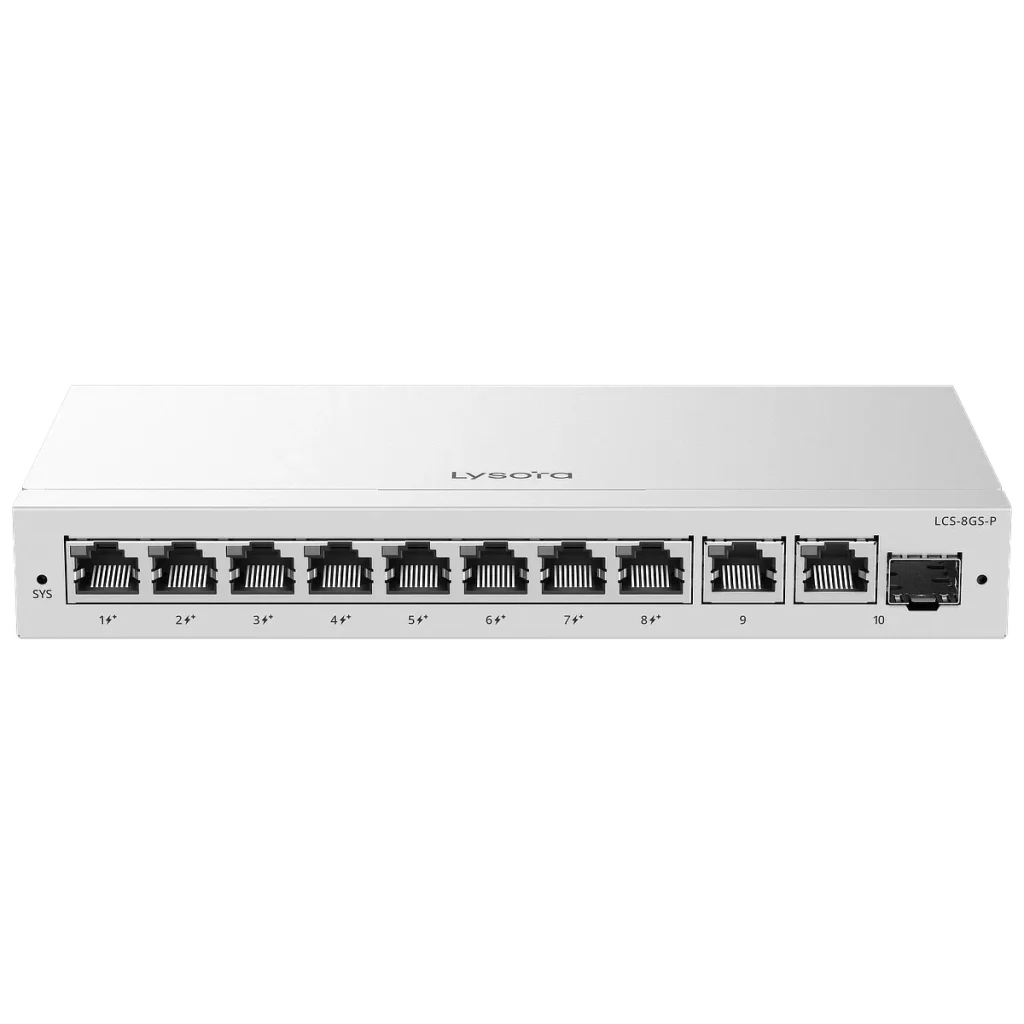

The Lysora LCS-8GS-P is a eight port managed PoE switch with a 120 W PoE budget. You can manage it remotely through the Lysora Cloud Portal, letting you reboot individual ports and monitor the PoE usage of each port.
This is a layer-2 switch, which means you can use it to segment your network into different VLANs – improving security and reducing cross-talk between different devices.
This switch also supports the following features:
- DHCP Snooping – Set certain ports as trusted, which means only devices on those ports can assign DHCP addresses to the rest of your network (improves security).
- Loop Prevention – Block the signal from any ports that are looped, preventing the network from crashing.
- Long-distance PoE – Allows you to connect a device up to 250 m (820 ft)but lowers the speed of the port to 10 Mbps.
- PoE Watchdog – Will automatically reboot the PoE port if no traffic is detected after 90 – 1800 seconds (adjustable).
Features –8-Port Cloud Managed PoE Switch with 120 W PoE Budget
- 10-Port Gigabit Smart POE Switch
- 8 PoE/POE+ Gigabit RJ45 Ports with 1 Gigabit RJ45/1 combo SFP uplink ports
- 120W PoE power budget, Desktop Steel Case
- Supports Layer-2 features such as VLAN, Rate Limiting, DHCP Snooping, Static Mac Address, and more
Specification
| General Specifications | |
| Product Model | LCS-8GS-P |
| Device Description | 8-Port Cloud Managed PoE Switch with 120 W PoE Budget |
| Dimensions | 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.) |
| Weight | 0.55 kg (1.21 lbs) (without packaging materials), 1.65 kg (3.64 lbs) (with packaging materials) |
| Enclosure Material | Metal |

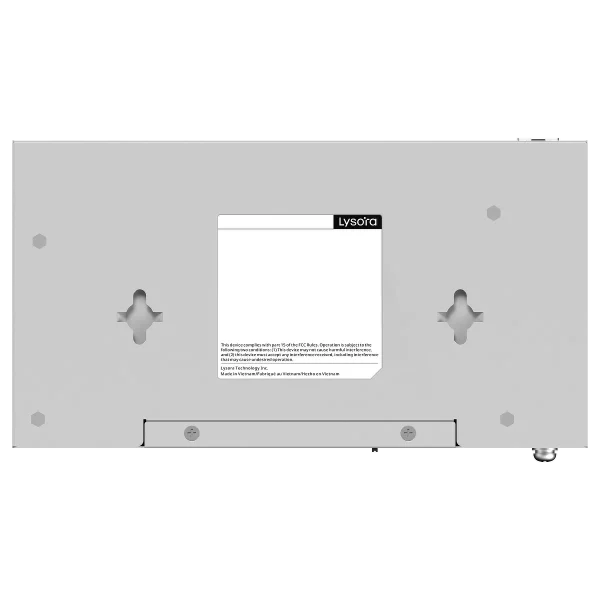

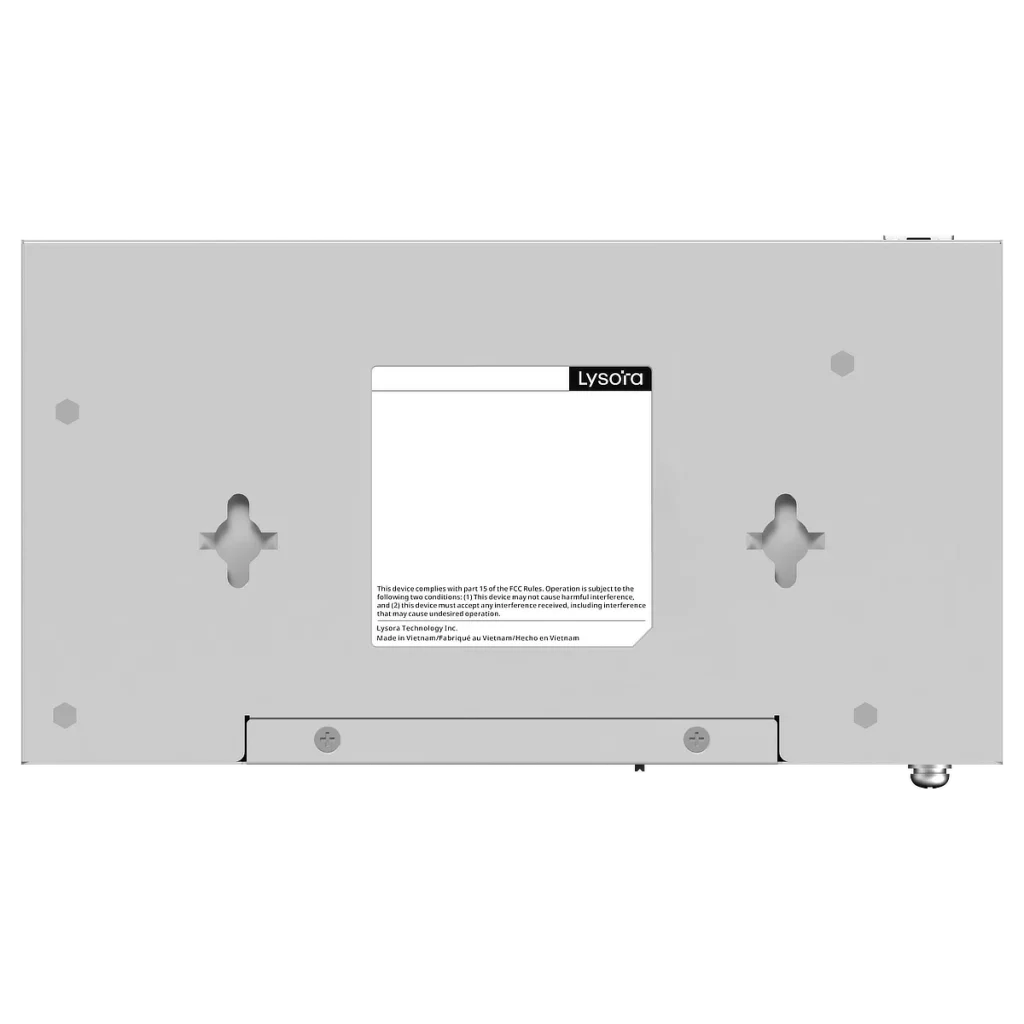

| Mounting | Wall/Desk |
| Warranty | 3 years |
| Hardware & Performance | |
| 1GbE RJ45 Ports | 10 |
| 1G SFP Ports | 1 |
| PoE/PoE+ Out Ports | 8 |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.8 Mpps |
| MAC Address Table | 4000 entries |
| Jumbo Frame (MTU) | 9216 bytes |
| MTBF | 200,000 hours |
| Power & Environment | |
| PoE Budget | 120 W |
| Max. Power Consumption | 10 W (with no PoE load), 130W (with PoE full load) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Cooling | Fanless design / Natural cooling |
| Management & Compliance | |
| Management Options | Cloud, App, and Web management |
| PoE Watchdog | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC |
