Product Overview

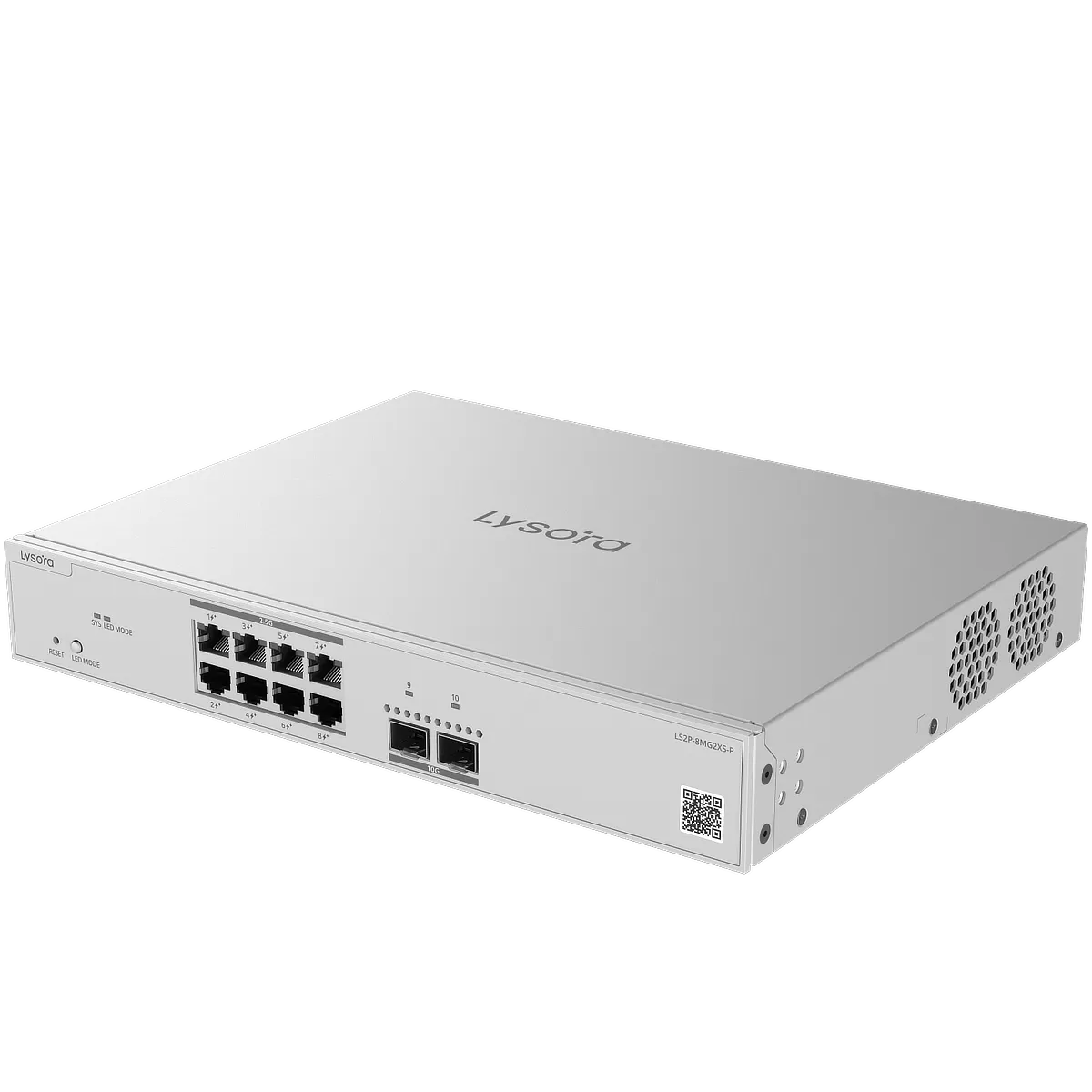

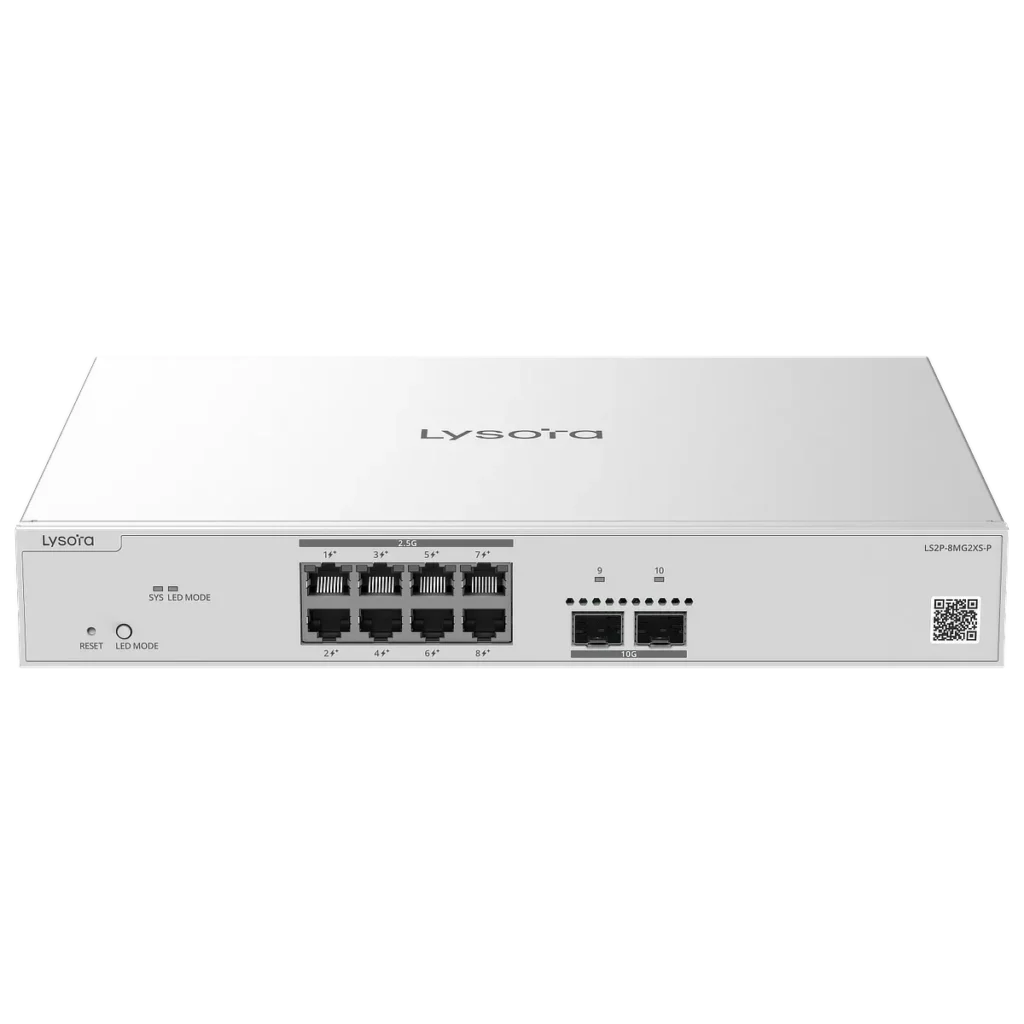

The Lysora LS2P-8MG2XS-P is multi-gigabit Layer 2+ switch – designed for large networks and high bandwidth applications. The RJ45 ports are 2.5 Gigabit, while the SFP+ ports are 10 Gigabit. It also has 8 PoE+ ports, with a total power budget of 240 W.

You can manage it remotely through the Lysora Cloud Portal, letting you reboot individual ports and monitor the PoE usage of each port.

This is a layer-2+ switch with a large packet buffer, improved switching capacity, and better forwarding rate compared with the Lysora LCS series switches. This is basically an enterprise-level switch, designed to handle whatever type of traffic you throw at it.

This switch also supports the following features:

• DHCP Snooping – Set certain ports as trusted, which means only devices on those ports can assign DHCP addresses to the rest of your network (improves security).
• Loop Prevention – Block the signal from any ports that are looped, preventing the network from crashing.
• Long-distance PoE – Allows you to connect a device up to 250 m (820 ft), but lowers the speed of the port to 10 Mbps.
• PoE Watchdog – Will automatically reboot the PoE port if no traffic is detected after 90 – 1800 seconds (adjustable).
• STP (spanning tree protocol) – Supports STP, RSTP, and MSTP for automatic failover, improving network redundancy.
• Packet Capture & Detailed Syslog – Run packet captures directly on the switch, giving you flexibility for troubleshooting network issues.
• Static Routing – Add static routes so that devices from separate VLANs can communicate with each other without needing to travel through the router.

Features – 8-Port Layer 2+ Managed PoE Switch with 240 W PoE Budget
