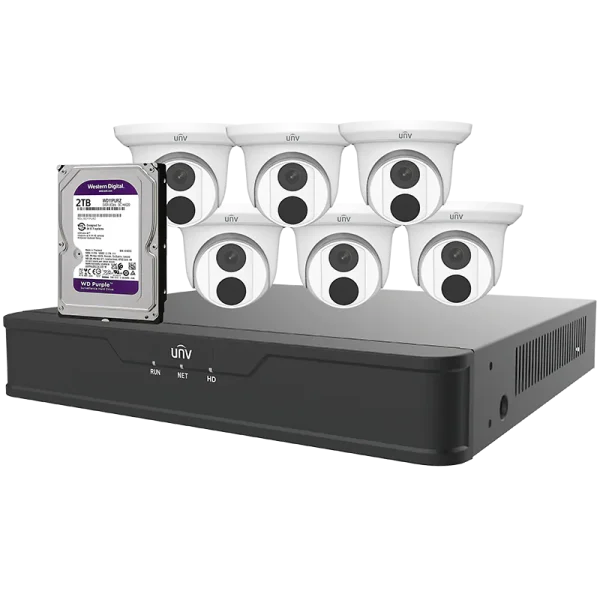

UNV-KIT-301-P8-6T4-2TB – Uniview 6 Camera Kit
Uniview security camera kit including NVR301-08LS3-P8, 6* EC-T4F28M, and 2TB Western Digital Purple HDD.
Description
Features – Uniview 8Ch NVR + 6 Cameras Kit
NVR301-08LS3-P8
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
- Support cloud upgrade
EC-T4F28M
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
Specification
| Model | NVR301-08LS3-P8 | ||||||||||
| Video/Audio Input | |||||||||||
| IP Video Input | 8-ch | ||||||||||
| Two-way Audio Input | 1-ch, RCA | ||||||||||
| Network | |||||||||||
| Incoming Bandwidth | 64Mbps | ||||||||||
| Outgoing Bandwidth | 48Mbps | ||||||||||
| Remote Users | 128 | ||||||||||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||||||||||
| Browser | IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
||||||||||
| Video/Audio Output | |||||||||||
| HDMI/VGA Output | HDMI:
4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
||||||||||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||
| Audio Output | 1-ch, RCA | ||||||||||
| Audio Compression | G.711A, G.711U | ||||||||||
| Synchronous Playback | 8-ch | ||||||||||
| Liveview display | 1/4/6/8/9 | ||||||||||
| Corridor Mode Screen | 3/4/5/7/9 | ||||||||||
| Snapshot | |||||||||||
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution | ||||||||||
| Decoding | |||||||||||
| Decoding format | Ultra 265/H.265/H.264 | ||||||||||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||||
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | ||||||||||
| Hard Disk | |||||||||||
| SATA | 1 SATA interface | ||||||||||
| Capacity | up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature) |
||||||||||
| Smart | |||||||||||
| VCA Detection by Camera | Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection | ||||||||||
| VCA Search | Face Search, Behavior Search | ||||||||||
| Smart Intrusion Prevention (SIP) by Camera | 4-ch(supports channel 1-4; Alarm only, no image) | ||||||||||
| Face Detection by Camera | 4-ch | ||||||||||
| General Alarm | |||||||||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | ||||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||||||
| External Interface | |||||||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||||||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||||||||
| RS232 | NA | ||||||||||
| RS485 | NA | ||||||||||
| Alarm In | NA | ||||||||||
| Alarm Out | NA | ||||||||||
| PoE | |||||||||||
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface | ||||||||||
| Max Power | Max 30W for single port
Max 75W in total |
||||||||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||||||||||
| General | |||||||||||
| Power Supply | 52V DC
Power Consumption: ≤9 W (without HDD) |
||||||||||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||||||||||
| Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2″×9.4″×1.9 “) | ||||||||||
| Weight (without HDD) | ≤1.1kg (2.43lb) | ||||||||||
| Certification | |||||||||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||||||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||||||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||||||||
| Model | IPC3614LB-PF28 | ||||||||||
| Camera | |||||||||||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||||||||||
| Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR |
||||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||||
| Adjustment angle | Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | ||||||||||
| S/N | >56dB | ||||||||||
| WDR | DWDR | ||||||||||
| Lens | |||||||||||
| Lens Type | 2.8mm and 4.0mm @2.0, Fixed-focal | ||||||||||
| Lens Mount | M12 | ||||||||||
| Angle of View (H) | 97.0° | 79.0° | |||||||||
| Angle of View (V) | 52.2° | 42.3° | |||||||||
| Angle of View (O) | 107.5° | 85.1° | |||||||||
| DORI | |||||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||||
| Illuminator | |||||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||||
| Wavelength | 850nm | ||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||
| Video | |||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||||||||
| U-code | Supported | ||||||||||
| OSD | Up to 4 OSDs | ||||||||||
| Privacy Mask | Up to 4 areas | ||||||||||
| ROI | Up to 8 areas | ||||||||||
| Motion Detection | Up to 4 areas | ||||||||||
| Image | |||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||||
| Smart IR | Support | ||||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||||
| Dewarping | N/A | ||||||||||
| HLC | Supported | ||||||||||
| BLC | Supported | ||||||||||
| Defog | Digital Defog | ||||||||||
| Events | |||||||||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | ||||||||||
| Motion detection, tampering alarm | |||||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||||||||
| Storage | |||||||||||
| Edge Storage | Micro SD, up to 128GB | ||||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||||
| Network | |||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||||
| Client | EZStation
EZView EZLive |
||||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||||||||
| Interface | |||||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||||
| Certification | |||||||||||
| EMC | FCC: FCC Part 15 | ||||||||||
| Safety | CE: EN 60950-1
UL: UL60950-1 IEC 60950-1 |
||||||||||
| General | |||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||||
| Power consumption: Max 4.0W | |||||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||||
| Material | Metal + Plastic | ||||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||||
| Surge Protection | 4KV | ||||||||||
| Reset Button | N/A | ||||||||||
| Ingress Protection | Ingression protection: IP67 | ||||||||||
