UNV-KIT-301-P4-4T4DL-1TB – Uniview 4 Camera Dual Light Kit
This is a 4-channel security camera kit from Uniview. It comes with: 4x EC-T4F28M-DL, 1x NVR301-04S3-P4, and 1x 1TB WD Purple HDD. These cameras are dual light, meaning they have both an IR and white LED light. This allows the camera to see in full colour at night, or to run in Dual Light Mode – where the camera’s white light will only turn on when a person or vehicle passes by.
This kit also includes an HDMI cable for connecting the NVR to a TV or monitor.
Description
Uniview’s security camera kits are an affordable way to get started with one of the top video surveillance brands! This kit features 4MP Dual Light cameras – these cameras have both infrared and white light LEDs, giving you added flexibility in how you configure the system.
This cameras from this kit have three illumination modes:
- White Light – The LED turns when the environment is dark, providing supplementary illumination and colour information. This light is visible to anyone in the area.
- Infrared – The IR LED turns on in the dark, providing a black & white image of the scene. This light is nearly invisible to people passing by, minimizing the attention to the camera.
- Dual Light (default) – When the scene is dark, the IR LED will turn on and provide a black & white image of the scene. When ultra motion detection is triggered, the white LED will turn on and provide a colourful image.
Inside the kit you’ll find a 4ch Uniview NVR with a 1TB HDD and 4x EC-T4F28M-DL Dual Light cameras. If you need a backbox for these cameras, you can use TR-JB03-H-IN.
Features – Uniview 4Ch Dual Light Kit
NVR301-04S3-P4
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
- Support cloud upgrade

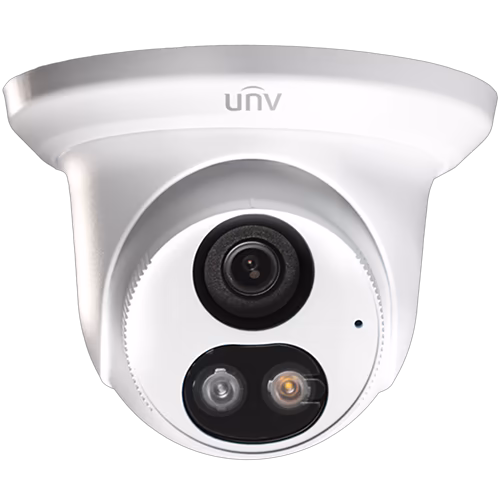

EC-T4F28M-DL
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- White Light, up to 30m (98ft) white light distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
Specification
Model | NVR301-04S3-P4 | ||||
Video/Audio Input | |||||
IP Video Input | 4-ch | ||||
Network | |||||
Incoming Bandwidth | 64Mbps | ||||
Outgoing Bandwidth | 48Mbps | ||||
Remote Users | 128 | ||||
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP | ||||
Video/Audio Output | |||||
HDMI/VGA Output | HDMI: 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
||||
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
Audio Output | 1-ch, RCA | ||||
Audio Compression | G.711A, G.711U | ||||
Synchronous Playback | 4-ch | ||||
Livieview display | 1/4 | ||||
Corridor Mode Screen | 3/4 | ||||
Snapshot | |||||
FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | ||||
Decoding | |||||
Decoding format | Ultra 265/H.265/H.264 | ||||
Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 | ||||
Hard Disk | |||||
SATA | 1 SATA interface | ||||
Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
||||
Smart | |||||
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | ||||
VCA Search | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection(UMD) | ||||
Smart Intrusion Prevention (SIP), UMD by Camera | Total 4-ch | ||||
General Alarm | |||||
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||||
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
External Interface | |||||
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||
USB Interface | Rear panel:2 x USB2.0 | ||||
RS232 | NA | ||||
RS485 | NA | ||||
Alarm In | NA | ||||
Alarm Out | NA | ||||
PoE | |||||
Interface | 4 RJ-45 10M/100Mself-adaptive Ethernet Interface | ||||
Max Power | Max 30W for single port Max 54W in total |
||||
Supported Standard | IEEE 802.3at, IEEE 802.3af | ||||
General | |||||
Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
||||
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||||
Dimensions(W×D×H) | 260mm ×240mm × 46 mm (10.2″ × 9.4″ ×1.8″) | ||||
Weight ( without HDD ) | ≤1.1kg (2.43lb) | ||||
Certification | |||||
Certification | CE, FCC, UL, RoHS, WEEE | ||||
CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
FCC | Part15 Subpart B, ANSI C63.4 | ||||
Model | EC-T4F28M | ||||
Camera | |||||
Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||||
Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Adjustment angle | Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | ||||
S/N | >56dB | ||||
WDR | DWDR | ||||
Lens | |||||
Lens Type | 2.8mm @2.0, Fixed-focal | ||||
Lens Mount | M12 | ||||
Angle of View (H) | 97.0° | ||||
Angle of View (V) | 52.2° | ||||
Angle of View (O) | 107.5° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
Illuminator | |||||
IR Range | Up to 30m (98ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||
Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
Video Bit Rate | 128 Kbps~6144 kbps | ||||
U-code | Supported | ||||
OSD | Up to 4 OSDs | ||||
Privacy Mask | Up to 4 areas | ||||
ROI | Up to 8 areas | ||||
Motion Detection | Up to 4 areas | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Vertical/Horizontal/180° | ||||
Dewarping | N/A | ||||
HLC | Supported | ||||
BLC | Supported | ||||
Defog | Digital Defog | ||||
Events | |||||
Behavior Detection | Cross line, intrusion(based on human body detection) | ||||
Motion detection, tampering alarm | |||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
Storage | |||||
Edge Storage | Micro SD, up to 128GB | ||||
Network Storage | ANR, NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZView EZLive |
||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
Interface | |||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Certification | |||||
EMC | FCC: FCC Part 15 | ||||
Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
||||
General | |||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
Power consumption: Max 4.0W | |||||
Power Interface | Ø 5.5mm coaxial power plug | ||||
Material | Metal | ||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge Protection | 4KV | ||||
Reset Button | N/A | ||||
Ingress Protection | Ingression protection: IP67 |
